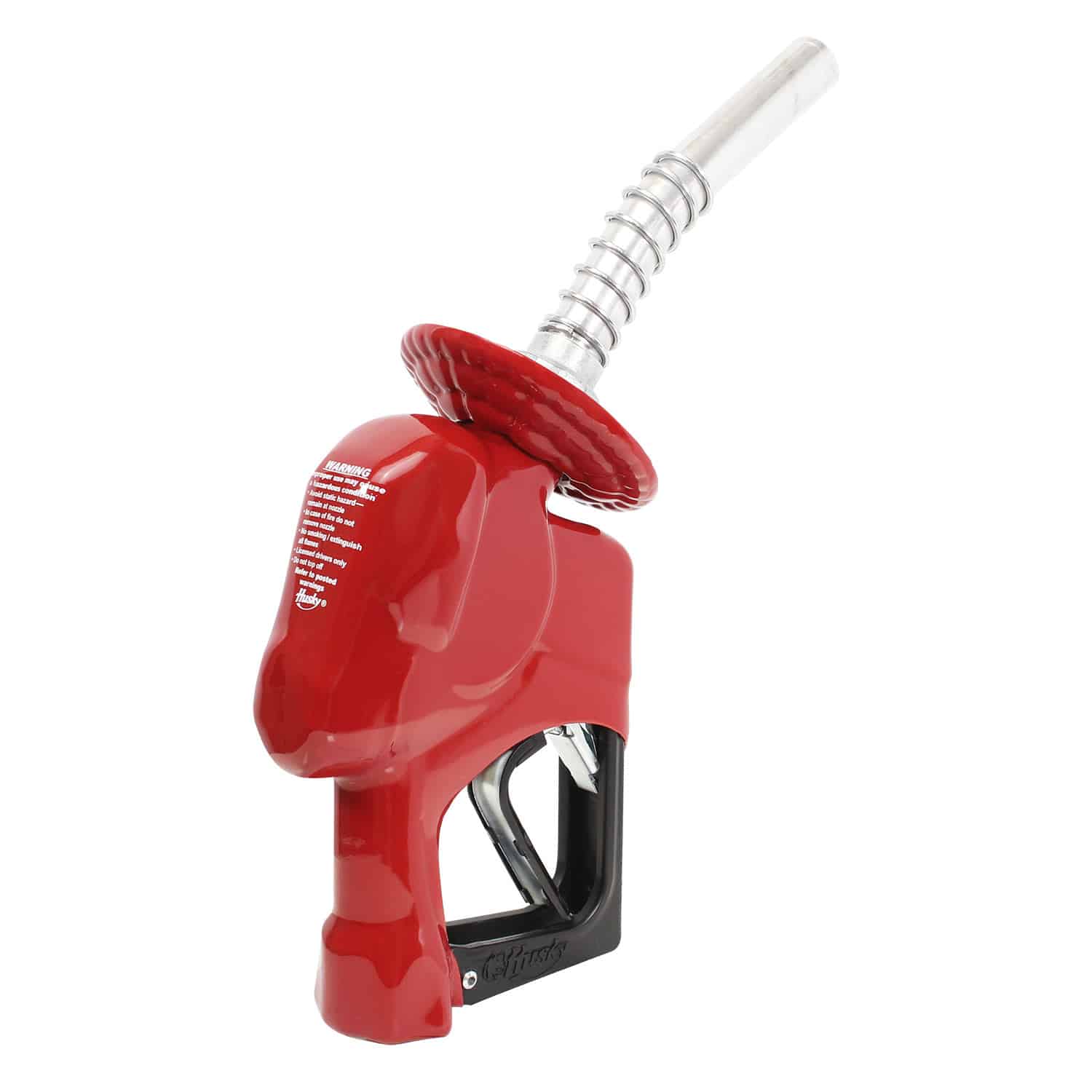

1" Light Duty Diesel Nozzle with Three Notch Hold Open Clip, Polymer Handguard, 1808 Waffle Splash Guard, and Drip Less Spout
Pressure Activated automatic shut-off nozzle for full-service and self-service stations.
Features/Benefits
- 1AS nozzle shuts off when:
— the pump shuts off.
— the gas tank is full.
— the lever is opened before the pump is turned on.
— the leak detector has not completed the test cycle.

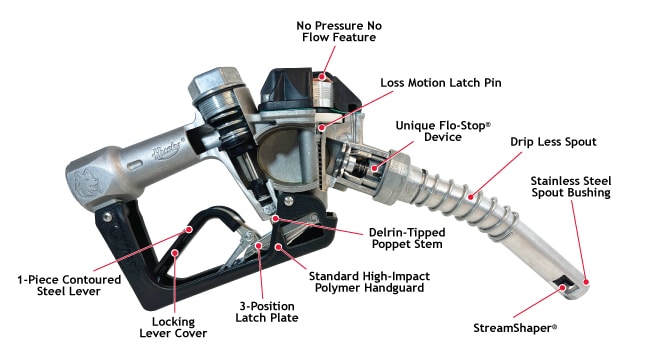

- Stainless steel reinforced spout bushing keeps spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
- Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
- StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
- Comes standard with smooth full grip guard.
- Optional tilt poppet design provides precise “to-the-penny” dispensing.
- Optional cold weather seals are rated to -40°F/C.
- Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to
trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Construction
Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece contoured steel with hard polymer cover
Inlet: 1” / 25.4 mm NPT
