#Osprey Aviation Nozzles: For Private and Commercial Aircraft

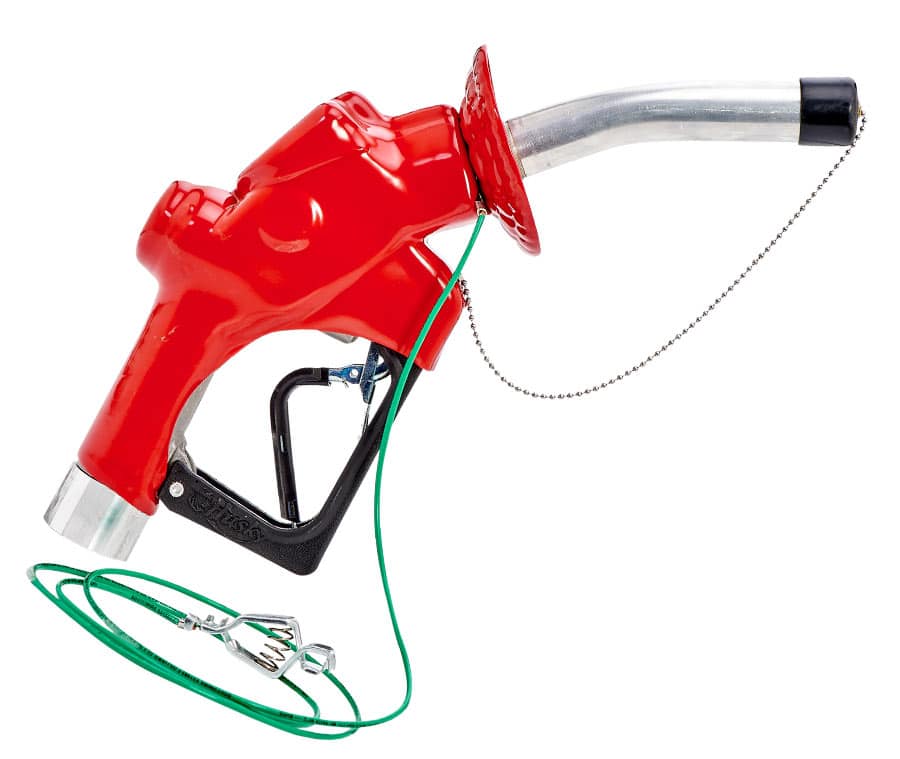

Osprey Aviation Nozzles
Automatic shut-off nozzle for over-the-wing fueling of aircraft.
Product Info
Resources
Specs / Construction
Features/Benefits
Osprey Nozzle
  • Specifically designed for business and private over-the-wing aviation fueling.
  • Automatic shut-off when wing tanks are full.
  • Easy to remove and clean fuel 100 mesh SS fuel filter assembly.
  • Nozzle comes with red full grip guard to identify use only with aviation fuel or black full grip guard for jet fuel application if desired.
  • Complies with IE1540 and NPA 407.
Osprey S Nozzle
  • Specifically designed for business and private over-the-wing aviation fueling.
  • Osprey S nozzle prevents draining of fuel from fueling hose. The nozzle shuts off when - the pump shuts off. - the fuel tank is full. - the lever is opened before the pump is turned on.
  • Nozzle comes with red full grip guard to identify use only with AvGas or black full grip guard for jet fuel application if desired.
  • Easy to remove and clean fuel 100 mesh SS fuel filter assembly.
  • Complies with IE1540 and NPA 407.
Construction

Body: Aluminum
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel
Inlet: 1” / 25.4 mm NPT and BSPP

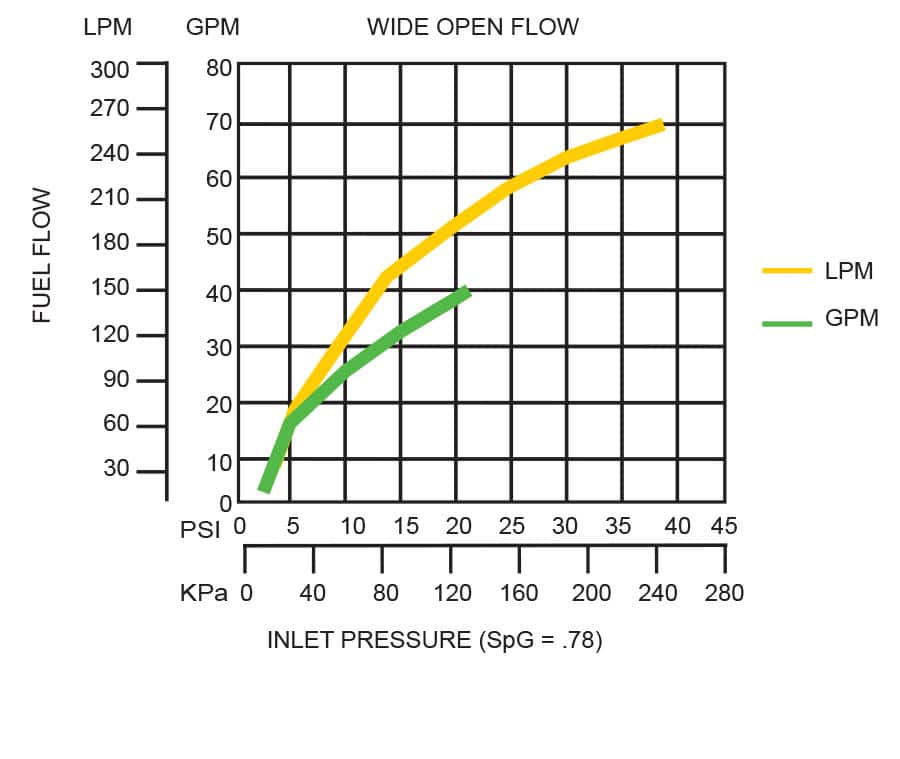

Flow Rate
osprey-flow

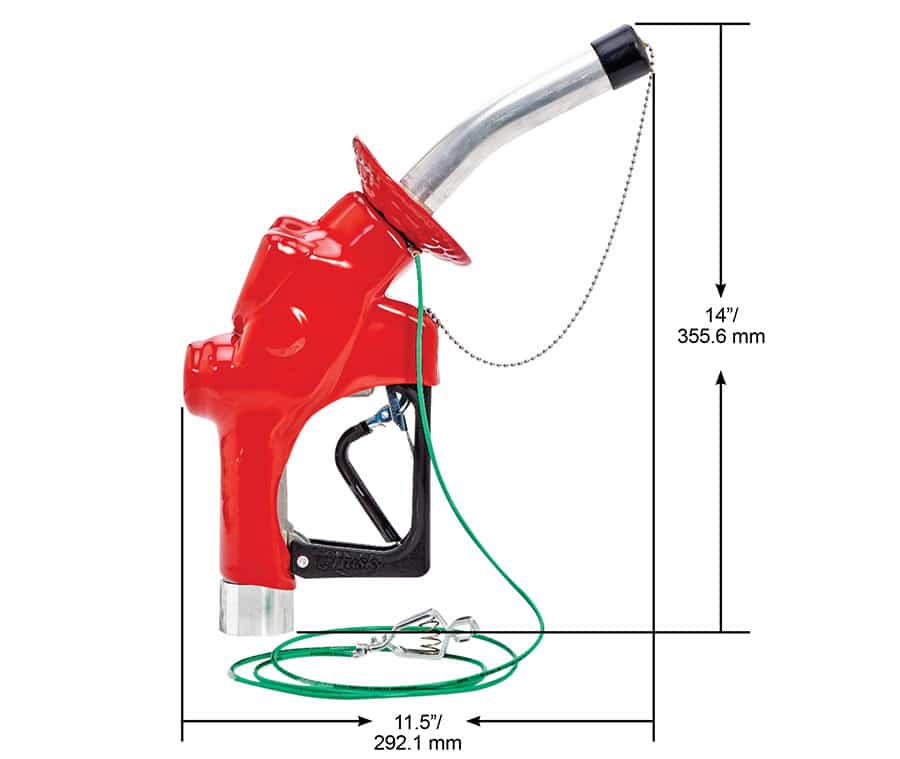

Dimensions
osprey-nozzle-dims
Available Osprey Nozzles
Osprey Nozzles
Osprey Nozzles
Choose …
1149812N: NPT without Hold Open Clip and Spout Bushing, with Waffle Splash Guard and mesh filter
1149840N: BSPP without Hold Open Clip and Spout Bushing, with Waffle Splash Guard and mesh filter
Osprey S Nozzles
Choose …
1212312N: NPT without Hold Open Clip and Spout Bushing, with Waffle Splash Guard and mesh filter
1212340N: BSPP without Hold Open Clip and Spout Bushing, with Waffle Splash Guard and mesh filter
Swivels
Choose …
008517: 1” M x 1” F NPT Single Plane Swivel
004860: 1” M x 1” F NPT Multi-Plane High Flow Swivel
003306: 1” M x 1” F BSPP Multi-Plane Swivel
006949: 1” M x 1” F BSPP Multi-Plane High Flow Swivel
Accessories
Choose …
011817: Electrical Grounding Plug
012141: Osprey Spout Assembly Kit
011946: Spout Cap Assembly
012148: Strainer BSP Kit
012143: Strainer NPT Kit
EZ-Connects for this product have not been configured.
