#Falcon Aviation Nozzles: For Private and Commercial Aircraft

Manual shut-off nozzle for over-the-wing fueling of aircraft.

Product Info

Resources

Specs / Construction

Features/Benefits

Falcon Nozzles

Specifically designed for business and private over-the-wing aviation fueling.
100 mesh stainless steel fuel filter to prevent dust and debris from entering the fuel tank; located in the spout for easy removal and cleaning.
Black jet fuel nozzle with optional duck bill spout or round spout.
Red aviation gas nozzle with round spout.
Available with the following inlets: 1-1/2” (38mm) Female NPT 1-1/2” (38mm) Female BSPP 1-1/4” (32mm) Female NPT 1-1/4” (32mm) Female BSPP

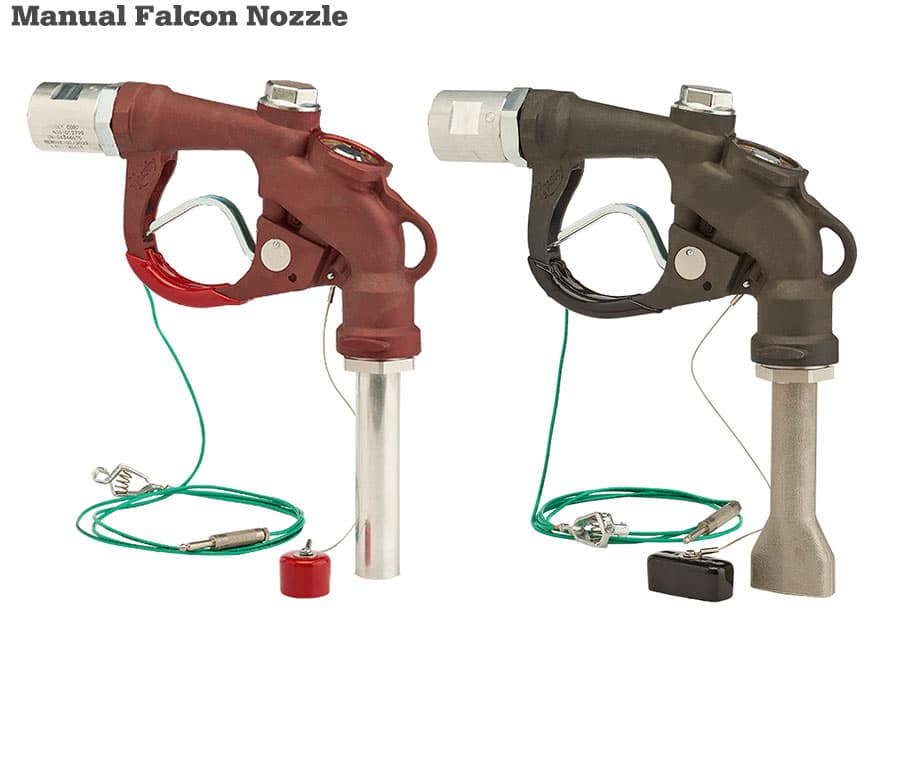

Manual Nozzles: Spout can be removed by loosening nut.

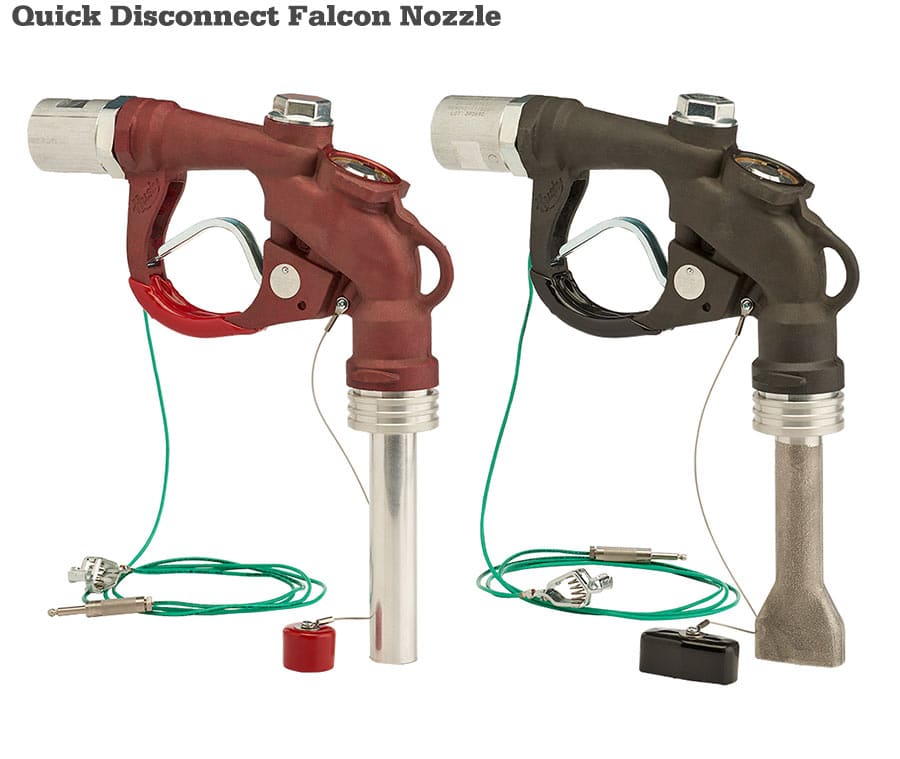

Quick Disconnect Nozzles: Quick disconnect spout feature for easy removal.

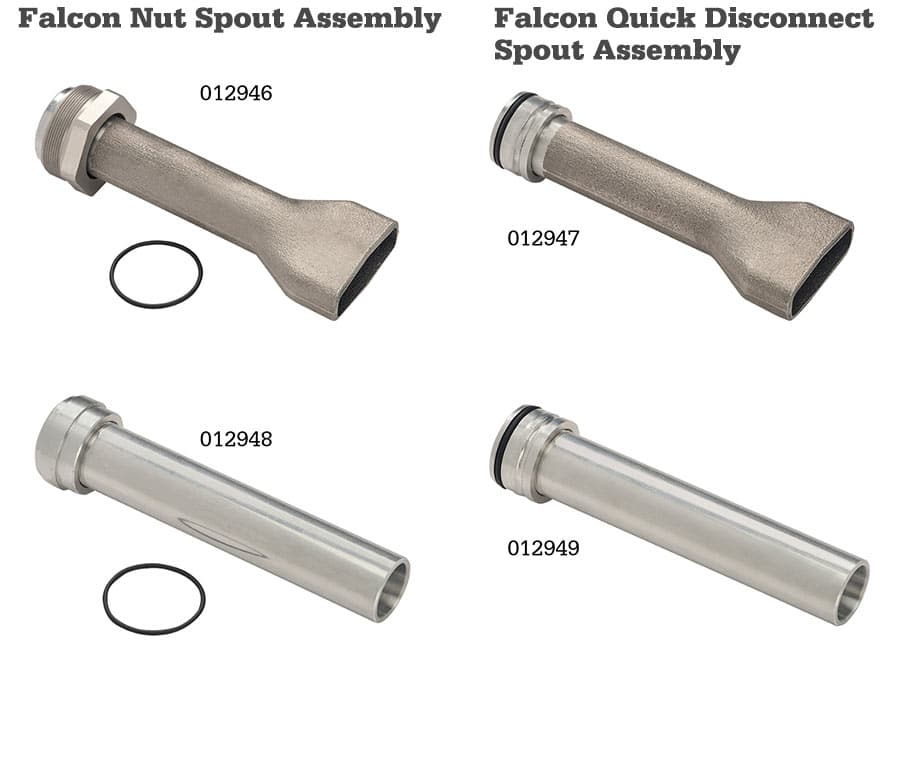

Falcon Spouts

Replacement spout assemblies for nozzles that attach to the nozzle with a nut.
Replacement spout assemblies for nozzles that attach to a nozzle with a quick disconnect.
Duck bill spout assemblies for use with jet fuel only.
Round spout assemblies for use with both aviation and jet fuel.

Catalog Sheets

Falcon Manual Falcon Quick Disconnect Falcon Spouts

Instructions PDFs

009423 009424

Construction

Body: Aluminum
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel

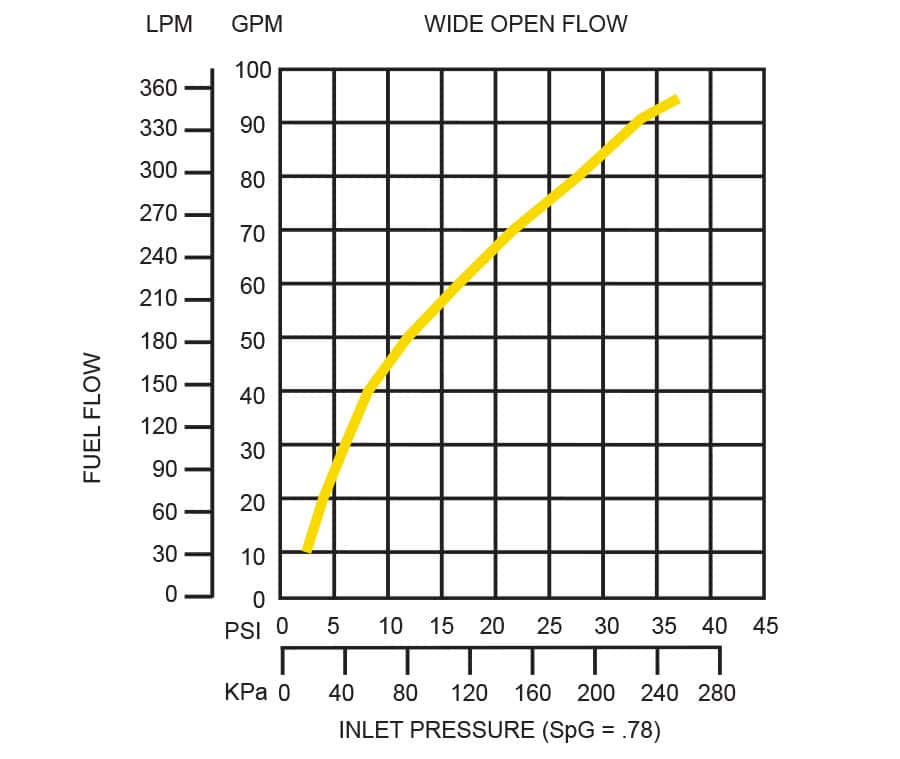

Flow Rate

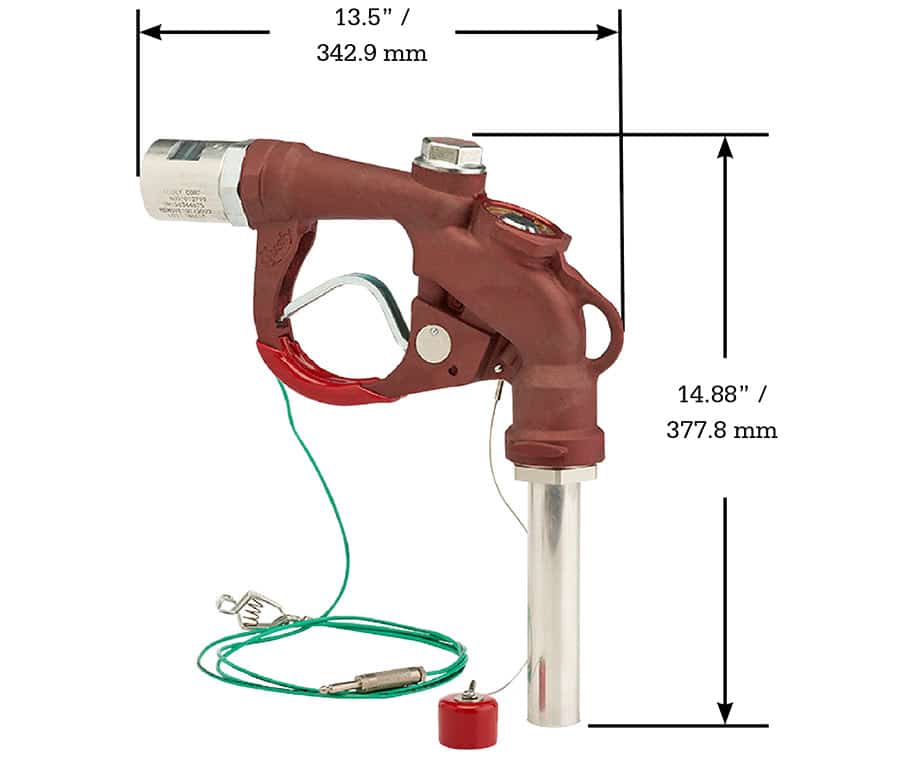

Dimensions

Available Falcon Nozzles and Spouts

Nozzles and Spouts

Falcon Manual Nozzles NPT

Choose …

12090218N: without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1½ FNPT (38mm) Inlet Inline Swivel

12090219N: without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1¼ FNPT (32mm) Inlet Inline Swivel

13734218N: without Hold Open Clip, with Jet Black, Round Spout, and 1½ FNPT (38mm) Inlet Inline Swivel

13734219N: without Hold Open Clip, with Jet Black, Round Spout, and 1¼ FNPT (32mm) Inlet Inline Swivel

13739218N: without Hold Open Clip, with Aviation Red, Round Spout, and 1½ FNPT (38mm) Inlet Inline Swivel

13739219N: without Hold Open Clip, with Aviation Red, Round Spout, and 1¼ FNPT (32mm) Inlet Inline Swivel

Falcon Manual Nozzles BSPP

Choose …

12090216N: without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1½ FBSP (38mm) Inlet Inline Swivel

12090217N: without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1¼ FBSP (32mm) Inlet Inline Swivel

13734216N: without Hold Open Clip, wth Jet Black, Round Spout, and 1½ FBSP (38mm) Inlet Inline Swivel

13734217N: without Hold Open Clip, with Jet Black, Round Spout, and 1¼ FBSP (32mm) Inlet Inline Swivel

13739216N: without Hold Open Clip, with Aviation Red, Round Spout, and 1½ FBSP (38mm) Inlet Inline Swivel

13739217N: without Hold Open Clip, with Aviation Red, Round Spout, and 1¼ FBSP (32mm) Inlet Inline Swivel

Falcon Quick Disconnect NPT

Choose …

13731218N: without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1½ FNPT (38mm) Inlet Inline Swivel

13731219N: without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1¼ FNPT (32mm) Inlet Inline Swivel

13736218N: without Hold Open Clip, with Jet Black, Round Spout, and 1½ FNPT (38mm) Inlet Inline Swivel

13736219N: without Hold Open Clip, with Jet Black, Round Spout, and 1¼ FNPT (32 mm) Inlet Inline Swivel

13742218N: without Hold Open Clip, with Aviation Red, Round Spout, and 1½ FNPT (38mm) Inlet Inline Swivel

13742219N: without Hold Open Clip, with Aviation Red, Round Spout, and 1¼ FNPT (32mm) Inlet Inline Swivel

Falcon Quick Disconnect BSPP

Choose …

13731216N: without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1½ FBSP (38mm) Inlet Inline Swivel

13731217N: without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1¼ FBSP (32mm) Inlet Inline Swivel

13736216N: without Hold Open Clip, with Jet Black, Round Spout, and 1½ FBSP (38mm) Inlet Inline Swivel

13736217N: without Hold Open Clip, with Jet Black, Round Spout, and 1¼ FBSP (32mm) Inlet Inline Swivel

13742216N: without Hold Open Clip, with Aviation Red, Round Spout, and 1½ FBSP (38mm) Inlet Inline Swivel

13742217N: without Hold Open Clip, with Aviation Red, Round Spout, and 1¼ FBSP (32mm) Inlet Inline Swivel

Falcon Spouts

Choose …

012946: Manual Duck Bill Spout Assembly for Jet Fuel

012948: Manual Round Spout Assembly for Aviation and Jet Fuel

012947: Quick Disconnect Duck Bill Spout Assembly for Jet Fuel

012949: Quick Disconnect Round Spout Assembly for Aviation and Jet Fuel

Falcon Accessories

Choose …

012086: Falcon Strainer Kit

013476: Interlock Hook Assembly

014204: Black Jet Fuel Oval Spout Cap Assembly

014205: Black Jet Fuel Round Spout Cap Assembly

014206: Red Aviation Fuel Round Spout Cap Assembly

015829: Poppet Valve Seal Service Kit
