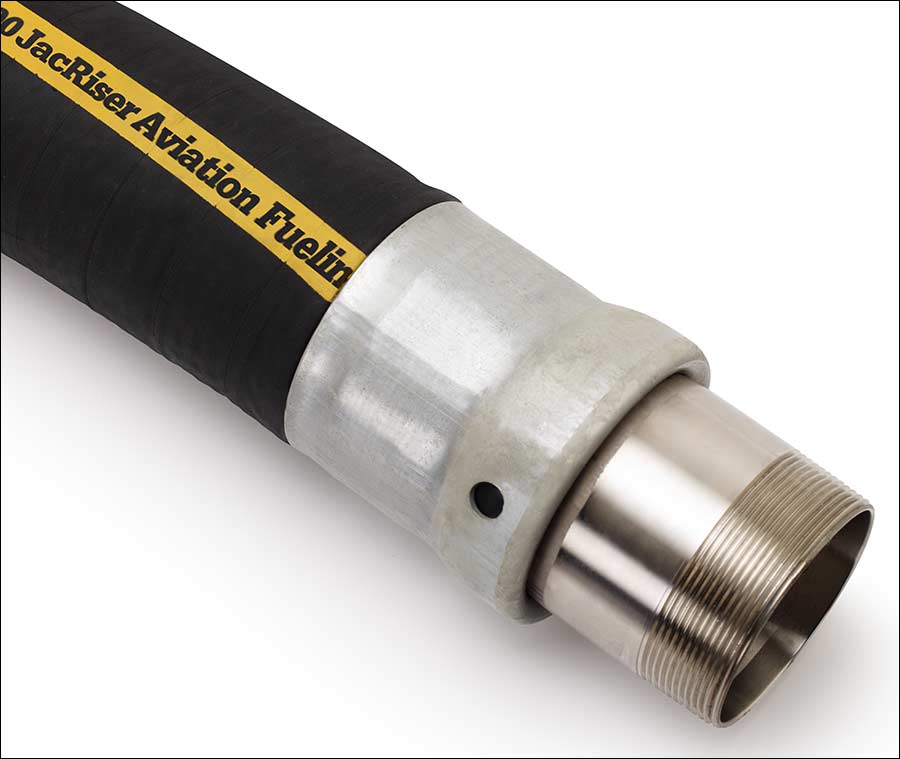

#5500 JacRiser Hoses: For Commercial and Private Aircraft
5500 JacRiser Hoses
Used in riser connection of aviation refuelers, hydrant cart servicers and tank farm connections.
Product Info
Resources
Specs / Construction
Features/Benefits
  • Used in riser connection of aviation refuelers, hydrant cart servicers and tank farm connections.
  • Used for commercial and private aircraft
  • Resistant to jet fuel and higher aromatic aviation gasolines
  • Premium fueling and defueling hose designed to achieve more than twice the cycle flexing capabilities (124000 plus cycles).
  • Meets EI 1529, Type E, Grade 2, 7th edition, 2014, European Standard EN ISO 1825 (2017) and NPFA 407 (2017)
  • Suitable for full vacuum service and high flex applications.
  • All aviation hose assemblies are 100% hydrostatic tested to 600 PSI and inspected for electrical continuity
  • Every hose receives a unique serial number and test certificate
  • Functional in temperatures –40°F to 180°F (–40°C to 82°C).
  • Designed for flexible connection between hydrant cart or refueler chassis and adjustable riser platform.

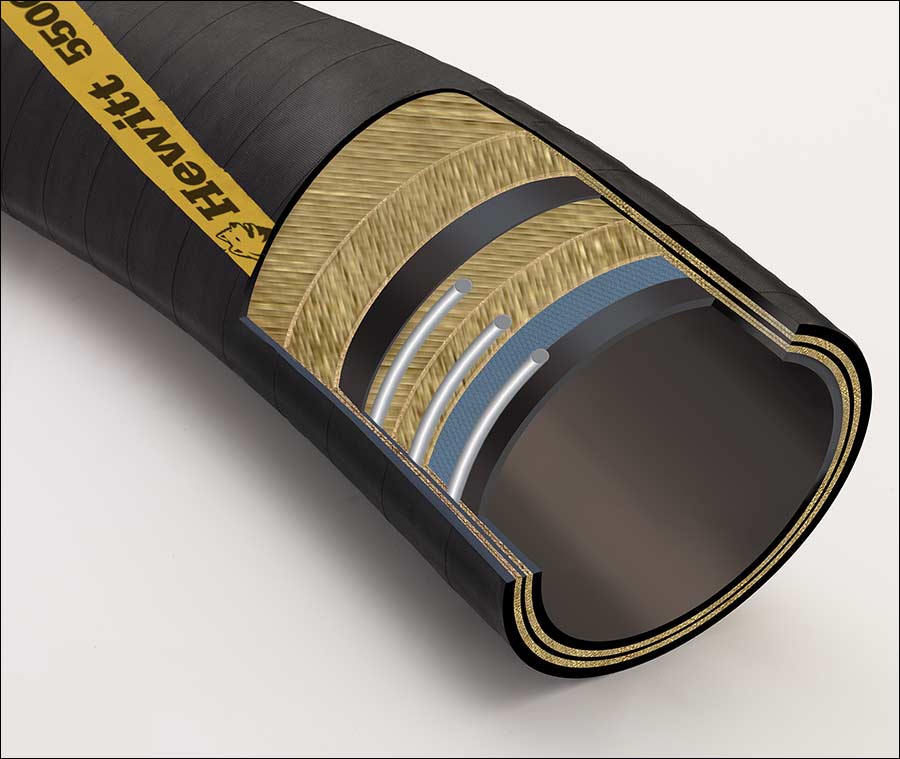

Construction

Tube: Black nitrile synthetic rubber
Cover: Black neoprene static dissipating/static conductive synthetic rubber (wrapped finish)
Reinforcement: Spiral-plied (4) synthetic fabric and one nylon breaker

Couplings

Permanent Reusable 4-bolt: Brass male and female NPT (swivel nut)
Aluminum clamp fittings - male and female, NPT
BSP threads – all females have swivel nuts – available with brass, tin plated brass, and stainless inserts
Aluminum male available for 2, 21/2 and 3-inch ID

Order Info
guide

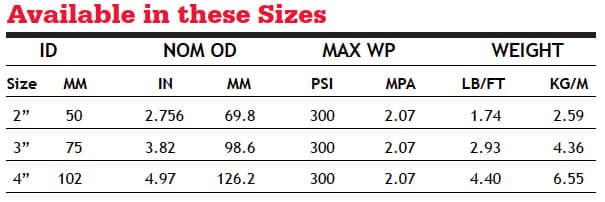

5500-sizes
Available 5500 JacRiser Hoses
Below are examples of available hose assemblies. It is not a complete listing. We can build hose assemblies to any length and style. Please contact Husky for a quote if you do not see your required assembly.
Hoses
Swaged on Stainless Male NPT – 4 Inch ID Hoses
Choose …
CP640092JADB: 4” x 92” OAL JAC 5500 MXM NPT SS NR
CP640102JADB: 4” x 102” OAL JAC 5500 MXM NPT SS NR
CP640132JADB: 4” x 11’ OAL JAC 5500 MXM NPT SS NR
CP640108JADB: 4” x 9’ OAL JAC 5500 MXM NPT SS NR
CP640420JADB: 4” x 35’ OAL JAC 5500 MXM NPT SS NR
CP640087JADB: 4” x 87” OAL JAC 5500 MXM NPT SS NR
CP640128JADB: 4” x 128” OAL JAC 5500 MXM NPT SS NR
CP640126JADB: 4” x 10’6” OAL JAC 5500 MXM NPT SS NR
CP640110JADB: 4” x 110” OAL JAC 5500 MXM NPT SS NR
Internally Expanded Brass Male NPT – 2 and 3 Inch ID Hoses
Choose …
CP320480JABA: 2” x 40’ JAC 5500 MXM NPT BR NR
CP320900JABA: 2” x 75’ JAC 5500 MXM NPT BR NR
CP480180JABA: 3” x 15’ JAC 5500 MXM NPT BR NR
CP480300JABA: 3” x 25’ JAC 5500 MXM NPT BR NR
CP480144JABA: 3” x 12’ JAC 5500 MXM NPT BR NR
CP480096JABA: 3” x 8’ JAC 5500 MXM NPT BR NR
