1215300N X DEF M34 Nozzle

Home | Husky | Nozzles | X DEF M34 Nozzle

#1215300N: Diesel Exhaust Fluid, Automatic Shut-Off

X DEF M34 Nozzle

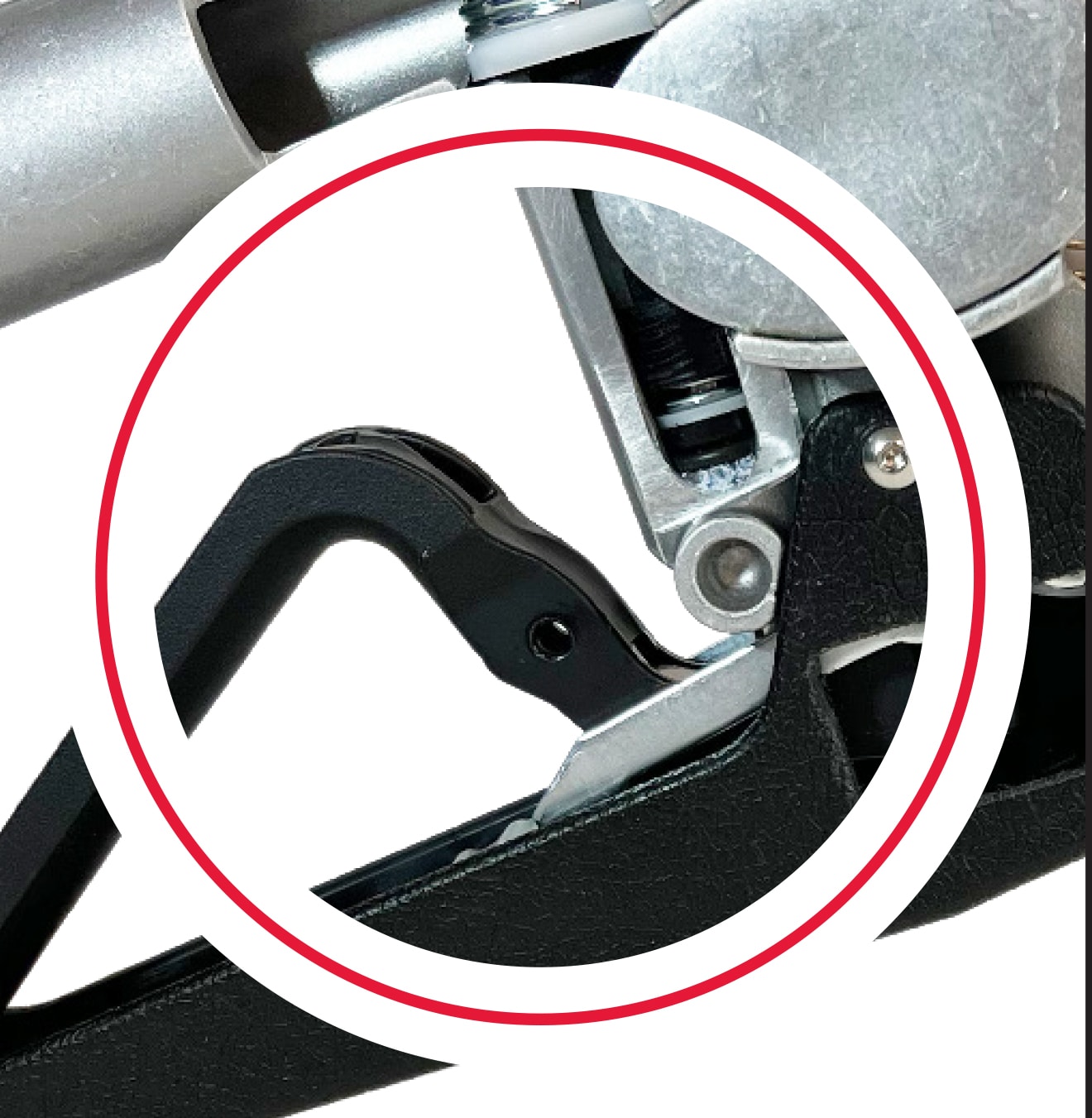

M34 DEF Nozzle without Two Notch Hold Open Clip, Low Volume Flow Regulator (3 gpm.) and Gilbarco Magnetic Handguard

Product Info

Resources

Specs / Construction

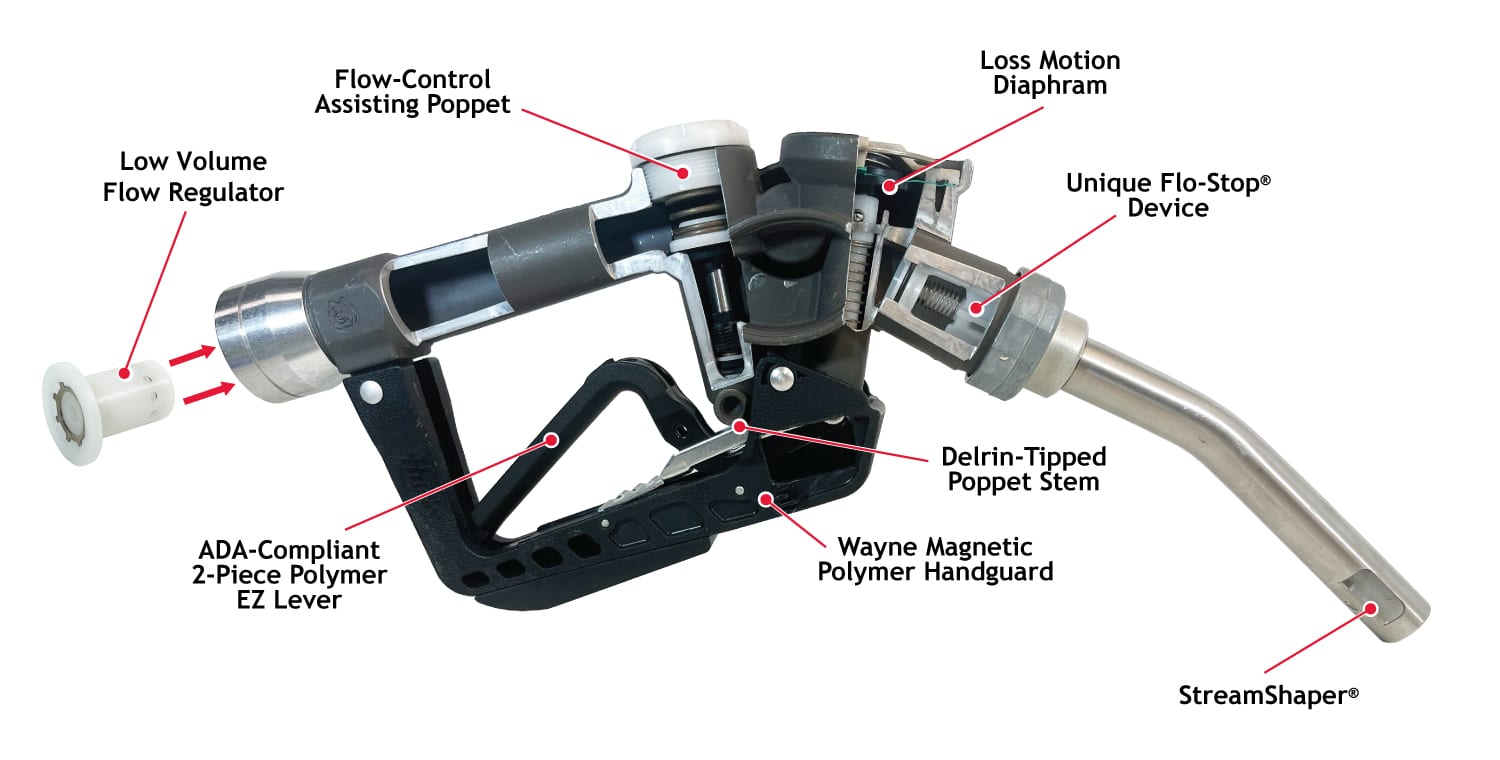

Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.

Features/Benefits

X DEF M34 nozzle shuts off when tank is full.
Lighter than stainless steel nozzles.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Less expensive than comparable nozzles.
Tilt poppet design provides precise “to-the-penny” dispensing.
Stainless steel spout for durability.
Flow characteristics of nozzle reduces crystallization of DEF.
Complies with ISO Standard 22241-2:2006.
Aluminum body is anodized to prevent contamination from DEF blends.
ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.

Construction

Body: Die cast, anodized aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Spout: 19 mm diameter
Lever: Two-piece polymer EZ Lever
Inlet: M34 x 1.5 mm

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

007275: 1” M BSPP x M34 M Inline Swivel

Choose a Swivel/STB Combo

Choose …

03185: M34 Single-Plane Swivel connected to 1” BSPP Service Reconnectable Safe-T-Break®

Choose Accessories, Testing and Maintenance

Choose …

013285: with StreamShaper®

013286: with Spout Ring and Magnetic Accufuel® Safety Feature

Choose Guards

Choose …

001808: Waffle Splash Guard

003795: Mate Nozzle Guard

004145: Full Nozzle Guard

007361: Handle Cover (Black)

014114: International Mate Nozzle Guard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
