1437738N 1HSS EZ Lever Nozzle

Home | Husky | Nozzles | 1HSS Nozzle

#1437738N: High Volume Truck, Pressure Activated, Automatic Shut-Off

1HSS Nozzle

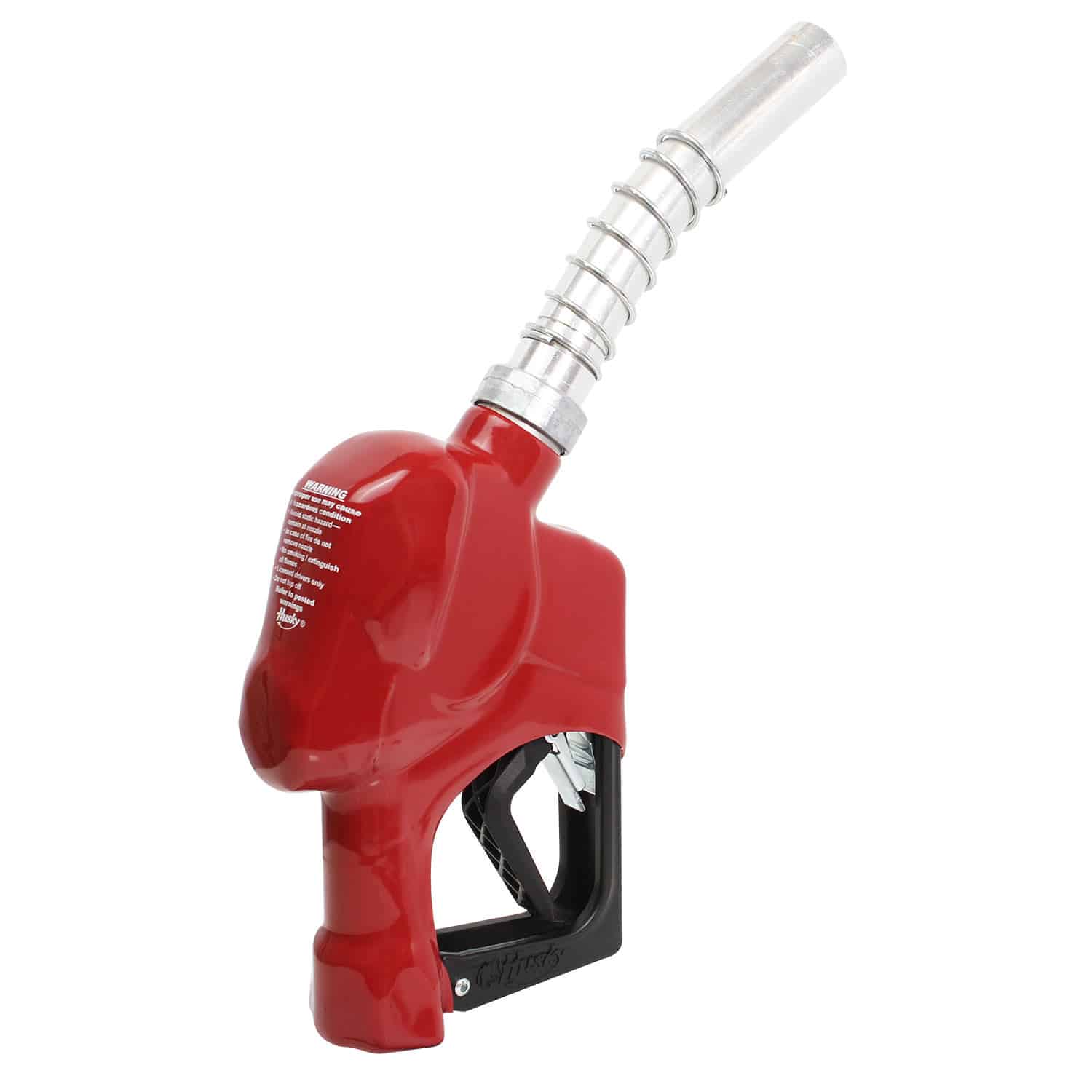

1" Heavy Duty Diesel Nozzle with Two Notch Hold Open Clip and Polymer Handguard

Product Info

Resources

Specs / Construction

Pressure activated, automatic shut-off nozzle with polymer handguard for dispensing up to 25 gpm / 94.6 Lpm.

Features/Benefits

1HSS nozzle shuts off when:
— the pump shuts off.
— the gas tank is full.
— the lever is opened before the pump is turned on.
— the leak detector has not completed the test cycle.

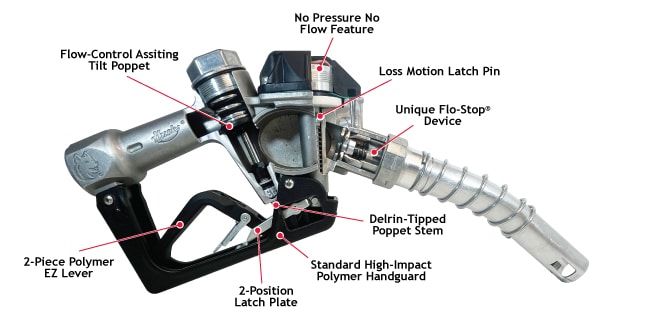

Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.
Optional tilt poppet design provides precise “to-the-penny” dispensing.
Optional cold weather seals are rated to -40°F/C.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Comes standard with smooth full grip guard.

Construction

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: Two piece polymer EZ lever
Inlet: 1” / 25.4 mm BSP

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

003306: 1” M x 1” F BSPP Multi-Plane Swivel

003306A: 1” M x 1” F BSPP Multi-Plane Swivel - Atex

006949: 1” M x 1” F BSPP Multi-Plane High Volume Swivel

Choose a Safe-T-Break®

Choose …

003076: 1” F x 1” F BSPP Reconnectable Safe-T-Break®

003076A: 1” F x 1” F BSPP Reconnectable Safe-T-Break® - Atex

006914: 1” F x 1” F BSPP Non-Reconnectable Safe-T-Break®

009911: 1” F x 1” F BSPP Reconnectable G2 MAGBREAK®

Choose Swivel/STB Combo

Choose …

008015: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break®

008015A: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break® - Atex Spouts

Choose Spout

Choose …

005215: Heavy Duty Diesel Spout

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

000385: 1” M x 3/4” F Reducer Bushing

003593: Hold Open Clip Kit

007089: Nozzle Service Kit

Choose Guards

Choose …

001807: Waffle Splash Guard with Smaller Hole

001808: Waffle Splash Guard

005494: Lever Guard

007295: Mate Handle Cover

012164: Full Grip Guard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
