696108 1A Nozzle

Home | Husky | Nozzles | 1A Nozzle

#696108: Conventional, Automatic Shut-Off

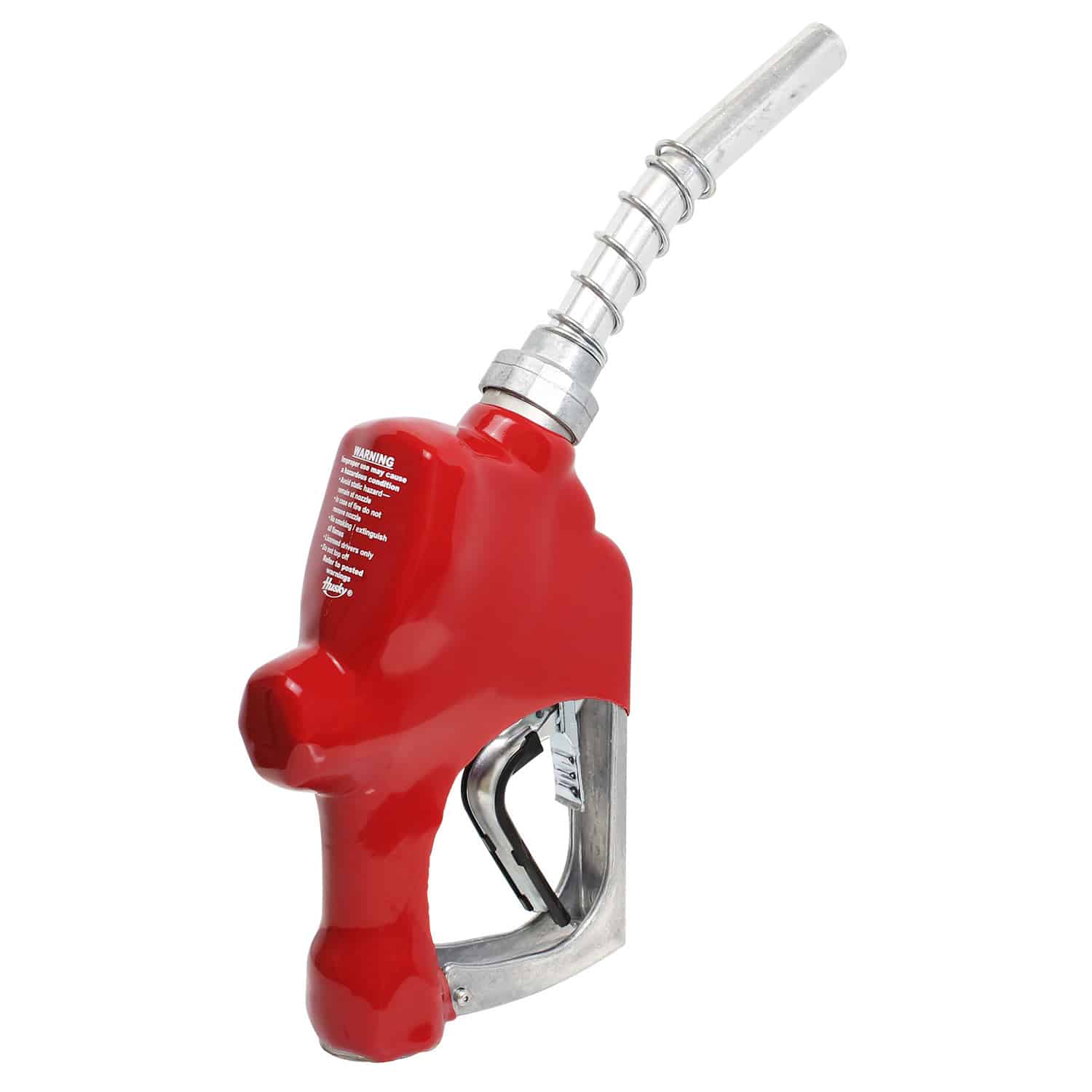

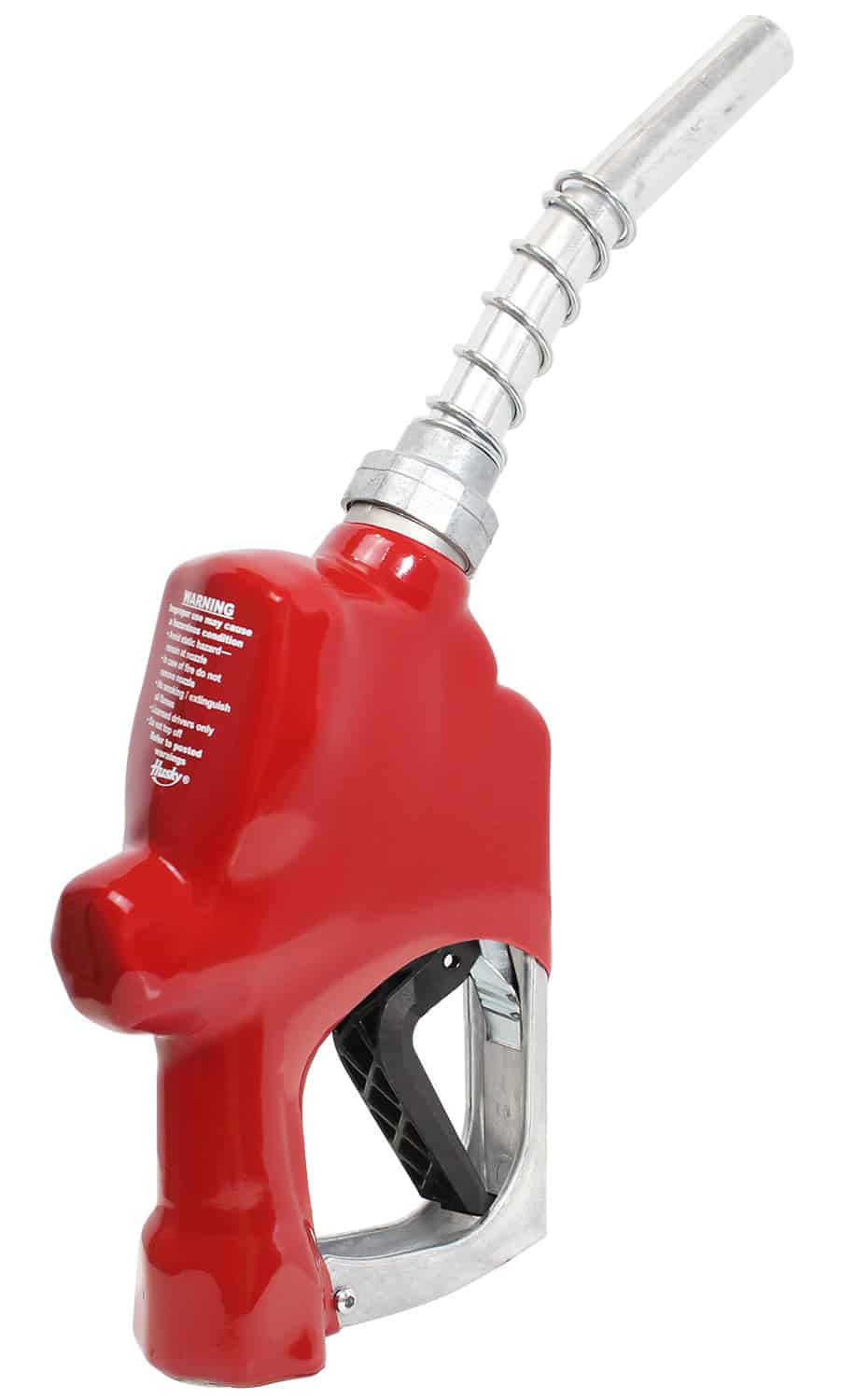

1A Nozzle

1" Unleaded Nozzle without Hold Open Clip, with Metal Handguard

Product Info

Resources

Specs / Construction

Automatic shut-off nozzle for full-service and self-service stations.

Features/Benefits

1A nozzle shuts off when the gas tank is full.

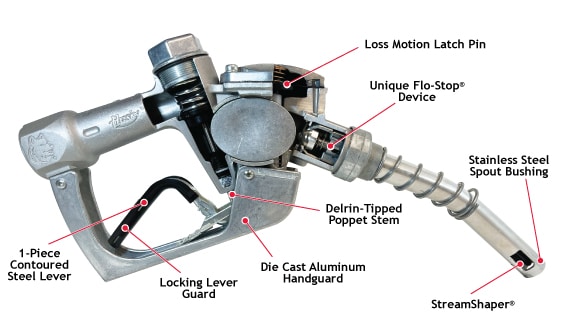

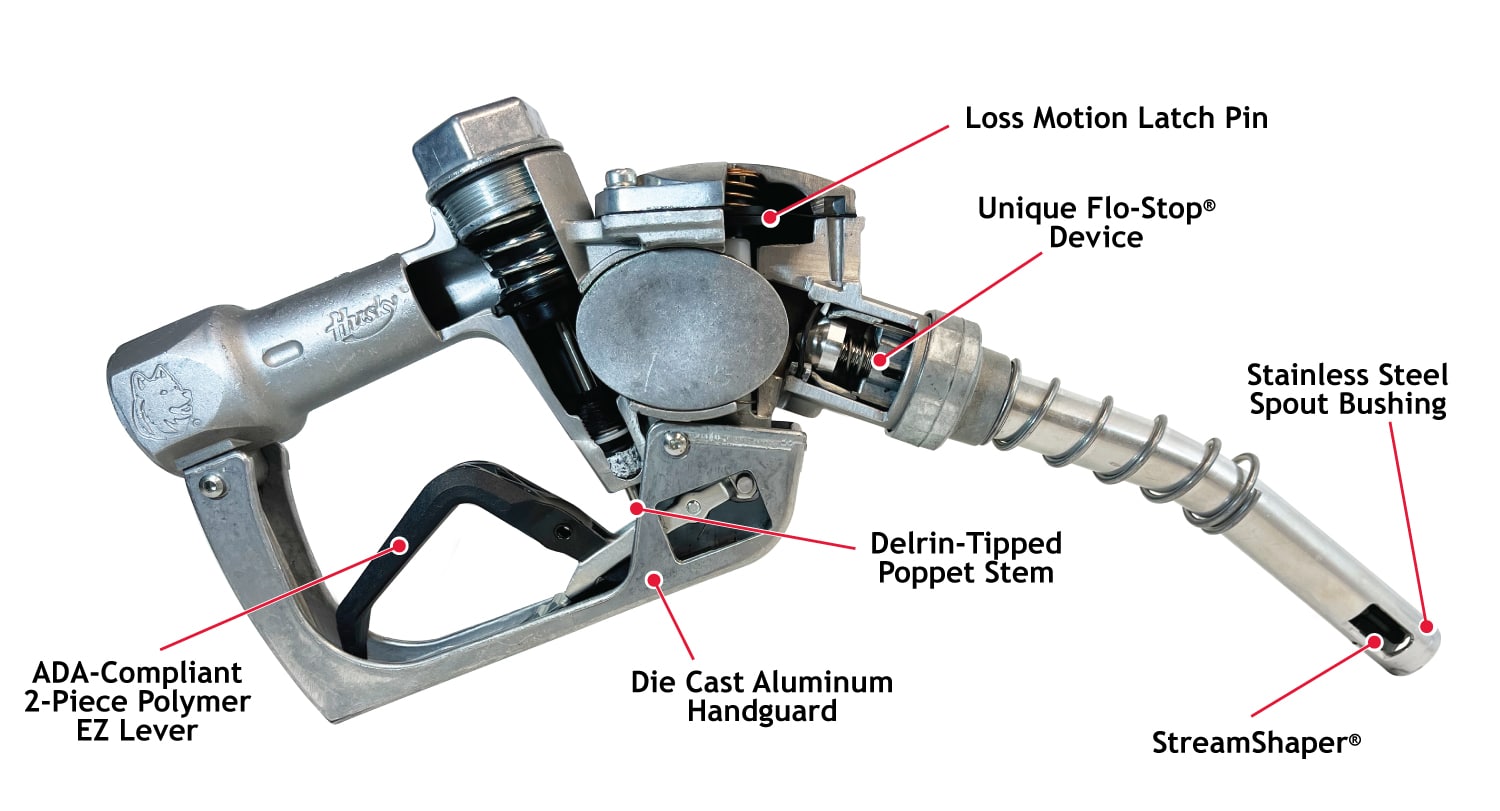

Stainless steel reinforced spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Comes standard with smooth full grip guard.
Optional tilt poppet design provides precise “to-the-penny” dispensing.
Optional cold weather seals are rated to -40°F/C.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.

Construction

Body: One piece die cast aluminum with high-impact metal handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece contoured steel with hard polymer cover
Inlet: 1” / 25.4 mm NPT

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

000087: 1” M x 1” F NPT Multi-Plane Swivel

000095: 1” M x 1” F NPT 70° Pump Swivel

000352: 1” M x ¾” F NPT Multi-Plane Swivel

000356: 1” M x ¾” F NPT Multi-Plane Swivel Anodized Black

003395: 1” M x 1” F NPT Multi-Plane Restricted Swivel

004860: 1” M x 1” F NPT Multi-Plane High Volume Swivel

Choose a Safe-T-Break®

Choose …

002276: 1” F x 1” F NPT Reconnectable Safe-T-Break®

005231: 1” F x 1” F NPT Low Pull Reconnectable Safe-T-Break®

005812: 1” F x 1” F NPT Non-Reconnectable Safe-T-Break®

006301: 1” F x 1” F NPT Non-Reconnectable PCC Safe-T-Break®

008331: 1” F x 1” F NPT CK Reconnectable MAGBREAK®

Choose Swivel/STB Combo

Choose …

005969: 1” M NPT Multi-Plane Swivel connected to 1” F NPT Reconnectable Safe-T-Break®

Choose Spout

Choose …

001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®

001473: Unleaded Spout without Flo-Stop®

010353: Light Duty Diesel Long Spout without Flo-Stop®

010434: Unleaded Long Spout without Flo-Stop®

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

000385: 1” M x ¾” F Reducer Bushing

003593: Hold Open Clip Kit

007089: Nozzle Service Kit

Choose Guards

Choose …

000099: Protection Package

000226: Mate Nozzle Guard

000554: Full Grip Guard

001804: Full Grip Reguard

001808: Waffle Splash Guard

001811: Reguard Protection Package

005494: Lever Guard

007295: Polymer Handle Cover

006628: POPD® S Clear Cover

006665: POPD® S Full Grip Guard

007210: POPD® Full Grip Nozzle Reguard

007999: POPD® H Clear Cover

008169: POPD® S Mate Nozzle Guard

008170: POPD® H Mate Nozzle Guard

008179: POPD® EZS Nozzle Guard

008180: POPD® EZH Nozzle Guard

008183: POPD® H Full Grip Guard

008190: POPD® H Full Grip Reguard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
