Home | Husky | Nozzles | 1AS Nozzle
#1399203: Conventional, Pressure Activated Automatic Shut-Off

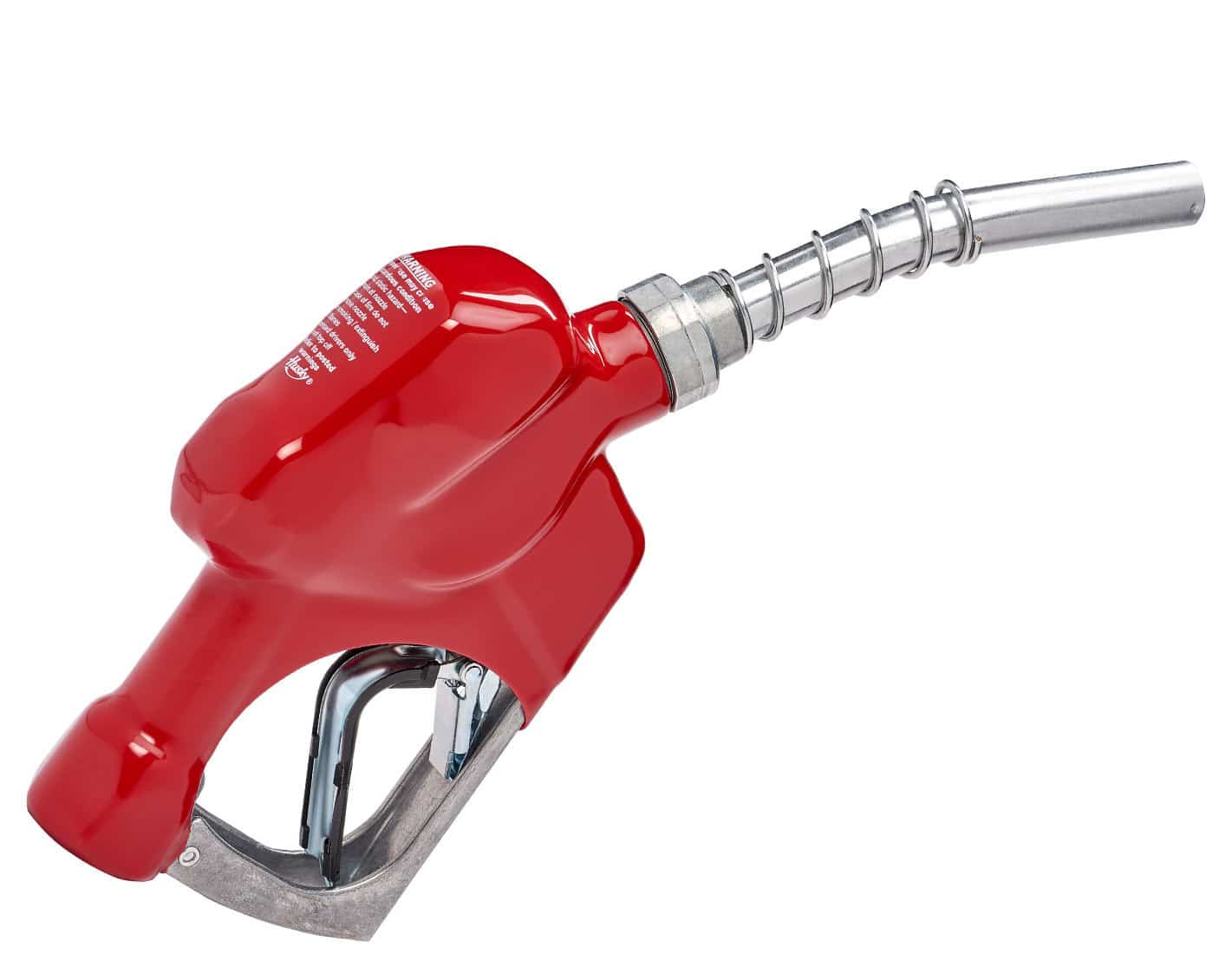

1AS Nozzle
1" Light Duty Nozzle with Three Notch Hold Open Clip, Full Grip Guard, MHG, and Cold Weather Seals
Product Info
Resources
Specs / Construction
Pressure Activated automatic shut-off nozzle for full-service and self-service stations.

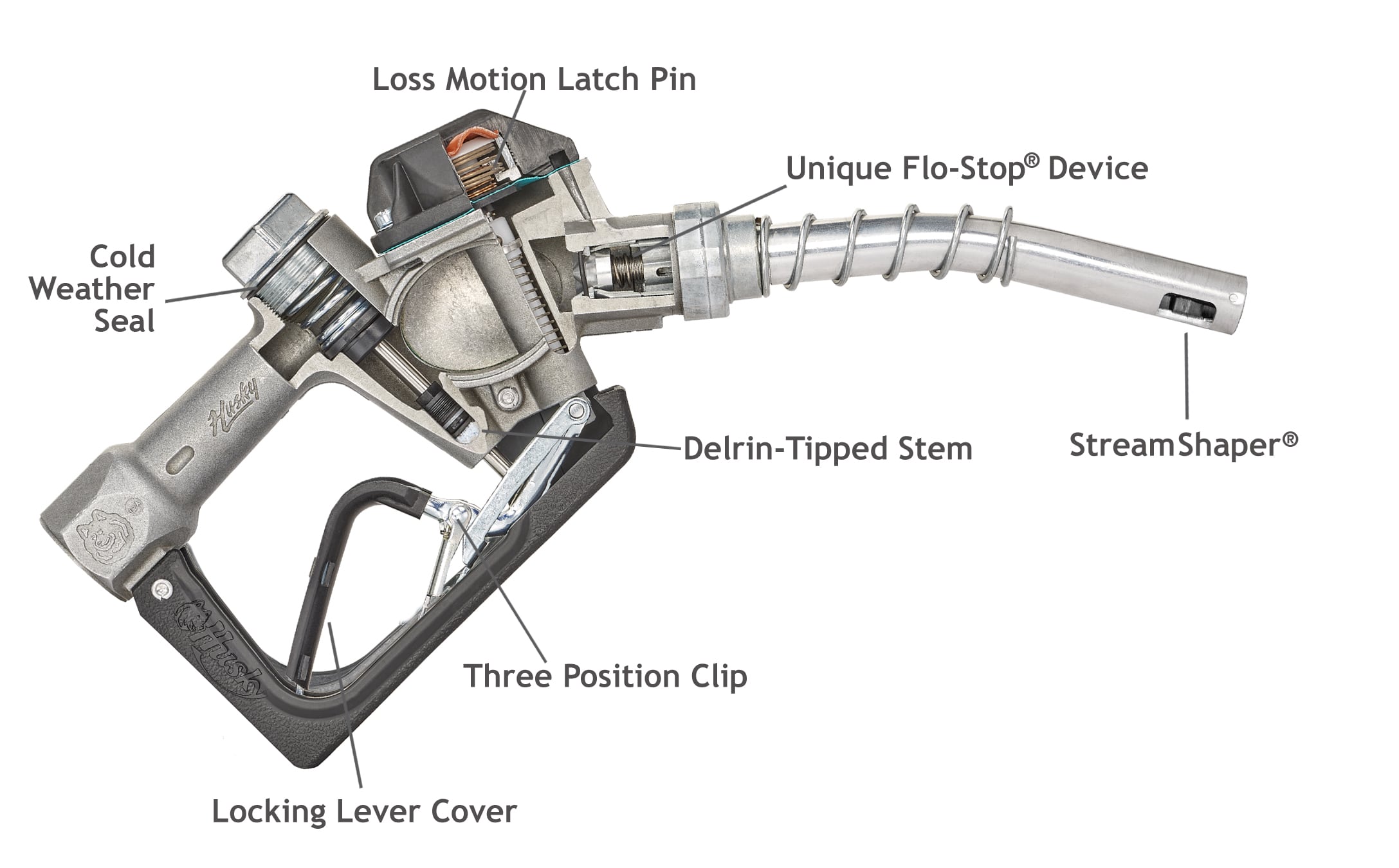

Features/Benefits
  • 1A nozzle shuts off when:
    — the pump shuts off.
    — the gas tank is full.
    — the lever is opened before the pump is turned on.
    — the leak detector has not completed the test cycle.
  • Contains a poppet disc seal, rated at -40° F/C to prevent fuel leakage from the main seal in extreme cold weather.
  • Stainless steel reinforced spout bushing keeps spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
  • Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
  • StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
  • Comes standard with smooth full grip guard.
Construction

Body: Die cast aluminum body with high impact polymer hand guard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece contoured steel with hard plastic cover
Inlet: 1” / 25.4 mm NPT

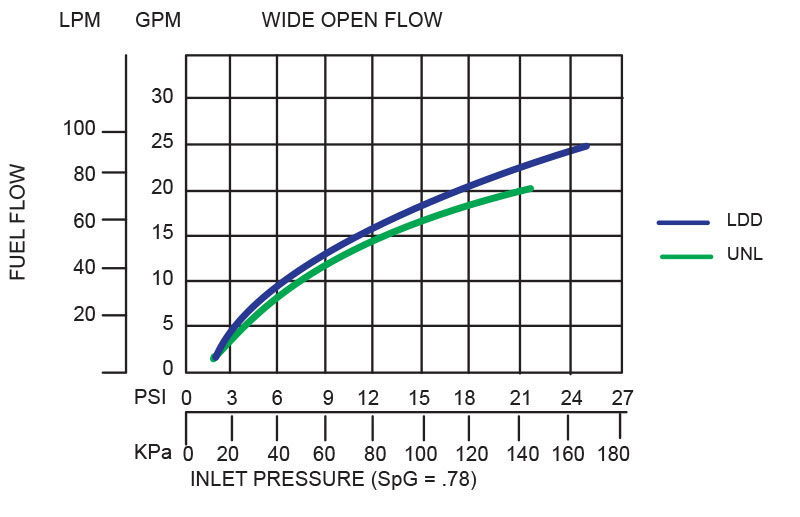

Flow Rate

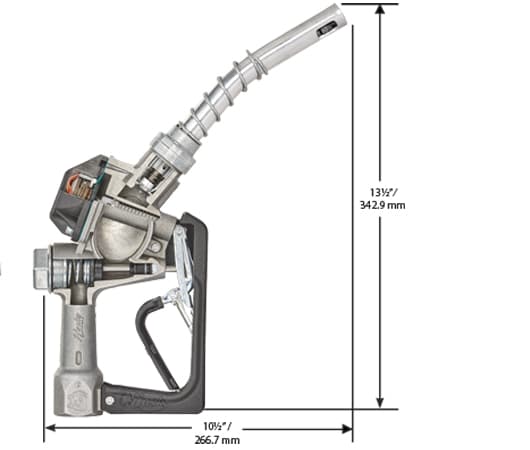

Dimensions
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
000087: 1” M x 1” F NPT Multi-Plane Swivel
004860: 1” M x 1” F NPT Multi-Plane High Flow Swivel
000095: 1” M x 1” F NPT 70° Pump Swivel
Choose a Safe-T-Break®
Choose …
002276: 1” F x 1” F NPT Reconnectable Safe-T-Break®
005812: 1” F x 1” F NPT Non-Reconnectable Safe-T-Break®
006301: 1” F x 1” F NPT Non-Reconnectable PCC Safe-T-Break®
Choose Swivel/STB Combo
Choose …
005969: 1” M NPT Multi-Plane Swivel connected to 1” F NPT Reconnectable Safe-T-Break®
008015: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break®
008015A: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break® - Atex
Choose Spout
Choose …
001473: Unleaded Spout without Flo-Stop®
010434: Unleaded Long Spout without Flo-Stop®
001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®
010353: Light Duty Diesel Long Spout without Flo-Stop®
Choose Pressure/Vacuum Vent
Choose …
Choose Accessories, Testing and Maintenance
Choose …
003593: Hold Open Clip Kit
000397: Unleaded Spout Gauge
000385: 1” M x ¾” F Reducer Bushing
Choose Guards
Choose …
012164: Full Grip Guard
005494: Lever Guard
007295: Mate Handle Guard
006628: POPD® S Clear Cover
007999: POPD® H Clear Cover
001807: Waffle Splash Guard with Smaller Hole
001808: Waffle Splash Guard
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
