026812 1HS Nozzle

Home | Husky | Nozzles | 1HS Nozzle

#026812: High Volume Truck, Automatic Shut-Off

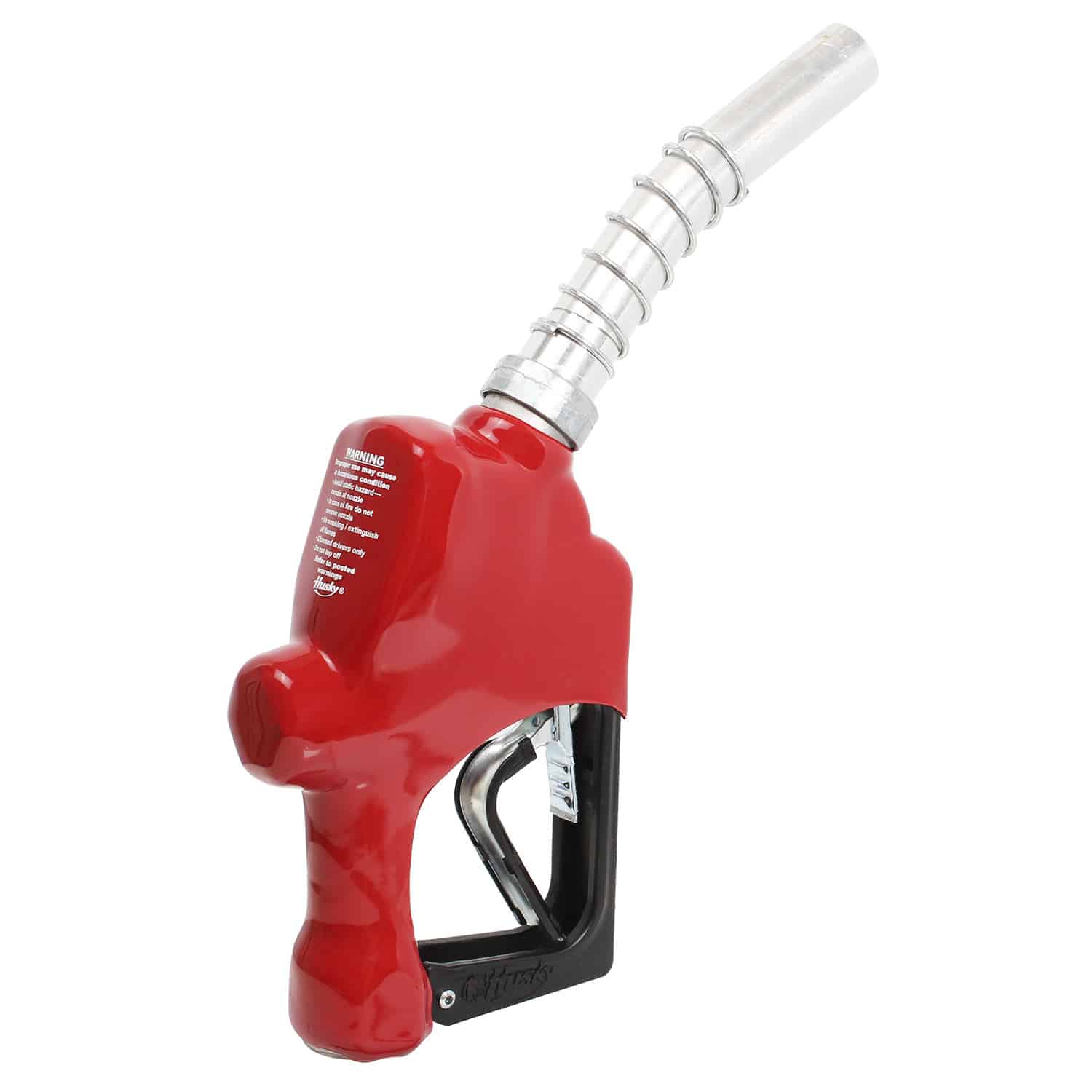

1HS Nozzle

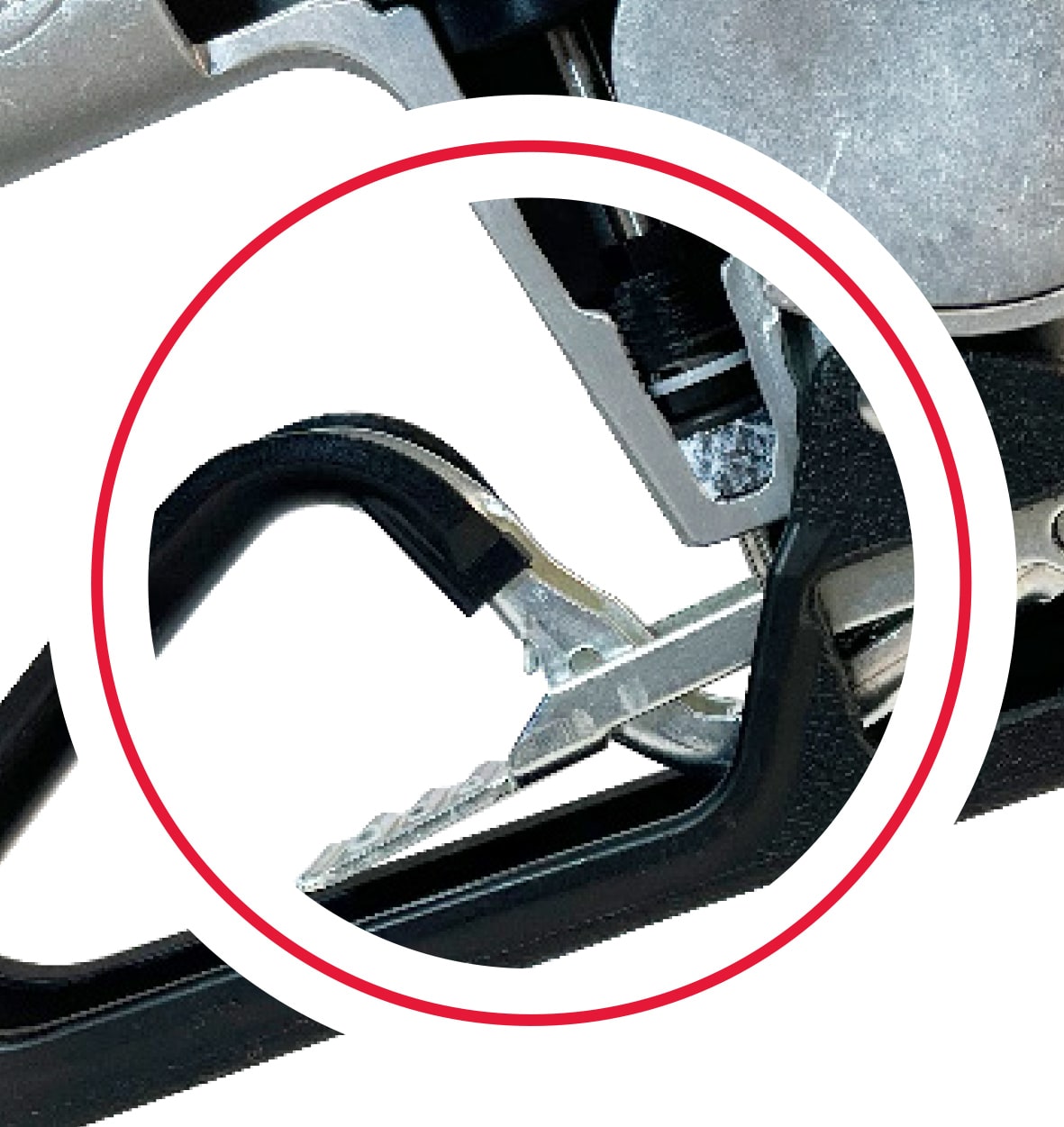

1" Heavy Duty Diesel Nozzle without Hold Open Clip, with Polymer Handguard

Product Info

Resources

Specs / Construction

Automatic shut-off nozzle with polymer handguard for dispensing up to 25 gpm / 94.6 Lpm.

Features/Benefits

1HS nozzle shuts off when the gas tank is full.

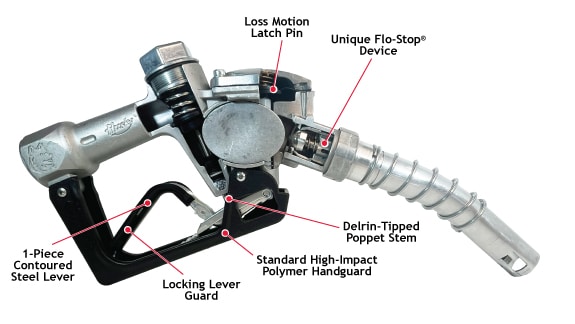

Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
Optional cold weather seals are rated to -40°F/C.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Comes standard with full grip guard and waffle splash guard.
ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.

Construction

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: Two-piece polymer EZ Lever
Inlet: 1” / 25.4 mm NPT

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

000087: 1” M x 1” F NPT Multi-Plane Swivel

000095: 1” M x 1” F NPT 70° Pump Swivel

000352: 1” M x 3/4” F NPT Multi-Plane Swivel

000356: 1” M x 3/4” F NPT Multi-Plane Swivel Anodized Black

003395: 1” M x 1” F NPT Multi-Plane Restricted Swivel

004860: 1” M x 1” F NPT Multi-Plane High Flow Swivel

Choose a Safe-T-Break®

Choose …

002276: 1” F x 1” F NPT Reconnectable Safe-T-Break®

005231: 1” F x 1” F NPT Low Pull Reconnectable Safe-T-Break®

005812: 1” F x 1” F NPT Non-Reconnectable Safe-T-Break®

006301: 1” F x 1” F NPT Non-Reconnectable PCC Safe-T-Break®

008331: 1” F x 1” F NPT CK Reconnectable MAGBREAK®

Choose Swivel/STB Combo

Choose …

005969: 1” M NPTF Multi-Plane Swivel connected to 1” F NPT Reconnectable Safe-T-Break®

Choose Spout

Choose …

005215: Heavy Duty Diesel Spout with Flo-Stop®

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

000385: 1” M x 3/4” F Reducer Bushing

000397: Unleaded Spout Gauge

003593: Hold Open Clip Kit

007089: Nozzle Service Kit

Choose Guards

Choose …

000099: Protection Package

000226: Mate Nozzle Guard

000554: Full Grip Guard

001804: Full Grip Reguard

001808: Waffle Splash Guard

001811: Reguard Package

005494: Lever Guard

006628: POPD® S Clear Cover

006655: POPD® S Full Grip Guard

007210: POPD® S Full Grip Reguard

007295: Polymer Handle Cover

007999: POPD® H Clear Cover

008169: POPD® S Mate Guard

008170: POPD® H Mate Nozzle Guard

008179: POPD® EZS Nozzle Guard

008180: POPD® EZH Nozzle Guard

008183: POPD® H Full Grip Guard

008190: POPD® H Full Grip Reguard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.

Ready to exceed expectations? Find the nearest distributor to get started.
