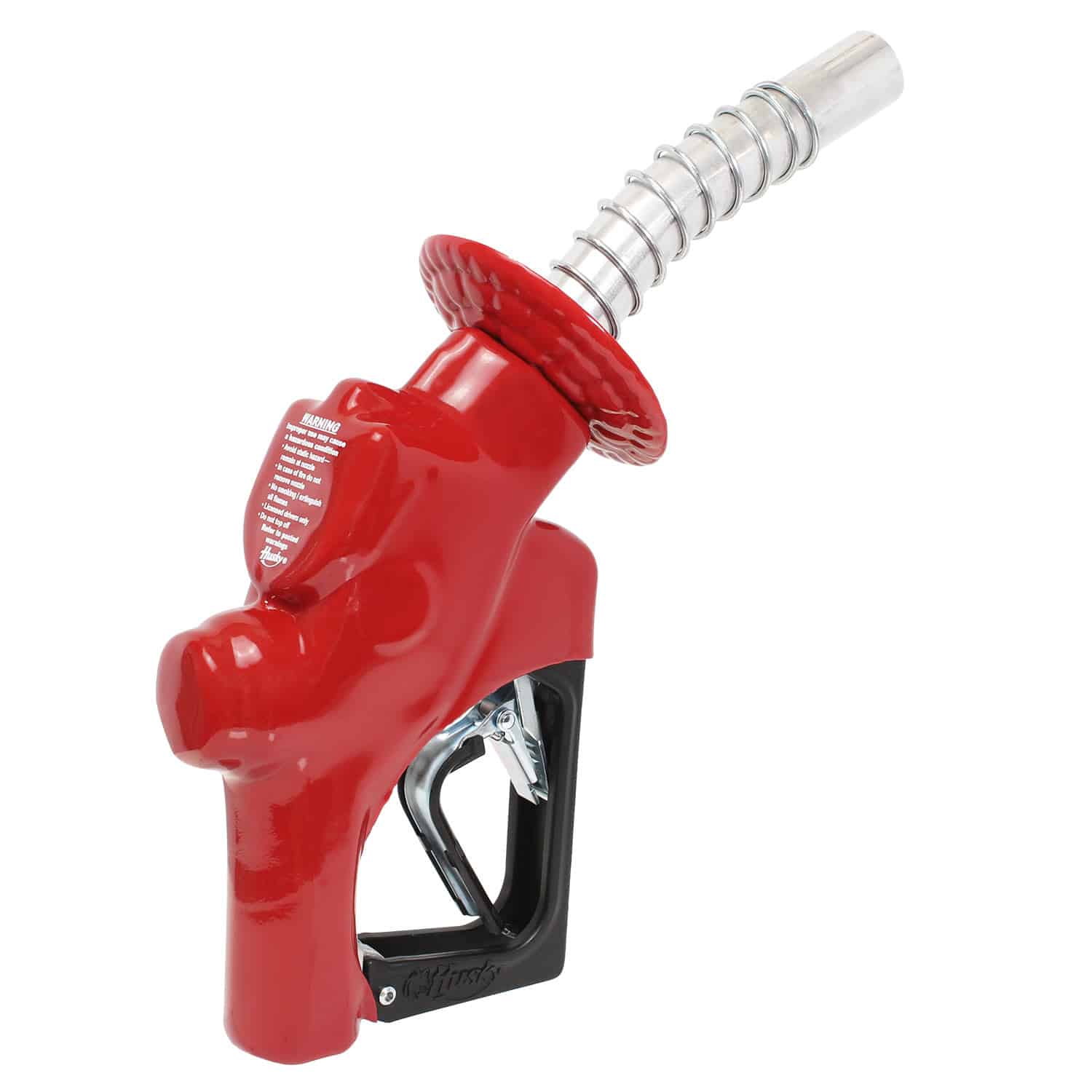

1" Heavy Duty Diesel Nozzle with Three Notch Hold Open Clip, Polymer Handguard and 1808 Waffle Splash Guard, without Spout Bushing
Automatic shut-off nozzle with polymer handguard for truck stop and other high volume full-service, self-service and unattended stations.
Features/Benefits
- VIIIS nozzle shuts off when:
— the pump shuts off.
— the gas tank is full.
— the lever is opened before the pump is
turned on.
— the leak detector has not completed the test cycle.
- Optional aluminum bushing retains spout spring and keeps spout from rounding-in: the two leading causes of clicking off and splashback spillage.
- Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
- StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
- Strong flow (up to 75 gpm / 283.9 Lpm)

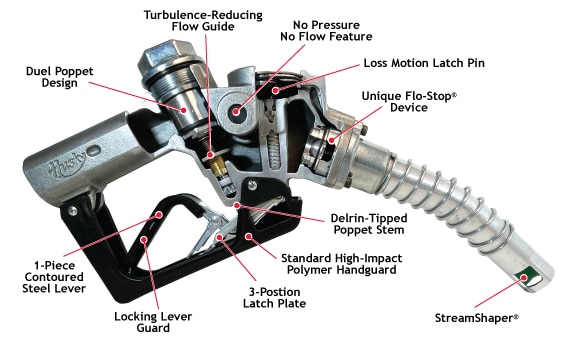

- Dual poppet design equalizes pressure on both sides of the main poppet valve in order to aid in lifting the lever, and ultimately opening the main poppet valve for full flow.
- Optional cold weather seals are rated to -40°F/C.
- Dual poppet design equalizes pressure on both sides of the main poppet valve in order to aid in lifting the lever, and ultimately opening the main poppet valve for full flow.
- Optional cold weather seals are rated to -40°F/C.
- Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
- Comes standard with smooth full grip guard and 1808 waffle splash guard.
Construction
Body: One piece sand cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel with hard polymer lever cover
Inlet: 1" / 25.4 mm BSP
