6200041 V34 Coax Nozzle

Home | Husky | Nozzles | V34 Nozzle

#6200041: Vacuum Assist Pressure Activated Automatic Vapor Recovery

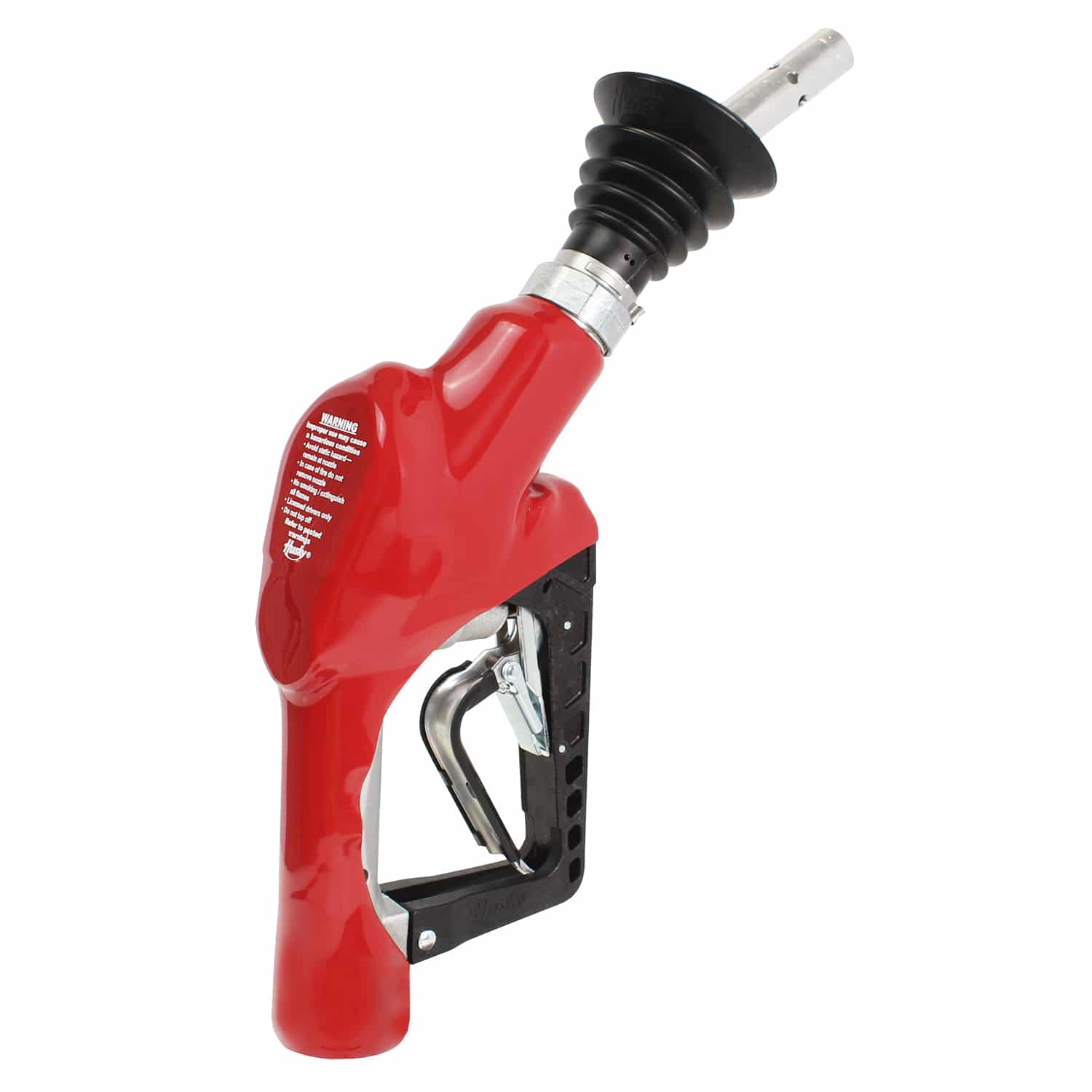

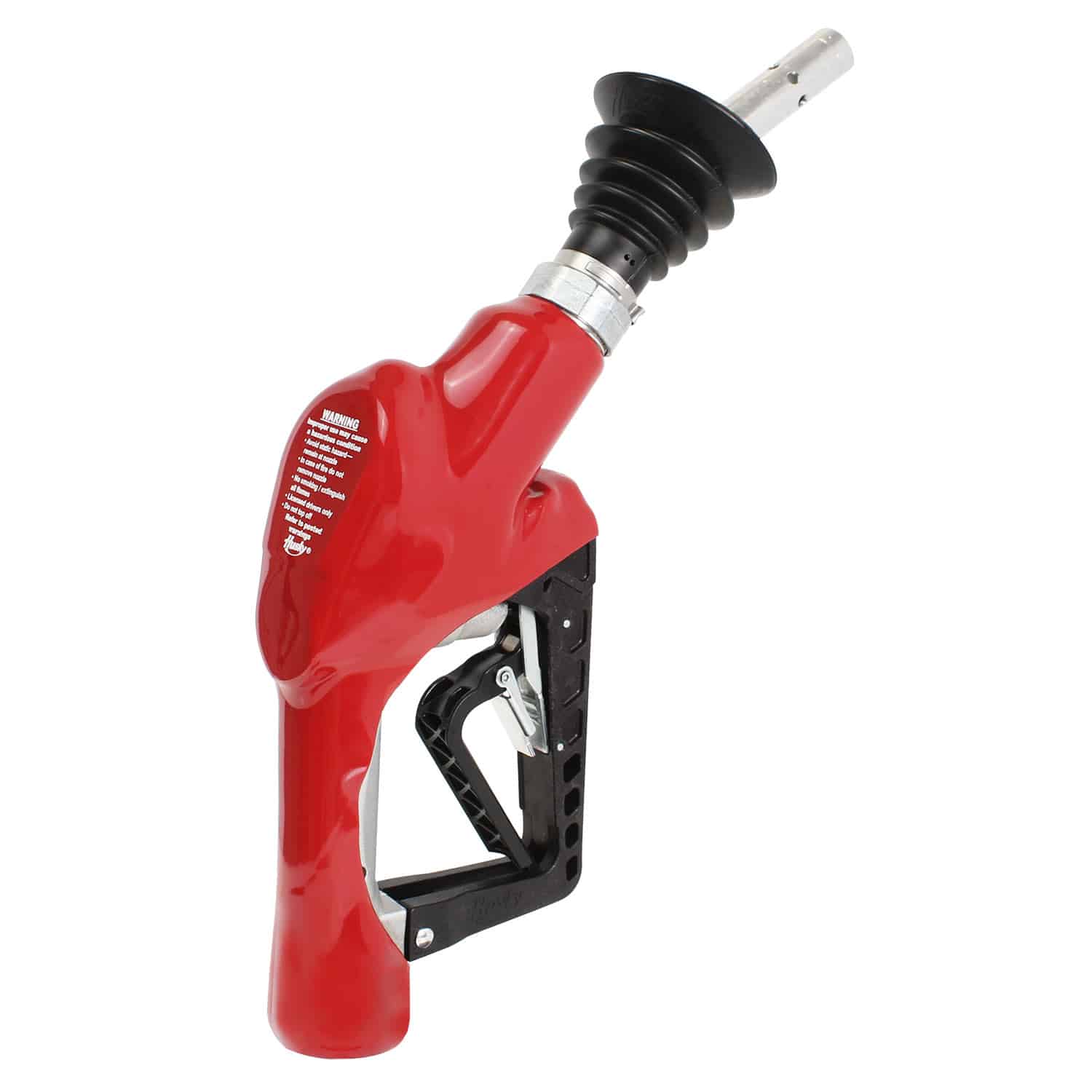

V34 Nozzle

V34 Unleaded Nozzle with Three Notch Hold Open Clip and Vapor Splash Guard

Product Info

Resources

Specs / Construction

Pressure activated, automatic shut-off vacuum assist nozzle for full-service, self-service and unattended stations.

Features/Benefits

V34 COAX nozzle shuts off when:
— the pump shuts off.
— the gas tank is full.
— the lever is opened before the pump is turned on.
— the leak detector has not completed the test cycle.
Uses unleaded spout with spout ring, soft vapor splash guard and coaxial design that allows for fuel to be dispensed through the center of the spout while collecting vapors between the inner and outer spout tubes.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or raises above the horizontal.
Tilt poppet design provides precise “to-the-penny” dispensing.
Strong vapor valve in the nozzle that is mechanically operated by the on-off action of the nozzle’s lever.
Husky® vapor return line is an internal part of the body casting, thus eliminating potential vapor leak points and fugitive evaporative emissions from the fuel remaining in the vapor path of the hose.
Nozzle comes standard with a full grip guard.
Optional cold weather seals are rated to -40°F/C.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Optional sightglass provides a clear window for the customer to view the fuel as it passes through the main poppet valve.

Construction

Body: One piece sand cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber-reinforced Teflon®
Lever: One piece contoured steel with hard polymer lever cover
Inlet: M34 x 1.5 mm

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

004605: Inverted Vapor Assist Swivel

004605A: Inverted Vapor Assist Swivel - Atex

Choose a Safe-T-Break®

Choose …

004034: Reconnectable Safe-T-Break®

004034A: Reconnectable Safe-T-Break® - Atex

005134A: Non-Reconnectable Safe-T-Break® - Atex

006210: Non-Reconnectable Safe-T-Break®

008332: MAGBREAK® Coax M34 CK

010513: Non-Reconnectable Safe-T-Break® - Shearpin

Choose Spout

Choose …

008642: V34-006200 Coaxial Spout Assembly Kit (Includes 009968 Spout Assembly and 004000 VSG)

009968: V34-006200 Coaxial Spout Assembly

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

003593: Hold Open Clip Kit

004000: Vapor Splash Guard (VSG) with Clamp

004039: Vapor Splash Guard Clamp

004335: O-ring, Air/Liquid Test Spout Adaptor

004360: Air/Liquid Spout Adaptor

005233: O-ring Kit

005837: Vapor Assist Flo-Equalizer®

006497: VSG Clamp Tool

095000: Hose Conversion Adaptor M34 x 1.5

007089: Nozzle Service Kit

010073: Waffle VSG with Clamp (single notch V34)

010076: Waffle VSG without Clamp (single notch V34)

Choose Guards

Choose …

004231: Full Grip Reguard

005494: Lever Guard

006628: POPD® S Clear Cover

006660: POPD® S Full Grip Guard

006951: Full Grip Guard

07220: POPD® S Full Grip Reguard

007999: POPD® H Clear Cover

008184: POPD® H Full Grip Guard

008191: POPD® H Full Grip Reguard

010089: Black Handle Cover

014526: Mate Guard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
