Home | Husky | Nozzles | Spirit Nozzle

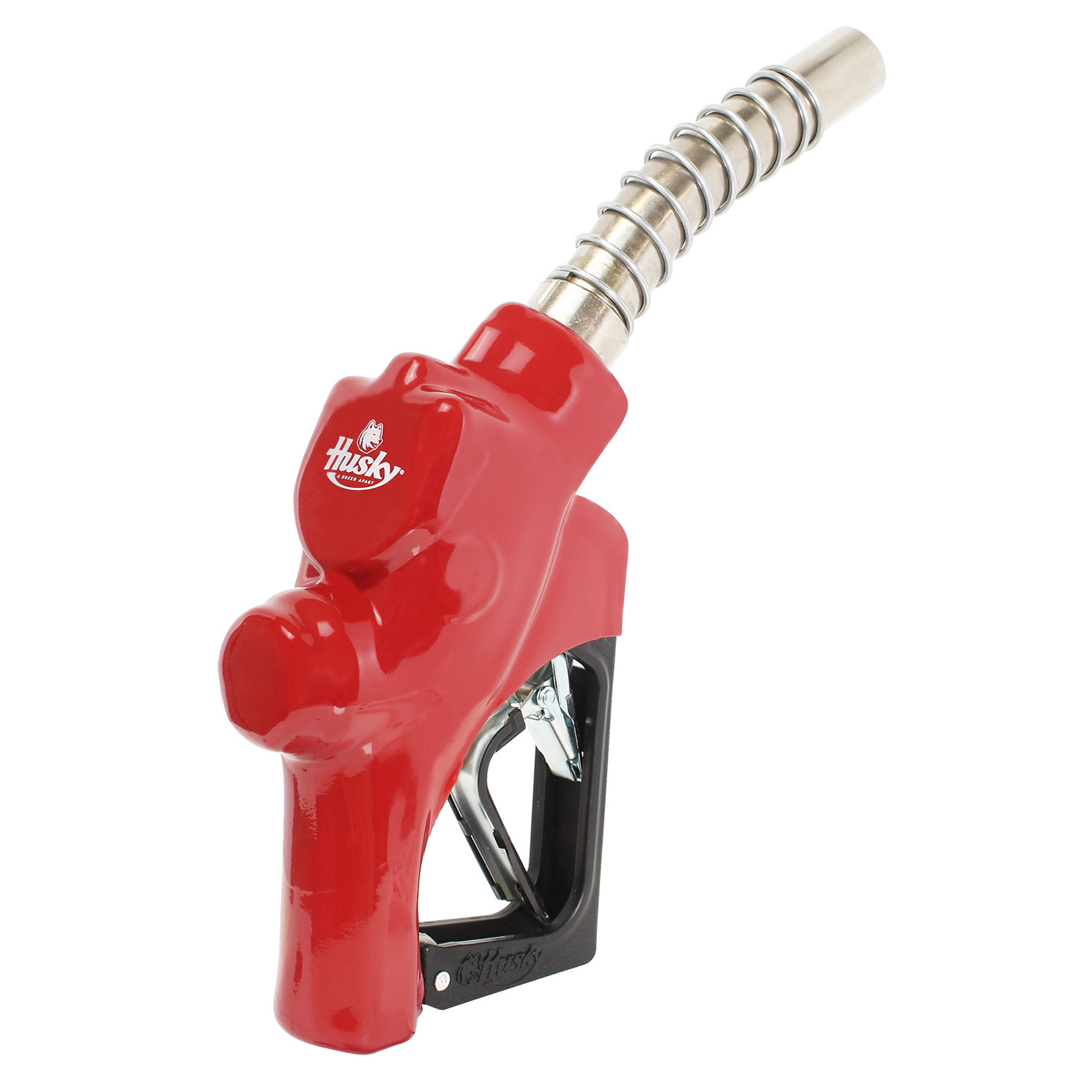

#874110N: Automatic Shut-Off
Spirit Nozzle

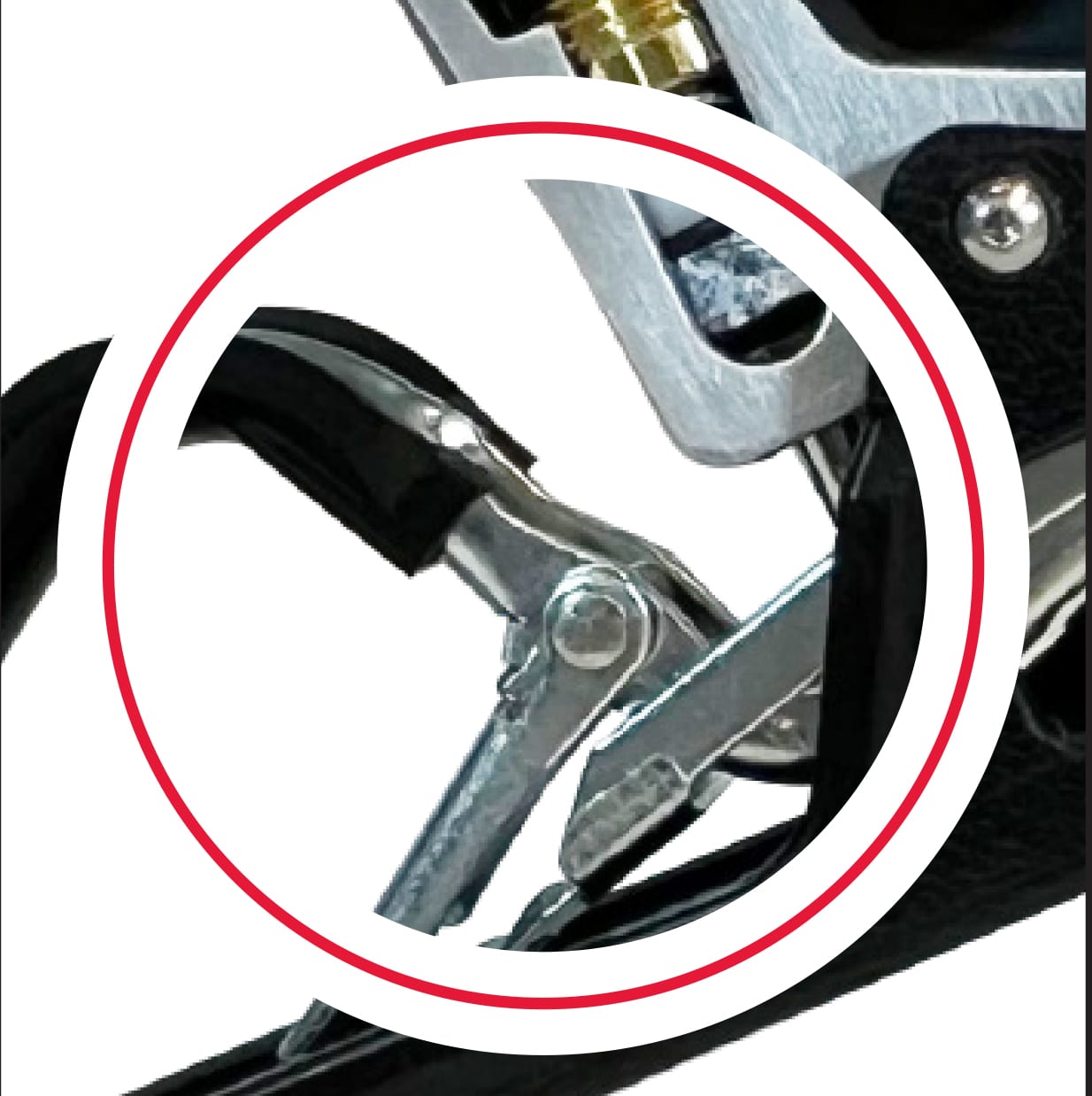

1" Nickel Plated Automatic Shut-Off Nozzle with Three Notch Hold Open Clip, without Spout Bushing
Product Info
Resources
Specs / Construction
Automatic shut-off nozzle for distilled spirits dispensing.

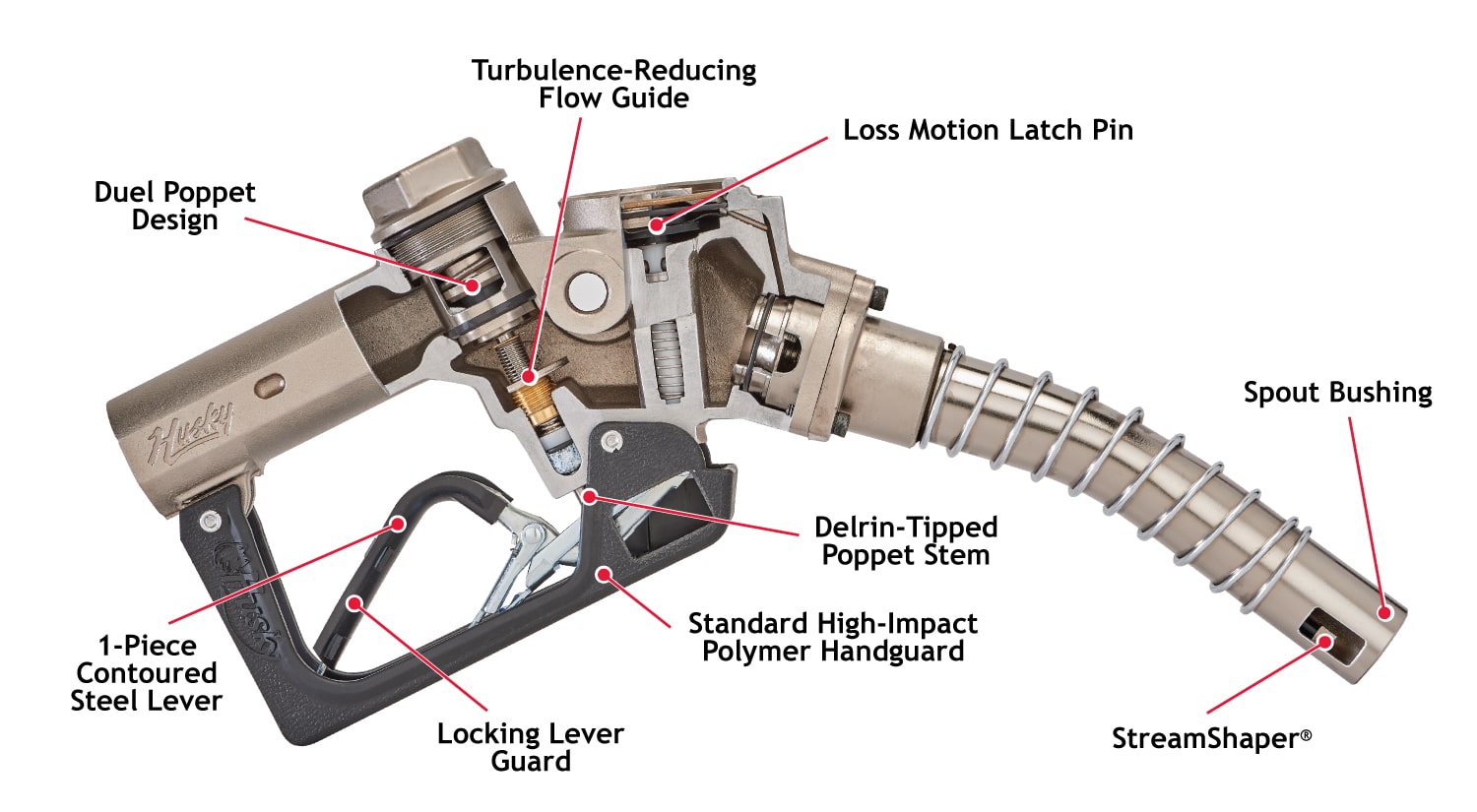

Features/Benefits
  • VIII WN Nozzle shuts off when the container is full.
  • Dual poppet design equalizes pressure on both sides of the main poppet valve in order to aid in lifting the lever, and opening the main poppet valve for full flow.
  • StreamShaper® reduces turbulence for straighter flow and less splash back spillage.
  • Aluminum body, spout, and internal parts are nickel- plated to prevent contamination and corrosion.
  • Seals provide maximum durability and chemical resistance to high concentrations of ethanol.
  • Strong flow (up to 75 gpm / 283.9 Lpm).
  • Comes standard with a full grip guard Handle Cover.
Construction

Body: Nickel-plated die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel with hard polymer lever cover
Inlet: 1” / 25.4 mm NPT

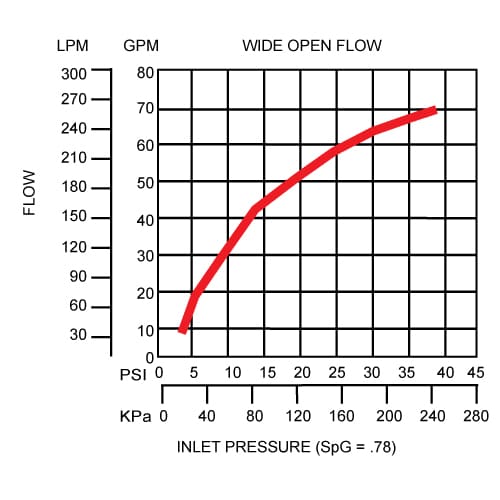

Flow Rate

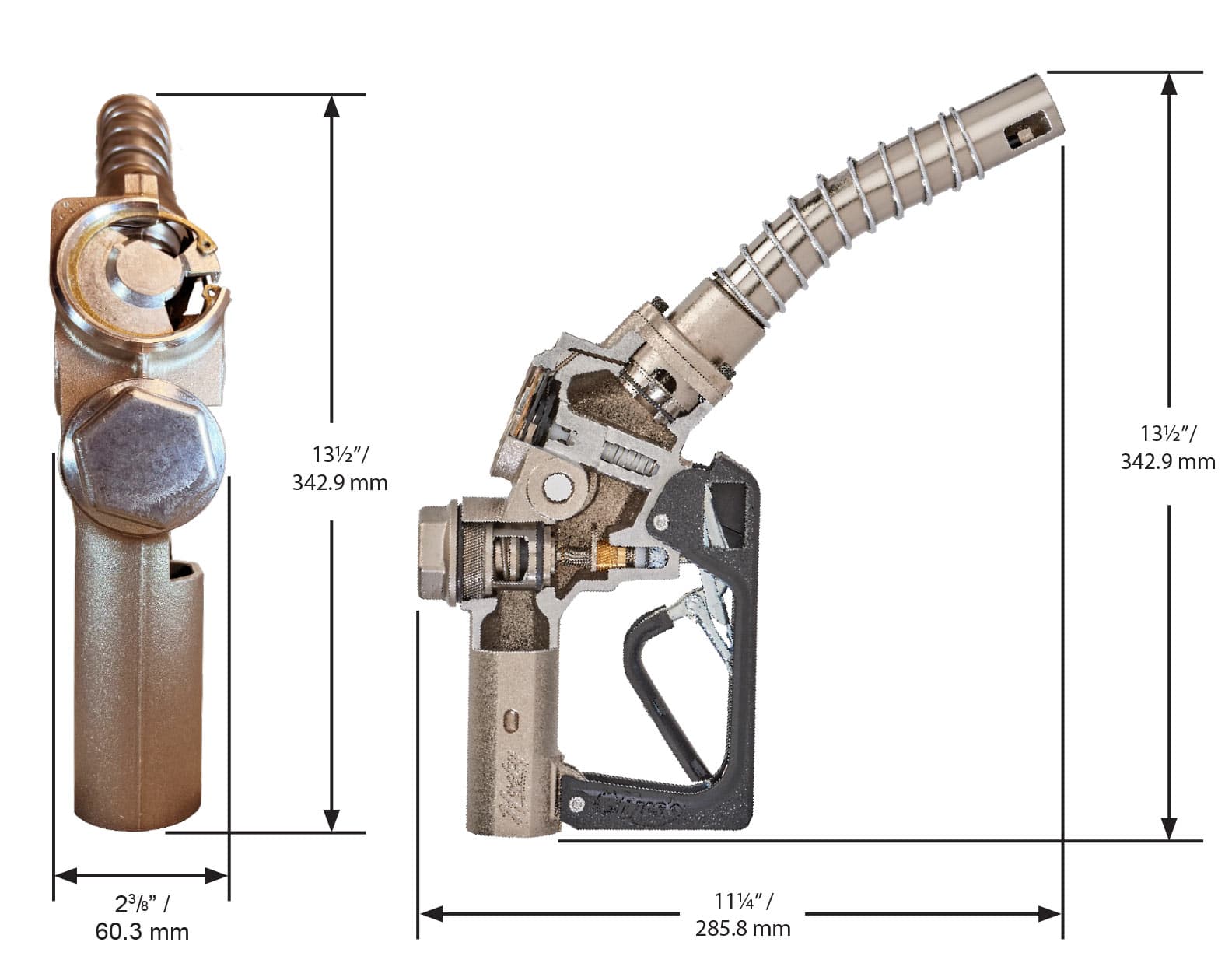

Dimensions
VIII WN dimension image
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose Guards
Choose …
000544: Full Grip Guard
005494: Lever Guard
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
