11676154N DEF X Nozzle

Home | Husky | Nozzles | DEF X Nozzle

#11676154N: Diesel Exhaust Fluid, Automatic Shut-Off

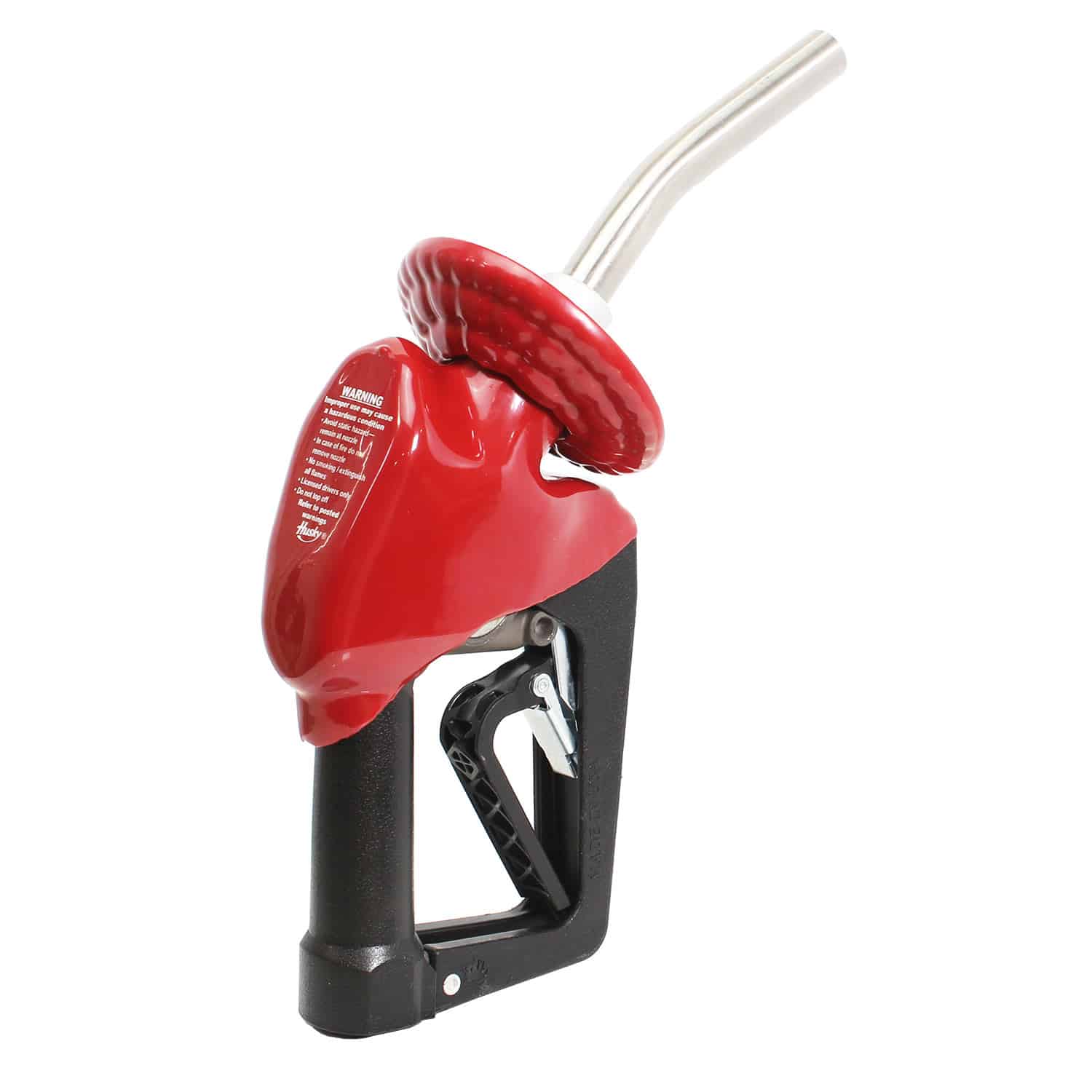

DEF X Nozzle

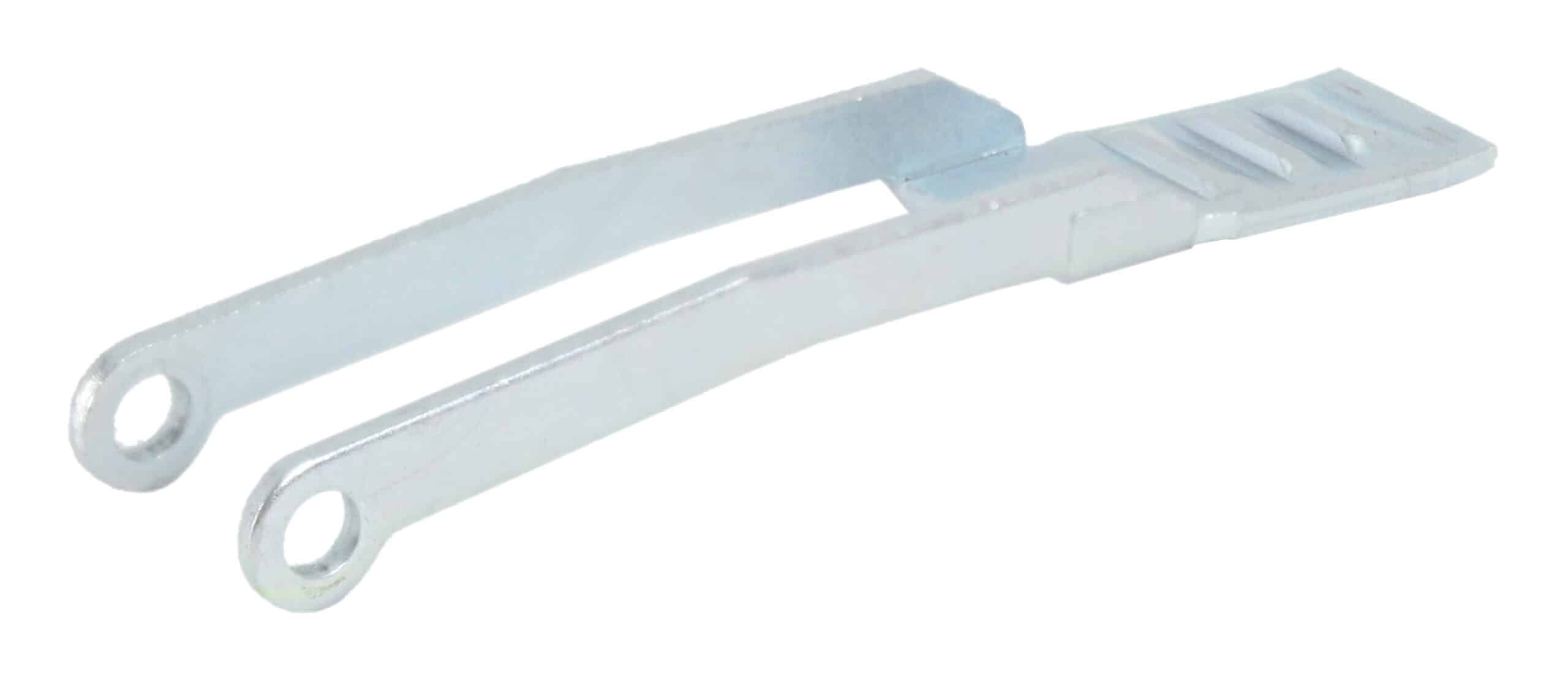

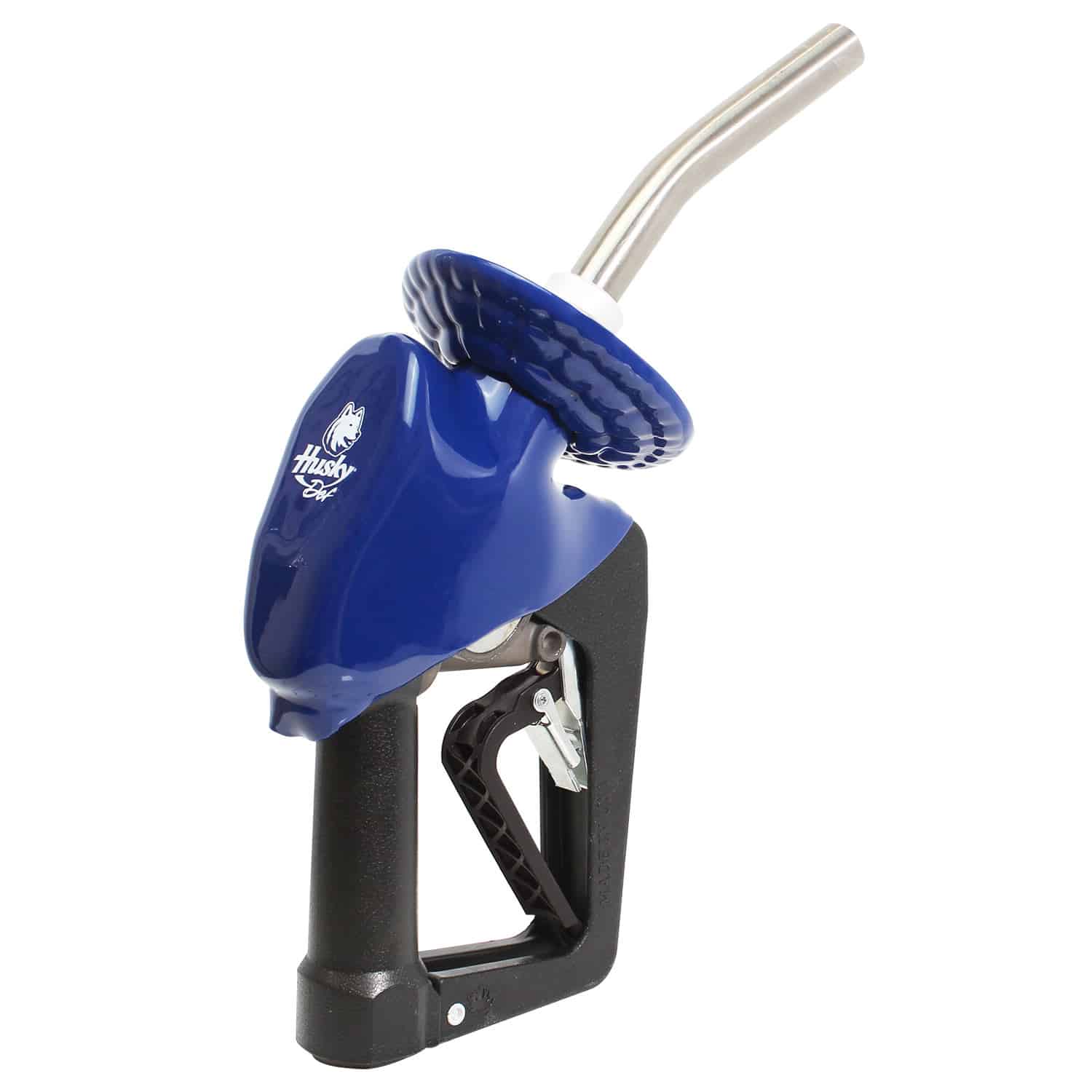

3/4" DEF Nozzle with 3-Notch Hold Open Clip, PHG, Mate Guard w/Handle Cover and Waffle Splash Guard, w/o Spout Ring

Product Info

Resources

Specs / Construction

Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.

Features/Benefits

X DEF nozzle shuts off when tank is full.
Lighter than stainless steel nozzles.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Less expensive than comparable nozzles.
Tilt poppet design provides precise “to-the-penny” dispensing.
Stainless steel spout for durability.
Flow characteristics of nozzle reduces crystallization of DEF.
Complies with ISO Standard 22241-2:2006.

Installation PDFs

009390 009428

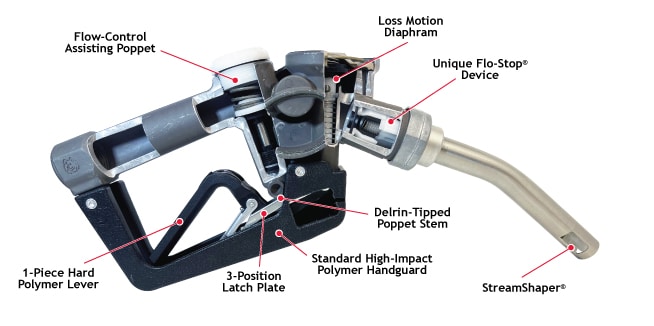

Construction

Body: Anodized Aluminum
Seals: Fluorocarbon
Spout: 19 mm diameter
Packing: Double o-ring seal protected by fiber-reinforced Teflon®
Lever: One-piece polymer
Inlet: 3/4” / 19.1 mm BSP

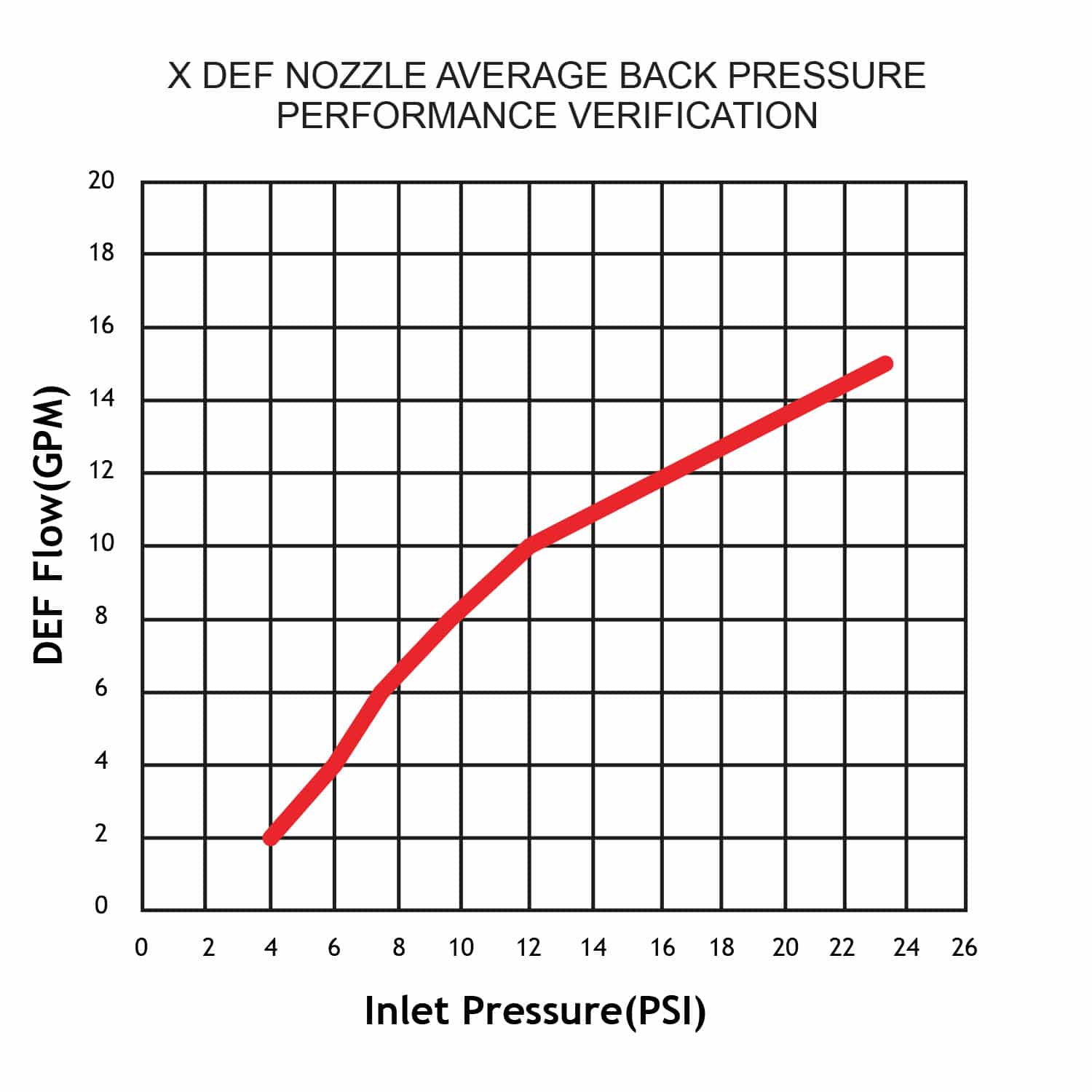

Flow Rate

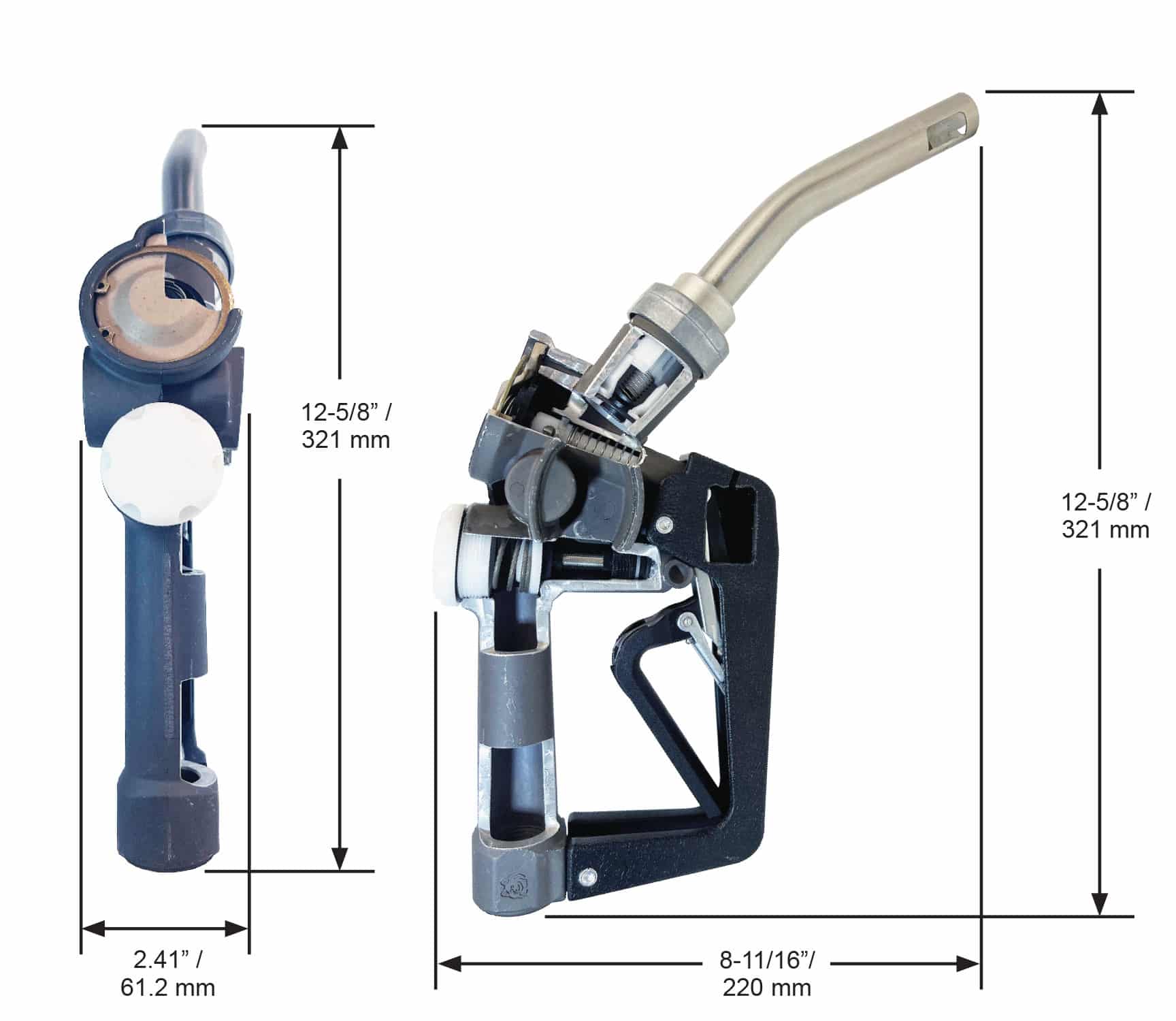

Dimensions

Configure a Complete Fueling System

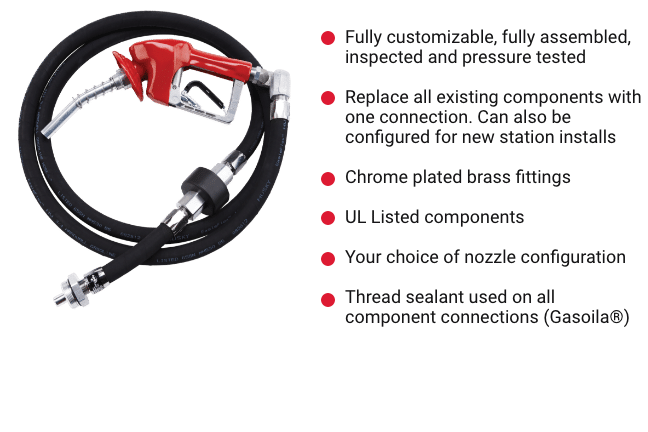

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

007282: 3/4” M BSPP x 3/4” Hose Barb Roller Bearing Inline Swivel

010936: 3/4” M BSPP x 3/4” Hose Barb Inline Swivel

012656: 3/4" M x 3/4" F BSP Roller Bearing Inline Swivel

Choose a Safe-T-Break®

Choose …

012659: 3/4” F x 3/4” F BSPP Reconnectable Safe-T-Break®

Choose a Swivel/STB Combo

Choose …

012828: 3/4” BSP M Multi-Plane Swivel connected to 3/4” BSP F Reconnectable Safe-T-Break®

012887: 3/4” BSP M Multi-Plane Swivel connected to 1” BSP F Reconnectable Safe-T-Break®

012890: 3/4” BSP M Multi-Plane Swivel connected to 1” BSP M Reconnectable Safe-T-Break®

Choose Accessories, Testing and Maintenance

Choose …

007522: 3/4” BSPP Seal Kit Assembly

013285: with StreamShaper®

013286: with Spout Ring and Magnetic Accufuel® Safety Feature

015319: with Long Spout and StreamShaper®

Choose Spouts

Choose …

007360: with Spout Ring and Flo-Stop®

007362: with Flo-Stop®

007364: with Spout Ring and Magnetic Accufuel® Safety Feature

Choose Guards

Choose …

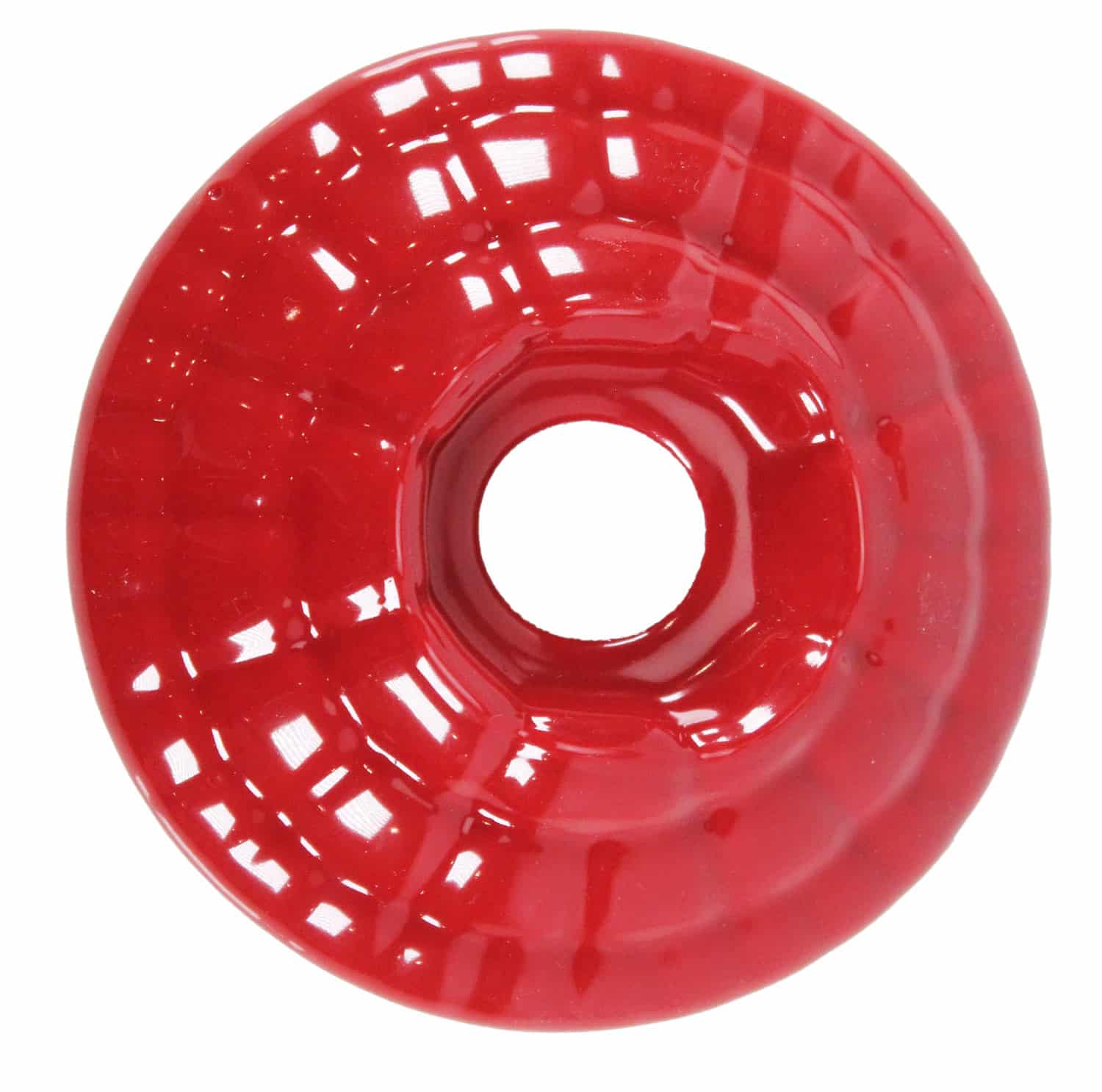

001808: Waffle Splash Guard

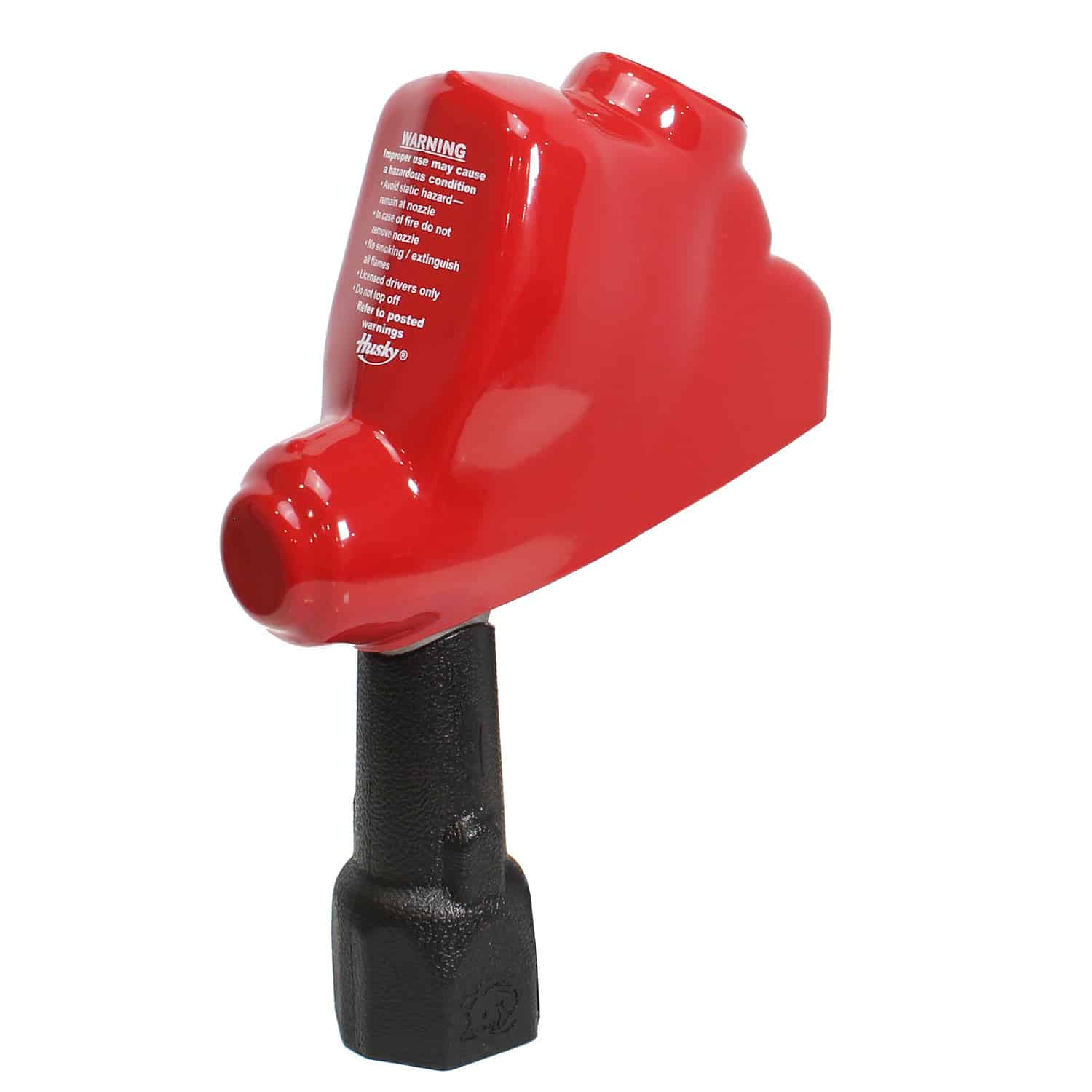

003795: Mate Nozzle Guard

004145: Full Nozzle Guard

007361: Handle Cover (Black)

014114: International Mate Nozzle Guard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
