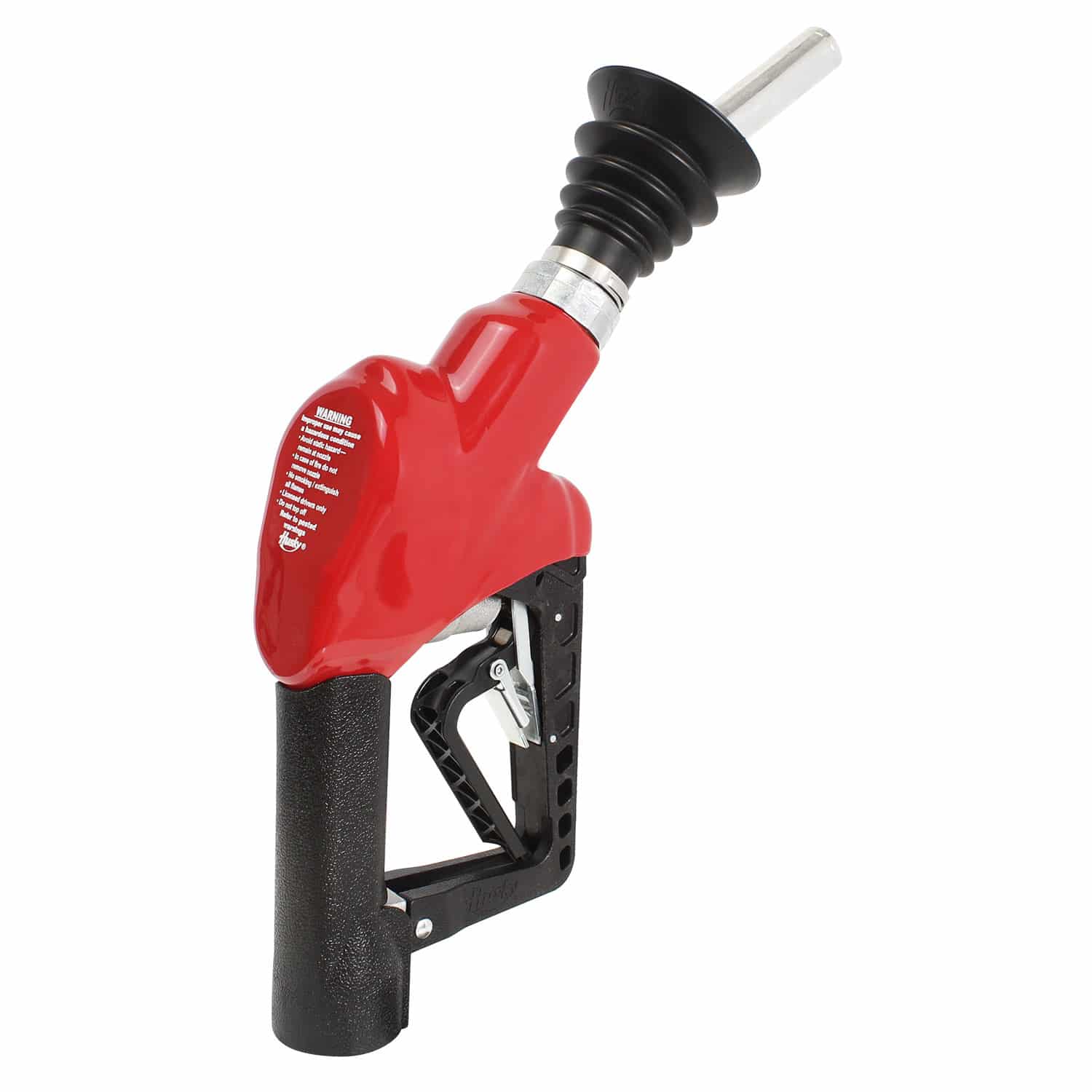

V34 Unleaded Nozzle with Two Notch Hold Open Clip, Korean Vapor Insert, Mate Guard, Polymer Handle Cover and Vapor Emissions Guard
Pressure activated, automatic shut-off vacuum assist nozzle for full-service,
self-service and unattended stations.
Features/Benefits
- V34 ORVR EZL nozzle shuts off when:
— the pump shuts off.
— the gas tank is full.
— the lever is opened before the pump is turned on.
— the leak detector has not completed the test cycle.
- Nozzle designed for the Veeder-Root® 900301 and VST

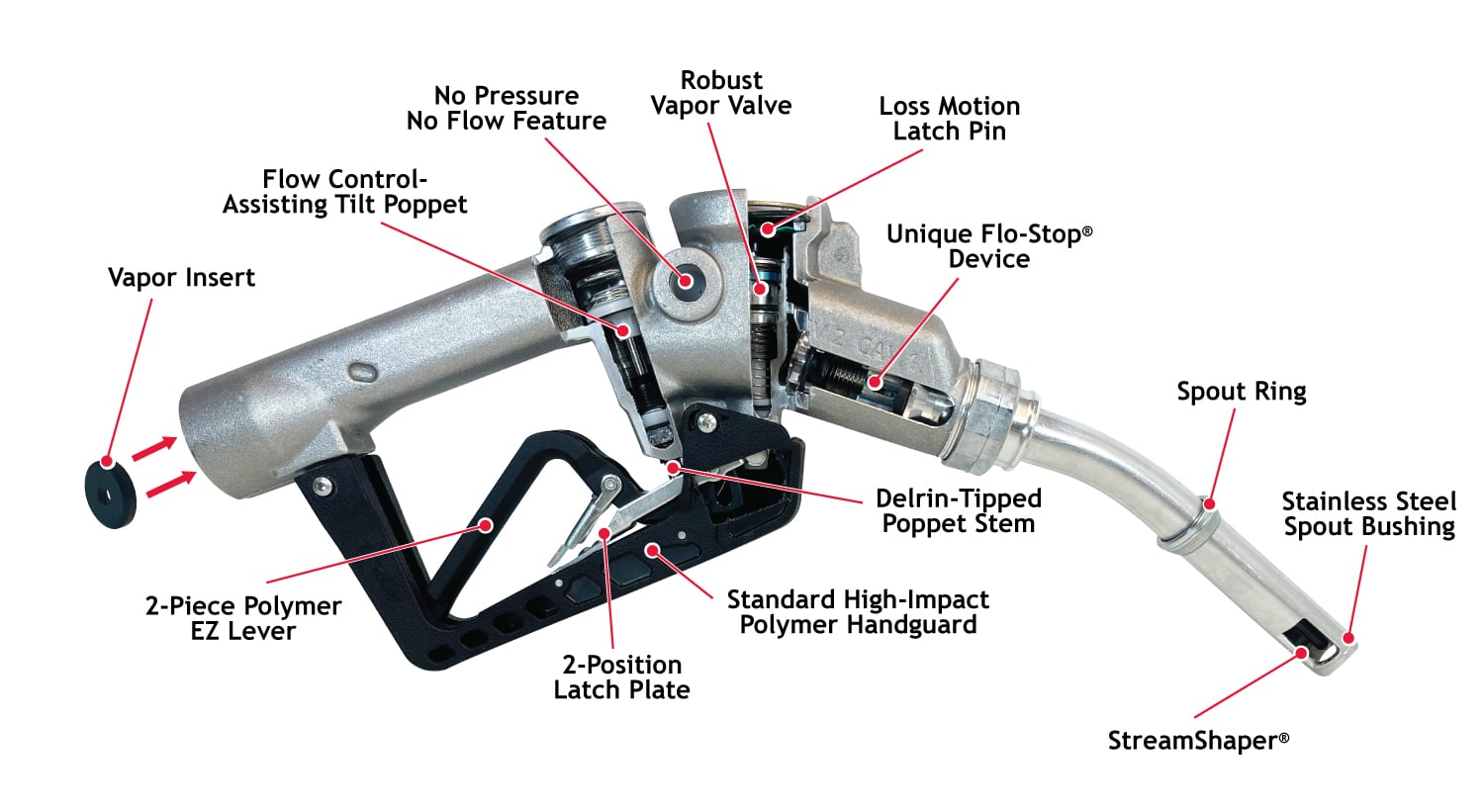

- Stainless steel reinforced spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
- Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or
raises above the horizontal.
- StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
- Strong vapor valve in the nozzle that is mechanically operated by the on-off action of the nozzle’s lever.
- Husky® vapor return line is an internal part of the body casting, thus eliminating potential vapor leak points and fugitive evaporative emissions from the fuel remaining in the vapor path of the hose.
- Vapor assist achieved at the body end of the spout where a vapor ring catches emissions.
- Uses conventional unleaded spout with spout ring and soft vapor escape guard.
- ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.
- Uses conventional unleaded spout with spout ring and soft vapor escape guard.
- Nozzle comes standard with a full grip guard.
- Optional cold weather seals are rated to -40°F/C.
- Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
- Optional sightglass provides a clear window for the customer to view the fuel as it passes through the main poppet valve.
Construction
Body: One piece sand cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber-reinforced Teflon®
Lever: Two piece polymer EZ Lever
Inlet: 1-1/4” - 18 Unified (31.75 mm)
