#159403N: Conventional, Automatic Shut-Off

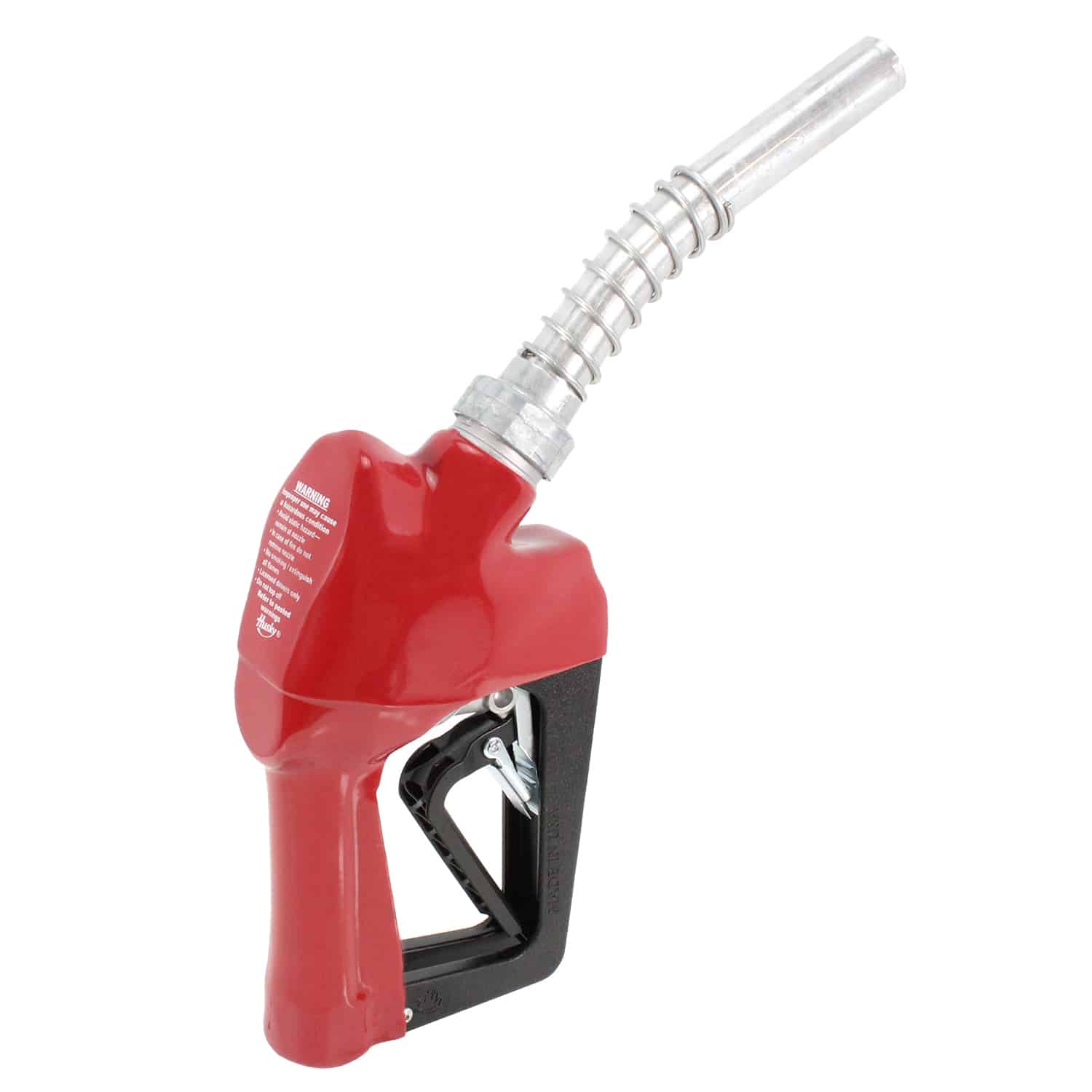

X Nozzle
3/4" Light Duty Diesel Nozzle with Three Notch Hold Open Clip
Product Info
Specs / Construction

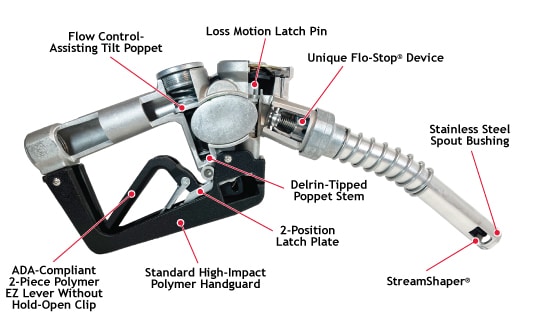

Automatic shut-off nozzle for full-service and self-service stations.
  • Husky X nozzle shuts off when the gas tank is full.
  • Stainless steel reinforced spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
  • Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
  • StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
  • Comes standard with smooth full grip guard.
  • Tilt poppet design provides precise “to-the-penny” dispensing.
  • Optional cold weather seals are rated to -40°F/C.
  • Optional sightglass provides a clear window for the customer to view the fuel as it passes through the main poppet valve.
  • Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
  • Optional Flo-Equalizer® prohibits the nozzle from exceeding 10 gpm 37.9 Lpm).

Body: One-piece die cast aluminum
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece polymer
Inlet: 3/4" / 19 mm NPT

Flow Rate
X Flow Chart Image-2023
X Nozzle Dimensions
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
000350: ¾” M x ¾” F NPT Multi-Plane Swivel
000355: ¾” M x ¾” F NPT Multi-Plane Swivel Anodized Black
002272: ¾” M x ¾” F NPT 90° Pump Swivel
003895: ¾” M x ¾” F NPT Inline Swivel
Choose a Safe-T-Break®
Choose …
003360: ¾” F x ¾” F NPT Reconnectable Safe-T-Break®
002273: ¾” F x ¾” F NPT Non-Reconnectable Safe-T-Break®
006130: ¾” F x ¾” F NPT Non-Reconnectable PCC Safe-T-Break®
005230: ¾” F x ¾” F NPT Low Pull Reconnectable Safe-T-Break®
Choose Swivel/STB Combo
Choose …
006310: ¾” M NPT Multi-Plane Swivel connected to ¾” F NPT Reconnectable Safe-T-Break®
Choose Spout
Choose …
001473: Unleaded Spout without Flo-Stop®
010434: Unleaded Long Spout without Flo-Stop®
001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®
010353: Light Duty Diesel Long Spout without Flo-Stop®
Choose Pressure/Vacuum Vent
Choose …
004620: 2” Slip-On Pressure Vacuum Vent
004885: 2” Thread-On Pressure Vacuum Vent - NPT
005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT
Choose Accessories, Testing and Maintenance
Choose …
004490: Conventional Flo-Equalizer® - 10 gpm / 37.9 Lpm
003593: Hold Open Clip Kit
007490: Internal Flo-Equalizer® - 10 gpm / 37.9 Lpm
007089: Nozzle Service Kit
000397: Unleaded Spout Gauge
Choose Guards
Choose …
001506: Protection Package
001806: Full Grip Reguard
001807: Waffle Splash Guard with Small Hole
001808: Waffle Splash Guard
001809: Reguard Protection Package
003440: Mate Easy-on Package
003795: Mate Guard
004145: Full Grip Guard
006628: POPD® S Clear Cover
006665: POPD® S Full Grip Guard
007205: POPD® S Full Grip Reguard
007361: Black Handle Cover
007999: POPD® H Clear Cover
008165: POPD® S Mate Guard
008166: POPD® H Mate Guard
008175: POPD® EZH Nozzle Guard
008176: POPD® EZS Nozzle Guard
008185: POPD® H Full Grip Guard
008192: POPD® H Full Grip Reguard
014524: International Mate Package
014530: International Mate Guard
015247: International POPD® H Mate Guard
015253: International POPD® H Mate Package
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
