159416N X Nozzle

Home | Husky | Nozzles | X Nozzle

#159416N: Conventional, Automatic Shut-Off

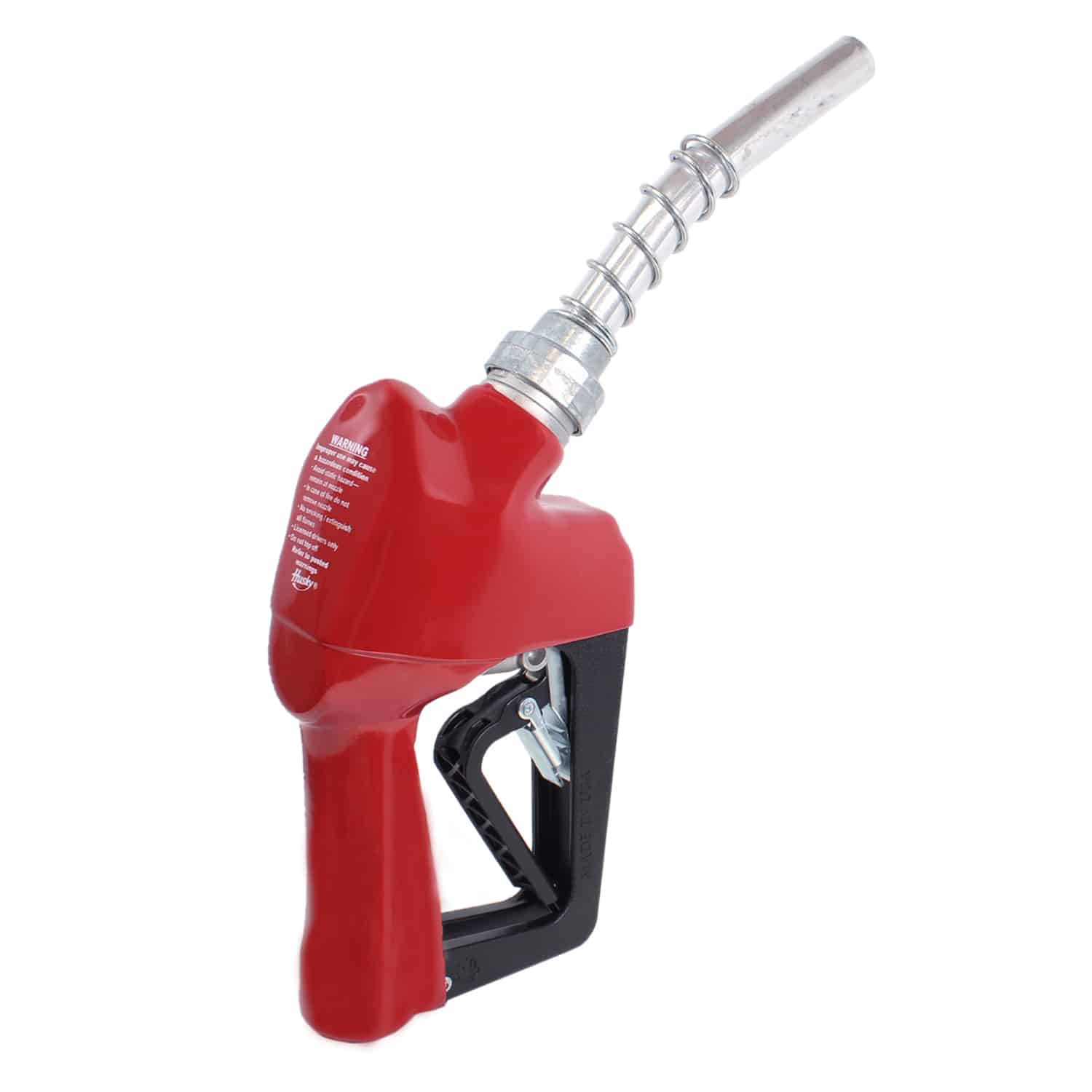

X Nozzle

3/4" Unleaded Nozzle with Two Notch Hold Open Clip

Product Info

Resources

Specs / Construction

Automatic shut-off nozzle for full-service and self-service stations.

Features/Benefits

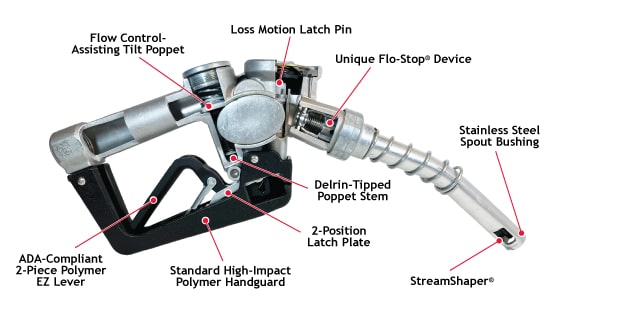

Husky X nozzle shuts off when the gas tank is full.
Stainless steel reinforced spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Comes standard with smooth full grip guard.
Tilt poppet design provides precise “to-the-penny” dispensing.
Optional cold weather seals are rated to -40°F/C.
Optional sightglass provides a clear window for the customer to view the fuel as it passes through the main poppet valve.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Optional Flo-Equalizer® prohibits the nozzle from exceeding 10 gpm 37.9 Lpm).
ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.

Construction

Body: One-piece die cast aluminum
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: Two-piece polymer EZ Lever
Inlet: 3/4" / 19.1 mm BSP

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

003590: ¾" M x ¾" F BSP Multi-Plane Swivel

003590A: ¾" M x ¾" F BSP Multi-Plane Swivel – Atex

002771A: ¾” M x ¾” F BSP Inline Swivel

Choose a Safe-T-Break®

Choose …

003385: ¾” F x ¾” F BSP Reconnectable Safe-T-Break®

003385A: ¾” F x ¾” F BSP Non-Reconnectable Safe-T-Break® - Atex

002774A: ¾” F x ¾” F BSP Non-Reconnectable Safe-T-Break® - Atex

Choose Swivel/STB Combo

Choose …

007085: ¾” M BSP Multi-Plane Swivel connected to ¾” F BSP Reconnectable Safe-T-Break®

007085A: ¾” M BSP Multi-Plane Swivel connected to ¾” F BSP Reconnectable Safe-T-Break® - Atex

Choose Spout

Choose …

001473: Unleaded Spout without Flo-Stop®

010434: Unleaded Long Spout without Flo-Stop®

001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®

010353: Light Duty Diesel Long Spout without Flo-Stop®

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

004490: Conventional Flo-Equalizer® - 10 gpm / 37.9 Lpm

003593: Hold Open Clip Kit

007490: Internal Flo-Equalizer® - 10 gpm / 37.9 Lpm

007089: Nozzle Service Kit

000397: Unleaded Spout Gauge

Choose Guards

Choose …

001808: Waffle Splash Guard

001807: Waffle Splash Guard with Small Hole

003795: Mate Guard

006628: POPD® S Clear Cover

007999: POPD® H Clear Cover

008165: POPD® S Mate Guard

008166: POPD® H Mate Guard

008175: POPD® EZH Nozzle Guard

008176: POPD® EZS Nozzle Guard

014530: International Mate Guard

015247: International POPD® H Mate Guard

015253: International POPD® H Mate Package

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
