Home | Husky | Nozzles | XFS Nozzle

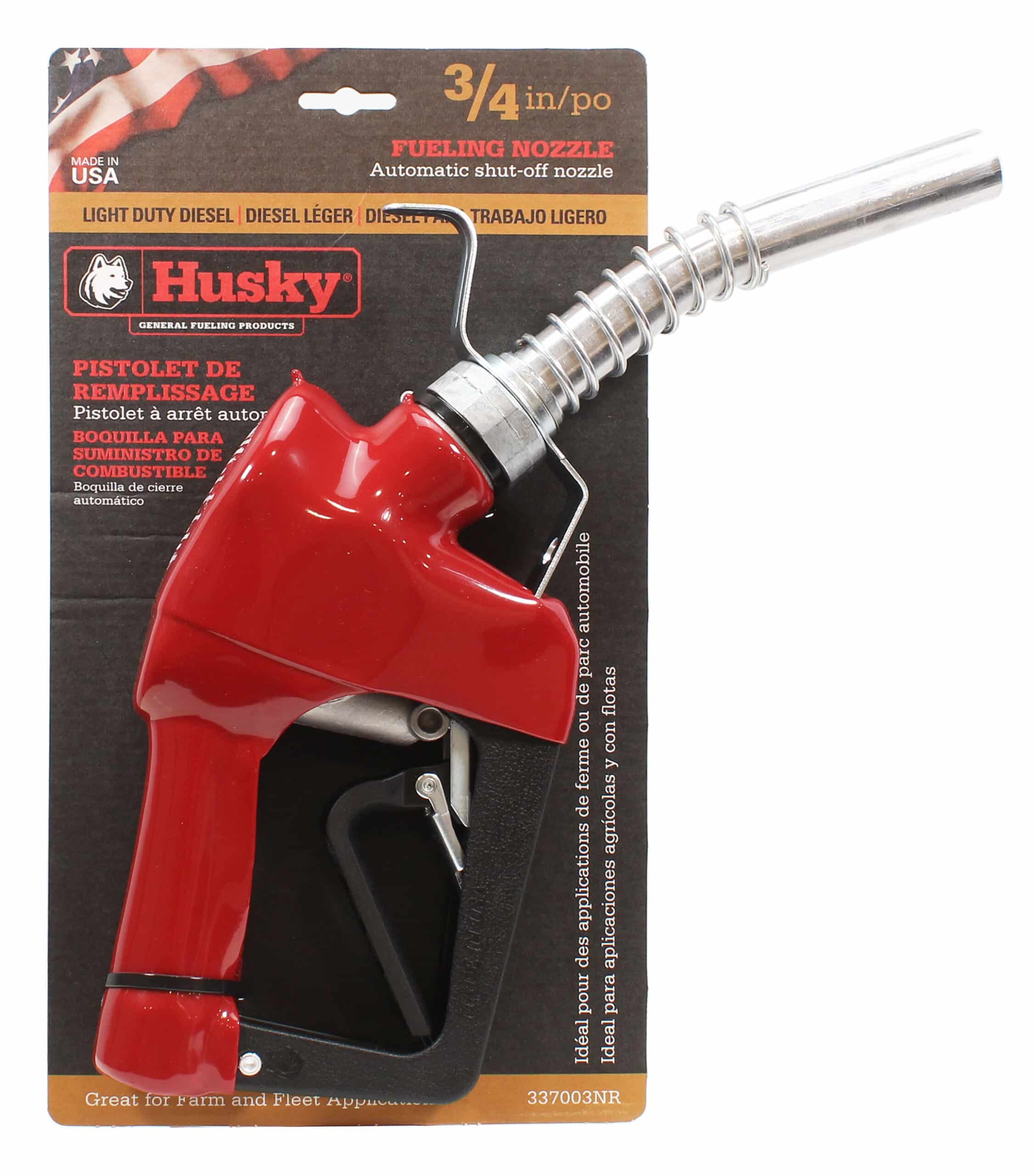

#337003NR: Farm & Commercial, Automatic Shut-Off
XFS Nozzle
3/4" Light Duty Diesel Nozzle with Single Notch Hold Open Clip
Product Info
Resources
Specs / Construction
Automatic shut-off nozzle for farm, 12V skid tanks and consumer pump applications.
Features/Benefits
  • XFS® nozzle shuts off when the gas tank is full.
  • Stainless steel reinforced unleaded spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
  • Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or raises above the horizontal.
  • Unleaded StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
  • Strong flow (up to 18 gpm / 68.1 Lpm).
  • Dispenses 10 gpm / 37.8 Lpm at only 5.6 psi / 0.38 bar (unleaded nozzle).
  • Has built-in hook and fits “holster lock” of skid tank pumps.
  • Optional cold weather seals are rated to -40°F/C.
  • Comes standard with smooth full grip guard.
  • Not for use with gravity tanks.
  • Not legal for retail dispensing applications.
Construction

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece polymer
Inlet: 3/4” / 19.1 mm NPT

Flow Rate
XFS 2023 flow chart image
Dimensions
XFS Dimensional drawing image
