#503404N: Farm & Commercial, Automatic Shut-Off

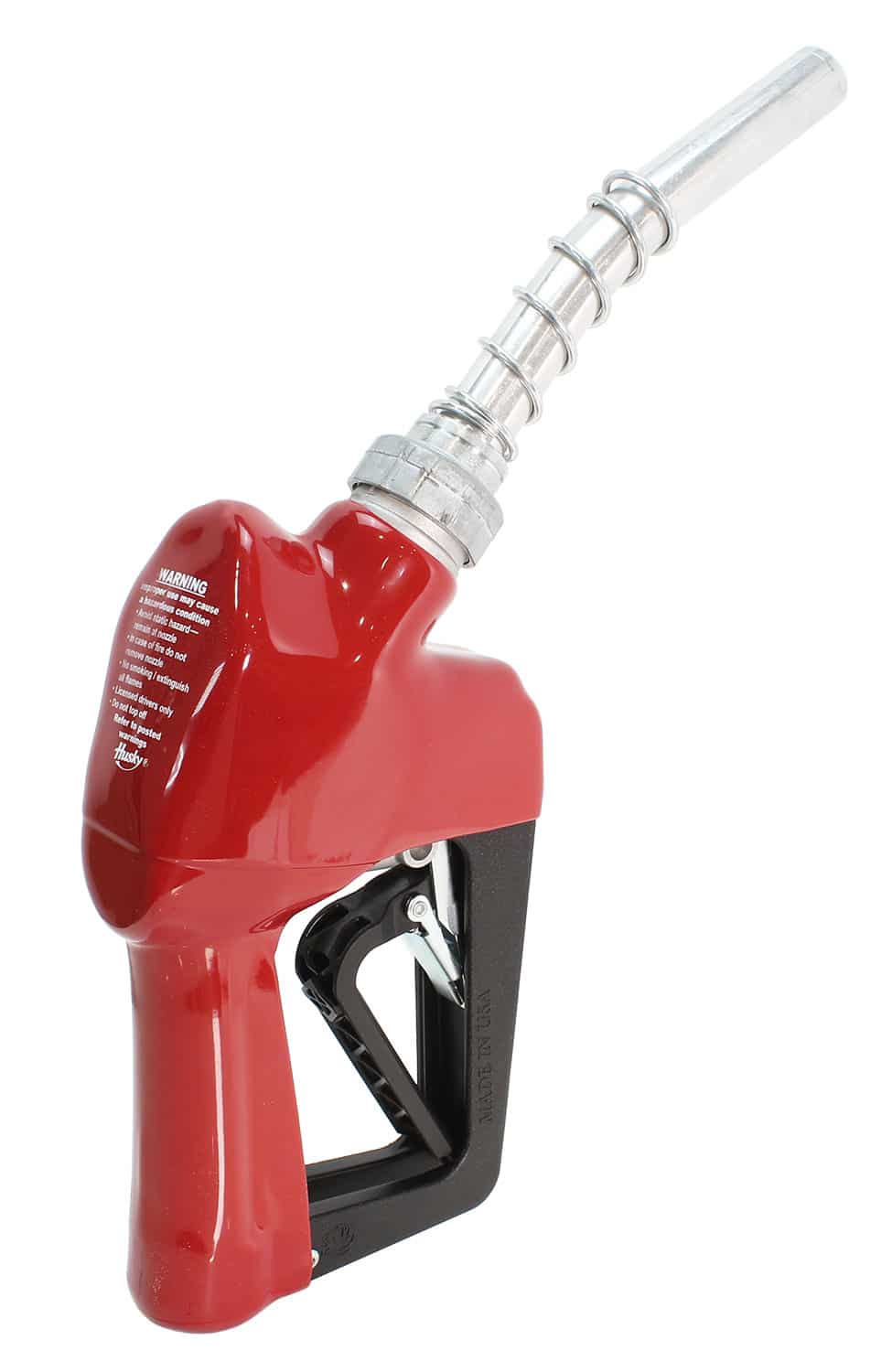

XFS Nozzle

3/4" Unleaded Nozzle with Single Notch Hold Open Clip without Hook

Product Info

Resources

Specs / Construction

Automatic shut-off nozzle for farm, 12V skid tanks and consumer pump applications.

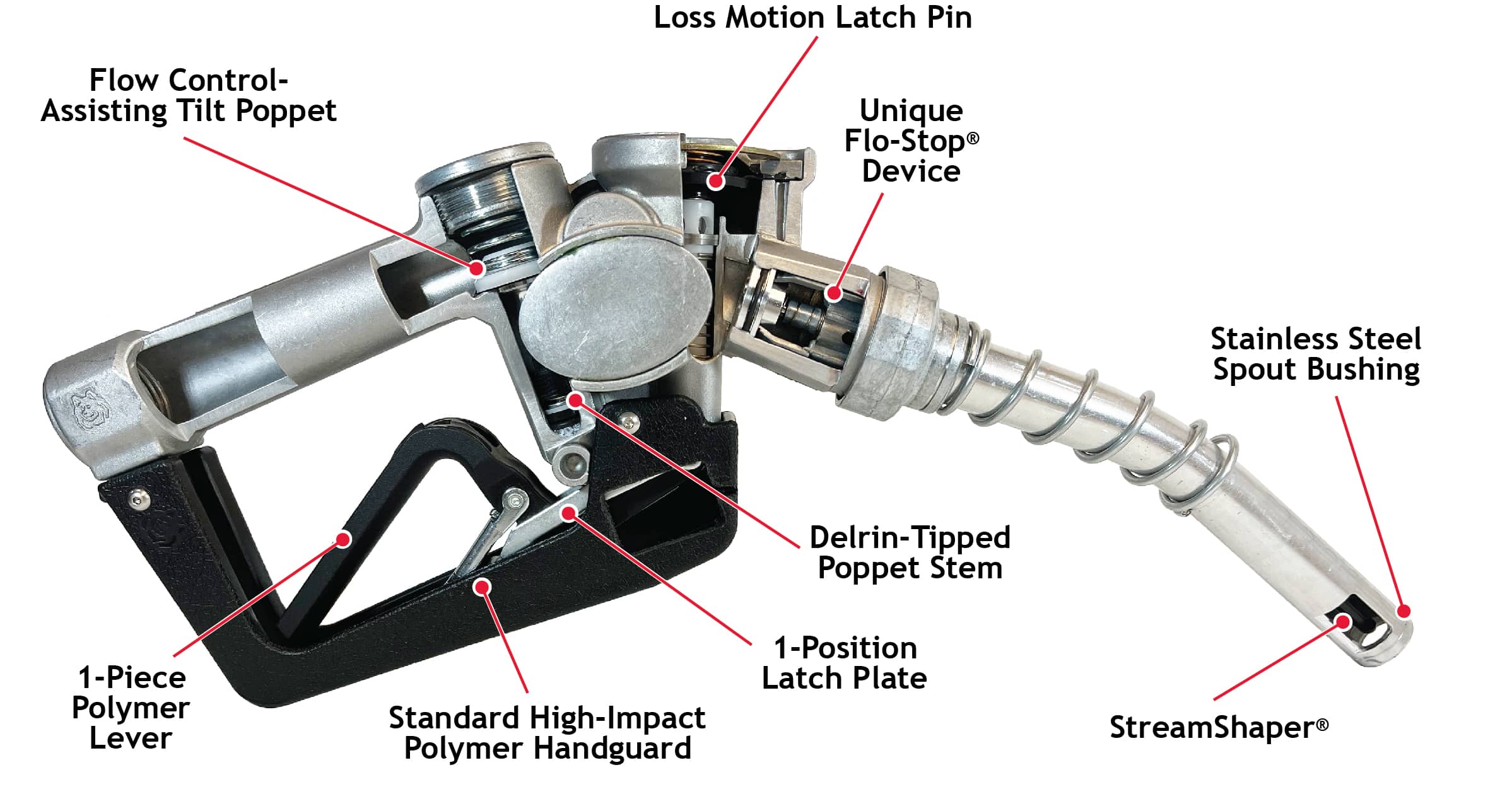

Features/Benefits

XFS® nozzle shuts off when the gas tank is full.
Stainless steel reinforced unleaded spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or raises above the horizontal.
Unleaded StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Strong flow (up to 18 gpm / 68.1 Lpm)
Dispenses 10 gpm / 37.8 Lpm at only 5.6 psi / 0.38 bar (unleaded nozzle).
Has built-in hook and fits “holster lock” of skid tank pumps.
Optional cold weather seals are rated to -40°F/C.
Comes standard with smooth full grip guard.
Not for use with gravity tanks.
Not legal for retail dispensing applications.

Construction

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece polymer
Inlet: 3/4” / 19 mm NPT

Flow Rate

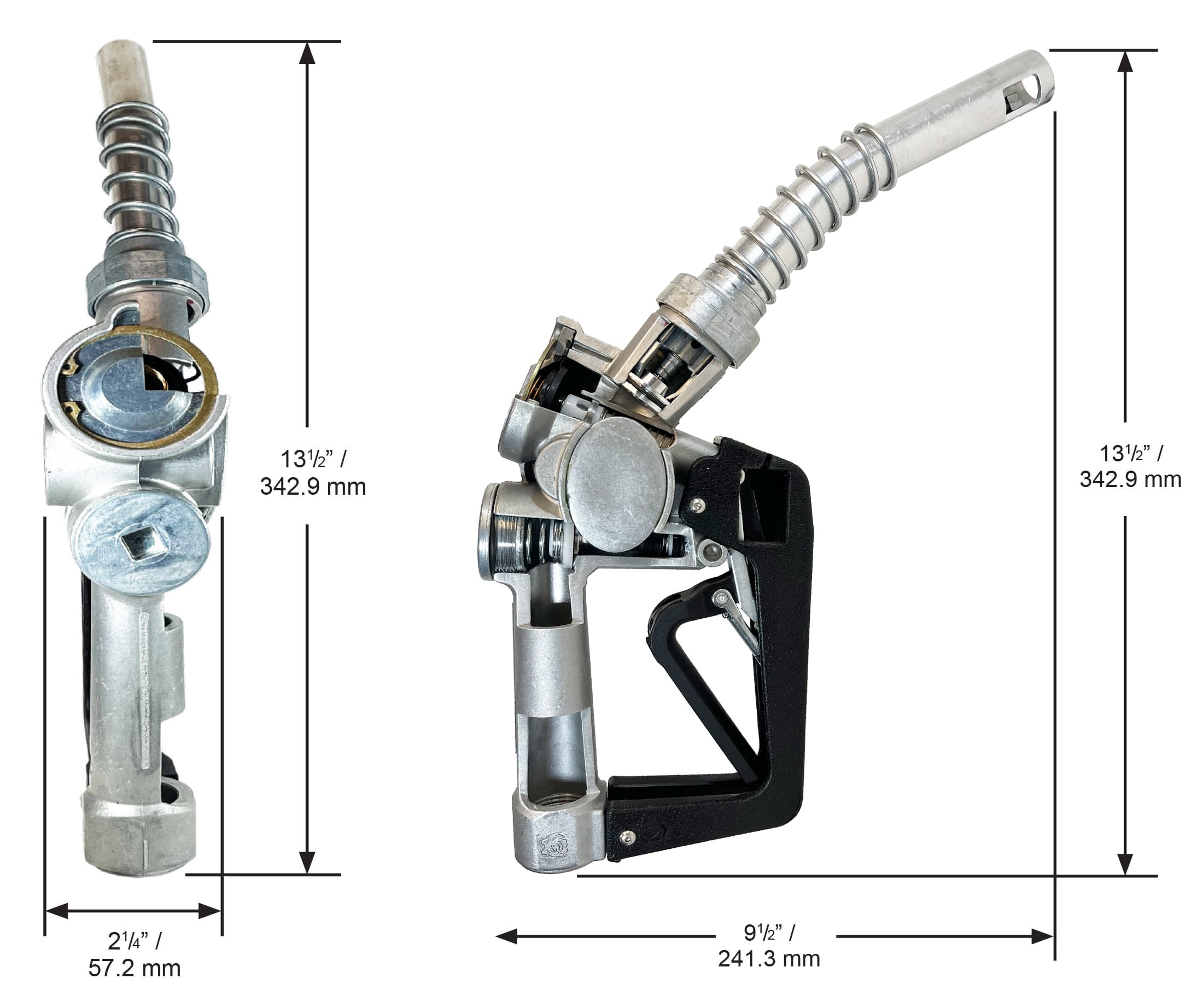

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

000350: ¾” M x ¾” F NPT Multi-Plane Swivel

000355: ¾” M x ¾” F NPT Multi-Plane Swivel Anodized Black

002272: ¾” M x ¾” F NPT 90° Pump Swivel

003895: ¾” M x ¾” F NPT Inline Swivel

Choose a Safe-T-Break®

Choose …

002273: ¾” F x ¾” F NPT Non-Reconnectable Safe-T-Break®

003360: ¾” F x ¾” F NPT Reconnectable Safe-T-Break®

005230: ¾” F x ¾” F NPT Low Pull Reconnectable Safe-T-Break®

006130: ¾” F x ¾” F NPT Non-Reconnectable PCC Safe-T-Break®

008330: ¾” F x ¾” F NPT Reconnectable MAGBREAK®

010328: ¾” F x ¾” F NPT Reconnectable High Pull MAGBREAK®

Choose Swivel/STB Combo

Choose …

006310: ¾” M NPT Multi-Plane Swivel connected to ¾” F NPT Reconnectable Safe-T-Break®

Choose Spout

Choose …

001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®

001473: Unleaded Spout without Flo-Stop®

010353: Light Duty Diesel Long Spout without Flo-Stop®

010434: Unleaded Long Spout without Flo-Stop®

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

003593: Hold Open Clip Kit

004490: Conventional Flo-Equalizer® - 10 gpm / 37.9 Lpm

007089: Nozzle Service Kit

007490: Internal Flo-Equalizer® - 10 gpm / 37.9 Lpm

Choose Guards

Choose …

001807: Waffle Splash Guard with Small Hole

001808: Waffle Splash Guard

003795: Mate Guard

006628: POPD® S Clear Cover

007999: POPD® H Clear Cover

008165: POPD® S Mate Guard

008166: POPD® H Mate Guard

008175: POPD® EZS Nozzle Guard

008176: POPD® EZH Nozzle Guard

014530: International Mate Guard

015247: International POPD® H Mate Guard

015253: International POPD® H Mate Package

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
