Home | Husky | Nozzles | XS® MFM Nozzle
#159560: Conventional, Pressure Activated
XS® MFM Nozzle

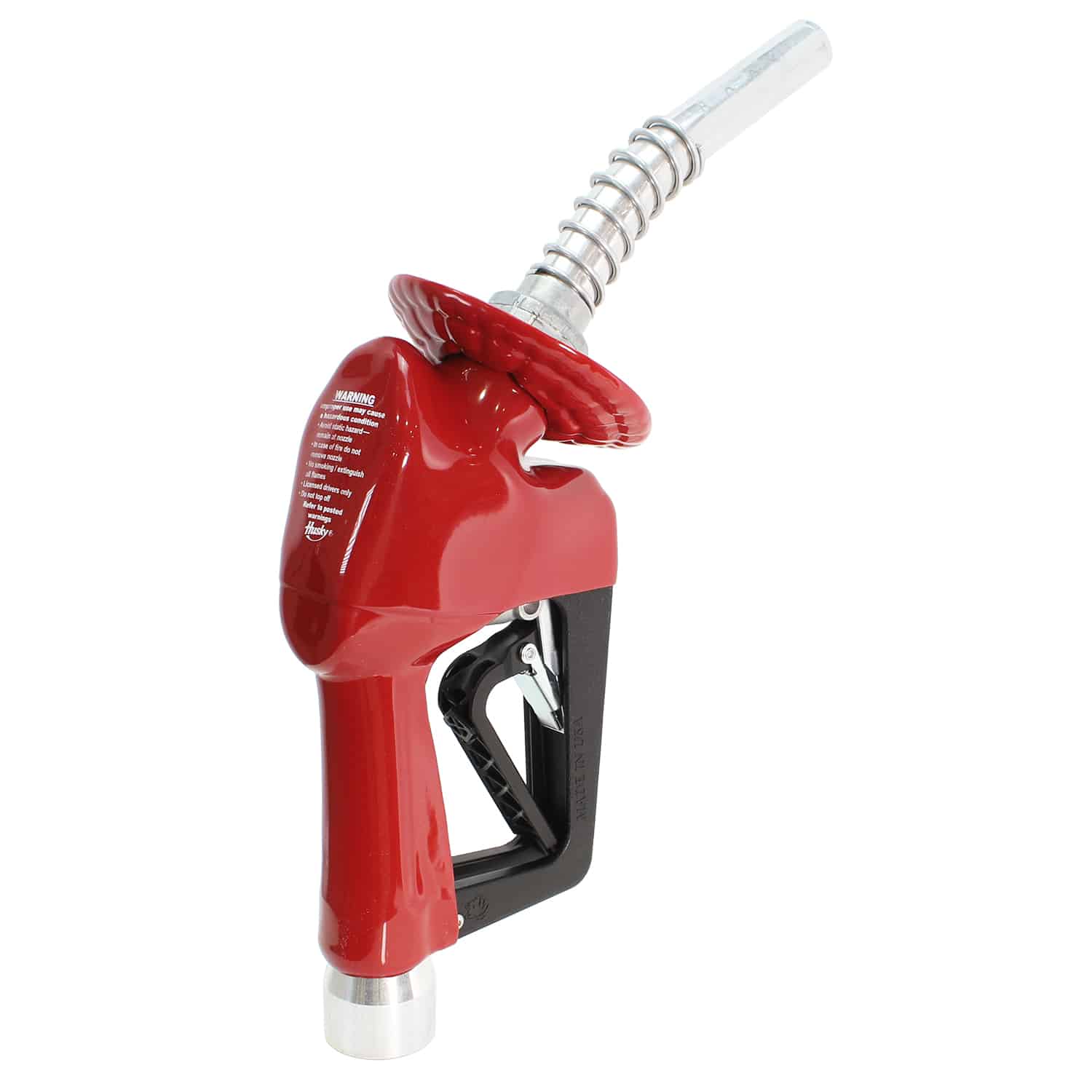

1" Light Duty Diesel Nozzle with Three Notch Hold Open Clip and 1808 Waffle Splash Guard
Product Info
Specs / Construction

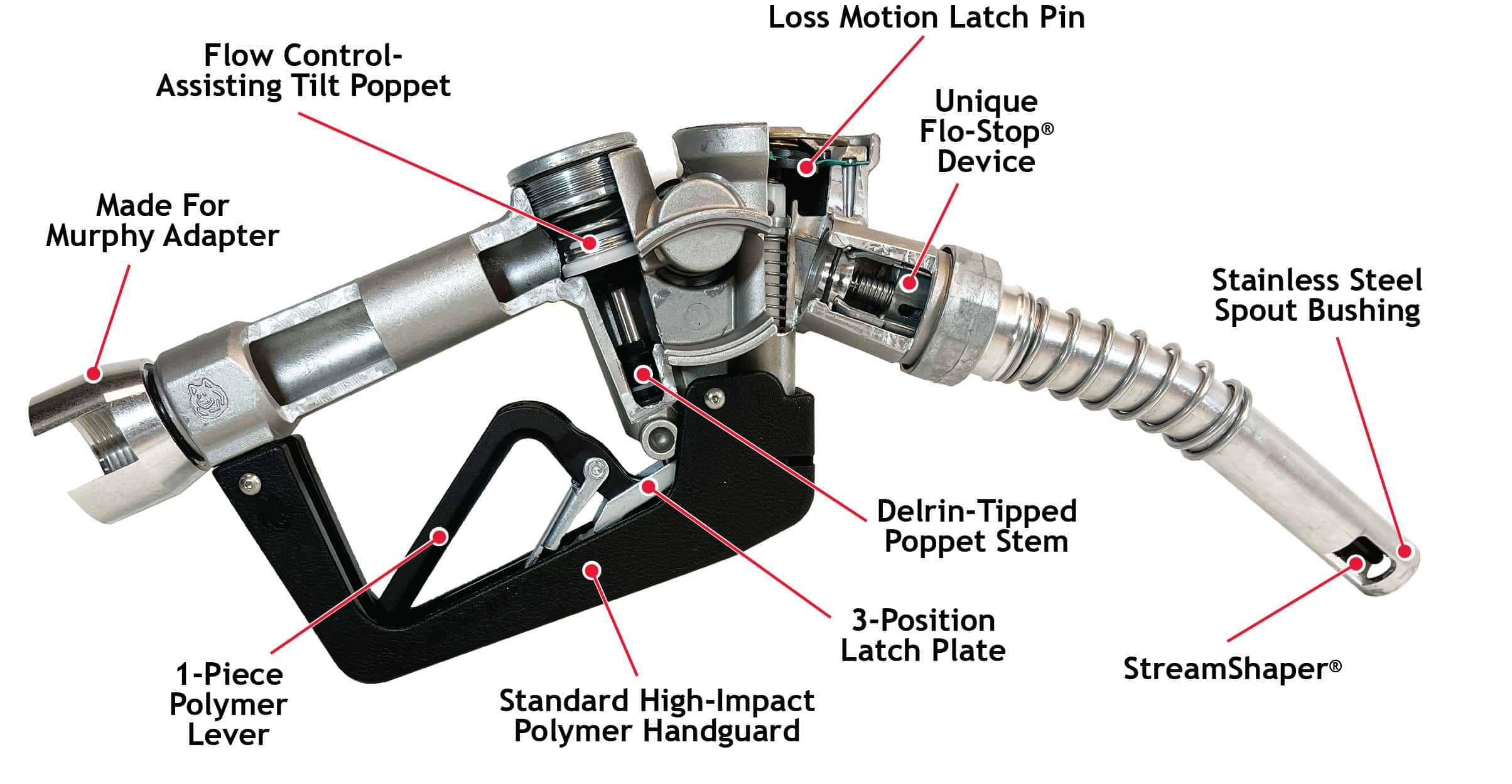

Pressure activated, automatic shut-off nozzle for full-service and self-service stations.
  • Husky XS® MFM nozzle shuts off when: the pump shuts off, the gas tank is full, the lever is opened before the pump is turned on, or the leak detector has not completed its test cycle.
  • Stainless steel reinforced spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
  • Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
  • StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
  • Comes standard with smooth full grip guard.
  • Tilt poppet design provides precise “to-the-penny” dispensing.
  • Optional cold weather seals are rated to -40°F/C.
  • Optional sightglass provides a clear window for the customer to view the fuel as it passes through the main poppet valve.
  • Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be magnet for dispensers “flapper” switch.
  • Optional Flo-Equalizer® prohibits the nozzle from exceeding 10 gpm (37.9 Lpm).
  • Optional Drip Less spout mitigates the amount of fuel released from the spout tip after refueling is completed.

Body: Die cast aluminum body with high-impact polymer handguard and permanently-secured, machined aluminum inlet adapter
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece polymer
Inlet: 1" / 25.4mm NPT

Flow Rate
XS Flow Chart
MFM nozzle dimension diagram
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
000087: 1” M x 1” F NPT Multi-Plane Swivel
000095: 1” M x 1” F NPT 70° Pump Swivel
004860: 1” M x 1” F NPT Multi-Plane High Flow Swivel
003395: 1” M x 1” F NPT Multi-Plane Restricted Swivel
Choose a Safe-T-Break®
Choose …
002276: 1” F x 1” F NPT Reconnectable Safe-T-Break®
005231: 1” F x 1” F NPT Low Pull Reconnectable Safe-T-Break®
005812: 1” F x 1” F NPT Non-Reconnectable Safe-T-Break®
006301: 1” F x 1” F NPT Non-Reconnectable PCC Safe-T-Break®
008331: 1” F x 1” F NPT CK Reconnectable MAGBREAK®
Choose Swivel/STB Combo
Choose …
005969: 1” M NPT Multi-Plane Swivel connected to 1” F NPT Reconnectable Safe-T-Break®
Choose Spout
Choose …
001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®
001473: Unleaded Spout without Flo-Stop®
010353: Light Duty Diesel Long Spout without Flo-Stop®
010434: Unleaded Long Spout without Flo-Stop®
Choose Pressure/Vacuum Vent
Choose …
004620: 2” Slip-On Pressure Vacuum Vent
004885: 2” Thread-On Pressure Vacuum Vent - NPT
005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT
Choose Accessories, Testing and Maintenance
Choose …
000397: Unleaded Spout Gauge
003593: Hold Open Clip Kit
004490: Conventional Flo-Equalizer® - 10 gpm / 37.9 Lpm
007089: Nozzle Service Kit
007490: Internal Flo-Equalizer® - 10 gpm / 37.9 Lpm
Choose Guards
Choose …
001506: Protection Package
001806: Full Grip Reguard
001807: Waffle Splash Guard with Small Hole
001808: Waffle Splash Guard
001809: Reguard Protection Package
003440: Mate Easy-On Package
003795: Mate Guard
004145: Full Grip Guard
006628: POPD® S Clear Cover
006665: POPD® S Full Grip Guard
007205: POPD® S Full Grip Reguard
007361: Black Handle Cover
007999: POPD® H Clear Cover
008165: POPD® S Mate Guard
008166: POPD® H Mate Guard
008175: POPD® EZS Nozzle Guard
008176: POPD® EZH Nozzle Guard
008185: POPD® H Full Grip Guard
008192: POPD® H Full Grip Reguard
014524: International Mate Package
014530: International Mate Guard
015247: International POPD® H Mate Guard
015253: International POPD® H Mate Package
Specify the components you’ll need, and we’ll create the perfect EZ-Connect for you. Note that all components must be chosen to complete an EZ-Connect System.
Choose a Swivel
Choose …
NSVL: No Swivel
Choose a Safe-T-Break®
Choose …
008331: MAGBREAK® 1” F NPT CK
Choose a Whip Hose
Choose …
CP16WB.75: 1'' x 9'' Wirebraid Whip Hose
CP16WB.75L: 1'' x 9'' Wirebraid Whip Hose with Zinc Coupling
Choose a Curb Hose
Choose …
CP16WB09SVSV: 1" x 9' Wirebraid Curb Hose with Swivels on both ends
CP16WB09LSVSV: 1" x 9' Wirebraid Curb Hose with Zinc Coupling and Swivels on both ends
