007605 C4 Pneumatic Oil Filter Crusher

Home | BJE | Oil Filter Crushers | C-4 Crusher

#007605: For Automobile Filters.

C-4 Crusher

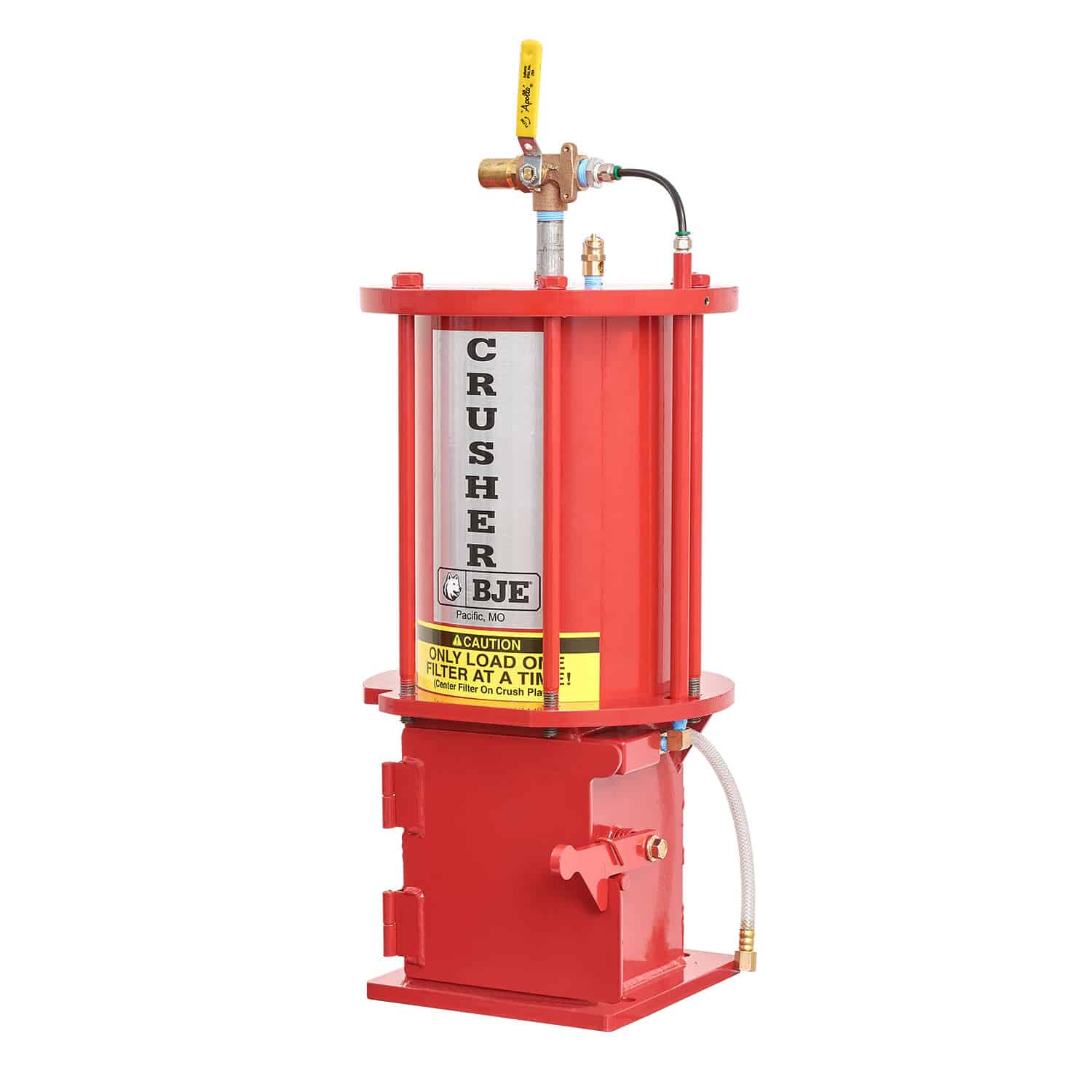

C-4 Pneumatic Oil Filter Crusher for automobile filters.

Product Info

Resources

Specs / Construction

Features/Benefits

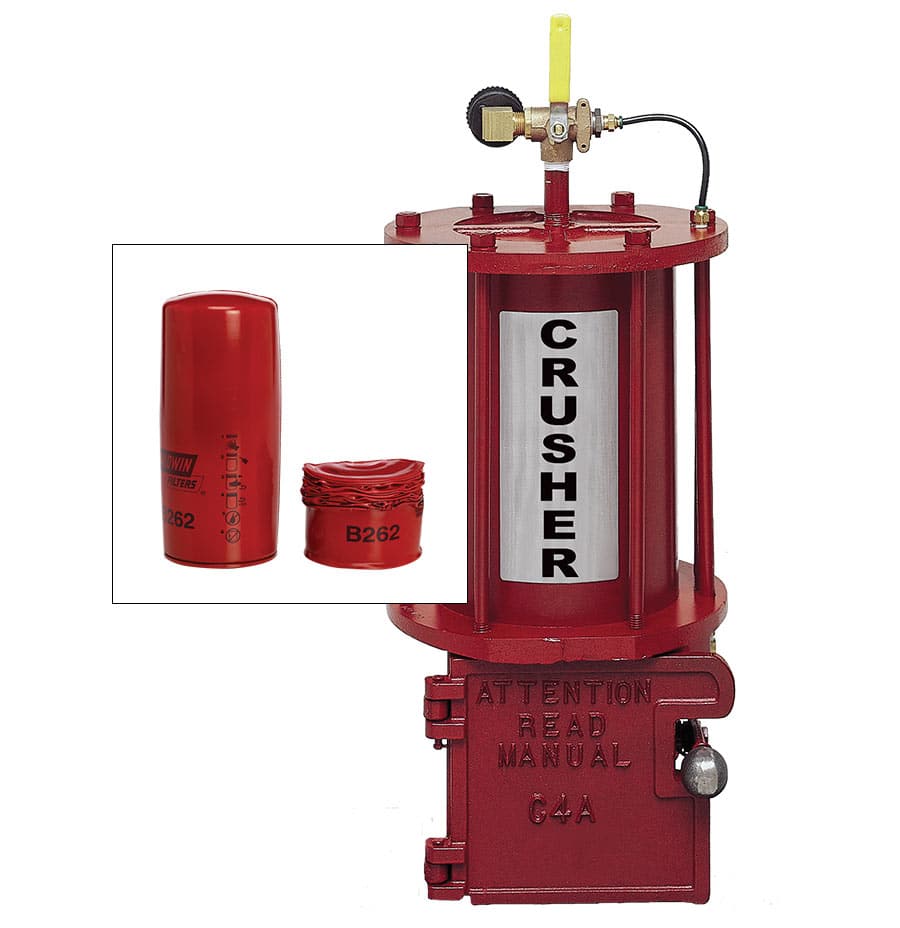

Reduces filters by 75% of original size, and removes 95% of the free-flowing oil so it can be recycled
Crushing chamber accepts filters 7 1/2” tall x 5” diameter
Only one moving part, a 1 1/2” shaft
Safety door - crusher will not operate if door is opened
Cycle time: 5 seconds
Air requirement: 125 to 175 PSI
Air regulator not needed, oiler and lubricator not needed
All parts in contact with air are rust proof
Optional stand (sold separately)
Overall size: 26" high, 11" wide and 11" deep
Lifetime warranty on housing, one year limited on all other parts
12” Flexible drain hose included
Wall mounting brackets included
Crusher weight 108 lbs. (shipping weight 160 lbs. shipped UPS)

Construction

Overall Size: 26” high, 11” wide, 11” deep.
Weight: 130 lbs. (Shipping weight 116 lbs. Shipped UPS.)
Cycle Time: 5 seconds
Air requirement: 125 to 175 PSI.

Dimensions

Available C4 Crusher and Accessories

Crushers & Accessories

Make it an EZ-Connect®

Crushers

Choose …

007605: C-4 Pneumatic Automobile Oil Filter Crusher

008203: C-4 Pneumatic Automobile Oil Filter Crusher with #7590 Crusher Stand

Stand

Choose …

007590: Small Crusher Stand for C-4 and C-6 Oil Filter Crushers

Repair Parts

Choose …

007589: C4, C6 90 degree Elbow

007599: C4, C6, TT12 Ball Valve

007602: C4 8” Black Cylinder

007611: C4 Cup Plate

007614: C4 Push Plate

007617: C4 Return Spring

007618: C4 Shaft

007619: C4 Top Bearing

007642: C4, C6 TT12 MJV-3 Air Clippard Valve

007708: C4, C6 3/8” Push-on Connector

007719: C4, C6, TT12 Muffler

007749: C4, C6, TT12 S1205 Safety Valve

016868: C4, C6, TT12, TT25 handle

007853: C4 Air Tube / Galvanized Pipe

007859: C4 Neoprene Cup

007860: C4 8” Large O-Ring

007901: C4, C6 Reducer Bushing

007902: C4, C6, TT12 1-1/4” 12 Jam Nut

007903: C4, C6, TT12 1-1/8” Washer

007904: C4, C6, TT12, TT25 3/8” Ball Bearing Switch

007905: C4, C6, TT12, TT25 Safety Switch Spring

007907: C4, C6, TT12, TT25 3/8” ID x 1/2” OD Bearing

017110: C4 1/4" x 1-1/4" Clevis Pin

007914: C4 Drain Hose Adaptor

017113: C4 3/8" x 1-5/8" Grade 8 Tap Bolt

007918: C4, C6. TT12, TT25 3/8” x 16 Stover Nut

007938: C4, C6, TT12, TT25 5/16” Flat Washer

007940: C4, C6, TT12 1/4” Air Hose Assembly
