Home | BJE | Oil Filter Crushers | C-4 Crusher
#008203: For Automobile Filters.

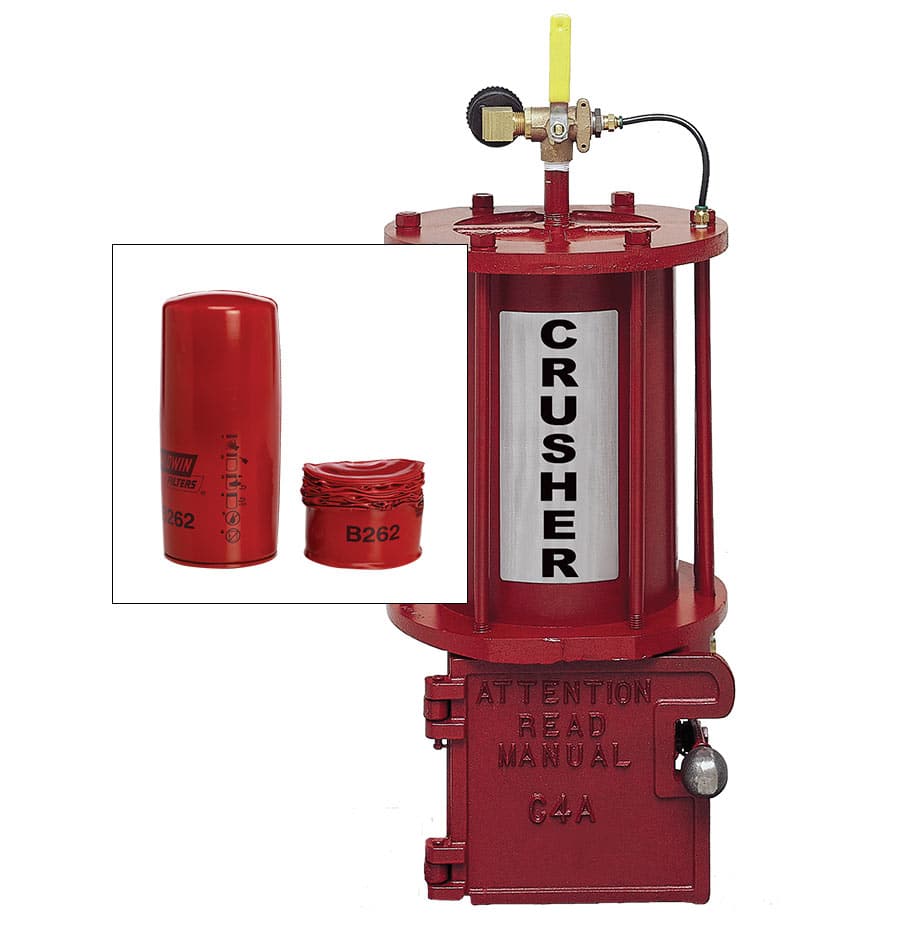

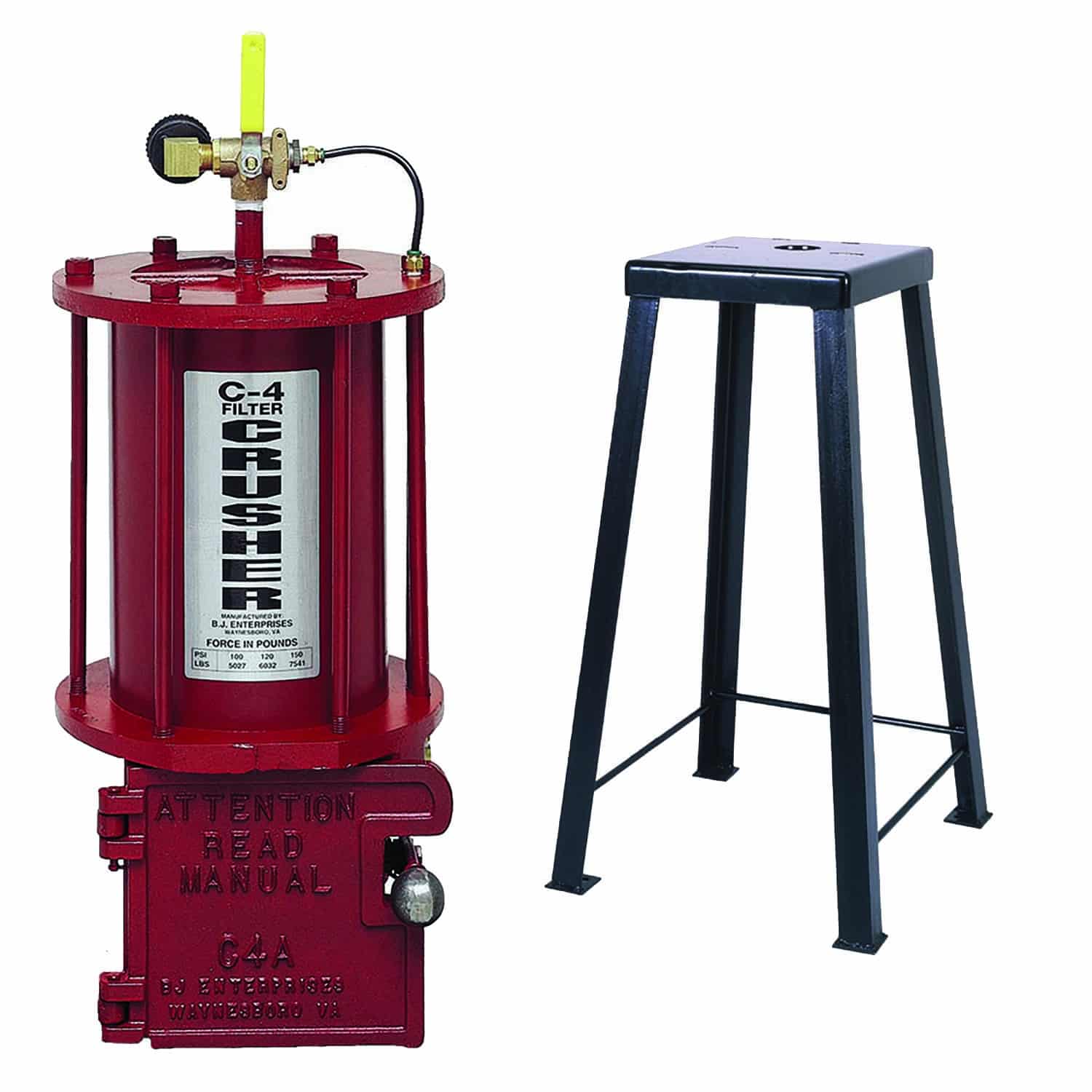

C-4 Crusher
C-4 Pneumatic Oil Filter Crusher for automobile filters.
Product Info
Resources
Specs / Construction
Features/Benefits

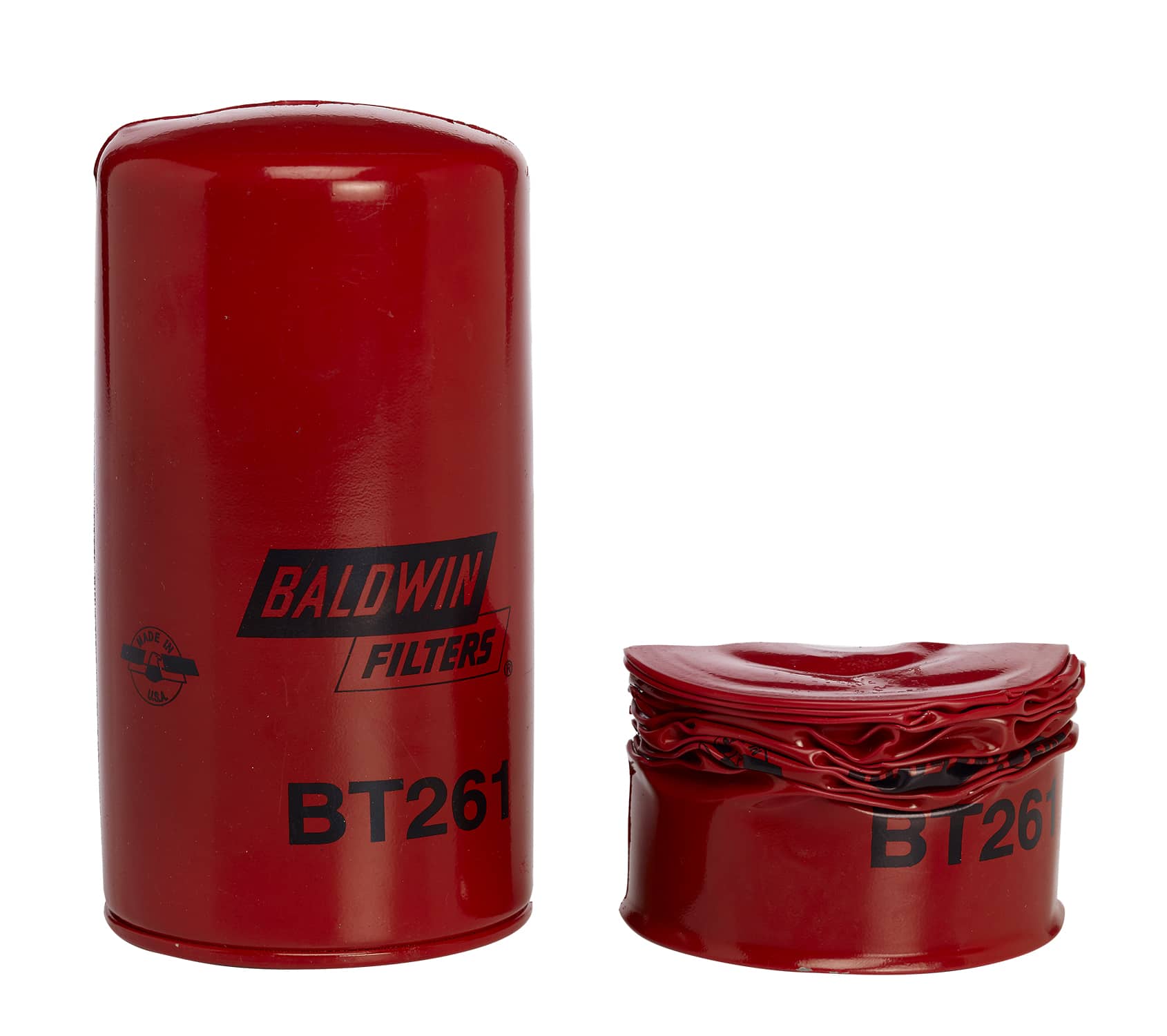

  • Reduces filters by 75% of original size, and removes 95% of the free-flowing oil so it can be recycled.
  • Crushing chamber accepts filters 7 1/2” tall x 5” diameter.
  • Only one moving part, a 1 1/2” shaft.
  • Safety door - crusher will not operate if door is opened.
  • Cycle time: 5 seconds.
  • Air requirement: 125 to 175 PSI.
  • Air regulator not needed. Oiler and lubricator not needed.
  • All parts in contact with air are rust proof.
  • Lifetime warranty on housing, one year limited on all other parts.
  • 12” Flexible drain hose included.
  • Wall mounting brackets included.
Construction

Weight: 130 lbs. (Shipping weight 116 lbs. Shipped UPS.)
Cycle Time: 5 seconds
Air requirement: 125 to 175 PSI.

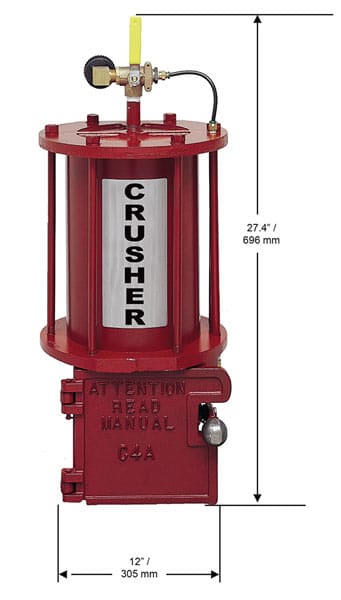

Dimensions
Accessories
Repair Parts
Replacement Parts
Choose …
007589: C4, C6 90 degree Elbow
007599: C4, C6 TT12 Ball Valve
007602: C4 8” Black Cylinder
007611: C4 Cup Plate
007614: C4 Push Plate
007612: C4 Door
007617: C4 Return Spring
007618: C4 Shaft
007619: C4 Top Bearing
007642: C4, C6 TT12 MJV-3 Air Clippard Valve
007708: C4, C6 3/8” Push-on Connector
007719: C4, C6, TT12 Muffler
007749: C4, C6, TT12 S1205 Safety Valve
007847: C4, C6 Handle
007853: C4 Air Tube / Galvanized Pipe
007859: C4 Neoprene Cup
007860: C4 8” Large O-Ring
007901: C4, C6 Reducer Bushing
007902: C4, C6, TT12 1-1/4” 12 Jam Nut
007903: C, C6, TT12 1-1/8” Washer
007904: C4, C6, TT12, TT25 3/8” Ball Bearing Switch
007905: C4, C6, TT12, TT25 Safety Switch Spring
007906: C4, C6, TT12, TT25 1/4” x 2-1/4” Clevis Pin
007907: C4, C6, TT12, TT25 3/8” ID x 1/2” OD Bearing
007908: C4, C6, TT12, TT25 1/4” x 1-1/2” Clevis Pin
007909: C4, C6, TT12, TT25 3/32” x 1/2” Cotter Pin
007914: C4 Drain Hose Adaptor
007917: C4, C6, TT12. TT25 3/8” x 2-1/4” Grade 8 Tap Bolt
007918: C4, C6. TT12, TT25 3/8” x 16 Stover Nut
007938: C4, C6, TT12, TT25 5/16” Flat Washer
007940: C4, C6, TT12 1/4” Air Hose Assembly
