Home | BJE | Oil Filter Crushers | C-6 Crusher
#008207: For Light Truck Diesel and SUV Filters.

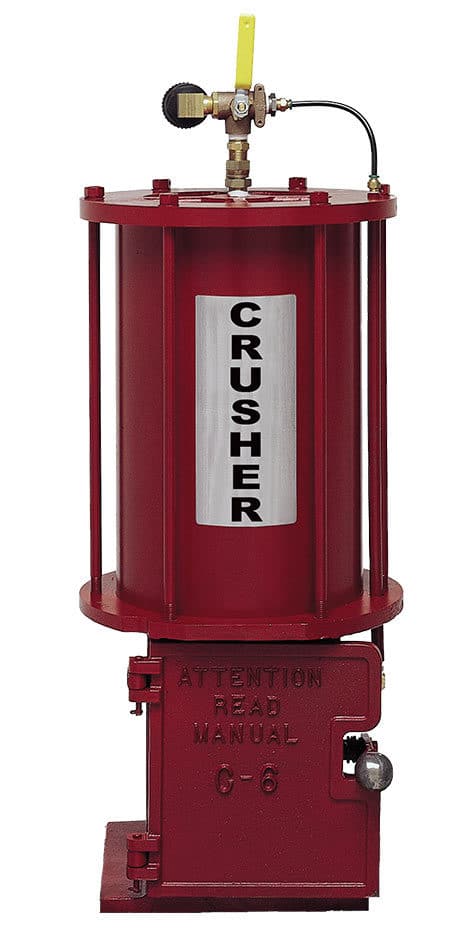

C-6 Crusher
C-6 Pneumatic Oil Filter Crusher for light truck diesel and SUV filters.
Product Info
Resources
Specs / Construction
Features/Benefits
  • Reduces filters by 75% of original size, and removes 95% of the free-flowing oil so it can be recycled.
  • Large crushing chamber: accepts filters up to 10” tall x 7” diameter.
  • Only one moving part, a 2” shaft.
  • Safety door - crusher will not operate if door is opened.
  • Cycle time: 27 seconds.
  • Air requirement: 125 to 175 PSI.
  • Air regulator not needed. Oiler and lubricator not needed.
  • All parts in contact with air are rust proof.
  • Optional stand (sold separately).
  • Lifetime warranty on housing, one year limited on all other parts.
  • 12” Flexible drain hose included.
  • Wall mounting brackets included.
  • Overall weight on stand 170 lbs. (Shipping weight 182 lbs. Trucked on pallet.)
Construction

Overall Size on Stand: 75” high, 36” wide, 26” deep
Weight: 170 lbs. (Shipping weight 182 lbs. Trucked on pallet.)
Cycle Time: 27 seconds
Air requirement: 125 to 175 PSI.

Dimensions
Accessories
Repair Parts
Replacement Parts
Choose …
007589: C-4, C6 90 degree Elbow
007599: C-4, C6 TT12 Ball Valve
007628: C-6 Cup Plate
007632: C-6 Push Plate
007629: C-6 Door
007858: C-6 Return Spring
007633: C-6 Shaft
007634: C-6 Top Bearing
007642: C-4, C-6 TT-12 MJV-3 Air Clippard Valve
007708: C-4, C-6 3/8″ Push-on Connector
007719: C-4, C-6, TT-12 Muffler
007749: C-4, C-6, TT-12 S1205 Safety Valve
007847: C-4, C-6 Handle
007861: C-6 Neoprene Cup
007862: C-6 10″ Large O-Ring
007901: C-4, C-6 Reducer Bushing
007902: C-4, C-6, TT-12 1-1/4″ 12 Jam Nut
007903: C, C-6, TT-12 1-1/8″ Washer
007904: C-4, C-6, TT-12, TT-25 3/8″ Ball Bearing Switch
007905: C-4, C-6, TT-12, TT-25 Safety Switch Spring
007906: C-4, C-6, TT-12, TT-25 1/4″ x 2-1/4″ Clevis Pin
007907: C-4, C-6, TT-12, TT-25 3/8″ ID x 1/2″ OD Bearing
007908: C-4, C-6, TT-12, TT-25 1/4″ x 1-1/2″ Clevis Pin
007909: C-4, C-6, TT-12, TT-25 3/32″ x 1/2″ Cotter Pin
007917: C-4, C-6, TT-12. TT-25 3/8″ x 2-1/4″ Grade 8 Tap Bolt
007918: C-4, C-6. TT-12, TT-25 3/8″ x 16 Stover Nut
007938: C-4, C-6, TT-12, TT-25 5/16″ Flat Washer
007940: C-4, C-6, TT-12 1/4″ Air Hose Assembly
