M34 x 1.5'' Reconnectable Vapor Recovery Safe-T-Break®
Product Info
Resources
Specs / Construction
Features/Benefits
All Husky® Safe-T-Breaks® stop the flow of fuel on both sides of the separation and have passed the demanding UL test requirements on separations without leaking or failing
EVR Certified per CARB CP-201
Reconnectable Safe-T-Break® for the vapor assist systems: coaxial hoses with fuel “outside” hose, vapor return “inside” hose
Meets the reconnect endurance test of the UL Standard 567 Ninth Edition
Unique vapor valve stops vapors from escaping after a drive away
Separates at less than200 lbf / 889.6 N to minimize backlash damage
Unique pre-loaded shock absorbing wave spring minimizes nuisance breaks

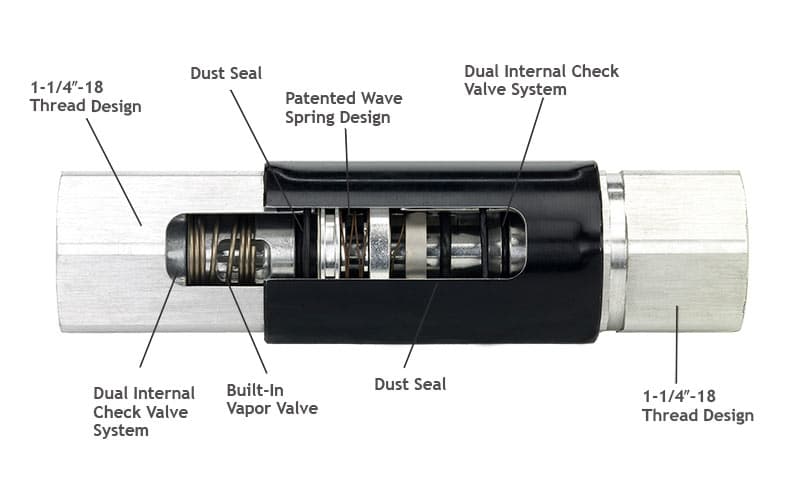

Construction
Body: Zinc Alloys and Aluminum Seals: Fluorocarbon Springs: Stainless Steel Threads: M34 x 1.5
Color Chart

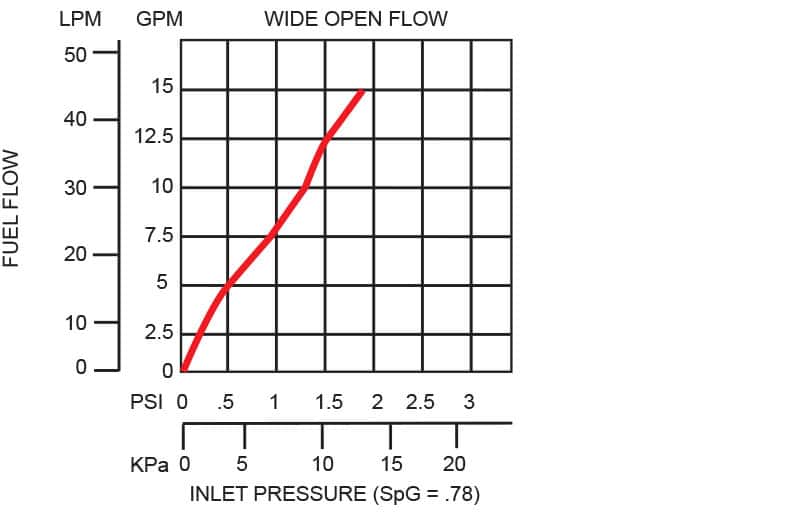

Flow Rate

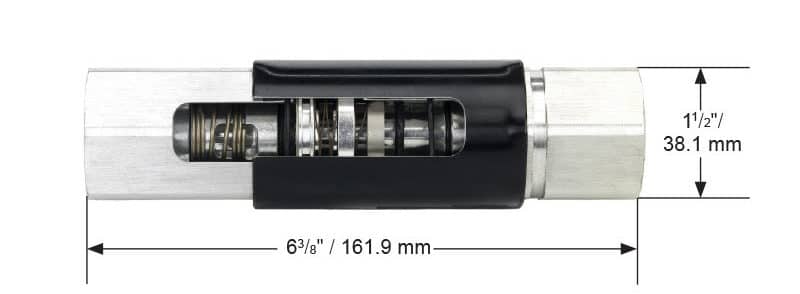

Dimensions
Accessories
Add Accessories / Options
Guards
Choose …
003098: Scuff Guard
