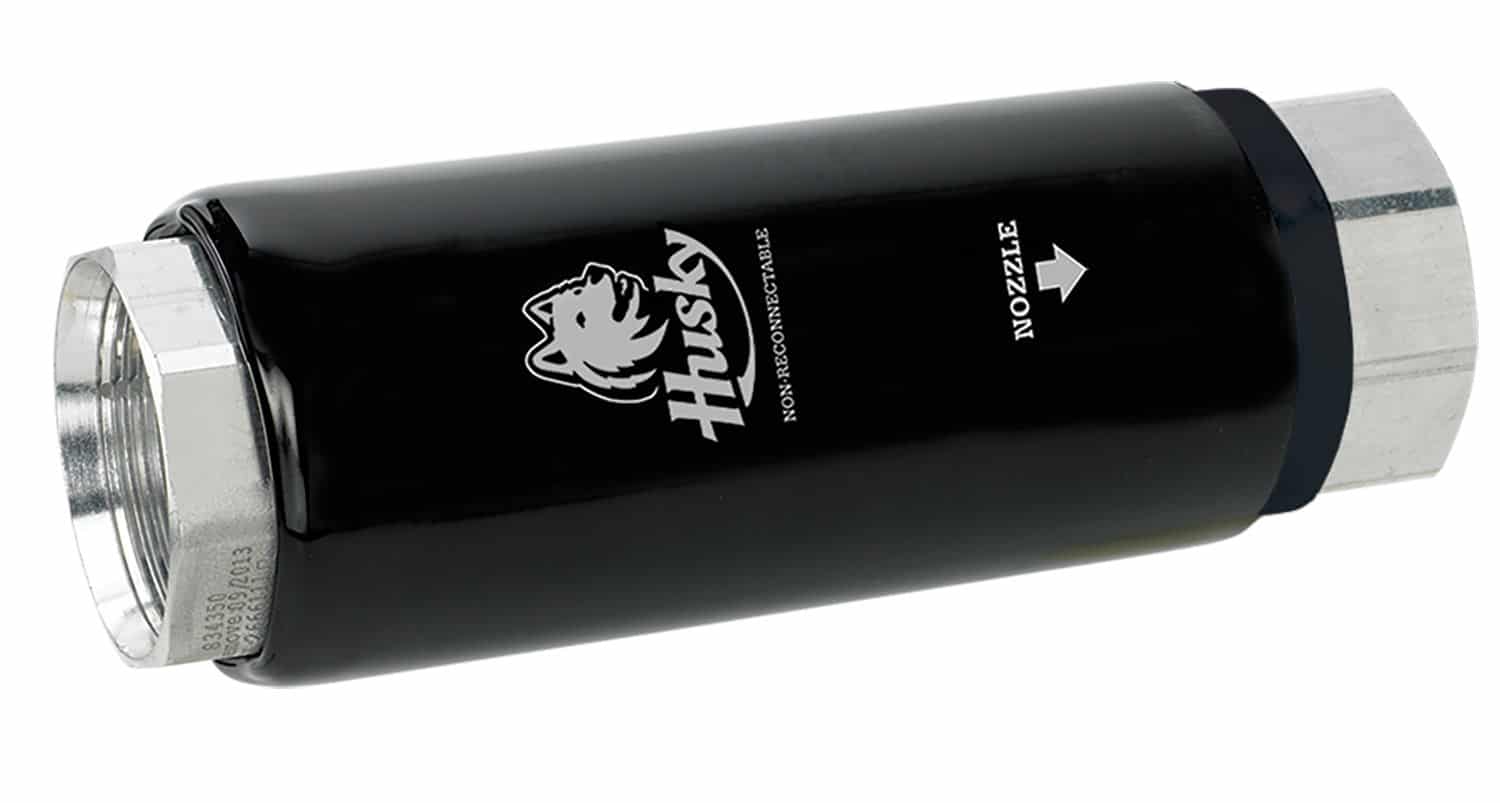

1-7/8'' x 12 Non-Reconnect Balance Vapor Recovery Safe-T-Break® with Scuff Guard
Product Info
Resources
Specs / Construction
Features/Benefits
All Husky® Safe-T-Breaks® stop the flow of fuel on both sides of the separation and have passed the demanding UL test requirements on separations without leaking or failing.
Non-reconnectable Safe-T-Break® for balance vapor recovery systems – coaxial hoses with fuel on the “inside”, vapor return on the “outside”
Internal pressure compensating chamber isolates shear pin from line shock preventing nuisance breaks
Separates at less than 250 lbf / 1112.1 N to minimize backlash damage
Same built-in vapor valve as Model 3360VR
Patented wave spring design minimizes nuisance breaks.

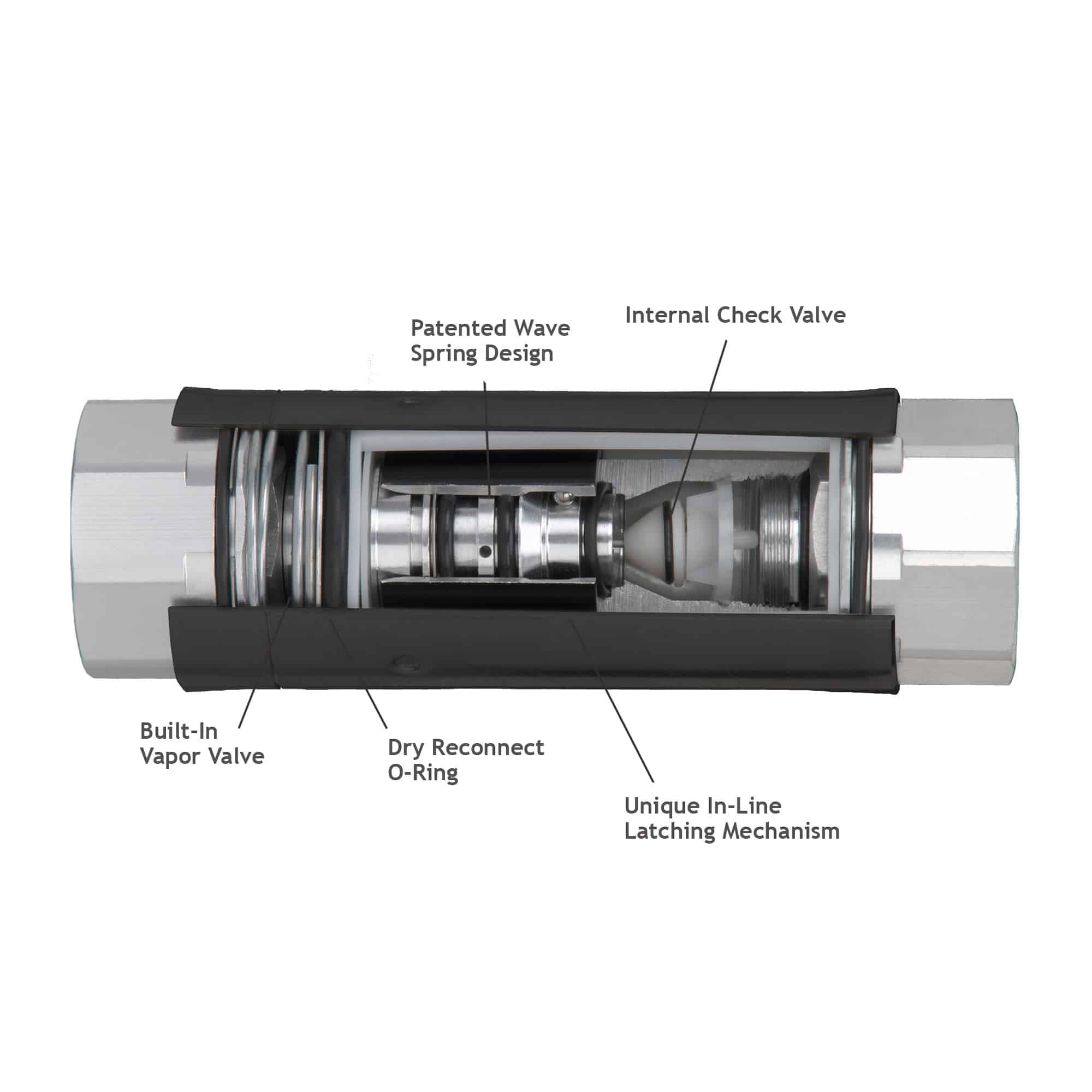

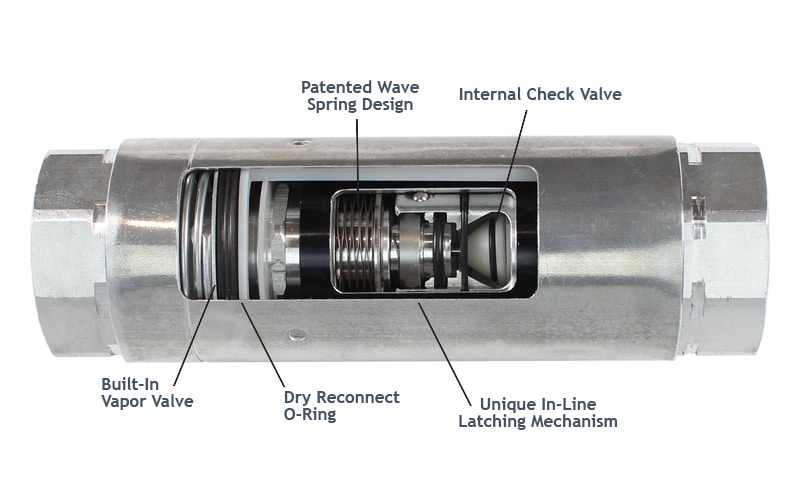

Construction
Body: Aluminum Seals: Fluorocarbon Springs: Stainless Steel Seals: 17/8” x 12
Stainless steel load and latch spring reverse mechanism
Hardened stainless steel latch ring and balls
Threads: M34 x 1.5"
Color Chart

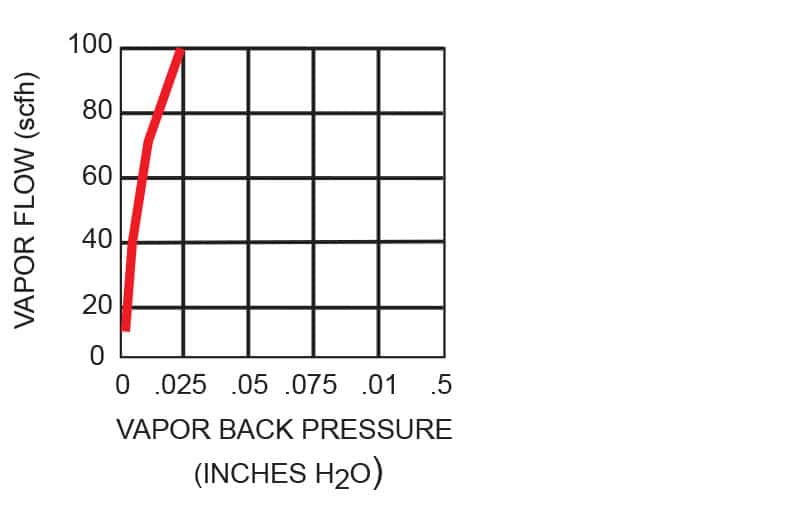

Flow Rate

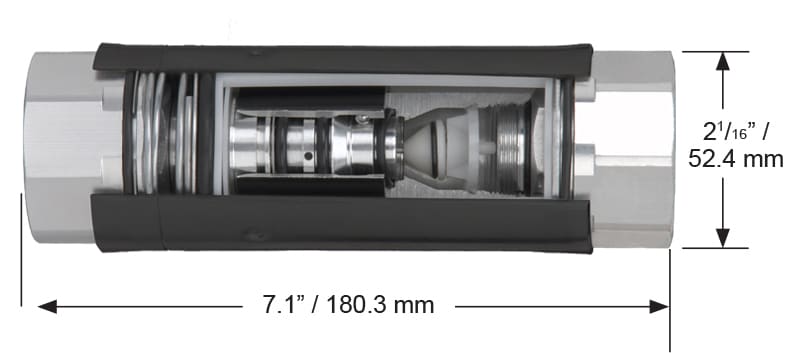

Dimensions
Accessories
Add Accessories / Options
Guards
Choose …
005895: Scuff Guard
Maintenance and Testing
Choose …
007000: Safe-T-Break® Drain Cup
EZ-Connects for this product have not been configured.
