Home | Husky | Safe-T-Breaks | MagBreak®
#008332: For Standard Fueling Applications
MagBreak®

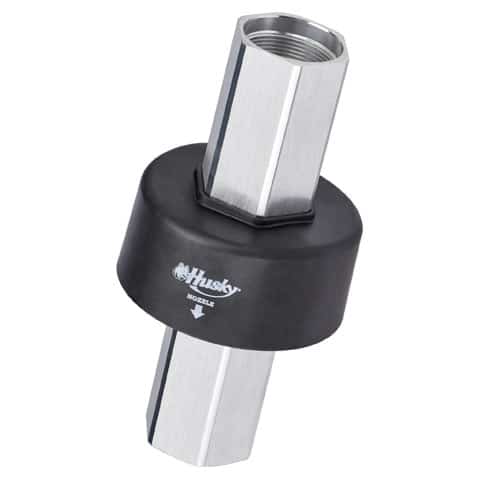

M34 x 1-1/2'' Reconnect Vapor Recovery MagBreak® CK
Product Info
Resources
Specs / Construction
Features/Benefits
  • All Husky® Safe-T-Breaks® stop the flow of fuel on both sides of the separation and have passed the demanding UL test requirements on separations without leaking or failing.
  • EVR Certified per CARB CP-201
  • High impact resistant polymer housing.
  • Two straight screwdrivers used to separate.
  • For easier installation and maintenance on other hanging hardware.
  • Assurance of proper reconnection using a simple “twist of lock” feature.
  • Two straight screwdrivers used to separate.
  • Reconnectable Safe-T-Break® for the vapor assist systems: coaxial hoses with fuel “outside” hose, vapor return “inside” hose.
  • Unique vapor valve stops vapors from escaping after a drive away.
  • Separates at less than 225 lbs / 1000.9 N to minimize backlash damage.
  • Low scuff housing.

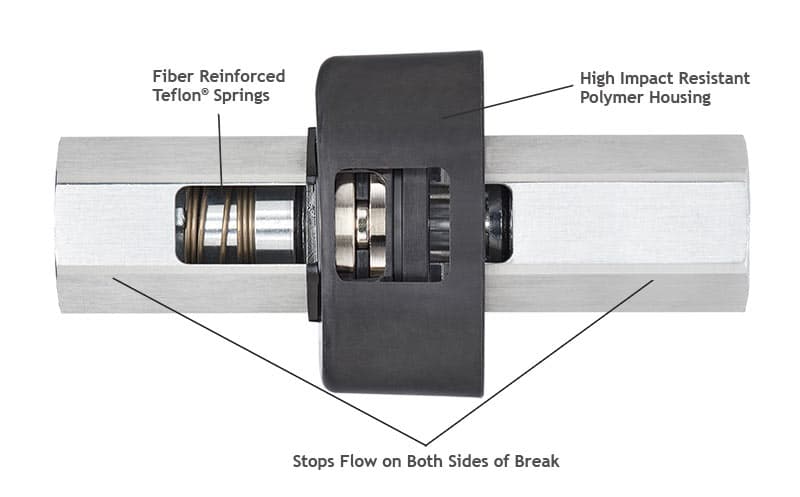

Construction

Body: Aluminum
Seals: Fluorocarbon
Springs: Stainless Steel
Threads: M34 x 1.5

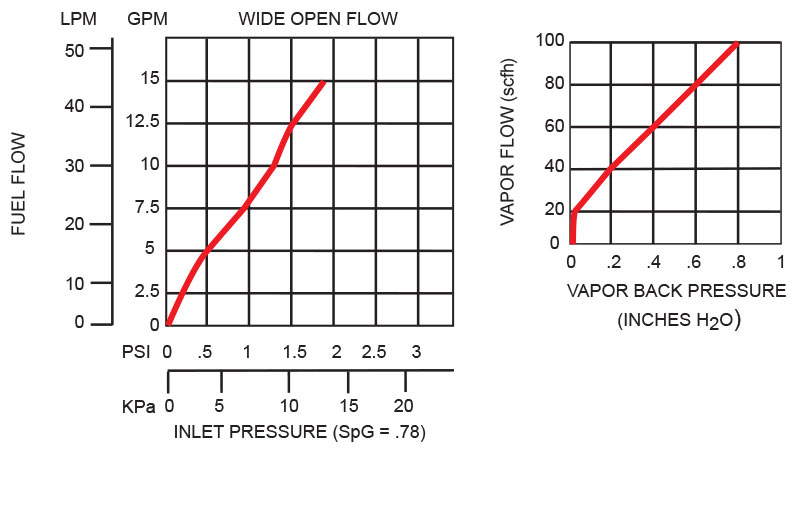

Flow Rate

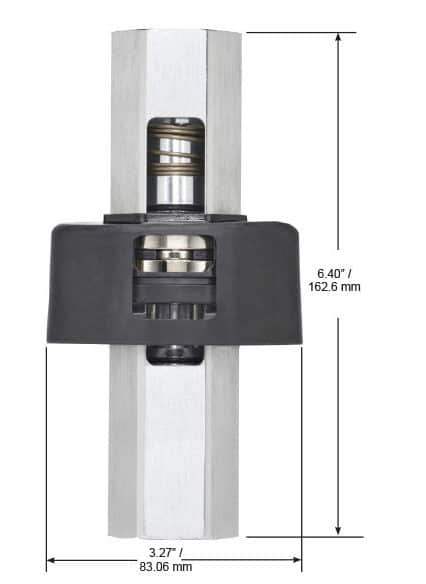

Dimensions
