#045703N: Farm & Commercial, Automatic Shut-Off

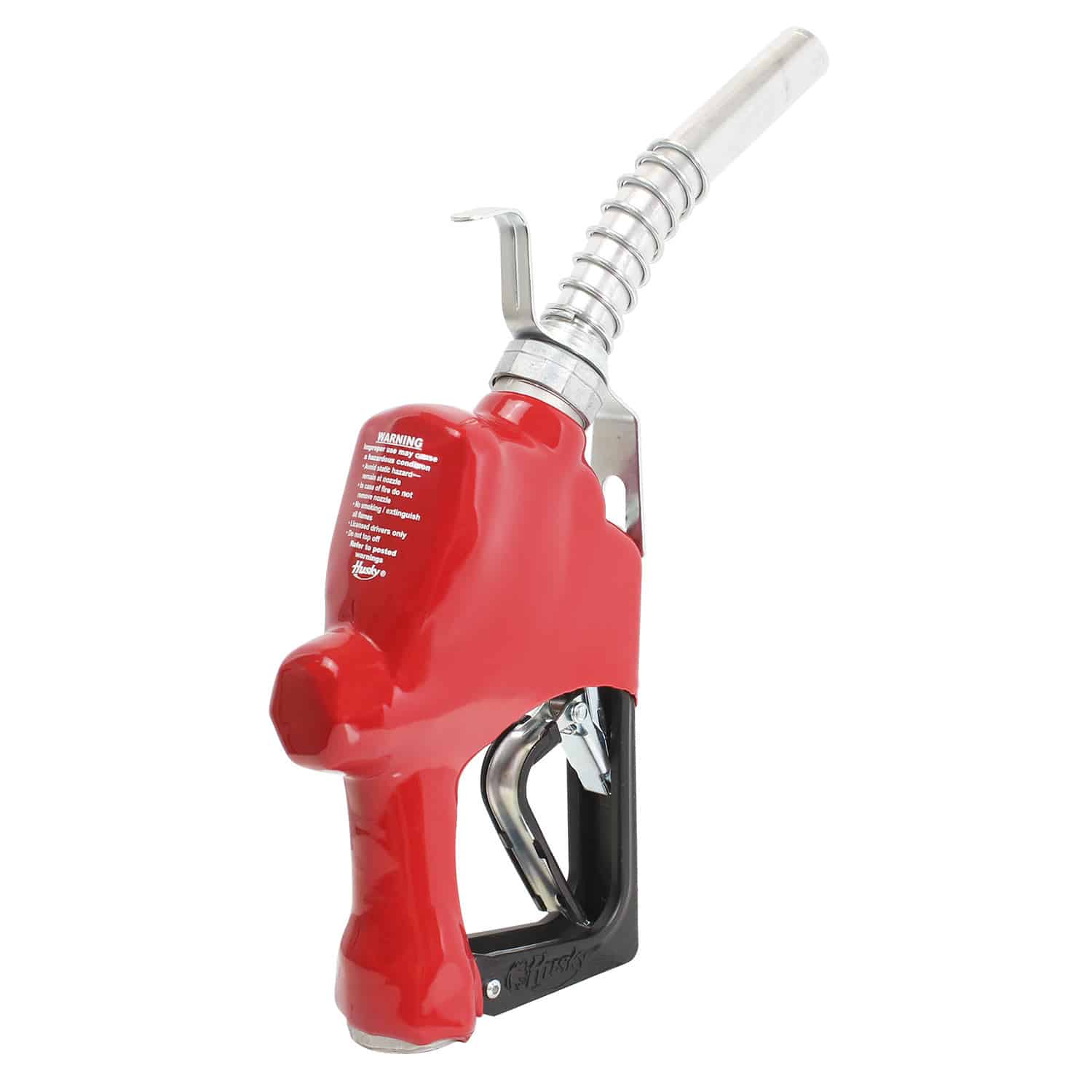

1GS Nozzle
1" Light Duty Diesel Nozzle with Three Notch Open Clip and Polymer Handguard
Product Info
Specs / Construction
Automatic shut-off nozzle with polymer handguard for farm, 12V skid tanks, large pumps with or without air eliminators and commercial applications.
  • 1GS nozzle shuts off when the gas tank is full.
  • Stainless steel reinforced spout bushing keeps unleaded and light duty diesel spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
  • Nozzle is equipped with unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
  • Unleaded and light duty diesel Streamshaper® reduces turbulence for straighter fuel flow and less splash back spillage.
  • Comes standard with smooth full grip guard and hanging hook.
  • Not for use with gravity tanks.
  • Not legal for retail dispensing applications.

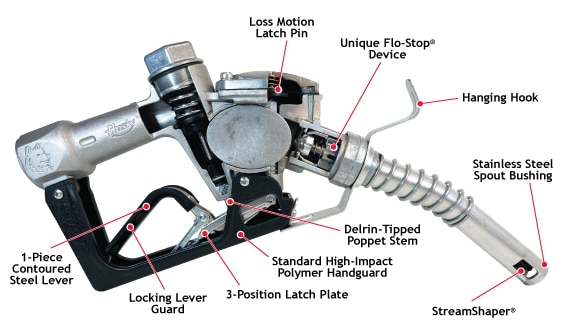

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece contoured steel with hard polymer cover
Inlet: 1” / 25.4 mm NPT

Flow Rate
1GS flow chart image
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
000087: 1” M x 1” F NPT Multi-Plane Swivel
000095: 1” M x 1” F NPT 70° Pump Swivel
000352: 1” M x ¾” F NPT Multi-Plane Swivel
000356: 1” M x ¾” F NPT Multi-Plane Swivel Anodized Black
003395: 1” M x 1” F NPT Multi-Plane Restricted Swivel
004860: 1” M x 1” F NPT Multi-Plane High Volume Swivel
Choose a Safe-T-Break®
Choose …
002276: 1” F x 1” F NPT Reconnectable Safe-T-Break®
005231: 1” F x 1” F NPT Low Pull Reconnectable Safe-T-Break®
005812: 1” F x 1” F NPT Non-Reconnectable Safe-T-Break®
006301: 1” F x 1” F NPT Non-Reconnectable PCC Safe-T-Break®
008331: 1” F x 1” F NPT CK Reconnectable MAGBREAK®
Choose Swivel/STB Combo
Choose …
005969: 1” M NPT Multi-Plane Swivel connected to 1” F NPT Reconnectable Safe-T-Break®
Choose Spout
Choose …
001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®
001473: Unleaded Spout without Flo-Stop®
005215: Heavy Duty Diesel Spout with Flo-Stop®
010432: Unleaded Long Spout
012263: Light Duty Diesel Long Spout
Choose Pressure/Vacuum Vent
Choose …
004620: 2” Slip-On Pressure Vacuum Vent
004885: 2” Thread-On Pressure Vacuum Vent - NPT
005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT
Choose Accessories, Testing and Maintenance
Choose …
000385: 1” M x ¾” F Reducer Bushing
000397: Unleaded Spout Gauge
000548: Hanging Hook for Unleaded and Light Duty Diesel Nozzles
003593: Hold Open Clip Kit
007089: Nozzle Service Kit
Choose Guards
Choose …
000099: Protection Package
000226: Mate Nozzle Guard
000544: Full Grip Guard
001804: Full Grip Reguard
001808: Waffle Splash Guard
001811: Reguard Protection Package
005494: Lever Guard
006628: POPD® S Clear Cover
006655: POPD® S Full Grip Guard
007210: POPD® S Full Grip Reguard
007295: Polymer Handle Cover
007999: POPD® H Clear Cover
008169: POPD® S Mate Guard
008170: POPD® H Mate Nozzle Guard
008179: POPD® EZS Nozzle Guard
008180: POPD® EZH Nozzle Guard
008183: POPD® H Full Grip Guard
008190: POPD® H Full Grip Reguard
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
