#045738N: Farm & Commercial, Automatic Shut-Off

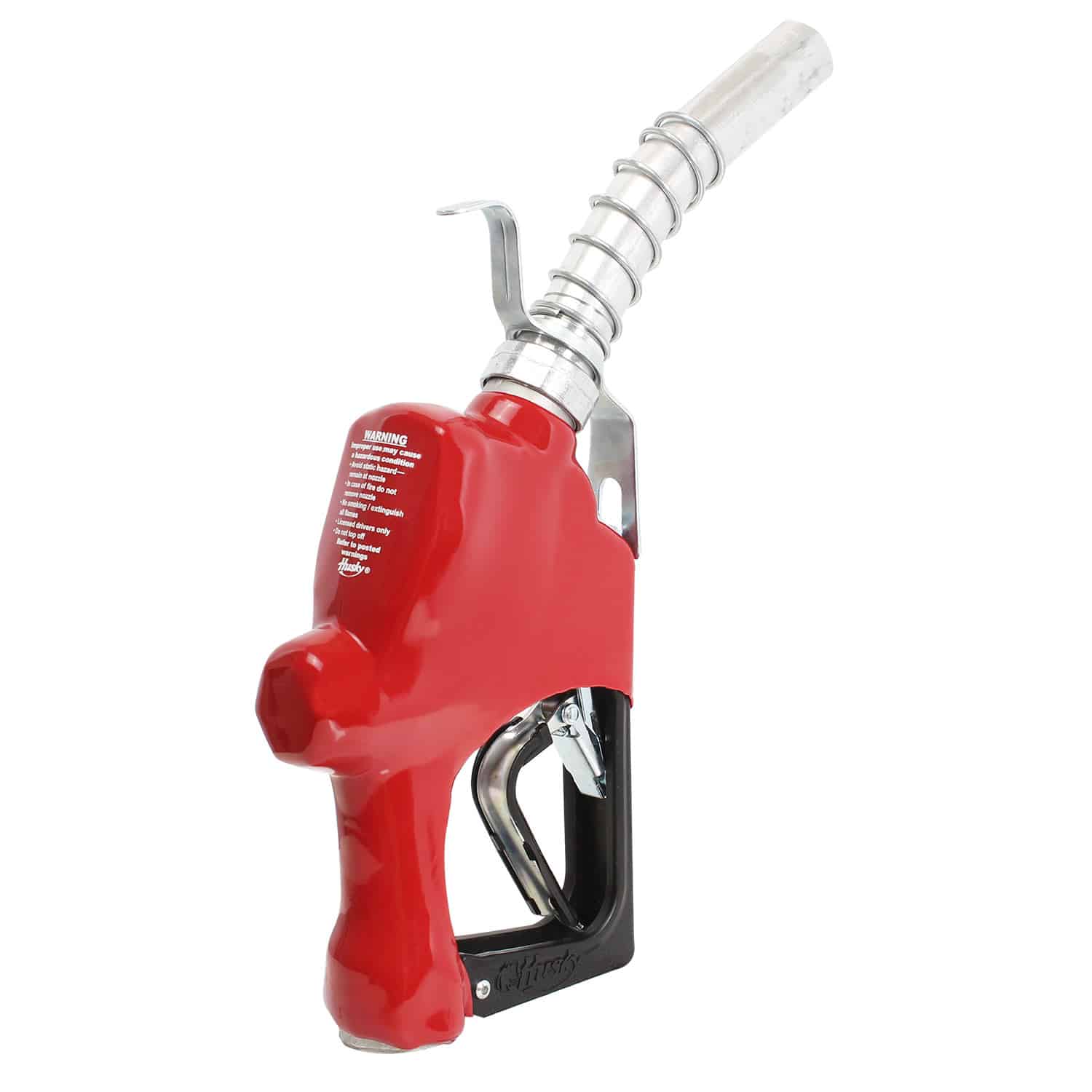

1GS Nozzle

1" Heavy Duty Diesel Nozzle with Two Notch Open Clip and Polymer Handguard

Product Info

Resources

Specs / Construction

Automatic shut-off nozzle with polymer handguard for farm, 12V skid tanks, large pumps with or without air eliminators and commercial applications.

Features/Benefits

1GS nozzle shuts off when the gas tank is full.
Stainless steel reinforced spout bushing keeps unleaded and light duty diesel spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.

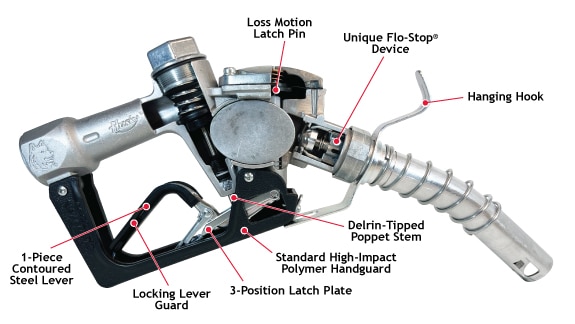

Nozzle is equipped with unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
Unleaded and light duty diesel Streamshaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Comes standard with smooth full grip guard and hanging hook.
Not for use with gravity tanks.
Not legal for retail dispensing applications.
ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.

Construction

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: Two-piece polymer EZ Lever
Inlet: 1” / 25.4 mm BSP

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

003306: 1” M x 1” F BSPP Multi-Plane Swivel

003306A: 1” M x 1” F BSPP Multi-Plane Swivel - Atex

006949: 1” M x 1” F BSPP Multi-Plane High Volume Swivel

Choose a Safe-T-Break®

Choose …

003076: 1” F x 1” F BSPP Reconnectable Safe-T-Break®

003076A: 1” F x 1” F BSPP Reconnectable Safe-T-Break® - Atex

006914: 1” F x 1” F BSPP Non-Reconnectable Safe-T-Break®

009911: 1” F x 1” F BSPP Reconnectable G2 MAGBREAK®

Choose Swivel/STB Combo

Choose …

008015: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break®

008015A: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break® - Atex

Choose Spout

Choose …

001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®

001473: Unleaded Spout without Flo-Stop®

005215: Heavy Duty Diesel Spout with Flo-Stop®

010432: Unleaded Long Spout

012263: Light Duty Diesel Long Spout

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

000385: 1” M x ¾” F Reducer Bushing

000397: Unleaded Spout Gauge

000548: Hanging Hook for Unleaded and Light Duty Diesel Nozzles

003593: Hold Open Clip Kit

007089: Nozzle Service Kit

Choose Guards

Choose …

000226: Mate Nozzle Guard

001808: Waffle Splash Guard

005494: Lever Guard

006628: POPD® S Clear Cover

006655: POPD® S Full Grip Guard

007999: POPD® H Clear Cover

008169: POPD® S Mate Guard

008170: POPD® H Mate Nozzle Guard

008179: POPD® EZS Nozzle Guard

008180: POPD® EZH Nozzle Guard

008183: POPD® H Full Grip Guard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
