1108459 XS® E25 Nozzle

Home | Husky | Nozzles | XS® Nozzle

#1108459: Conventional, Pressure Activated

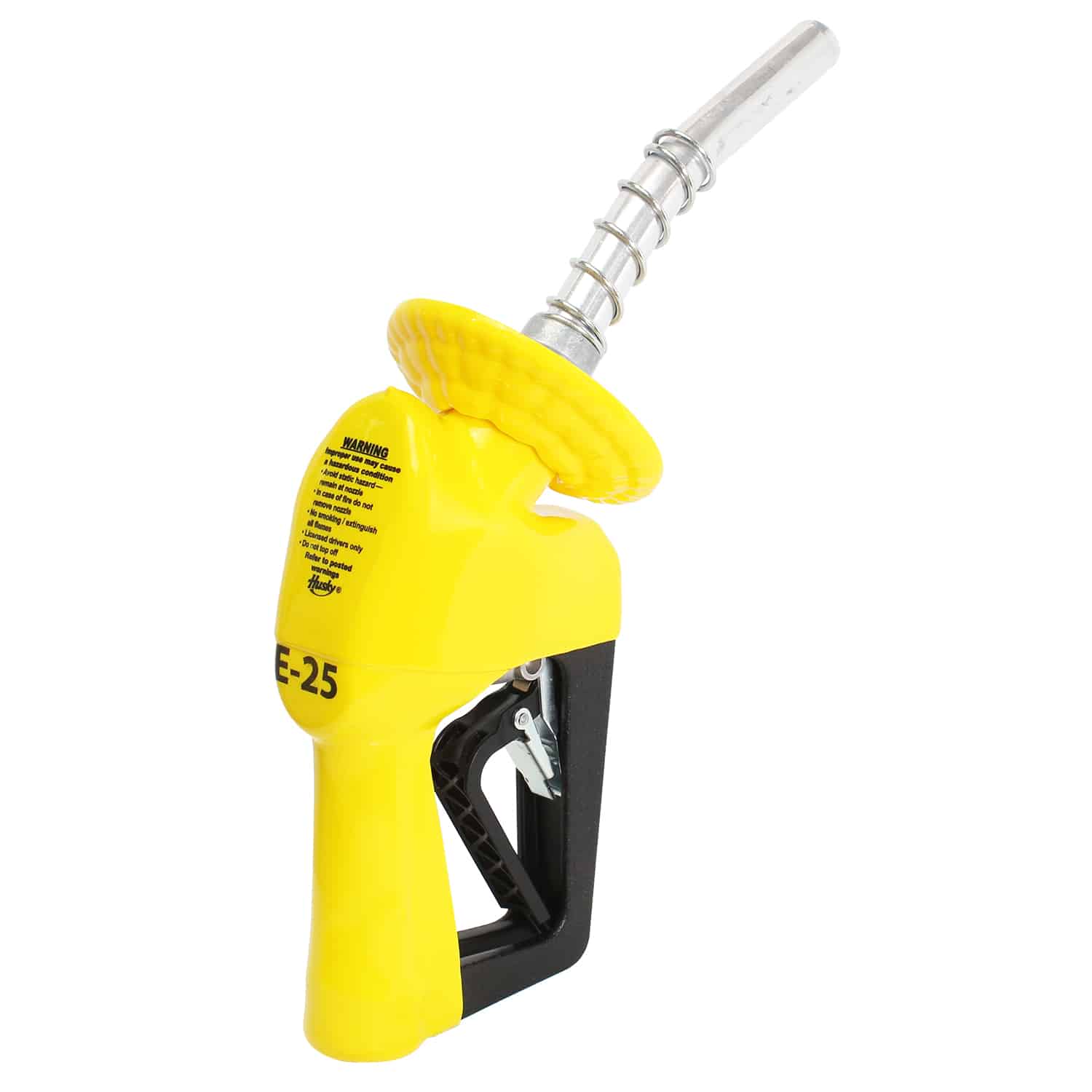

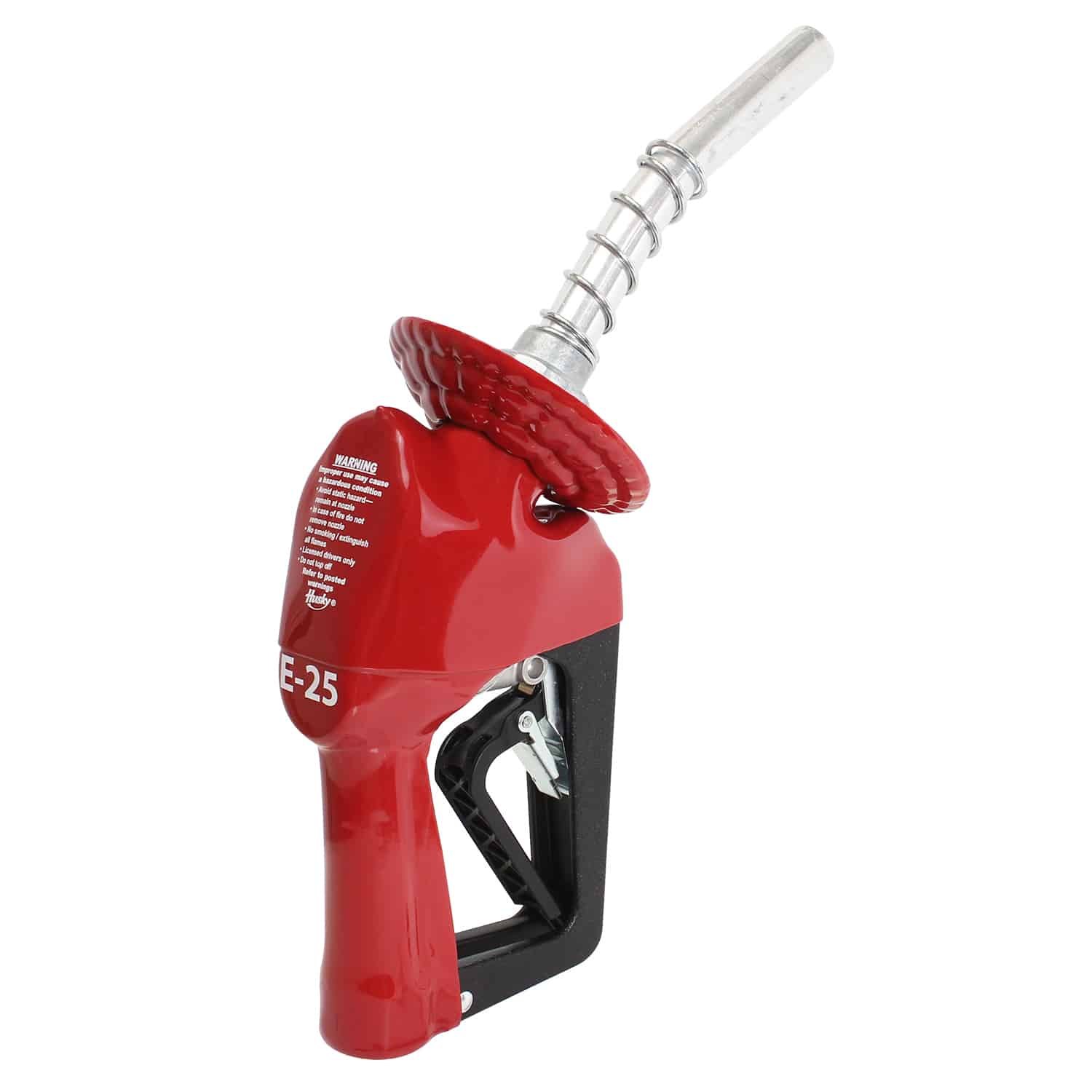

XS® Nozzle

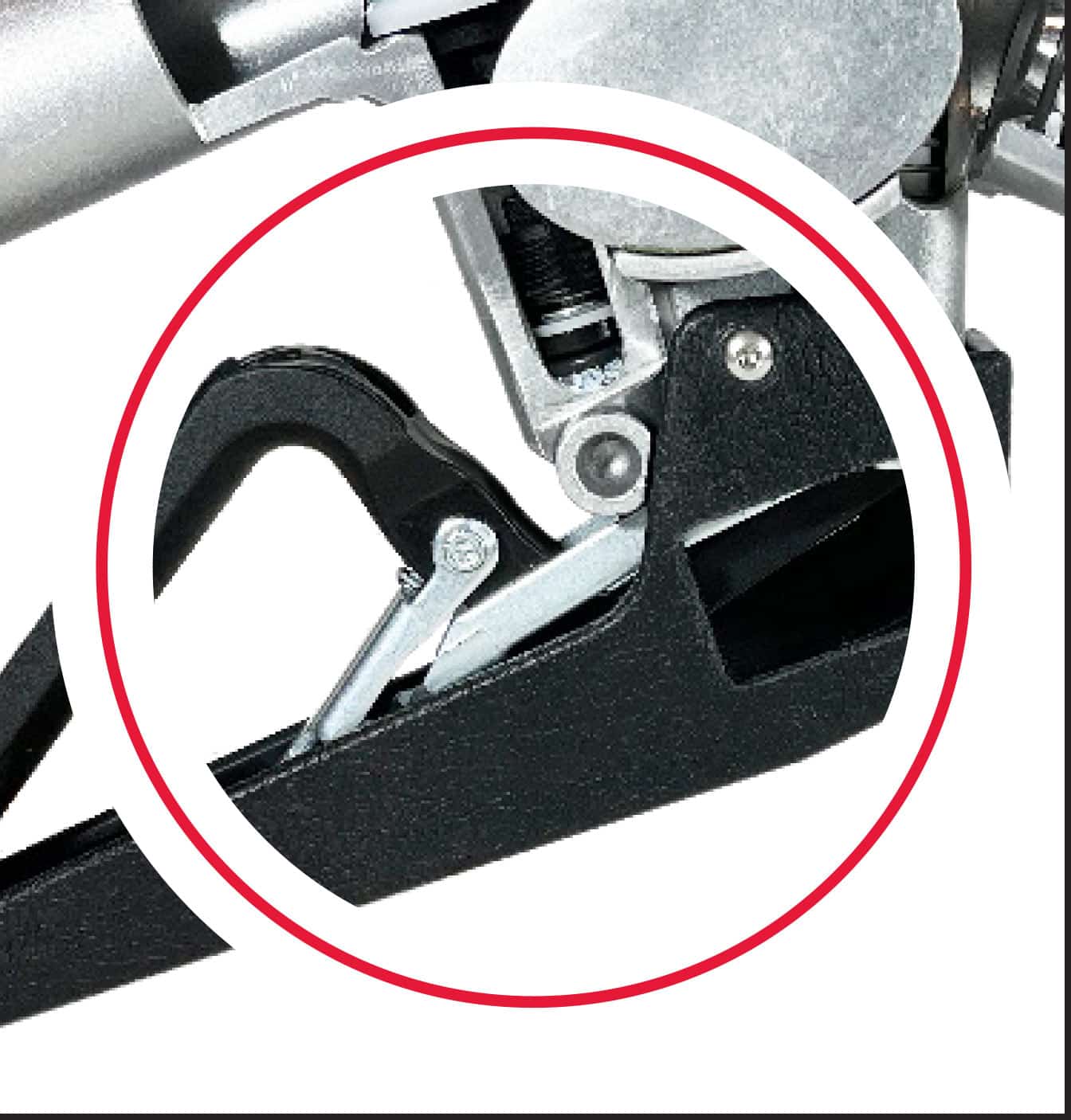

¾" Unleaded Nozzle with Three Notch Hold Open Clip, 1808 Waffle Splash

Product Info

Resources

Specs / Construction

Automatic shut-off nozzle for full-service and self-service stations.

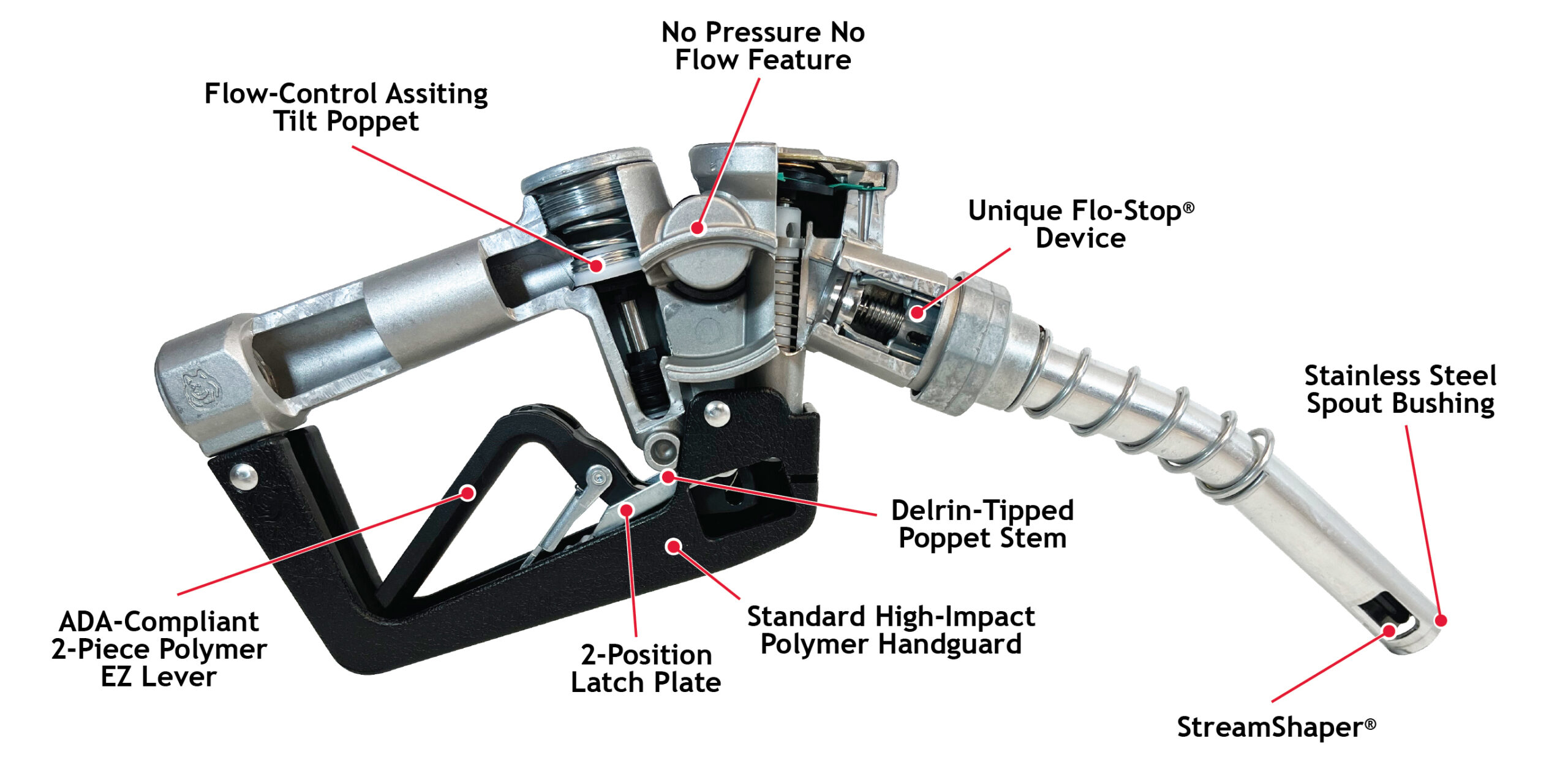

Features/Benefits

XS E25 nozzle shuts off when: the pump shuts off, the gas tank is full, the lever is opened before the pump is turned on, or when the leak detector has not completed the test cycle.
Stainless steel spout bushing keeps spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
New poppet seal design in conjunction with new tilt poppet design improves flow control (“to-the-penny” dispensing) and provides enhanced endurance over time.
Optional cold weather seals are rated to -40°F/C.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
All seals are UL approved fluorocarbon compounds to prevent degradation from Ethanol blends.
Compatible with unleaded and all Ethanol blends through E-25.
Comes standard with smooth full grip guard.

Construction

Body: Die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece polymer
Inlet: ¾” / 19 mm NPT

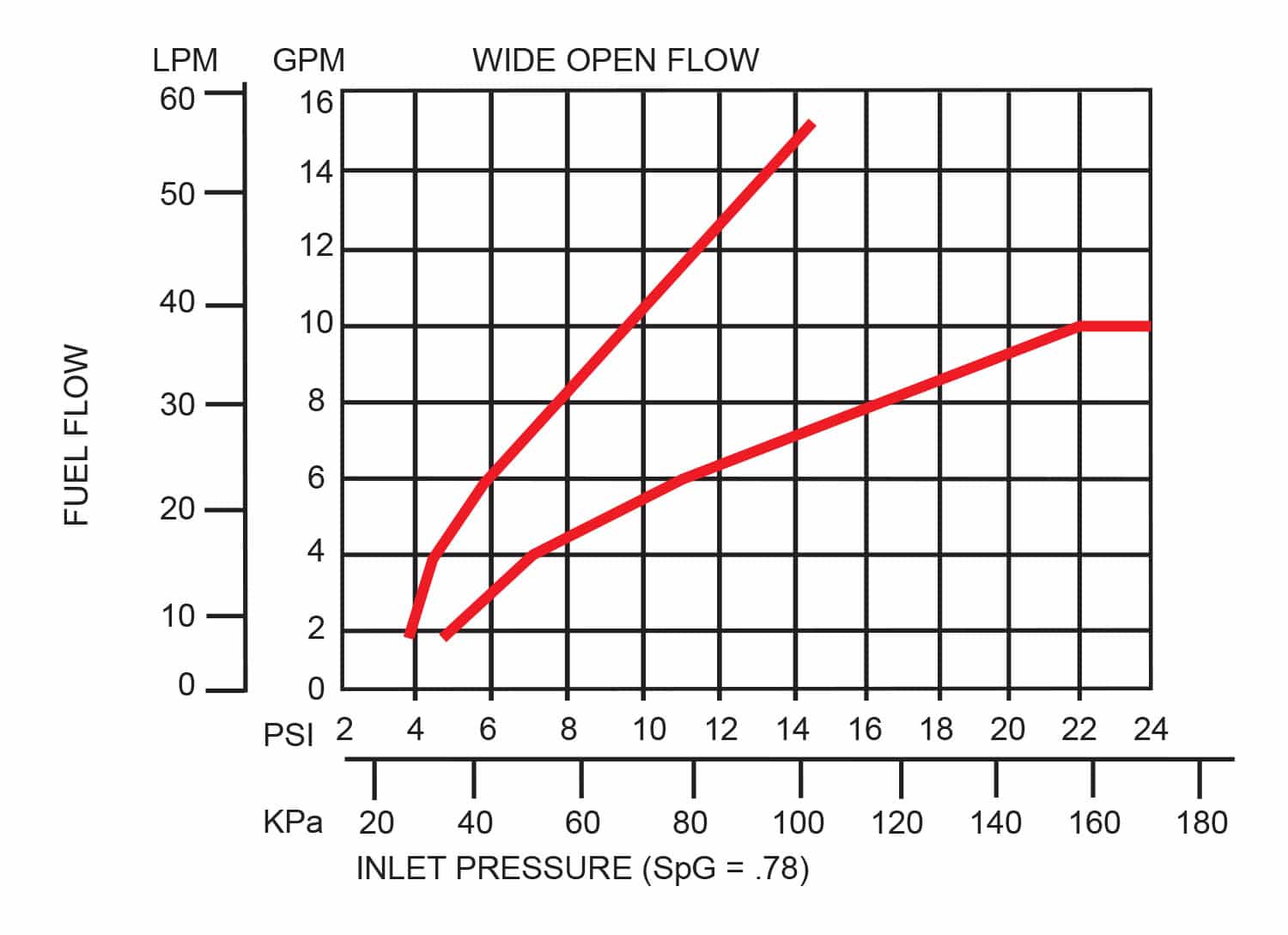

Flow Rate

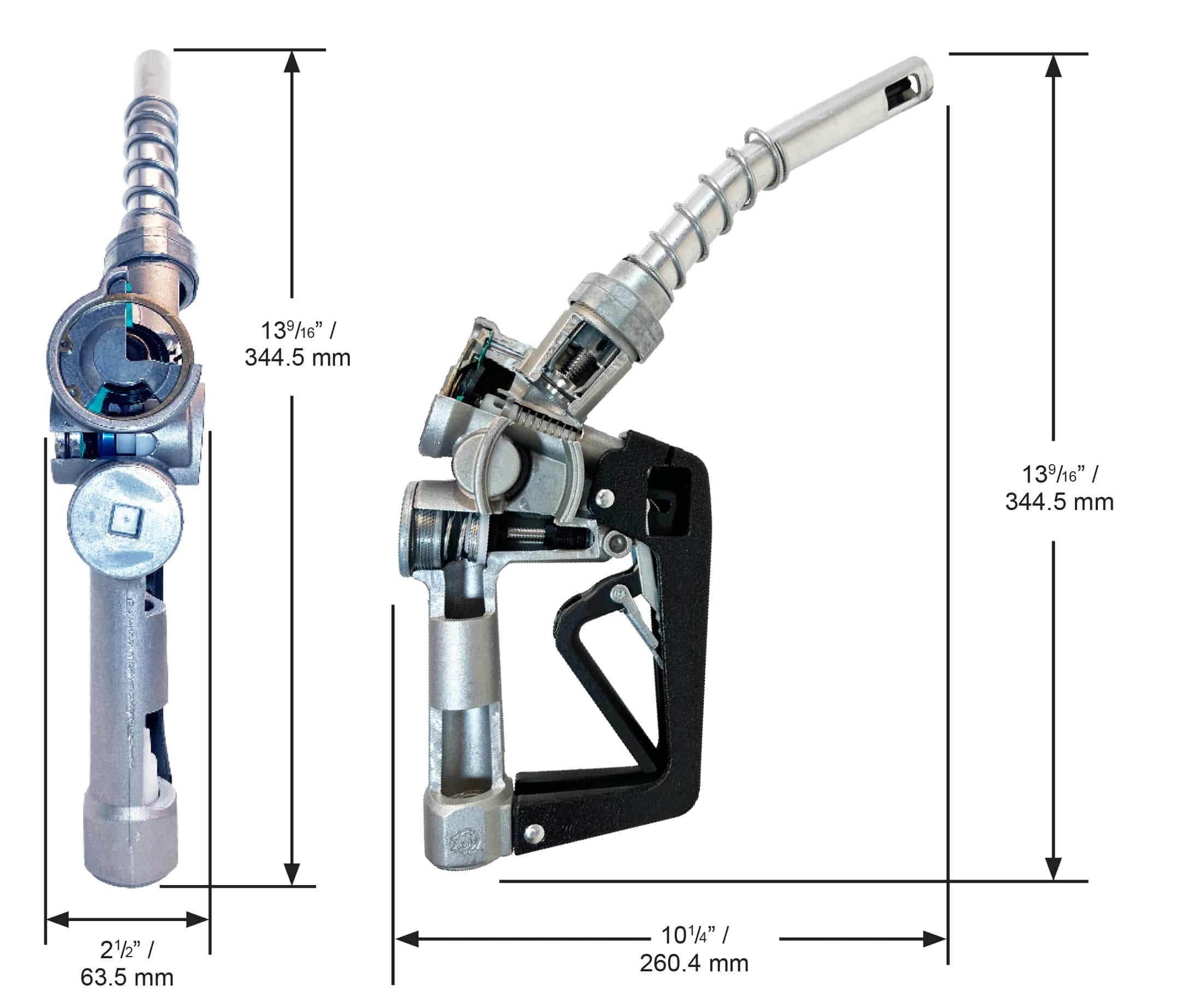

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

006350: ¾” M x ¾” F Multi-plane E85 Swivel, Not Listed

Choose a Safe-T-Break®

Choose …

006273: ¾” F x ¾” F Non-Reconnectable E25/E85 Safe-T-Break®

006360: ¾” F x ¾” F Reconnectable E85 Safe-T-Break®, Not Listed006207

Choose Spout

Choose …

006207: Unleaded E85 Spout Assembly

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

000397: Unleaded Spout Gauge

003593: Hold Open Clip Kit

007089: Nozzle Service Kit

007490: Internal Flo-Equalizer® - 10 gpm / 37.9 Lpm

Choose Guards

Choose …

001506: Protection Package

001806: Full Grip Reguard

001808-1: Waffle Splash Guard with Small Hole

001808: Waffle Splash Guard

001809: Reguard Protection Package

003440: Mate Easy-on Package

003795: Mate Guard

004145: Full Grip Guard

006628: POPD® S Clear Cover

006665: POPD® S Full Grip Guard

007205: POPD® S Full Grip Reguard

007361: Black Handle Cover

007999: POPD® H Clear Cover

008165: POPD® S Mate Guard

008166: POPD® H Mate Guard

008175: POPD® EZS Nozzle Guard

008176: POPD® EZH Nozzle Guard

008185: POPD® H Full Grip Guard

008192: POPD® H Full Grip Reguard

014524: International Mate Package

014530: International Mate Guard

015247: International POPD® H Mate Guard

015253: International POPD® H Mate Package

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
