Home | Husky | Nozzles | DEF X Nozzle
#11676155N: Diesel Exhaust Fluid, Automatic Shut-Off

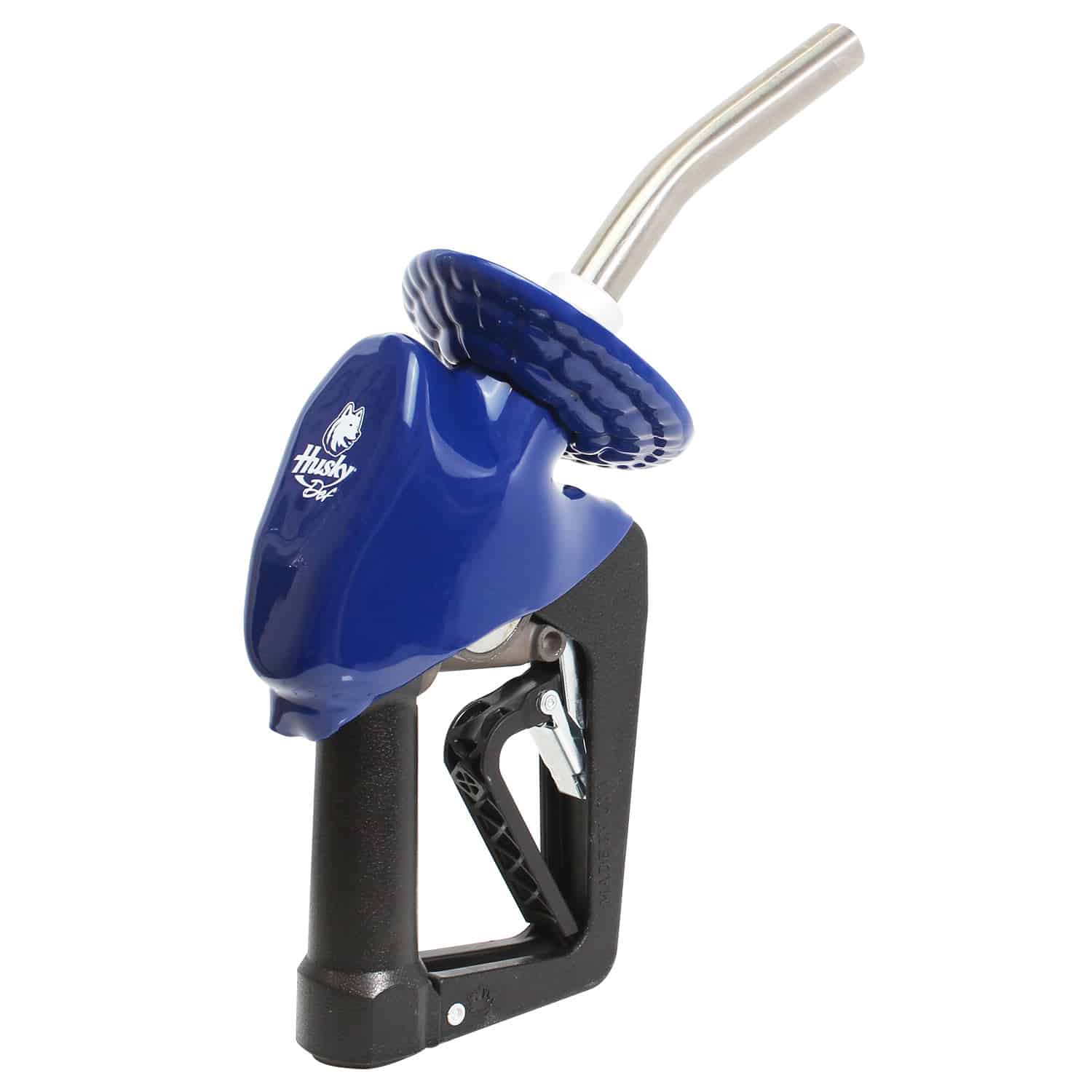

DEF X Nozzle
3/4" DEF Nozzle with Three Notch Hold Open Clip and Full Grip Guard and 1808 Waffle Splash Guard, without Spout Ring
Product Info
Resources
Specs / Construction
Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.
Features/Benefits
  • X DEF nozzle shuts off when tank is full.
  • Lighter than stainless steel nozzles.
  • StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
  • Less expensive than comparable nozzles.
  • Tilt poppet design provides precise “to-the-penny” dispensing.
  • Stainless steel spout for durability.
  • Flow characteristics of nozzle reduces crystallization of DEF.
  • Complies with ISO Standard 22241-2:2006.

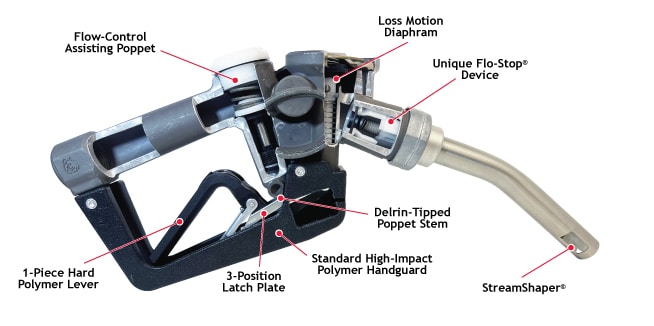

Construction

Body: Anodized Aluminum
Seals: Fluorocarbon
Spout: 19 mm diameter
Packing: Double o-ring seal protected by fiber-reinforced Teflon®
Lever: One-piece polymer
Inlet: 3/4” / 19.1 mm NPT

Flow Rate
DEF X Flow Chart image
Dimensions
DEF X dimensions
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
012604: 3/4” M x 3/4” F NPT Roller Bearing Inline Swivel
Choose a Safe-T-Break®
Choose …
012070: 3/4” F x 3/4” F NPT Reconnectable Safe-T-Break®
Choose a Swivel/STB Combo
Choose …
012831: 3/4” NPT M Multi-Plane Swivel connected to 3/4” NPT F Reconnectable Safe-T-Break®
Choose Accessories, Testing and Maintenance
Choose …
013285: with StreamShaper®
013286: with Spout Ring and Magnetic Accufuel® Safety Feature
015319: with Long Spout and StreamShaper®
Choose Spouts
Choose …
007360: with Spout Ring and Flo-Stop®
007362: with Flo-Stop®
007364: with Spout Ring and Magnetic Accufuel® Safety Feature
Choose Guards
Choose …
001808: Waffle Splash Guard
003795: Mate Nozzle Guard
004145: Full Nozzle Guard
007361: Handle Cover (Black)
014114: International Mate Nozzle Guard
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
