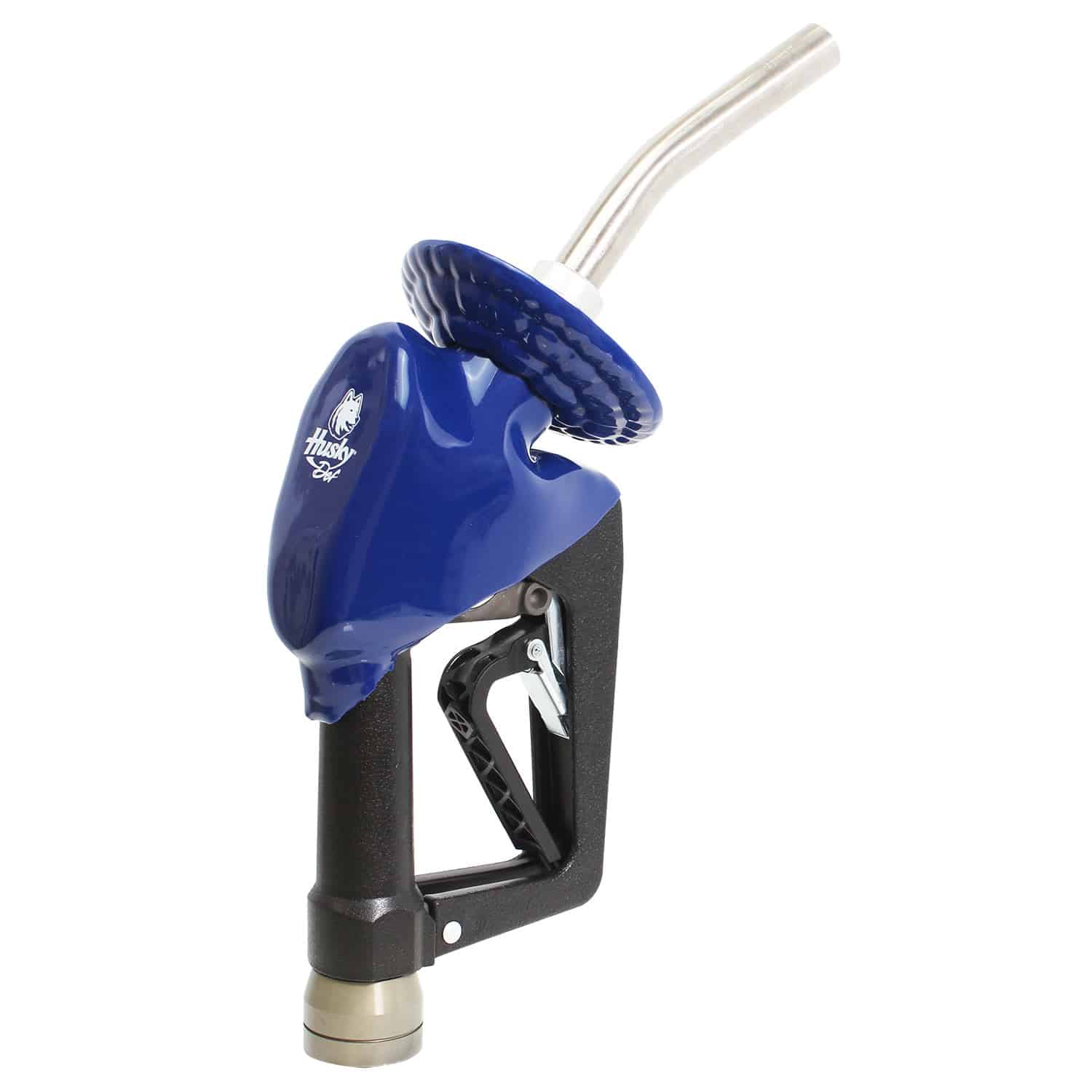

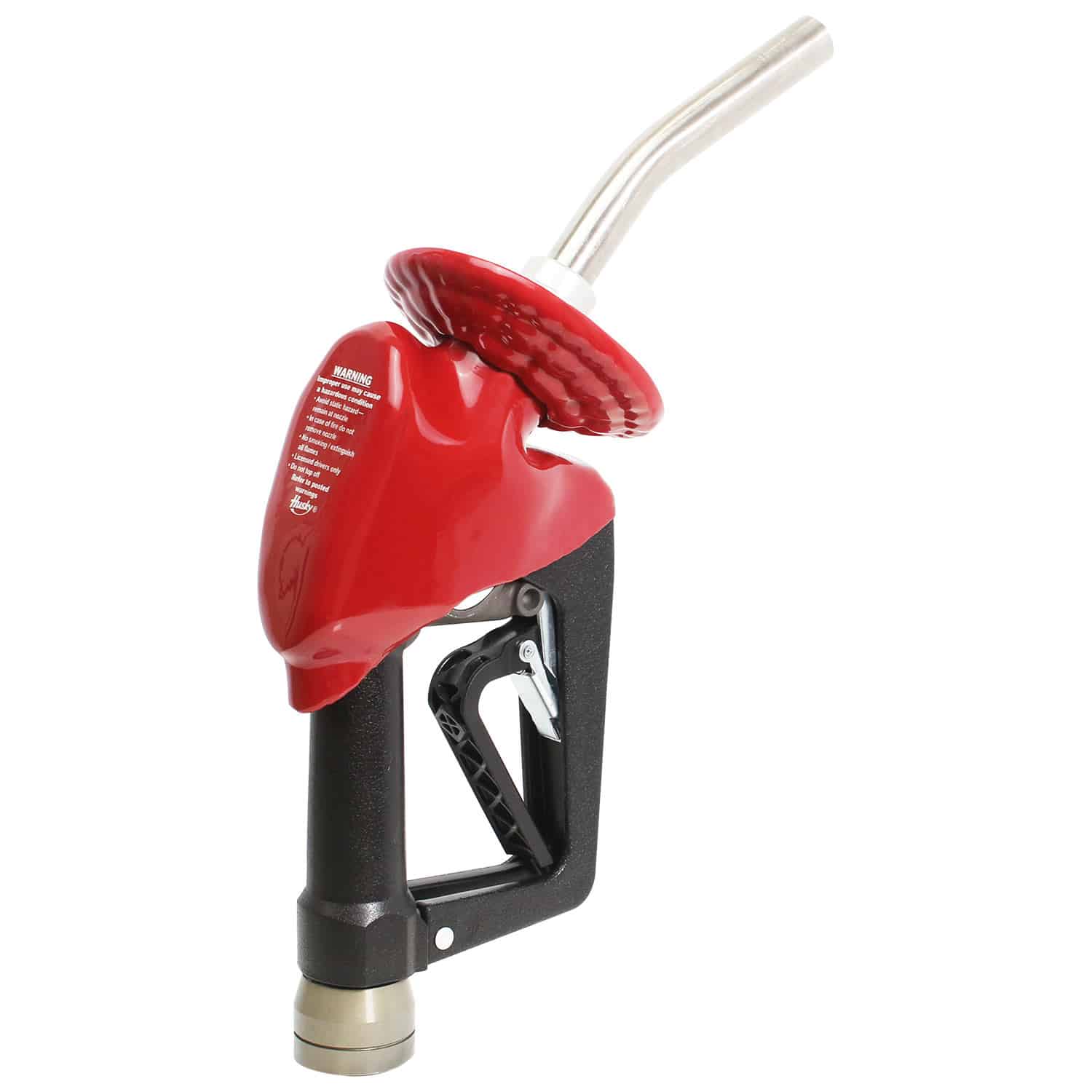

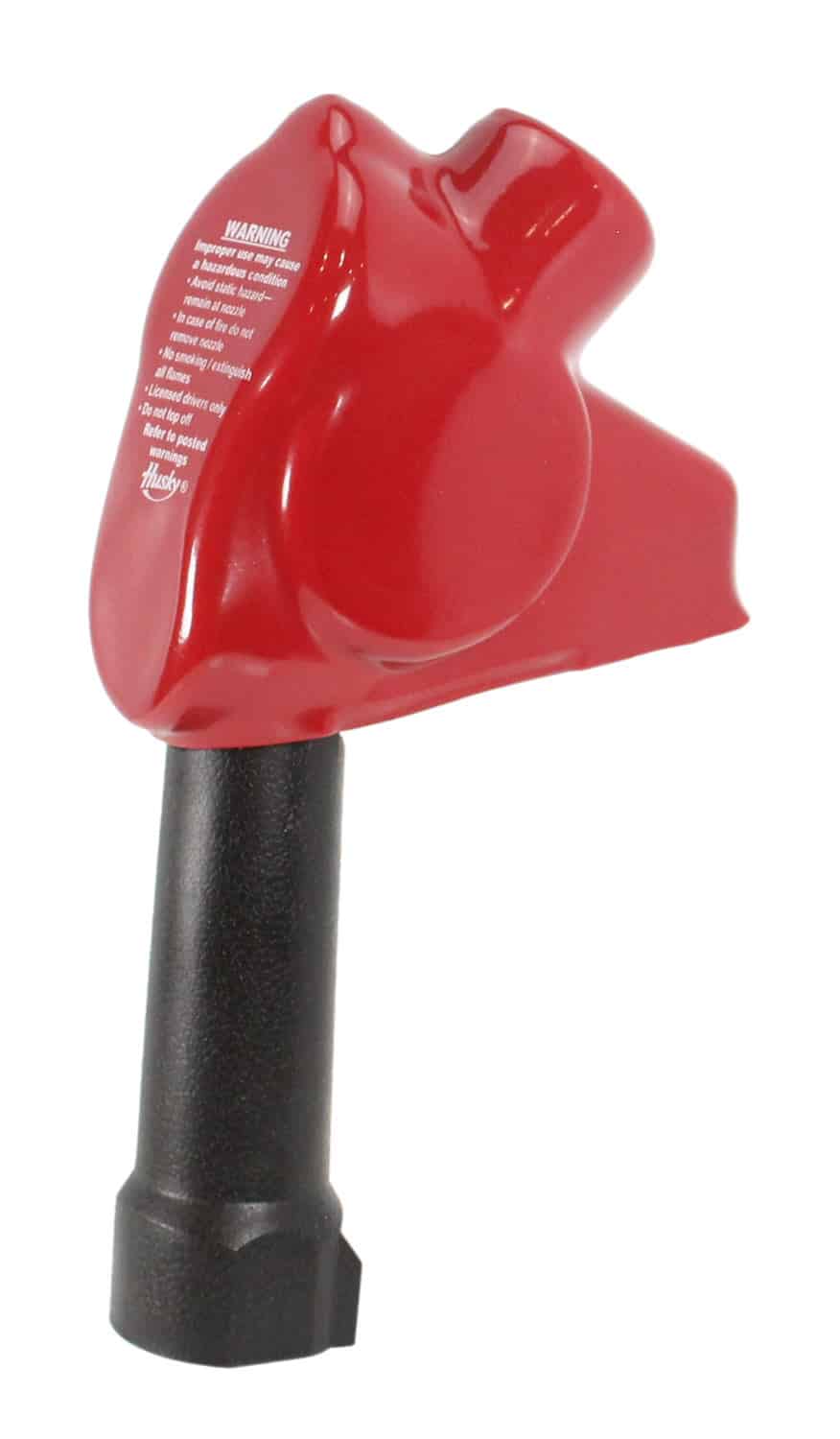

M34 DEF Nozzle with Two Notch Hold Open Clip, Mate Guard, Polymer Handle Cover, 1808 Waffle Splash Guard and Long Spout, without Spout Ring
Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.

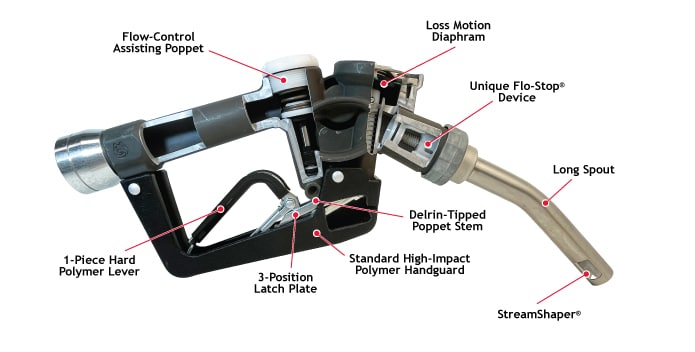

Features/Benefits
- X DEF M34 nozzle shuts off when tank is full.
- Lighter than stainless steel nozzles.
- StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
- Less expensive than comparable nozzles.
- Tilt poppet design provides precise “to-the-penny” dispensing.
- Stainless steel spout for durability.
- Flow characteristics of nozzle reduces crystallization of DEF.
- Complies with ISO Standard 22241-2:2006.
- Aluminum body is anodized to prevent contamination from DEF blends.
- ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.

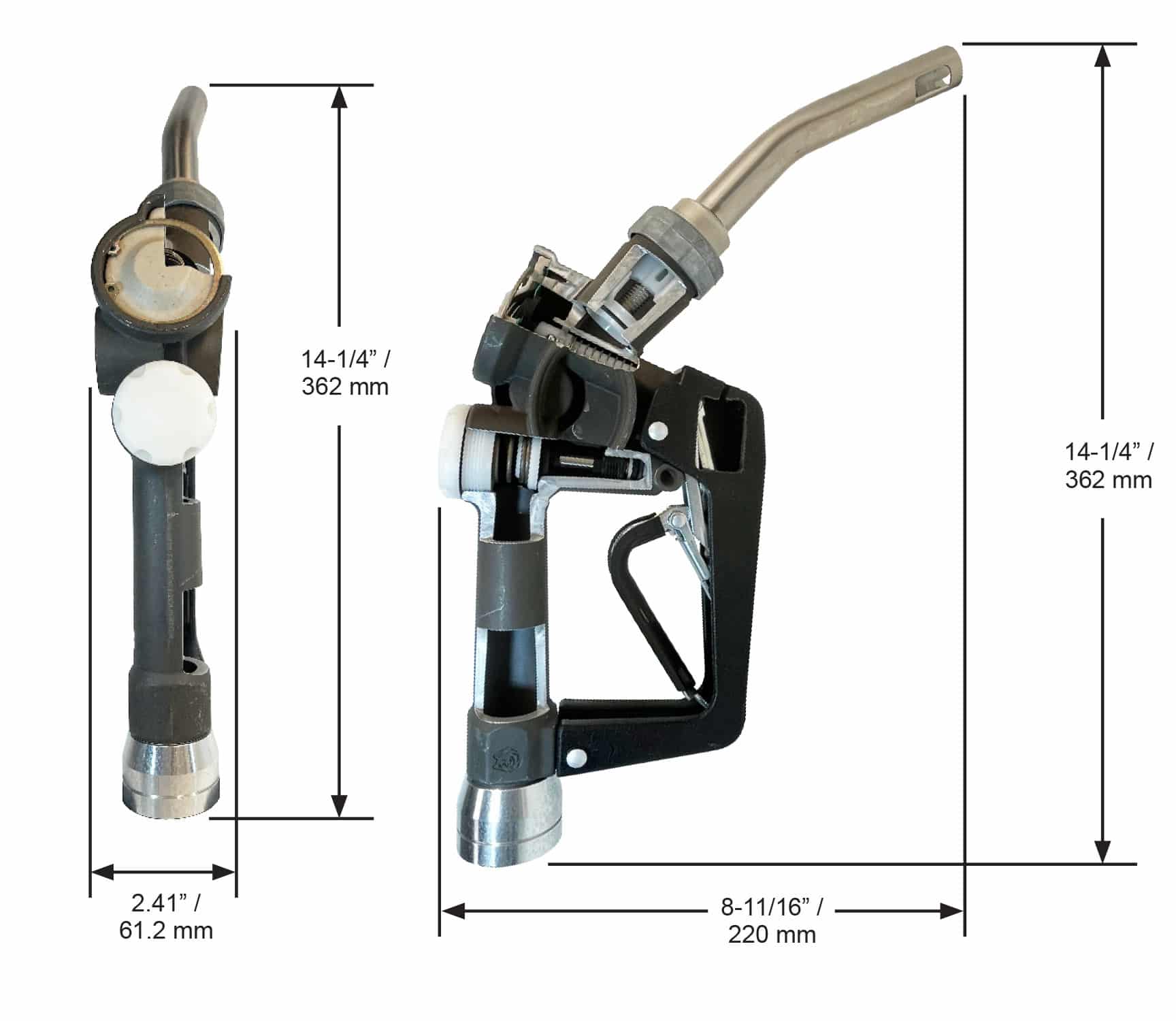

Construction
Body: Die cast, anodized aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Spout: 19 mm diameter
Lever: Two-piece polymer EZ Lever
Inlet: M34 x 1.5 mm
