#1190416: Conventional, Automatic Shut-Off

ECO Nozzle

3/4" Unleaded Nozzle with Two Notch Hold Open Clip

Product Info

Resources

Specs / Construction

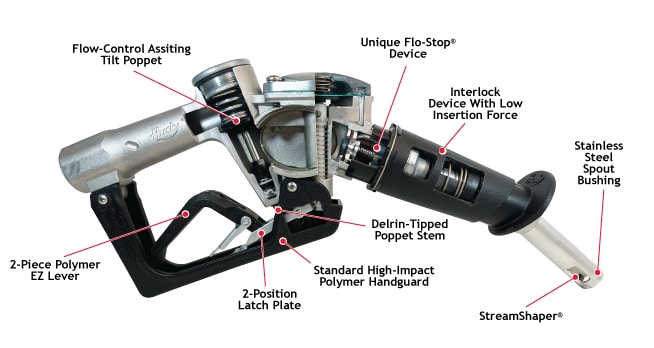

Automatic shut-off conventional nozzle equipped with a mechanical interlock.

Features/Benefits

ECO nozzle shuts off when the gas tank is full or when the mechanical interlock is disengaged, or the nozzle falls from the vehicle’s fill pipe.
Nozzle is also equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or raises above the horizontal for added security.
Stainless steel reinforced spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Drip Less spout reduces/ eliminates drips from spout.
Lightest insertion “force” of any safety interlock operated nozzle.
Aluminum casting with high-impact polymer handguard provides a lightweight, easier to handle conventional nozzle.
ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.
Unique tilt poppet design provides precise “to-the-penny” dispensing.
Optional cold weather seals are rated to -40°F/C.
CARB certified per CP-207 for drips, spills, spitting and liquid retention.
Comes standard with smooth full grip guard.

Construction

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: Two piece polymer EZ Lever
Inlet: 3/4" / 19.1 mm BSP

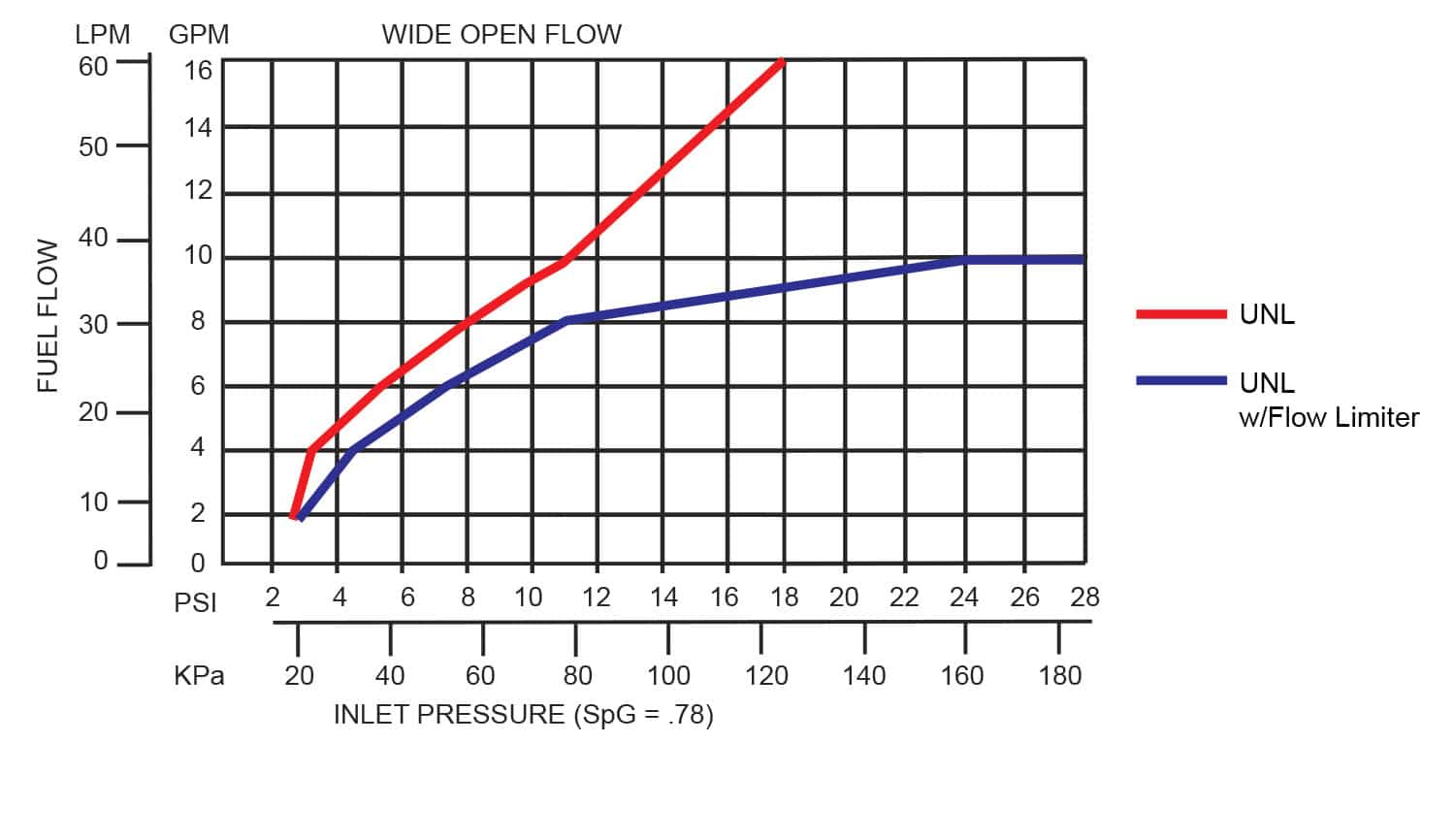

Flow Rate

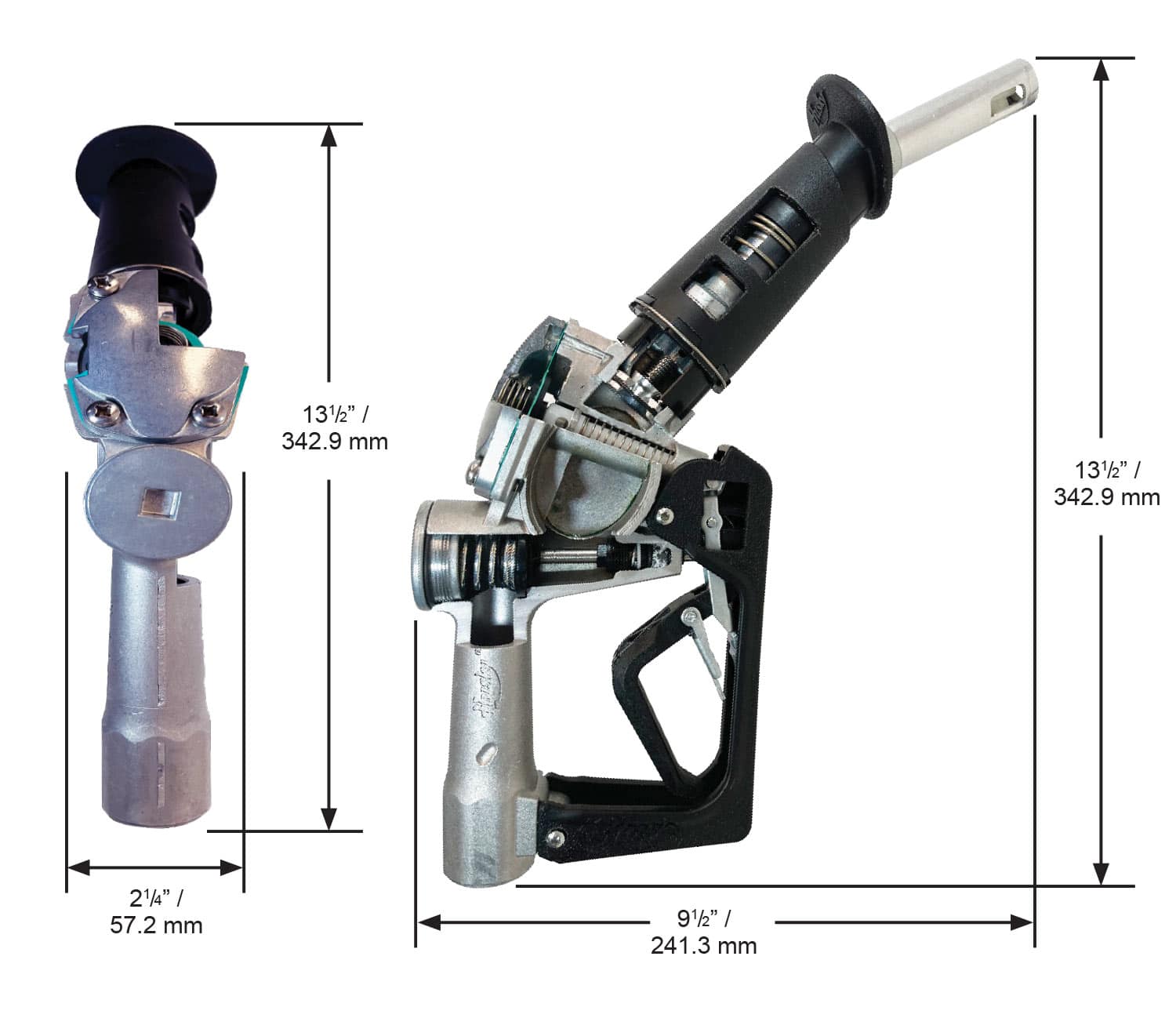

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

002771: ¾” M x ¾” F NPT 90° Pump Swivel

003590: ¾” M x ¾” F BSP Multi-Plane Swivel

002771A: ¾” M x ¾” F NPT 90° Pump Swivel - Atex

003590A: ¾” M x ¾” F BSP Multi-Plane Swivel - Atex

Choose a Safe-T-Break®

Choose …

002774: ¾” F x ¾” F BSP Non-Reconnectable Safe-T-Break®

003385: ¾” F x ¾” F BSP Reconnectable Safe-T-Break®

009910: ¾” F x ¾” F BSPP Reconnectable MAGBREAK®

010328: ¾” F x ¾” F NPT Reconnectable High Pull MAGBREAK®

002274A: ¾” F x ¾” F BSPP Non-Reconnectable Safe-T-Break® - Atex

003385A: ¾” F x ¾” F BSPP Reconnectable Safe-T-Break® - Atex

Choose Swivel/STB Combo

Choose …

007085: ¾” M BSPP Multi-Plane Swivel connected to 3/4” F BSPP Reconnectable Safe-T-Break®

007085A: ¾” M BSPP Multi-Plane Swivel connected to 3/4” F BSPP Reconnectable Safe-T-Break® - Atex

Choose Spout

Choose …

013664: Unleaded ECO Spout Assembly Kit

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

003593: Hold Open Clip Kit

004490: Conventional Flo-Equalizer® - 10 gpm / 37.9 Lpm

007089: Nozzle Service Kit

007490: Internal Flo-Equalizer® - 10 gpm / 37.9 Lpm

Choose Low Perm Hoses

Choose …

CP12LP8.5: 3/4” Low Perm Hardwall 8.5’ Assembly Hose

CP12LP8.5SV: 3/4” Low Perm Hardwall 8.5’ Assembly Hose Swivel

CP12LP9: 3/4” Low Perm Hardwall 9’ Assembly Hose

CP12LP9SV: 3/4” Low Perm Hardwall 9’ Assembly Hose Swivel

CP12LP.75: 3/4” Low Perm Hardwall 9” Assembly Hose

CP12LP.75SV: 3/4” Low Perm Hardwall 9” Swivel Assembly Hose

Guards

Choose …

014034: Full Grip Nozzle Guard

015990: ECO Nozzle Mate Guard

015431: ECO Handle Cover

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
