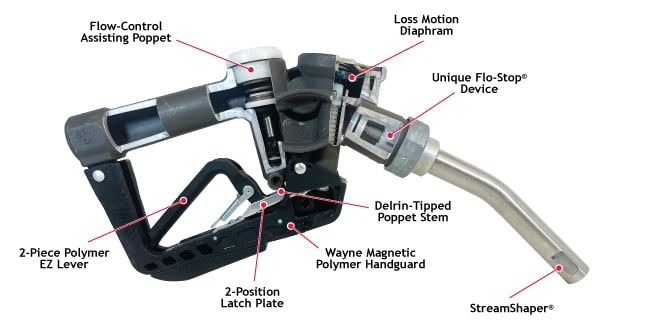

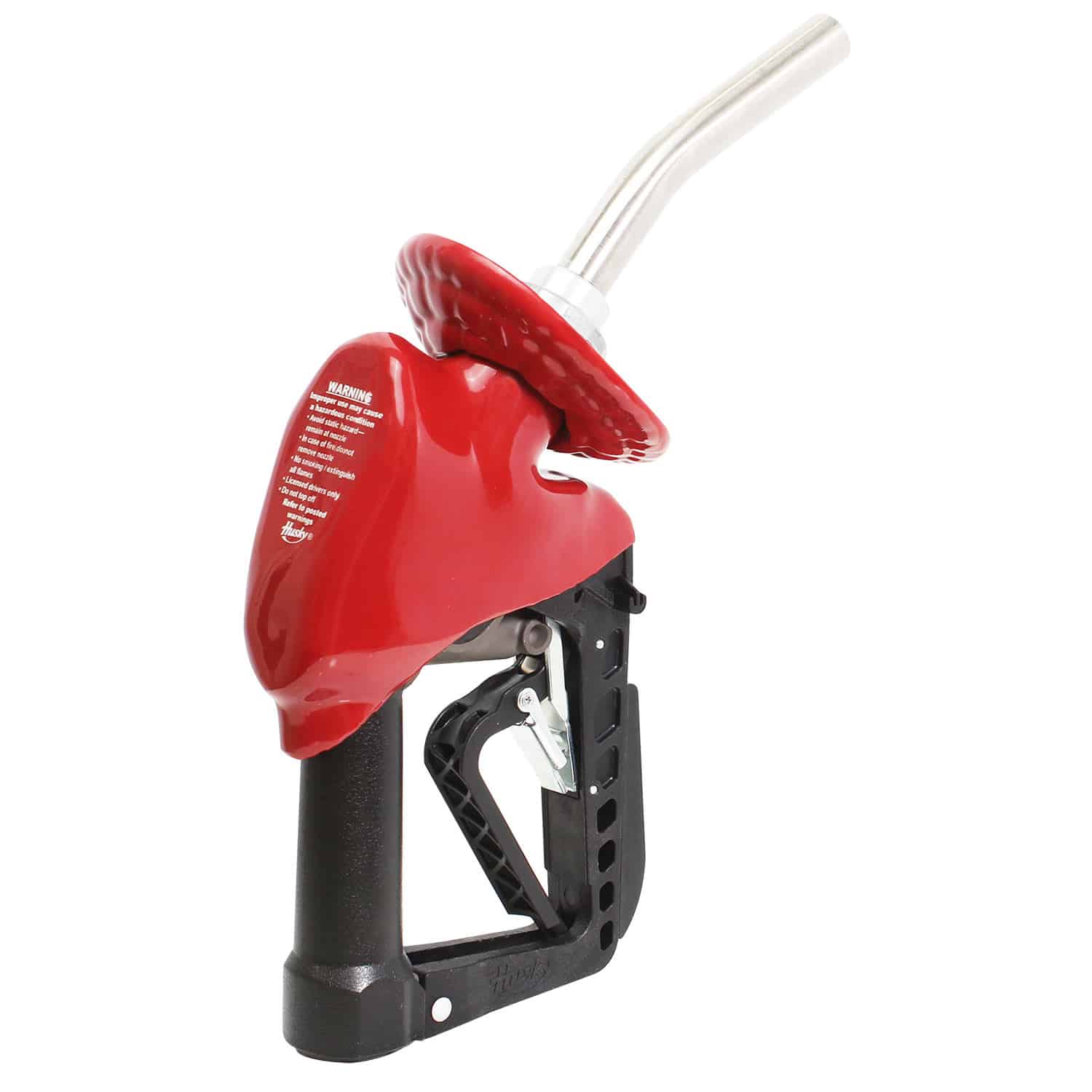

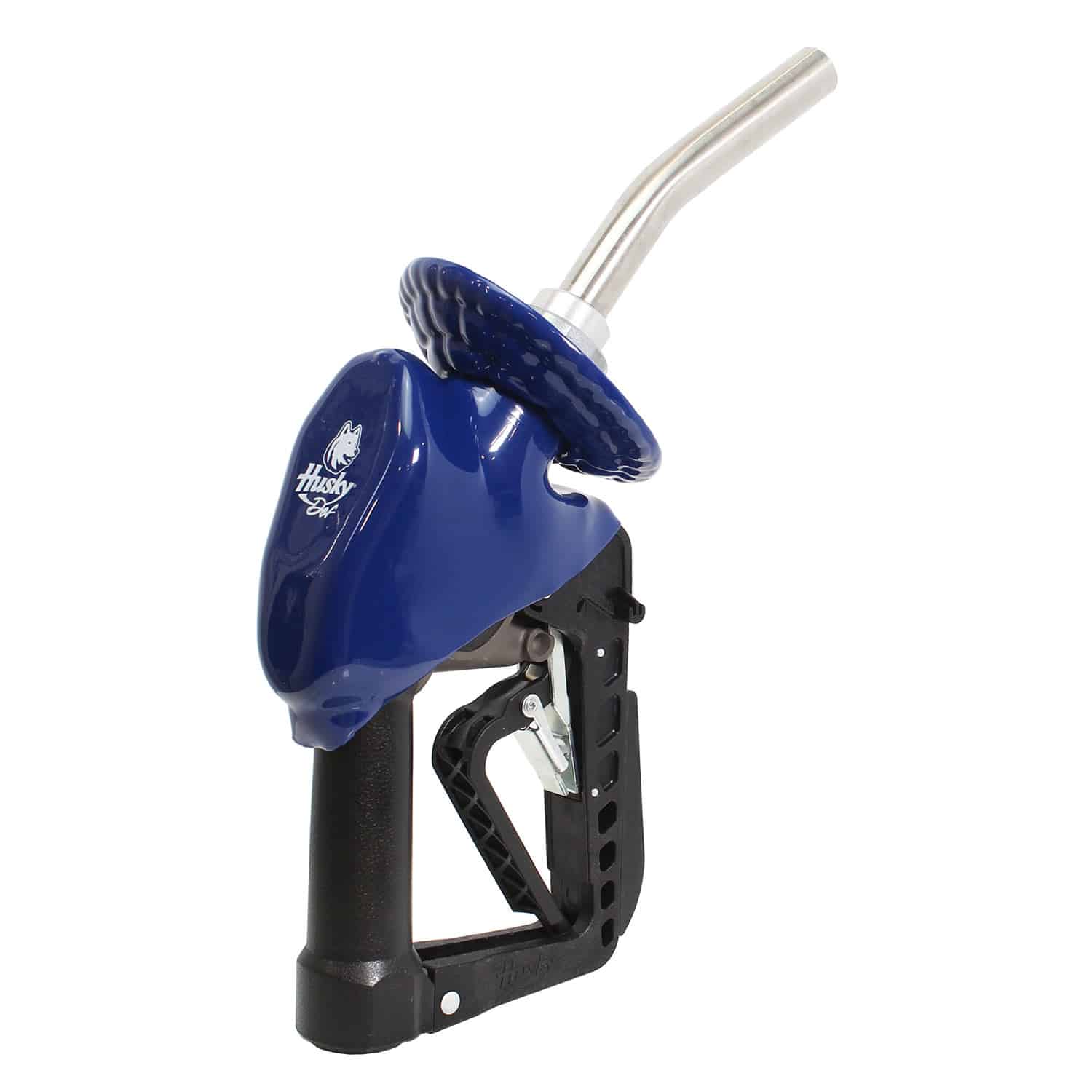

3/4" DEF Nozzle with Two Notch Hold Open Clip, Wayne Magnetic Handguard, Mate Guard, Polymer Handle Cover and 1808 Waffle Splash Guard, without Spout Groove and Spout Ring
Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.
Features/Benefits
- X DEF EZL nozzle shuts off when tank is full.
- Lighter than stainless steel nozzles.
- StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
- Less expensive than comparable nozzles.
- Tilt poppet design provides precise “to-the-penny” dispensing.
- ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.
- Stainless steel spout for durability.
- Flow characteristics of nozzle reduces crystallization of DEF.
- Complies with ISO Standard 22241-2:2006.
- Aluminum body is anodized to prevent contamination from DEF blends.
Construction
Body: Anodized Aluminum
Seals: Fluorocarbon
Spout: 19 mm diameter
Packing: Double o-ring seal protected by fiber-reinforced Teflon®
Lever: One-piece polymer
Inlet: 3/4” / 19.1 mm BSP
