13705213N VIII Nozzle

Home | Husky | Nozzles | VIII Nozzle

#13705213N: High Volume Truck, Automatic Shut-Off

VIII Nozzle

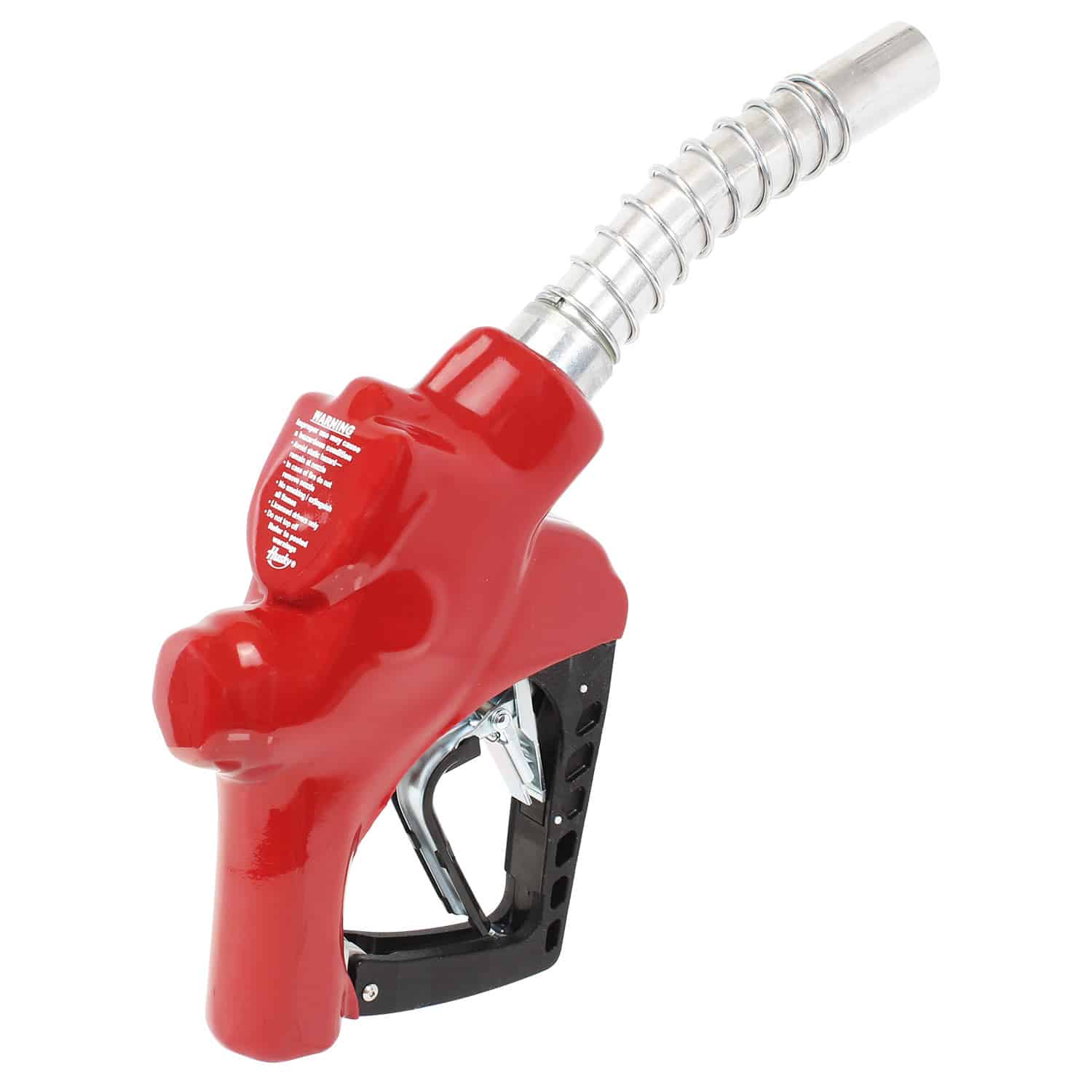

1" Heavy Duty Diesel Nozzle with Three Notch Hold Open Clip and Tokheim Magnetic Handguard, without Waffle Splash Guard and Spout Bushing

Product Info

Resources

Specs / Construction

Automatic shut-off nozzle with polymer handguard for truck stop and other high volume full-service, self-service and unattended stations.

Features/Benefits

VIII nozzle shuts off when the gas tank is full.
Optional aluminum bushing retains spout spring and keeps spout from rounding-in: the two leading causes of clicking off and splash-back spillage.

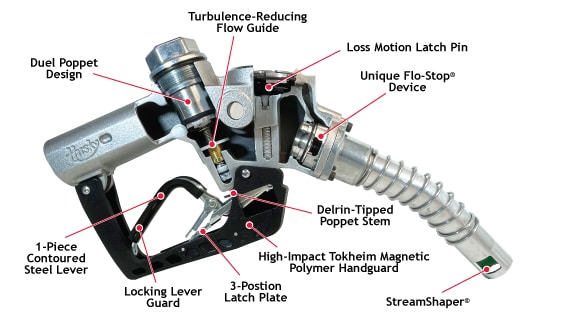

Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or raises above the horizontal.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Strong flow (up to 75 gpm / 283.9 Lpm)
Dual poppet design equalizes pressure on both sides of the main poppet valve in order to aid in lifting the lever, and ultimately opening the main poppet valve for full flow.
Optional cold weather seals are rated to -40°F/C.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Comes standard with smooth full grip guard and 1808 waffle splash guard.

Installation PDFs

009204

Construction

Body: One piece sand cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel with hard polymer lever cover
Inlet: 1” / 25.4 mm BSP

Flow Rate

Flow chart image for VIII and VIIIS nozzles

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

003306: 1” M x 1” F BSPP Multi-Plane Swivel

006949: 1” M x 1” F BSPP Multi-Plane High Volume Swivel

Choose a Safe-T-Break®

Choose …

003076: 1” F x 1” F BSPP Reconnectable Safe-T-Break®

003076A: 1” F x 1” F BSPP Reconnectable Safe-T-Break® - Atex

006914: 1” F x 1” F BSPP Non-Reconnectable Safe-T-Break®

009911: 1” F x 1” F BSPP Reconnectable G2 MAGBREAK®

Choose Swivel/STB Combo

Choose …

008015: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break®

008015A: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break® - Atex

Choose Spout

Choose …

002279: Complete Spout Assembly with Spout Bushing

003589: Complete Long Spout Assembly with Spout Bushing

005017: Complete Spout Assembly without Spout Bushing

007218: Complete Long Spout Assembly with Spout Bushing

011129: Complete Long Spout Assembly without Spout Bushing and UL Groove

010434: Unleaded Long Spout with StreamShaper®

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

003593: Hold Open Clip Kit

006645: Plunger Assembly Lift Tool

007089: Nozzle Service Kit

Choose Guards

Choose …

001808: Waffle Splash Guard

004740: Full Grip Guard

005494: Lever Guard

005516: Full Grip Reguard

006628: POPD® S Clear Cover

007352: POPD® S Full Grip Guard

007999: POPD® H Clear Cover

008167: POPD® S Mate Guard

008168: POPD® H Mate Guard

008177: POPD® EZS Nozzle Guard

008178: POPD® EZH Nozzle Guard

008186: POPD® H Full Grip Guard

008193: POPD® H Full Grip Reguard

008194: POPD® S Full Grip Reguard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
