1" DEF Nozzle with Single Notch Hold Open Clip, Gilbarco Magnetic Handguard, Mate Guard, Polymer Handle Cover, 1808 Waffle Splash Guard, and Magnetic Accufuel® Spout
Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.
Features/Benefits
- X DEF LV nozzle shuts off when tank is full.
- Lighter than stainless steel nozzles.
- Spout is designed to protect against misfilling into the diesel tank, dispensing of DEF is only possible in conjunction with filling points to ISO 22241-5.
- Less expensive than comparable nozzles.
- Flow characteristics of nozzle reduces crystallization of DEF.
- Complies with ISO Standard ISO 22241-5:2019(E).

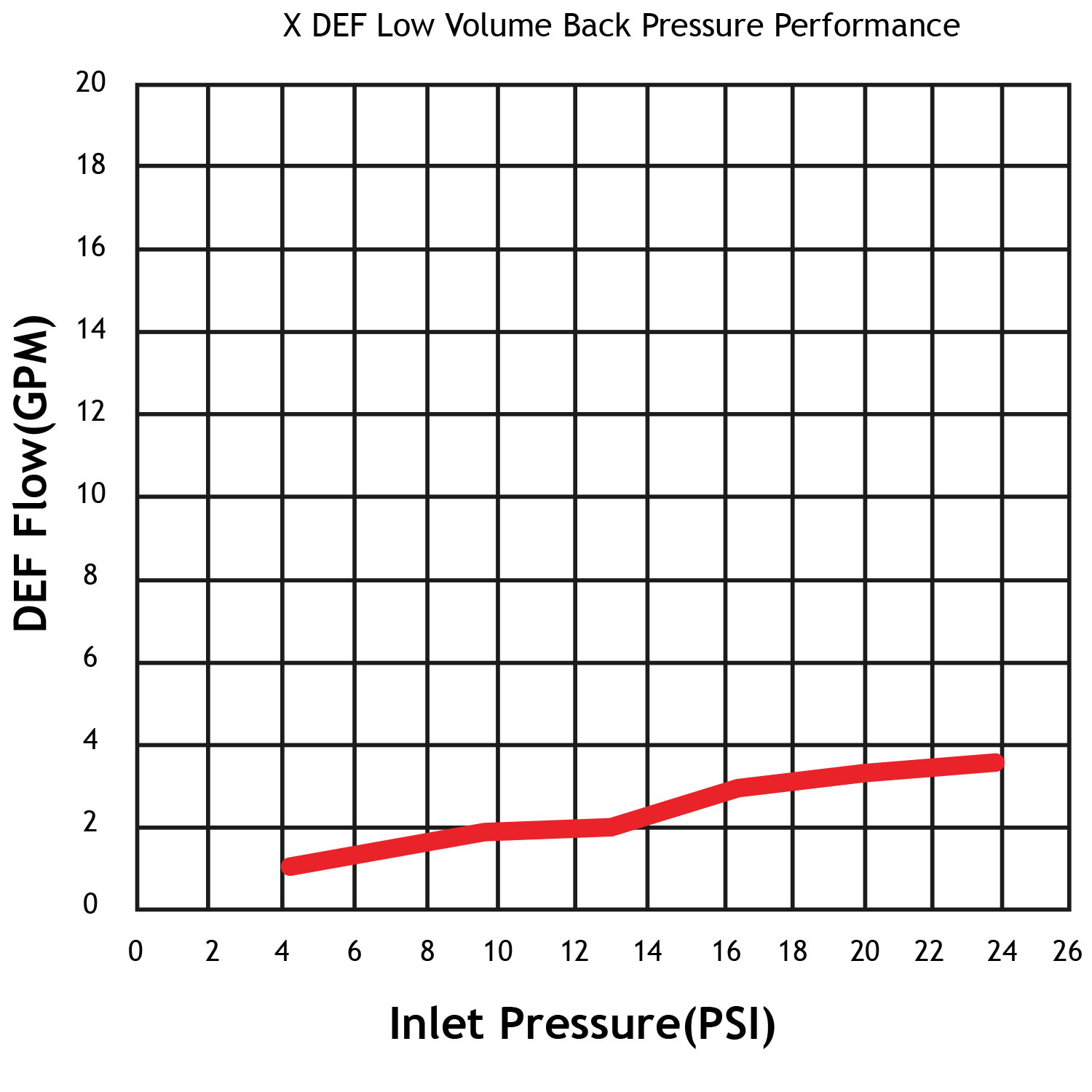

- Maximum flow rate 2.6 gpm (10 Lpm).
Construction
Body: Die cast, anodized aluminum with high-impact polymer handguard
Seals: Fluorocarbon o-rings and diaphragm
Spout: 19 mm diameter
Lever: One-piece contoured polymer
Inlet: M34 x 1.5 mm
