Home | Husky | Nozzles | 1A Nozzle
#209816N: Conventional, Automatic Shut-Off

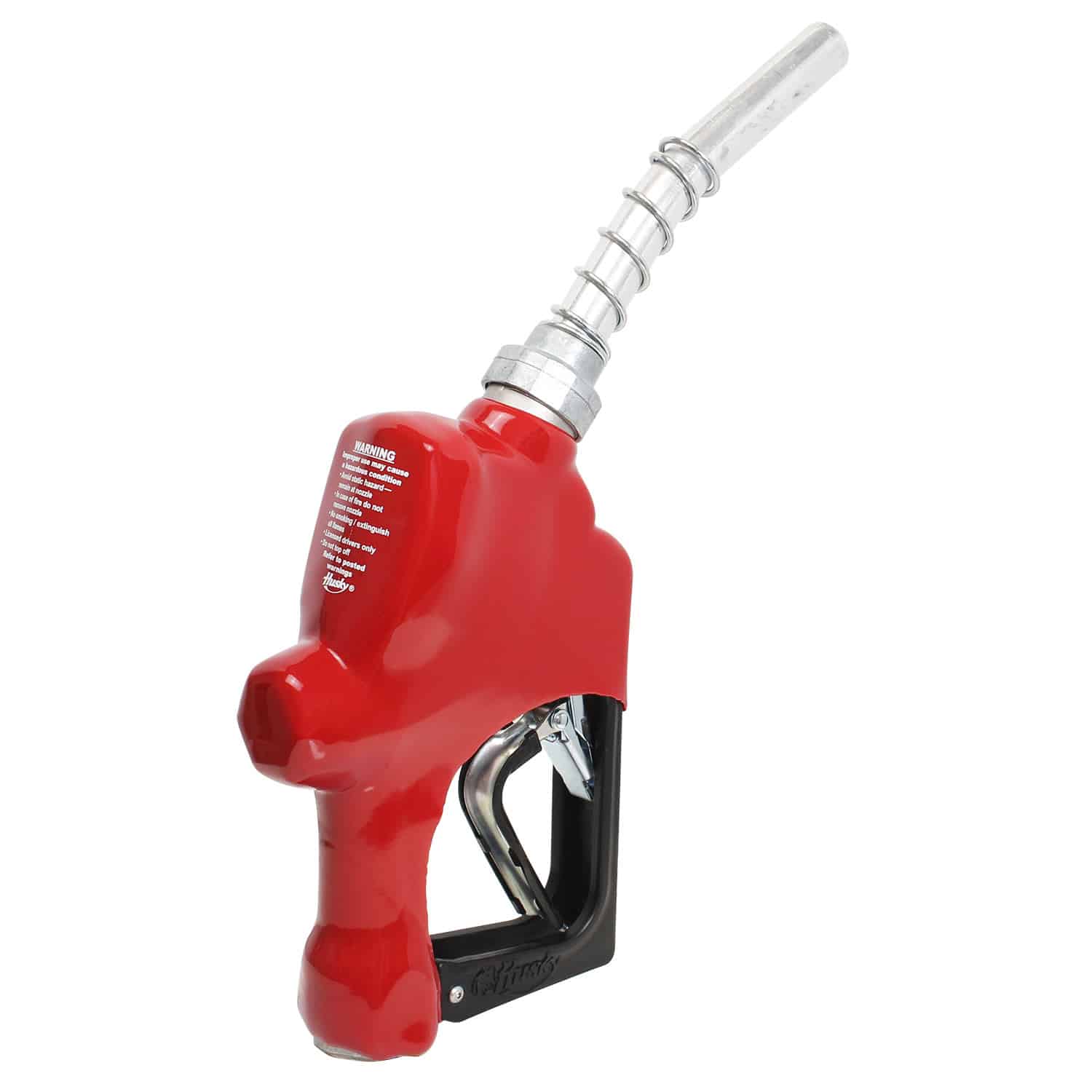

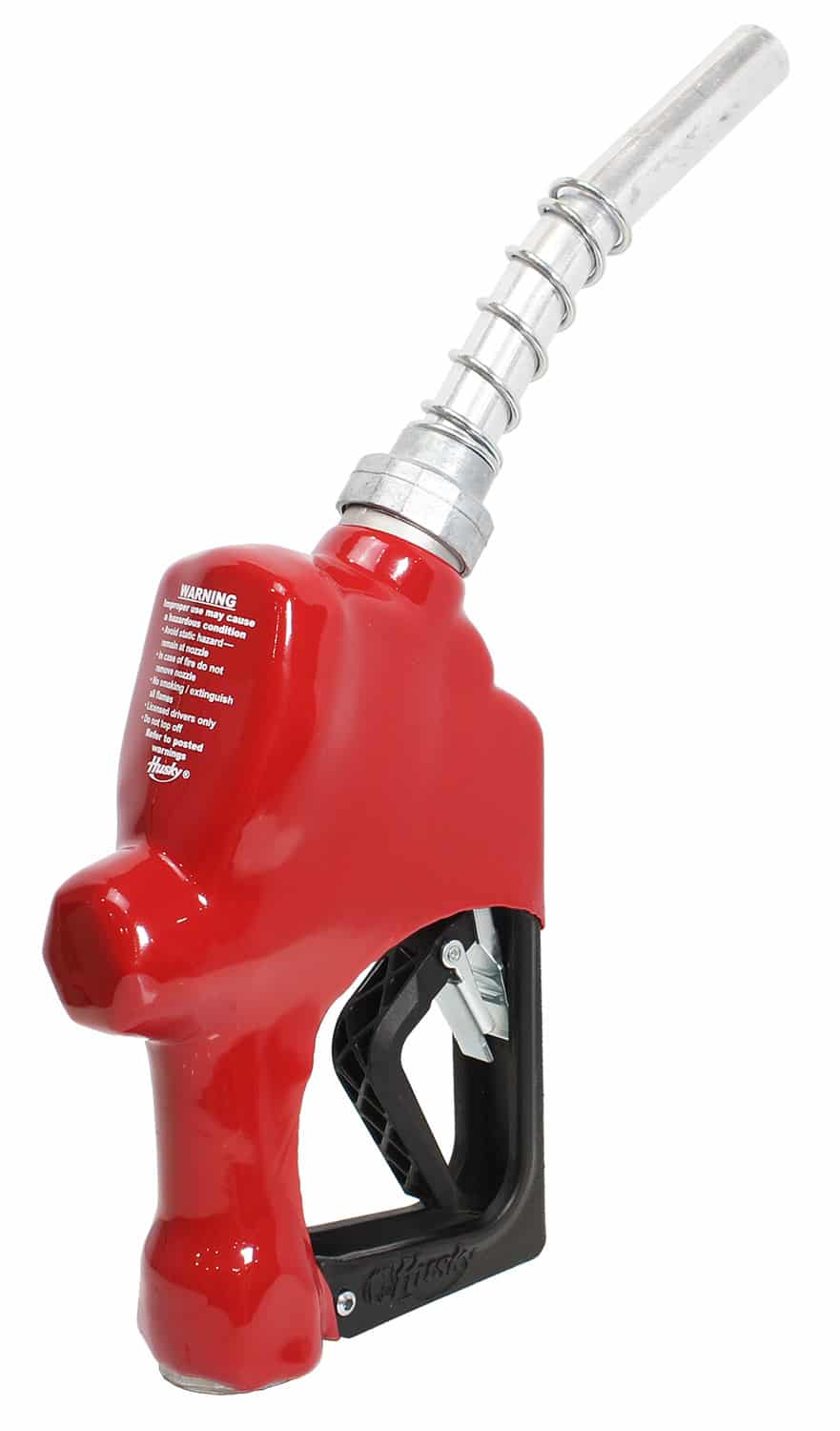

1A Nozzle
1" Unleaded Nozzle with Three Notch Hold Open Clip and Polymer Handguard
Product Info
Resources
Specs / Construction
Automatic shut-off nozzle for full-service and self-service stations.

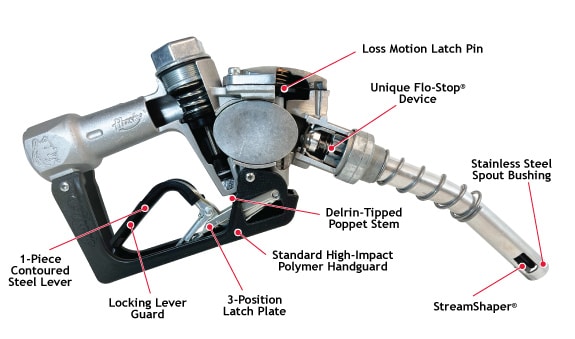

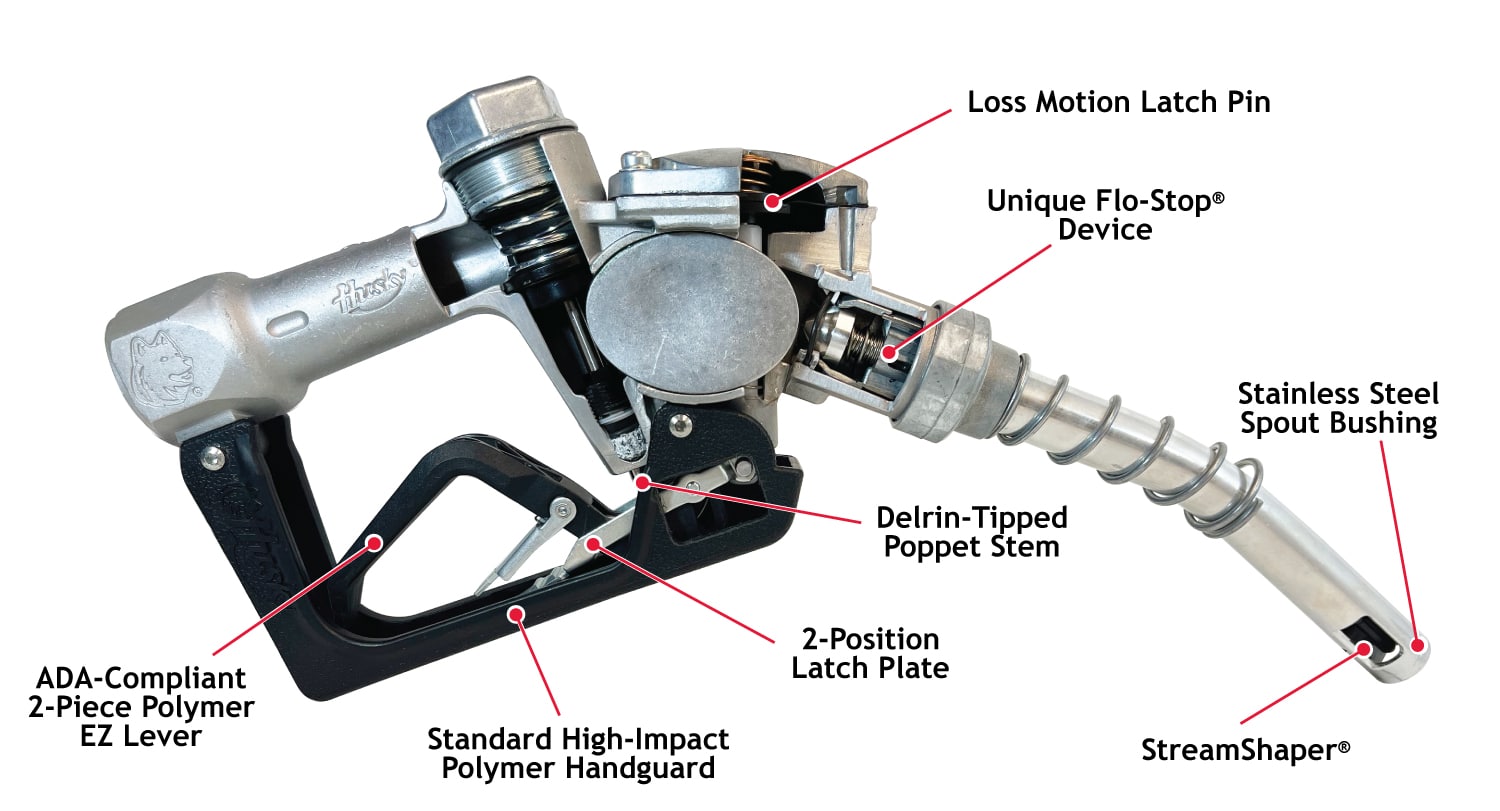

Features/Benefits
  • 1A nozzle shuts off when the gas tank is full.
  • Stainless steel reinforced spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
  • Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or raises above the horizontal.
  • StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
  • Comes standard with smooth full grip guard.
  • Optional tilt poppet design provides precise “to-the-penny” dispensing.
  • Optional cold weather seals are rated to -40°F/C.
  • Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Construction

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever:One piece contoured steel with hard polymer lever cover
Inlet: 1” / 25.4 mm BSP

Flow Rate
1A nozzle flow chart image
Dimensions
1A dimension graphic image
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
003306: 1” M x 1” F BSPP Multi-Plane Swivel
003306A: 1” M x 1” F BSPP Multi-Plane Swivel - Atex
006949: 1” M x 1” F BSPP Multi-Plane High Volume Swivel
Choose a Safe-T-Break®
Choose …
003076: 1” F x 1” F BSPP Reconnectable Safe-T-Break®
003076A: 1” F x 1” F BSPP Reconnectable Safe-T-Break® - Atex
006914: 1” F x 1” F BSPP Non-Reconnectable Safe-T-Break®
009911: 1” F x 1” F BSPP Reconnectable G2 MAGBREAK®
Choose Swivel/STB Combo
Choose …
008015: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break®
008015A: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break® - Atex
Choose Spout
Choose …
001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®
001473: Unleaded Spout without Flo-Stop®
010353: Light Duty Diesel Long Spout without Flo-Stop®
010434: Unleaded Long Spout without Flo-Stop®
Choose Pressure/Vacuum Vent
Choose …
004620: 2” Slip-On Pressure Vacuum Vent
004885: 2” Thread-On Pressure Vacuum Vent - NPT
005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT
Choose Accessories, Testing and Maintenance
Choose …
000385: 1” M x ¾” F Reducer Bushing
000397: Unleaded Spout Gauge
003593: Hold Open Clip Kit
007089: Nozzle Service Kit
Choose Guards
Choose …
000099: Protection Package
000226: Mate Nozzle Guard
000544: Full Grip Guard
001804: Full Grip Reguard
001808: Waffle Splash Guard
001811: Reguard Protection Package
005494: Lever Guard
006628: POPD® S Clear Cover
006665: POPD® S Full Grip Guard
007210: POPD® Full Grip Nozzle Reguard
007295: Polymer Handle Cover
007999: POPD® H Clear Cover
008169: POPD® S Mate Nozzle Guard
008170: POPD® H Mate Nozzle Guard
008179: POPD® EZS Nozzle Guard
008180: POPD® EZH Nozzle Guard
008183: POPD® H Full Grip Guard
008190: POPD® H Full Grip Reguard
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
