1216503 1GSS Nozzle

Home | Husky | Nozzles | 1GSS Nozzle

#1216503: Farm & Commercial, Pressure Activated, Automatic Shut-Off

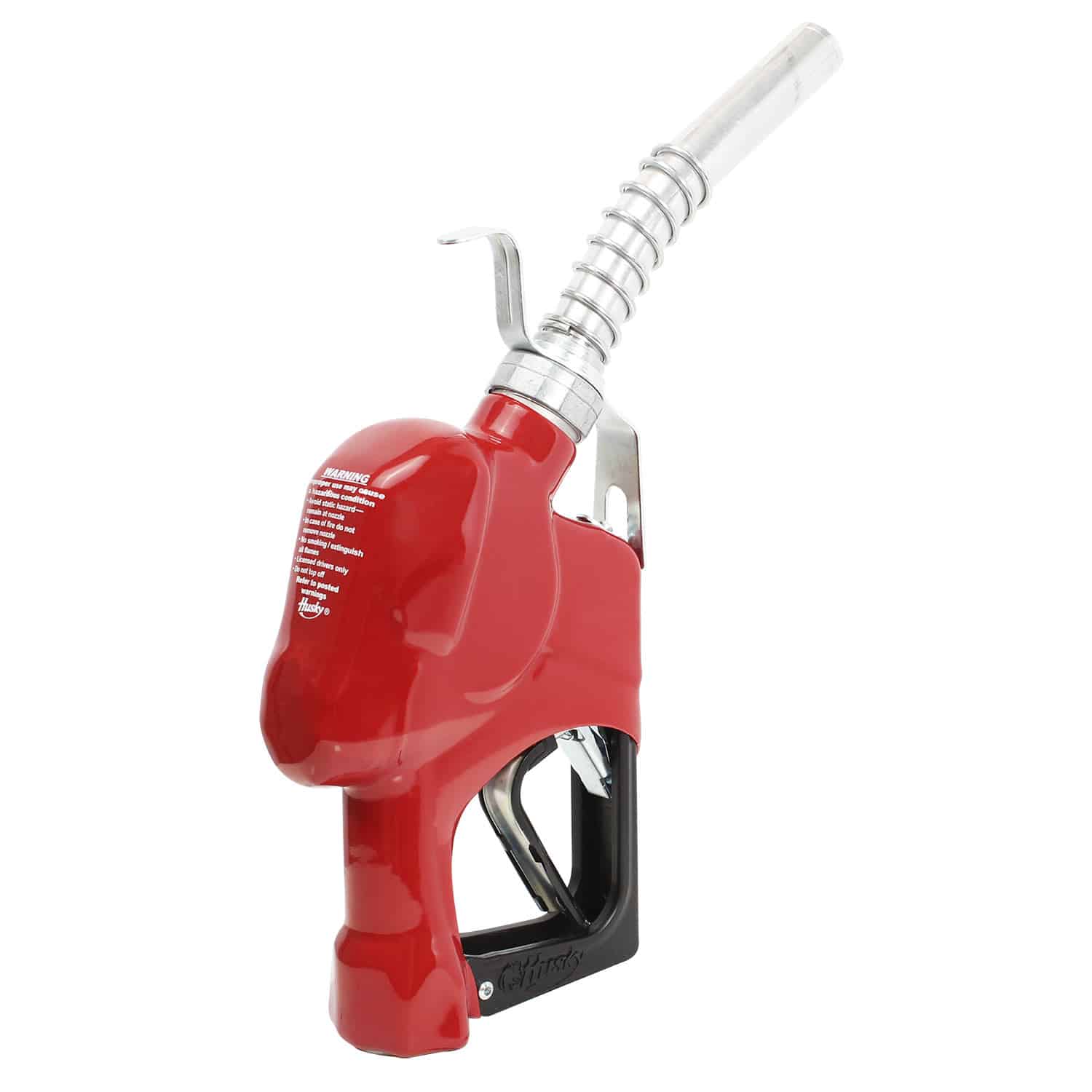

1GSS Nozzle

1" Light Duty Diesel Nozzle with Three Notch Hold Open Clip and Polymer Handguard

Product Info

Resources

Specs / Construction

Pressure activated, automatic shut-off nozzle with polymer handguard for farm, 12V skid tanks, large pumps with or without air eliminators and commercial applications.

Features/Benefits

1GSS nozzle shuts off when: — the pump shuts off. — the gas tank is full. — the lever is opened before the pump is turned on. — the leak detector has not completed the test cycle.

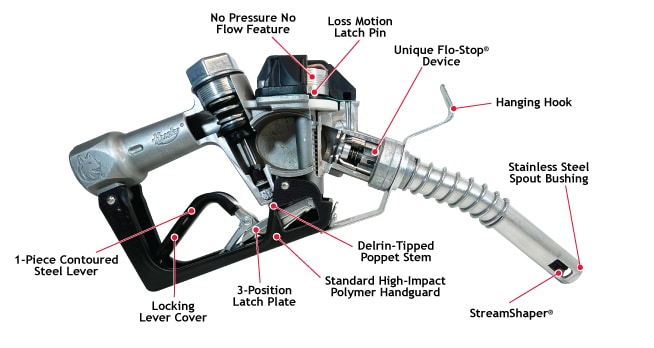

Stainless steel reinforced spout bushing keeps spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
Unleaded and light duty diesel StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Comes standard with smooth full grip guard.
Not for use with gravity tanks.
Not legal for retail dispensing applications.

Construction

Body: One piece die cast aluminum with high impact polymer hand guard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece contoured steel with hard polymer lever cover
Inlet: 1” / 25.4 mm NPT

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

000087: 1” M x 1” F NPT Multi-Plane Swivel

000095: 1” M x 1” F NPT 70° Pump Swivel

000352: 1” M x 3/4” F NPT Multi-Plane Swivel

000356: 1” M x ¾” F NPT Multi-Plane Swivel Anodized Black

003395: 1” M x 1” F NPT Multi-Plane Restricted Swivel

004860: 1” M x 1” F NPT Multi-Plane High Volume Swivel

Choose a Safe-T-Break®

Choose …

002276: 1” F x 1” F NPT Reconnectable Safe-T-Break®

005231: 1” F x 1” F NPT Low Pull Reconnectable Safe-T-Break®

005812: 1” F x 1” F NPT Non-Reconnectable Safe-T-Break®

006301: 1” F x 1” F NPT Non-Reconnectable PCC Safe-T-Break®

008331: 1” F x 1” F NPT CK Reconnectable MAGBREAK®

Choose Swivel/STB Combo

Choose …

005969: 1” M NPT Multi-Plane Swivel connected to 1” F NPT Reconnectable Safe-T-Break®

Choose Spout

Choose …

001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®

001473: Unleaded Spout without Flo-Stop®

005215: Heavy Duty Diesel Spout with Flo-Stop®

010432: Unleaded Long Spout

012263: Light Duty Diesel Long Spout

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

000385: 1” M x ¾” F Reducer Bushing

000397: Unleaded Spout Gauge

000548: Hanging Hook for Unleaded and Light Duty Diesel Nozzles

003593: Hold Open Clip Kit

007089: Nozzle Service Kit

Choose Guards

Choose …

001807: Waffle Splash Guard with Smaller Hole

001808: Waffle Splash Guard

005494: Lever Guard

007295: Mate Handle Guard

012164: Full Grip Guard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
