026838N 1HS Nozzle

Home | Husky | Nozzles | 1HS Nozzle

#026838N: High Volume Truck, Automatic Shut-Off

1HS Nozzle

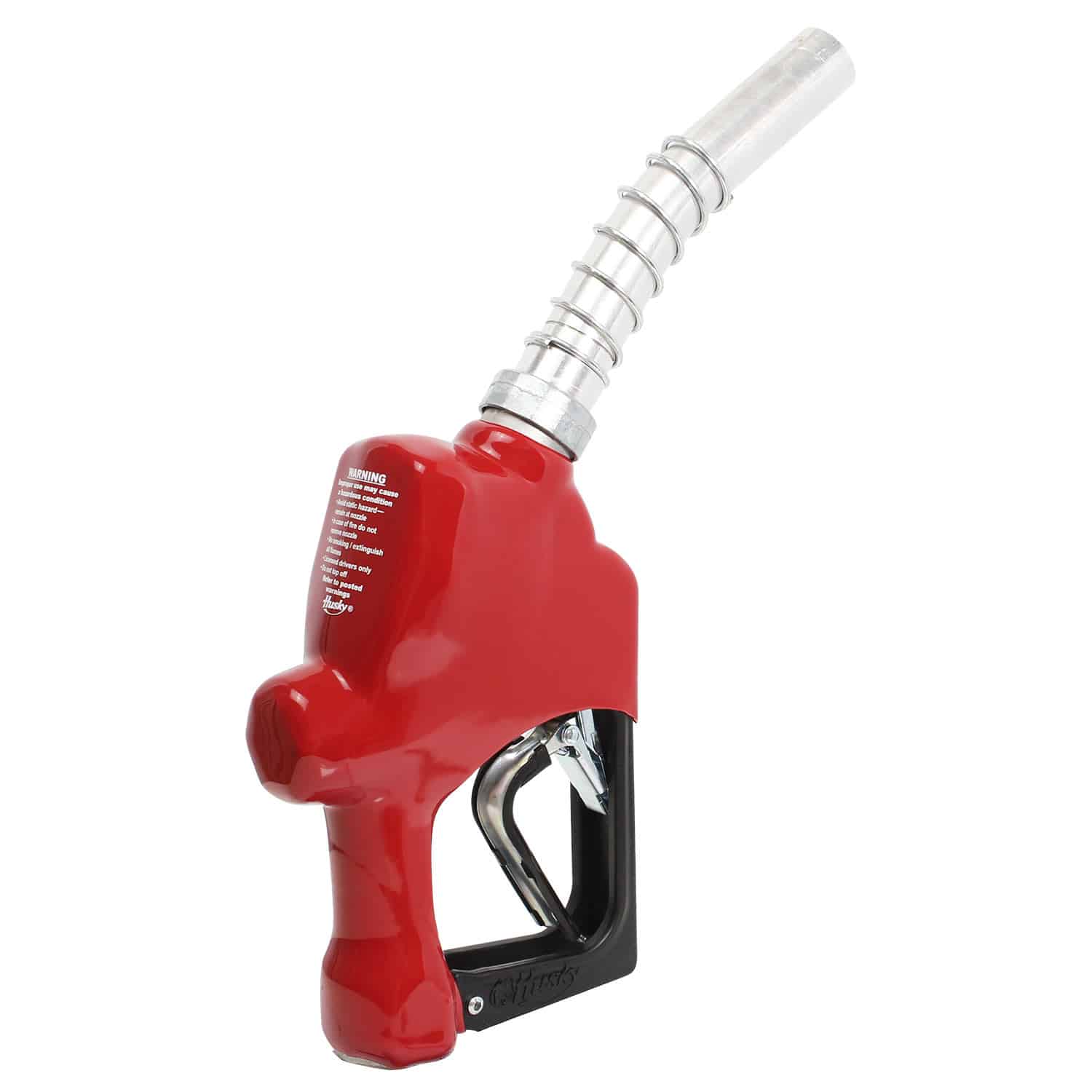

1" Heavy Duty Diesel Nozzle with Two Notch Hold Open Clip and Polymer Handguard

Product Info

Resources

Specs / Construction

Automatic shut-off nozzle with polymer handguard for dispensing up to 25 gpm / 94.6 Lpm.

Features/Benefits

1HS nozzle shuts off when the gas tank is full.

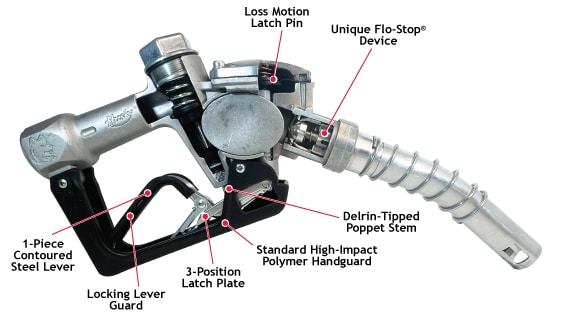

Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
Optional cold weather seals are rated to -40°F/C.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Comes standard with full grip guard and waffle splash guard.
ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.

Construction

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: Two-piece polymer EZ Lever
Inlet: 1” / 25.4 mm BSP

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

003306: 1” M x 1” F BSPP Multi-Plane Swivel

003306A: 1” M x 1” F BSPP Multi-Plane Swivel - Atex

006949: 1” M x 1” F BSPP Multi-Plane High Volume Swivel

Choose a Safe-T-Break®

Choose …

003076: 1” F x 1” F BSPP Reconnectable Safe-T-Break®

003076A: 1” F x 1” F BSPP Reconnectable Safe-T-Break® - Atex

006914: 1” F x 1” F BSPP Non-Reconnectable Safe-T-Break®

009911: 1” F x 1” F BSPP Reconnectable G2 MAGBREAK®

Choose Swivel/STB Combo

Choose …

008015: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break®

008015A: 1” M BSPP Multi-Plane Swivel connected to 1” F BSPP Reconnectable Safe-T-Break® - Atex

Choose Spout

Choose …

005215: Heavy Duty Diesel Spout with Flo-Stop®

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

000385: 1” M x 3/4” F Reducer Bushing

000397: Unleaded Spout Gauge

003593: Hold Open Clip Kit

007089: Nozzle Service Kit

Choose Guards

Choose …

000226: Mate Nozzle Guard

001808: Waffle Splash Guard

005494: Lever Guard

006628: POPD® S Clear Cover

006655: POPD® S Full Grip Guard

007210: POPD® S Full Grip Reguard

007295: Polymer Handle Cover

007999: POPD® H Clear Cover

008169: POPD® S Mate Guard

008170: POPD® H Mate Nozzle Guard

008179: POPD® EZS Nozzle Guard

008180: POPD® EZH Nozzle Guard

008183: POPD® H Full Grip Guard

008190: POPD® H Full Grip Reguard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
