6250431 V34 Nozzle

Home | Husky | Nozzles | V34 Nozzle

#6250431: Vacuum Assist Pressure Activated Automatic Vapor Recovery

V34 Nozzle

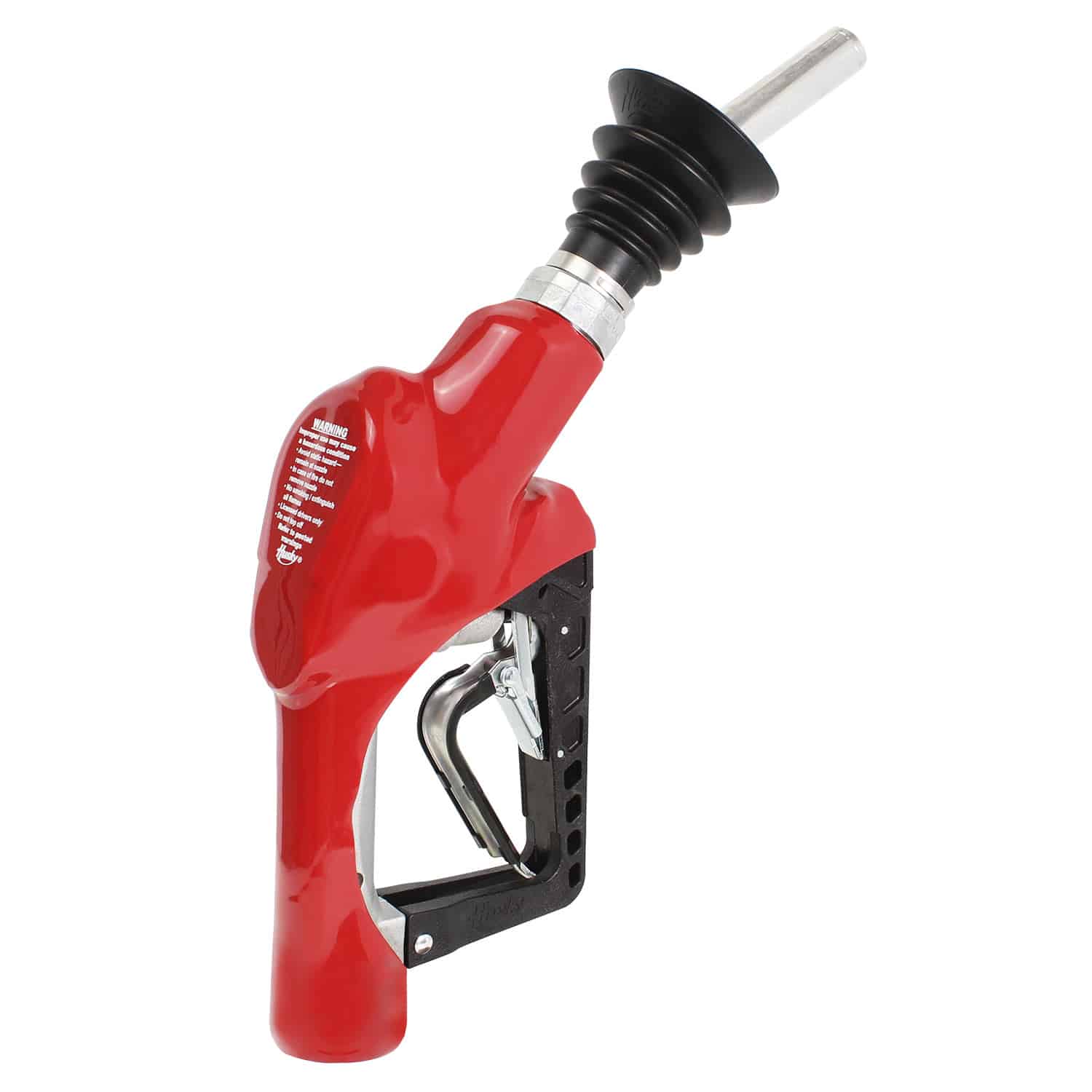

V34 Unleaded Nozzle with Single Notch Hold Open Clip and Vapor Escape Guard

Product Info

Resources

Specs / Construction

Pressure activated, automatic shut-off vacuum assist nozzle for full-service, self-service and unattended stations.

Features/Benefits

V34 nozzle shuts off when:
— the pump shuts off.
— the gas tank is full.
— the lever is opened before the pump is turned on.
— the leak detector has not completed the test cycle.

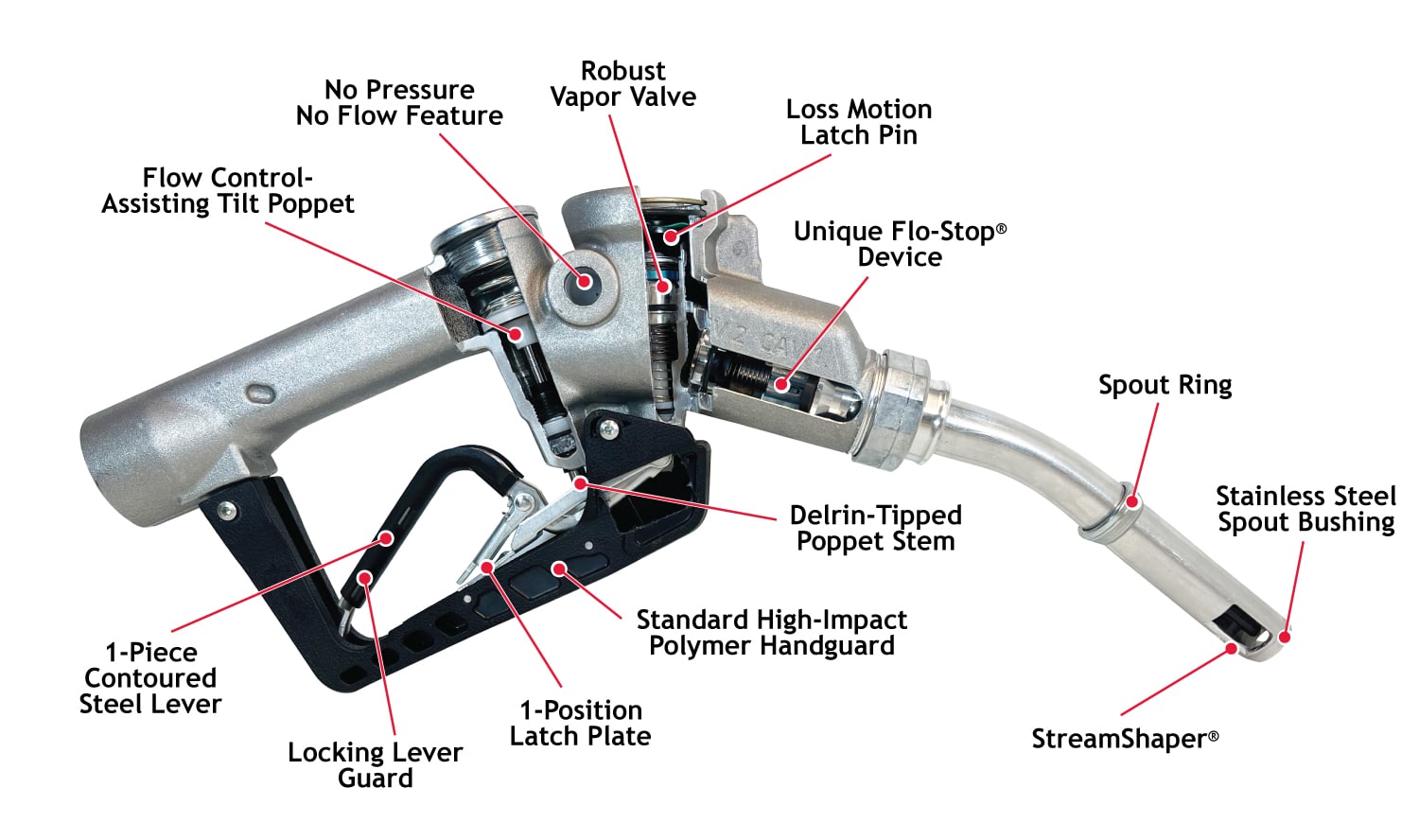

Stainless steel reinforced spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or raises above the horizontal.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Tilt poppet design provides precise “to-the-penny” dispensing.
Strong vapor valve in the nozzle that is mechanically operated by the on-off action of the nozzle’s lever.
Husky® vapor return line is an internal part of the body casting, thus eliminating potential vapor leak points and fugitive evaporative emissions from the fuel remaining in the vapor path of the hose.
Vapor assist achieved at the body end of the spout where a vapor ring catches emissions.
Uses conventional unleaded spout with spout ring and soft vapor escape guard.
Nozzle comes standard with a full grip guard.
Optional cold weather seals are rated to -40°F/C.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Optional vapor insert increases the vapor back pressure, closely matching that of the competition, and making installation a breeze, with little-to-no changes to the vacuum pump draw.
Optional sightglass provides a clear window for the customer to view the fuel as it passes through the main poppet valve.

Construction

Body: One piece sand cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber-reinforced Teflon®
Lever: One piece contoured steel with hard polymer lever cover
Inlet: M34 x 1.5 mm

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

004605: Inverted Vapor Assist Swivel

004605A: Inverted Vapor Assist Swivel - Atex

Choose a Safe-T-Break®

Choose …

004034: Reconnectable Safe-T-Break®

004034A: Reconnectable Safe-T-Break® - Atex

005134A: Non-Reconnectable Safe-T-Break® - Atex

006210: Non-Reconnectable Safe-T-Break®

008332: MAGBREAK® Coax M34 CK

010513: Non-Reconnectable Safe-T-Break® - Shearpin

Choose Spout

Choose …

006291: V34 Spout Assy Kit (Includes 004000 VSG and 006391 Spout Assembly)

006391: V34 Spout Assembly with Streamshaper®

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

003593: Hold Open Clip Kit

004000: Vapor Splash Guard (VSG) with Clamp

004039: Vapor Splash Guard Clamp

004335: O-ring, Air/Liquid Test Spout Adaptor

004360: Air/Liquid Spout Adaptor

005233: O-ring Kit

005837: Vapor Assist Flo-Equalizer®

006497: VSG Clamp Tool

095000: Hose Conversion Adaptor M34 x 1.5

007089: Nozzle Service Kit

010073: Waffle VSG with Clamp (single notch V34)

010076: Waffle VSG without Clamp (single notch V34)

Choose Guards

Choose …

004231: Full Grip Reguard

005494: Lever Guard

006628: POPD® S Clear Cover

006660: POPD® S Full Grip Guard

006951: Full Grip Guard

07220: POPD® S Full Grip Reguard

007999: POPD® H Clear Cover

008184: POPD® H Full Grip Guard

008191: POPD® H Full Grip Reguard

010089: Black Handle Cover

014526: Mate Guard

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
