Home | Husky | Nozzles | 1691 Nozzle
#652310N: High Volume Truck, Automatic Shut-Off

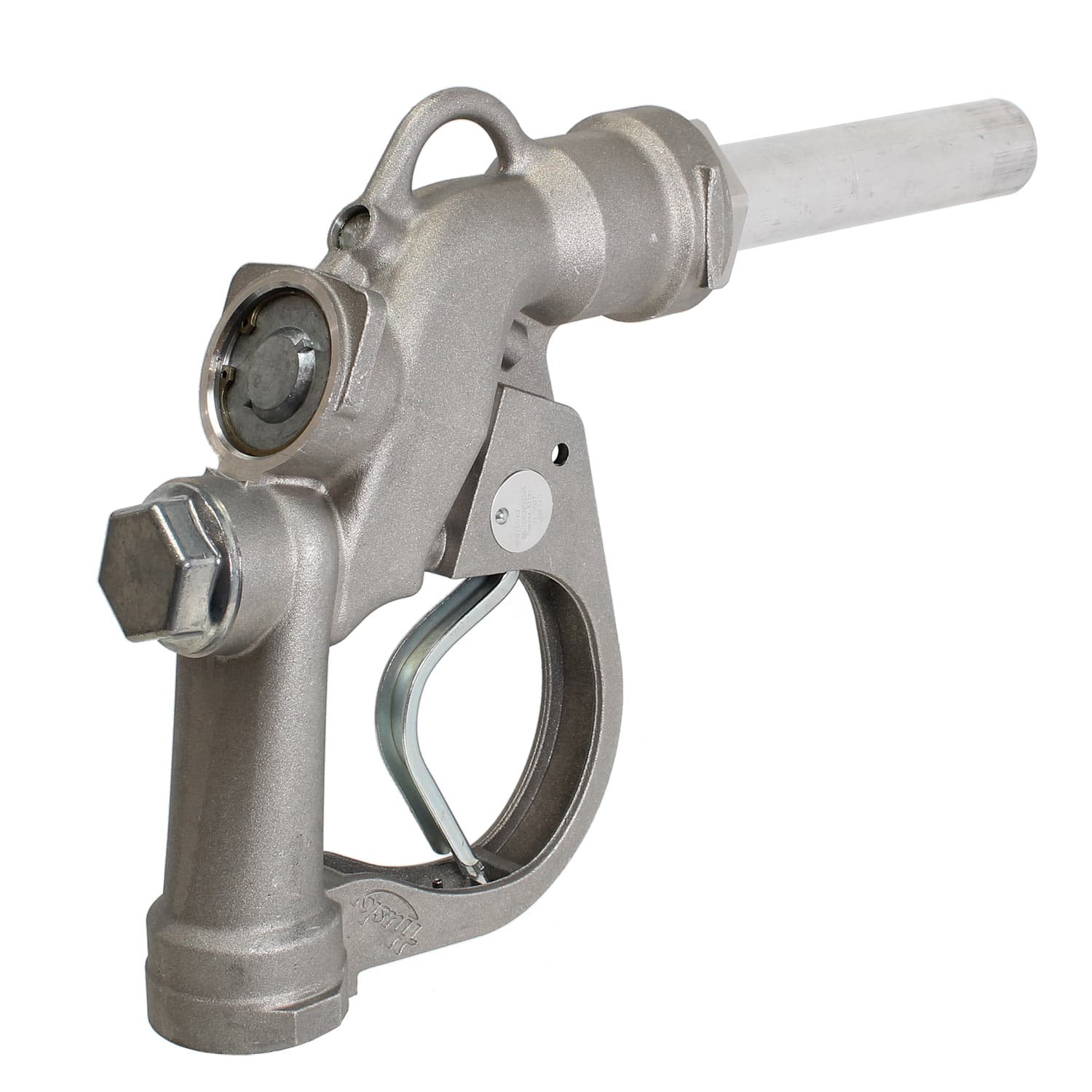

1691 Nozzle
1½" Heavy Duty Diesel Nozzle with Two-Position Hold Open Pins and Cold Weather Seals
Product Info
Resources
Specs / Construction
Automatic shut-off bulk fueling nozzle.

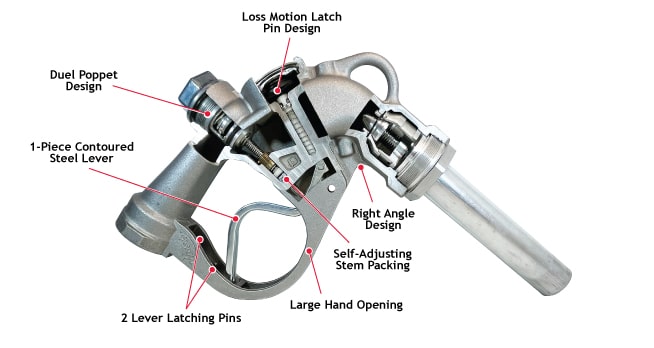

Features/Benefits
  • 1690/1691 nozzle shuts off when the container is full.
  • Designed with extra large hand opening to accommodate gloves or mittens.
  • Equipped with dual poppets for easy opening.
  • Design includes a self-adjusting stem packing.
  • Check valve is in the nozzle body, not the spout, which makes for an inexpensive and fast spout replacement.
  • 1690 nozzle is equipped with two-position hold open latch.
  • Right angle design allows nozzle to “fit” close to walls and corners.
  • Cast-in protective standoffs provide durability with rough usage.
  • Nozzle is 30% lighter than similar nozzles in the market.
Construction

Body: One piece sand cast aluminum
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece contoured steel
Inlet: 1½” / 38.1 mm NPT

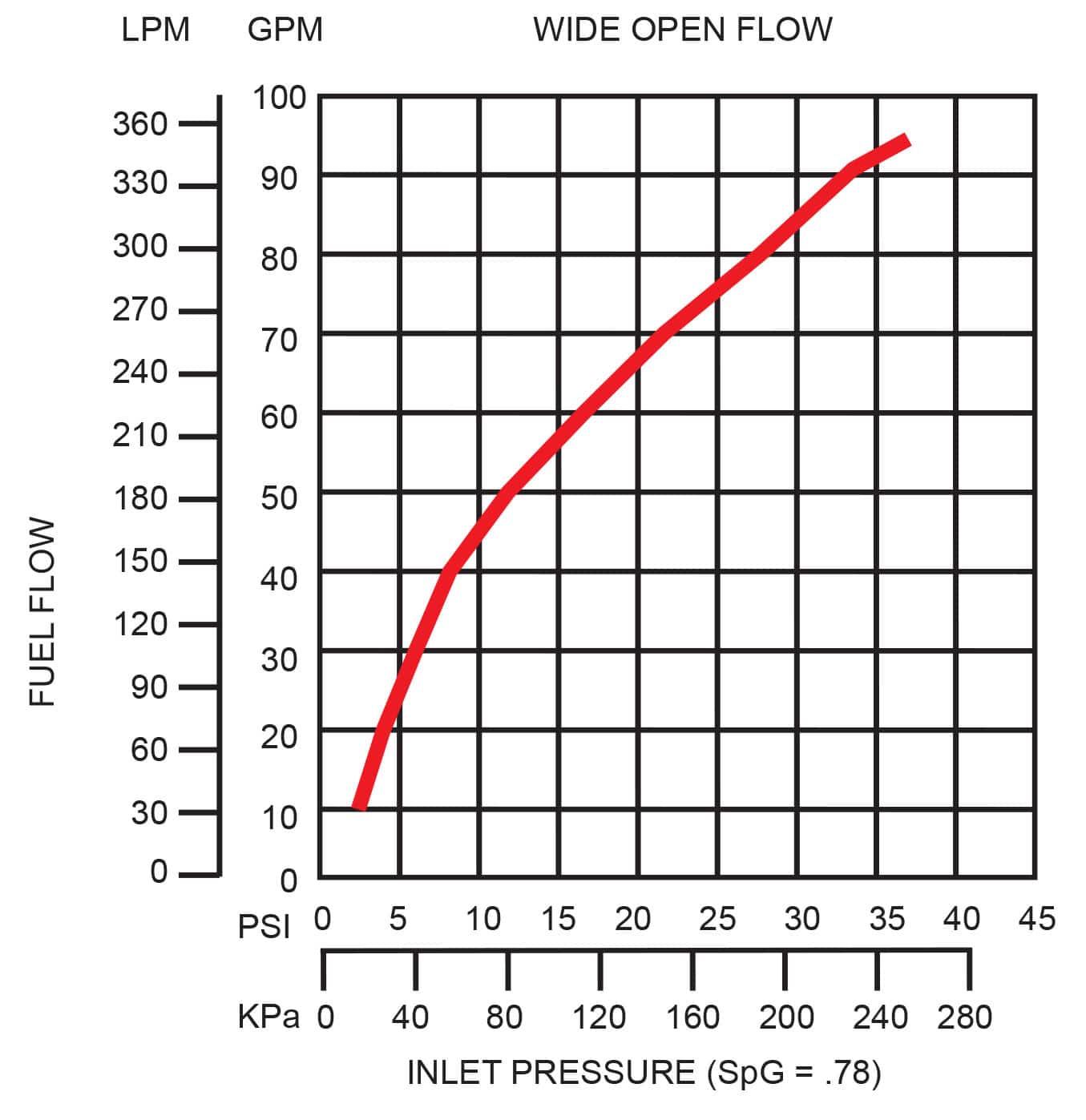

Flow Rate
1690-1691 flow chart image
Dimensions
1690-1691 dimension image
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
005240: 1¼” F x 1½” M NPT Single Plane Swivel
005266: 1½” F x 1½” M NPT Single Plane Swivel
Choose Spout
Choose …
004889: Spout Assembly without shear groove
005042: Spout Assembly with shear groove (1691 CUL version)
Choose Pressure/Vacuum Vent
Choose …
004620: 2” Slip-On Pressure Vacuum Vent
004885: 2” Thread-On Pressure Vacuum Vent - NPT
005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT
Choose Accessories, Testing and Maintenance
Choose …
007089: Nozzle Service Kit
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
