731004N DEF SST Nozzle

Home | Husky | Nozzles | DEF Stainless Steel Nozzle

#731004N: Diesel Exhaust Fluid, Automatic Shut-Off

DEF Stainless Steel Nozzle

1" DEF Nozzle with Two Notch Hold Open Clip

Product Info

Resources

Specs / Construction

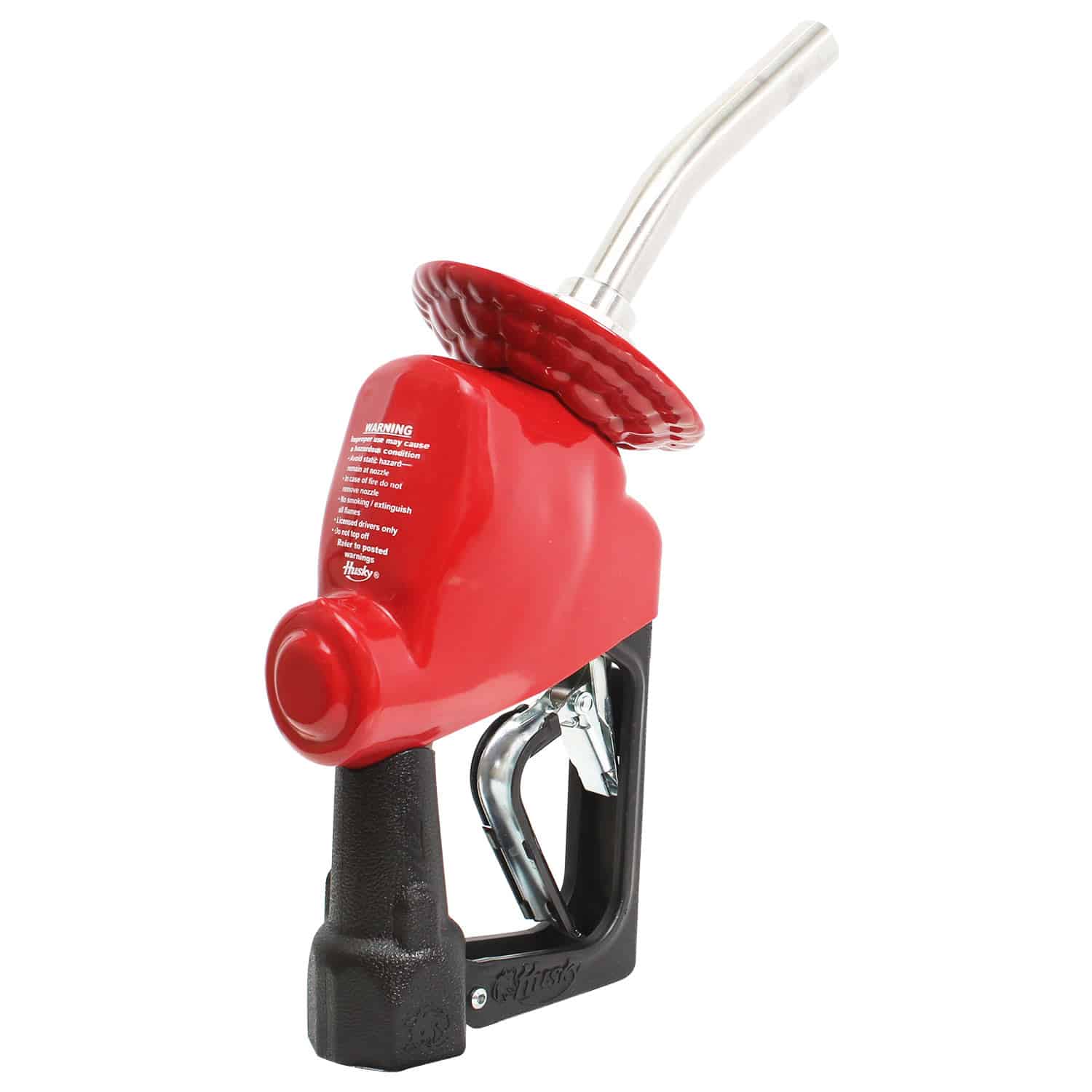

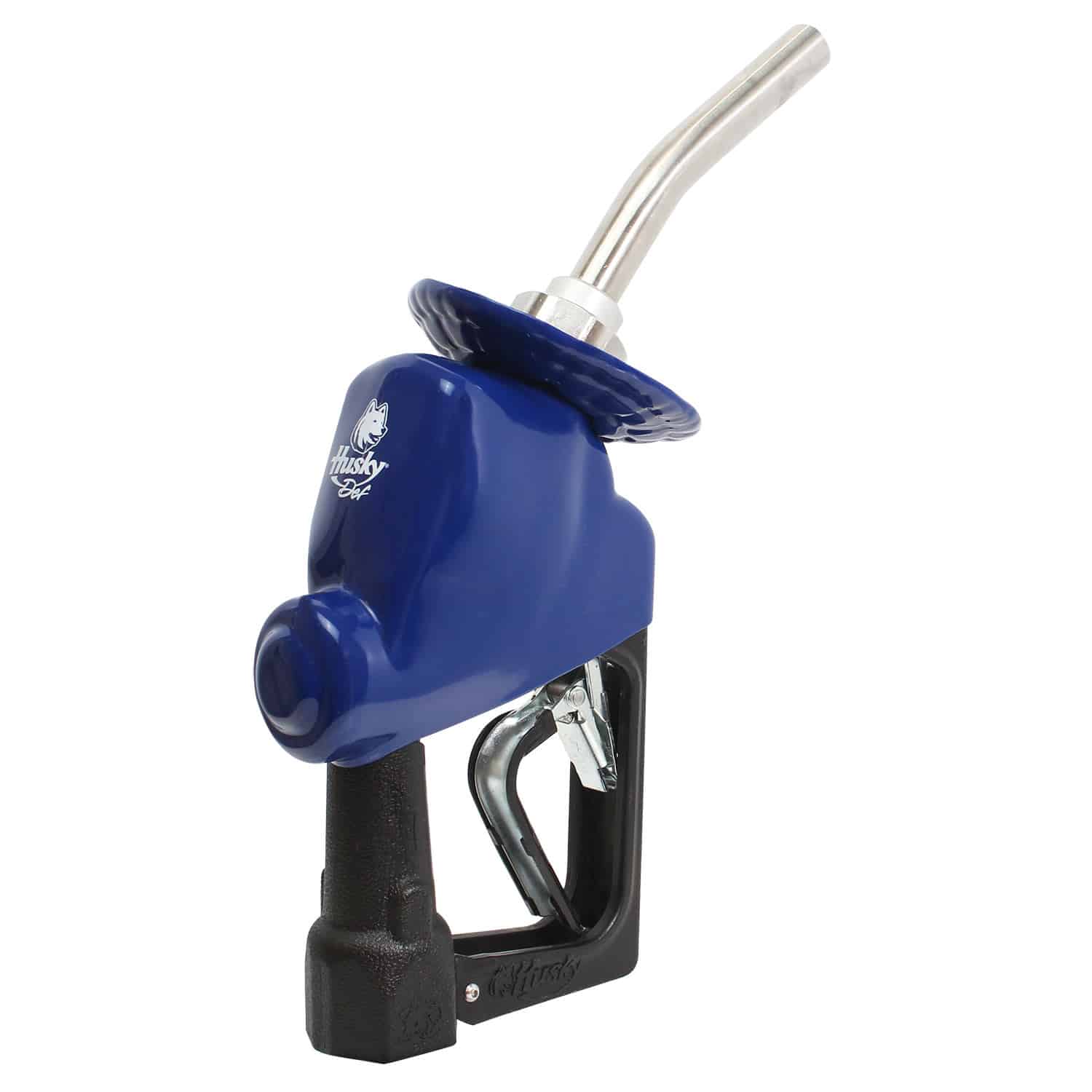

Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.

Features/Benefits

SST DEF nozzle shuts off when tank is full.
Modular design for easy cleaning.
Constructed from materials 100% compatible with Diesel Exhaust Fluid (DEF).
Available with magnetic Accufuel® safety feature.
Equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
Comes standard with mate nozzle guard and handle cover.
Stainless Steel construction.

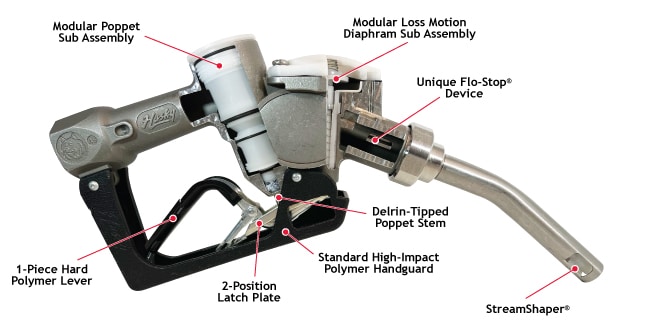

Construction

Body: Investment Cast Stainless Steel
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber-reinforced Teflon®
Lever: One-piece contoured steel with hard plastic cover
Inlet: 1” / 25.4 mm BSP

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

007269: 1” M x 1” M BSPP Inline Swivel

007275: 1” M BSPP x M34 M Inline Swivel

007282: 3/4” M BSPP x 3/4” Hose Barb Roller Bearing Inline Swivel

007467: 1” F x 1” M BSPP Inline Swivel

008510: 1” M BSPP 1” F NPT Inline Swivel

010936: 3/4” M BSPP X 3/4” Hose Barb Inline Swivel

Choose a Safe-T-Break®

Choose …

007219: 1” M x 1” M BSPP Non-Reconnectable Stainless Steel Safe-T-Break®

008216: 1” M x 1” M BSPP Reconnectable Stainless Steel Safe-T-Break®

Choose a Swivel/STB Combo

Choose …

013185: M34 M NPT Multi-Plane Swivel connected to 1” BSP M Reconnectable Safe-T-Break®

014438: 1” BSP M Multi-Plane Swivel connected to 1” BSP M Reconnectable Safe-T-Break®

Choose Accessories, Testing and Maintenance

Choose …

007150: Poppet Valve / Venturi Cartridge Assembly

007160: Plunger Cartridge Assembly

007163: Loss Motion Diaphragm Cartridge Assembly

007523: 1” BSPP Seal Kit Assembly

Choose Spouts

Choose …

007360: with Spout Ring and Flo-Stop®

007362: with Flo-Stop®

007364: with Spout Ring and Magnetic Accufuel® Safety Feature

Choose Guards

Choose …

000226: Mate Nozzle Guard

000554: Full Grip Guard

001808: Waffle Splash Guard

007376: Handle Cover (Black)

008429: DEF Handguard Repair Kit

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
