Home | Husky | Nozzles | Spirit Nozzle
#75038N: Automatic Shut-Off

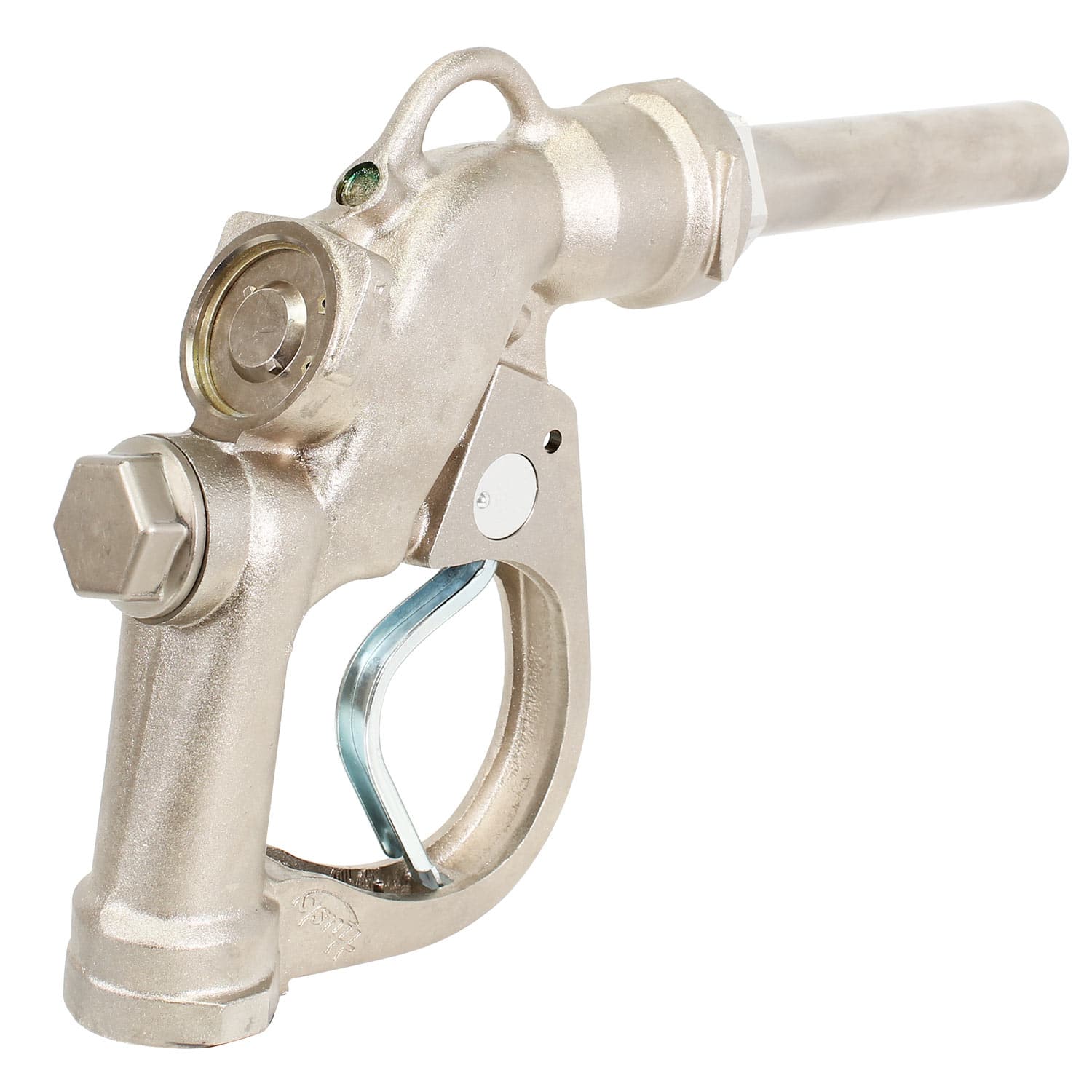

Spirit Nozzle
1-1/2"" Nickel Plated Automatic Shut-Off Nozzle with Two Position Hold Open Device
Product Info
Resources
Specs / Construction
Extreme High-Flow automatic nozzle for distilled spirits dispensing.

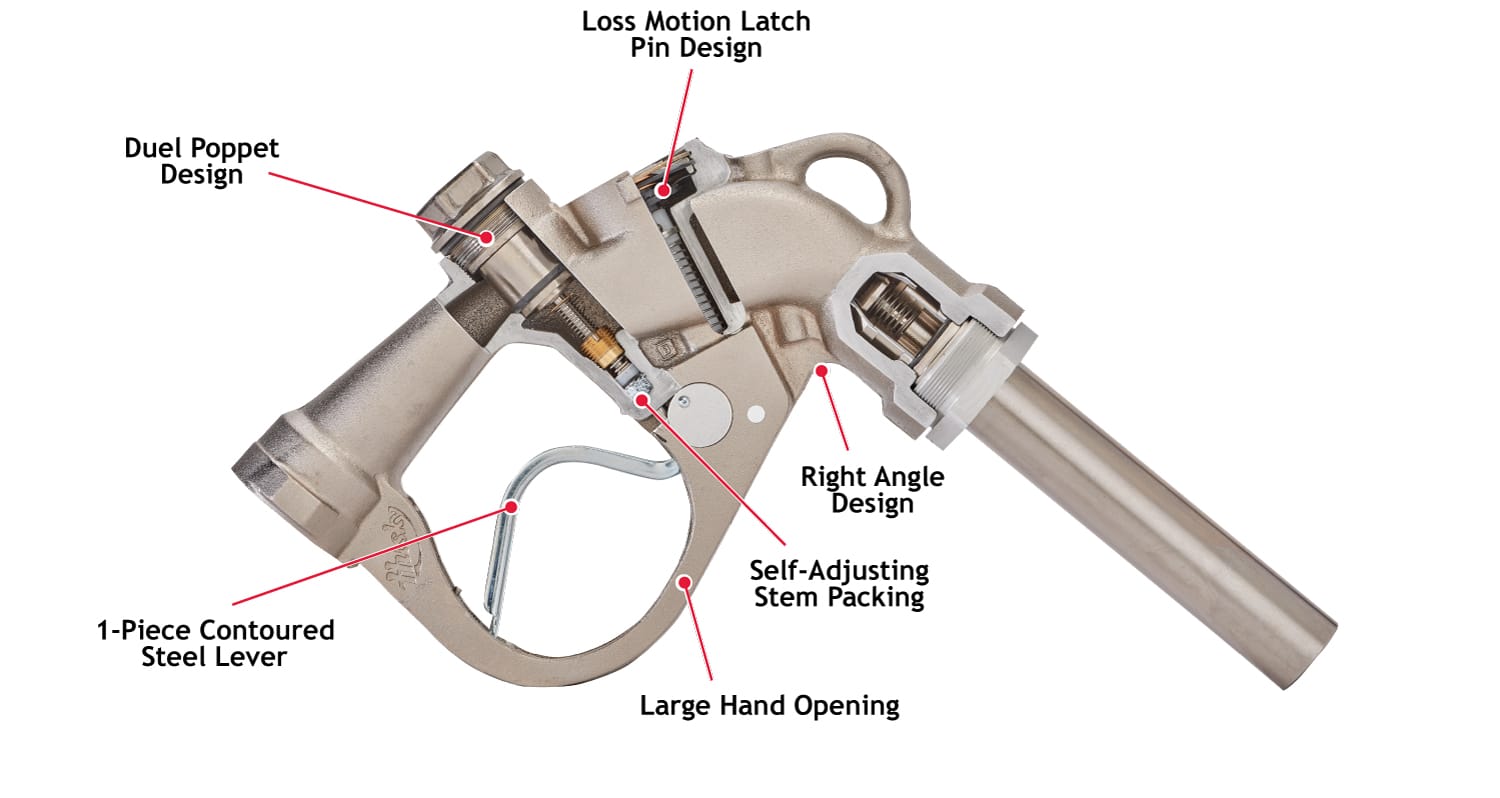

Features/Benefits
  • 1690 WN nozzle shuts off when the container is full.
  • Nozzle is equipped with two-position hold open latch.
  • Dual poppet design equalizes pressure on both sides of the main poppet valve in order to aid in lifting the lever, and opening the main poppet valve for full flow.
  • Design includes a self adjusting stem packing.
  • Right angle design allows nozzle to “fit” close to walls and corners.
  • Aluminum body, spout, and internal parts are nickel plated to prevent contamination and corrosion.
  • Seals provide maximum durability and chemical resistance to higher concentrations of ethanol.
  • Strong flow (up to 100 gpm / 378.5 Lpm).
  • Comes standard with a full grip guard.
Construction

Body: Nickel plated sand cast aluminum
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel
Inlet: 1-1/2” BSP

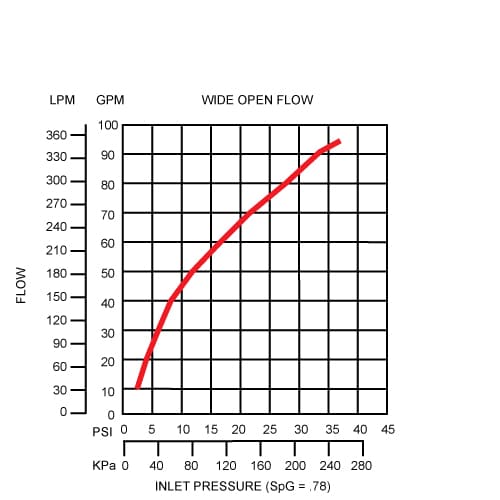

Flow Rate
1690 WN flow chart image

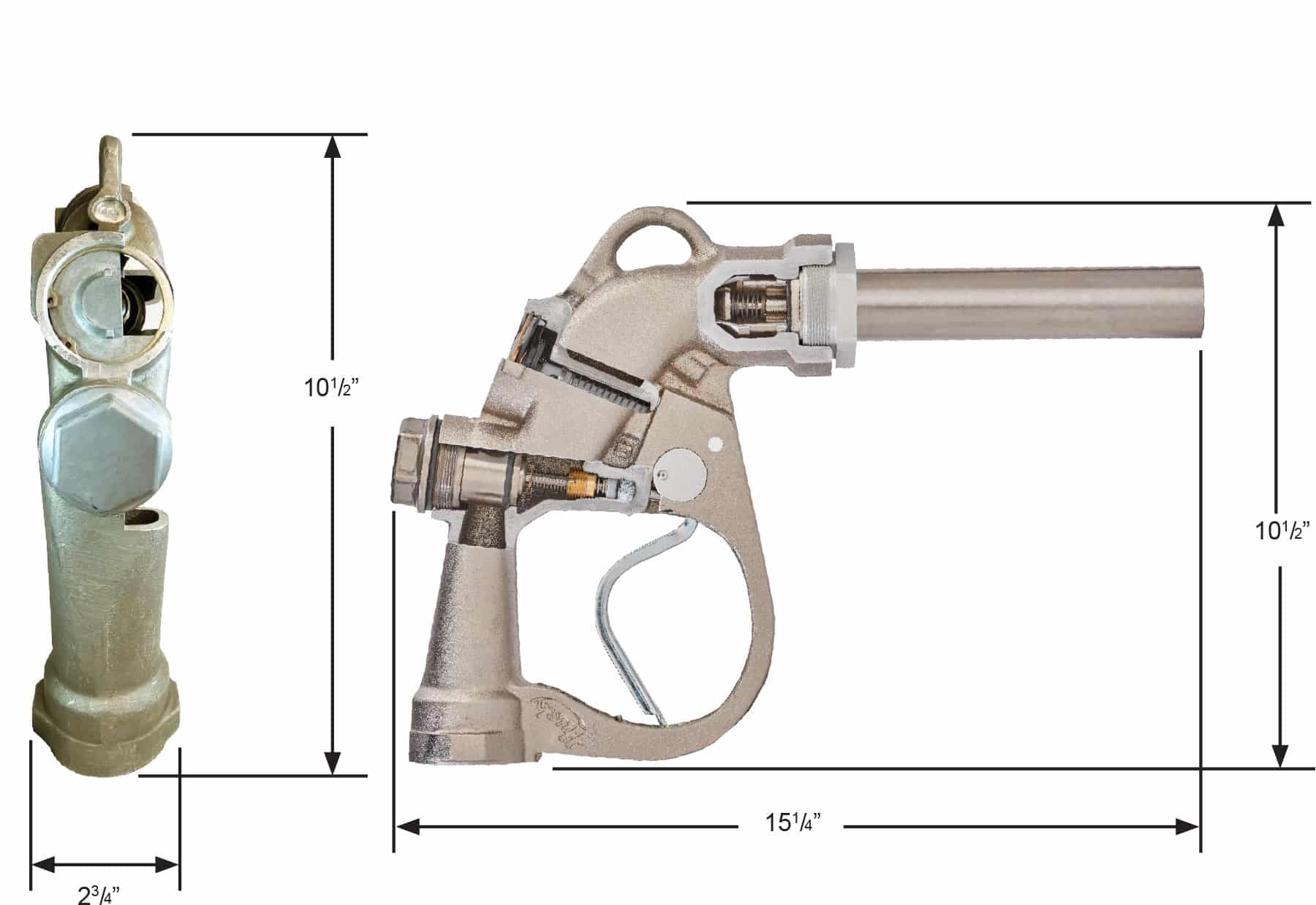

Dimensions
1690 WN dimension image
