873588N DEF POLY Nozzle

Home | Husky | Nozzles | DEF POLY Nozzle

#873588N: Diesel Exhaust Fluid, Automatic Shut-Off

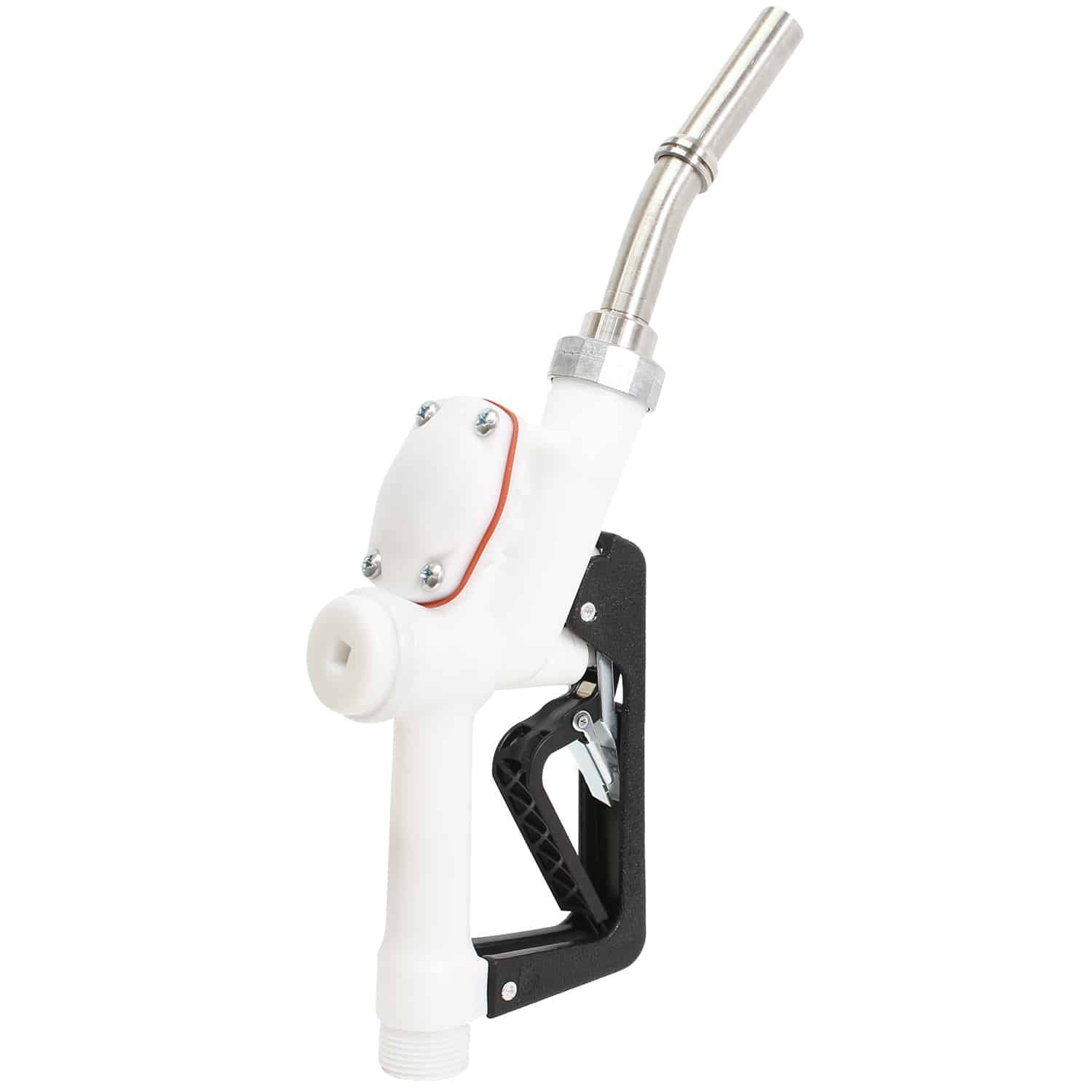

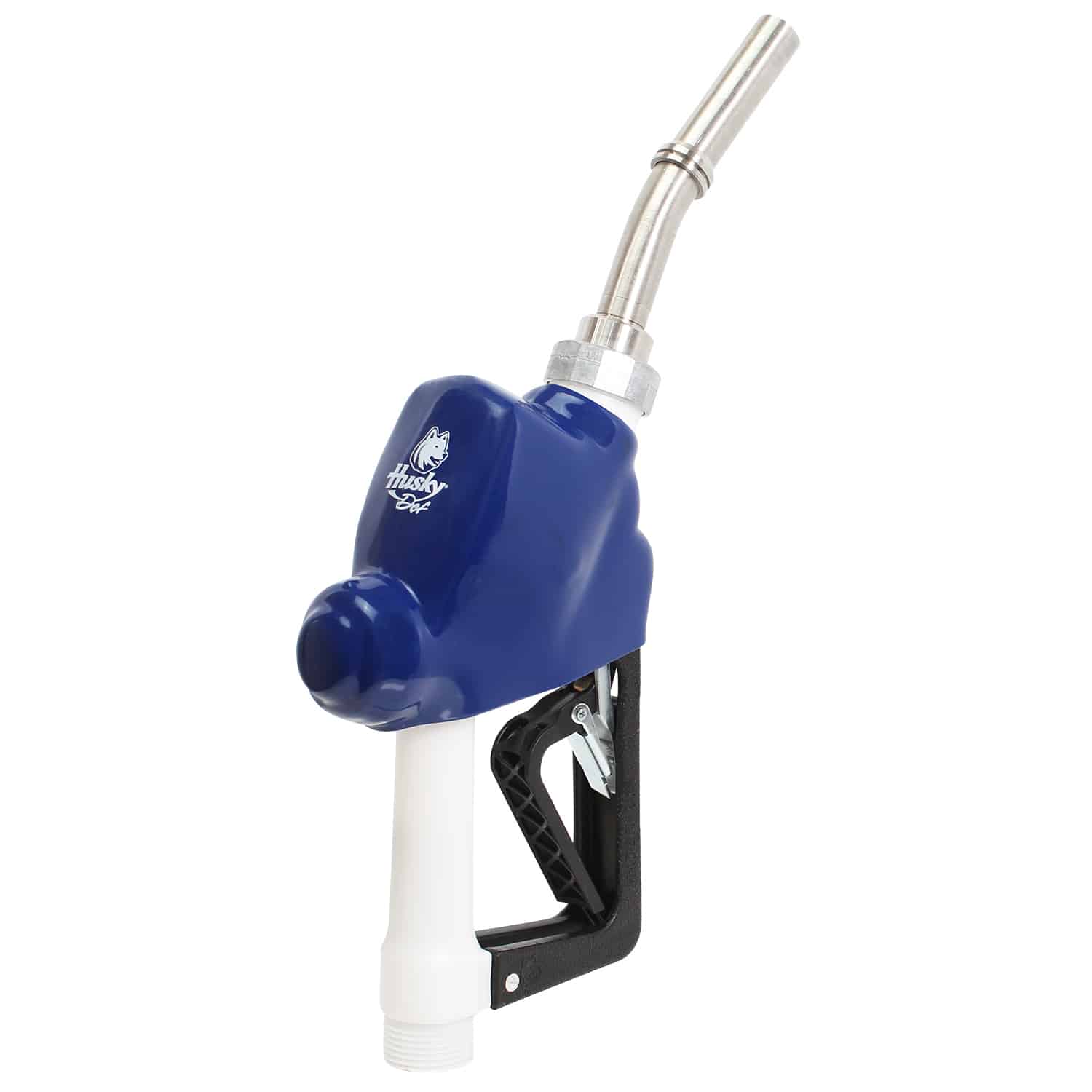

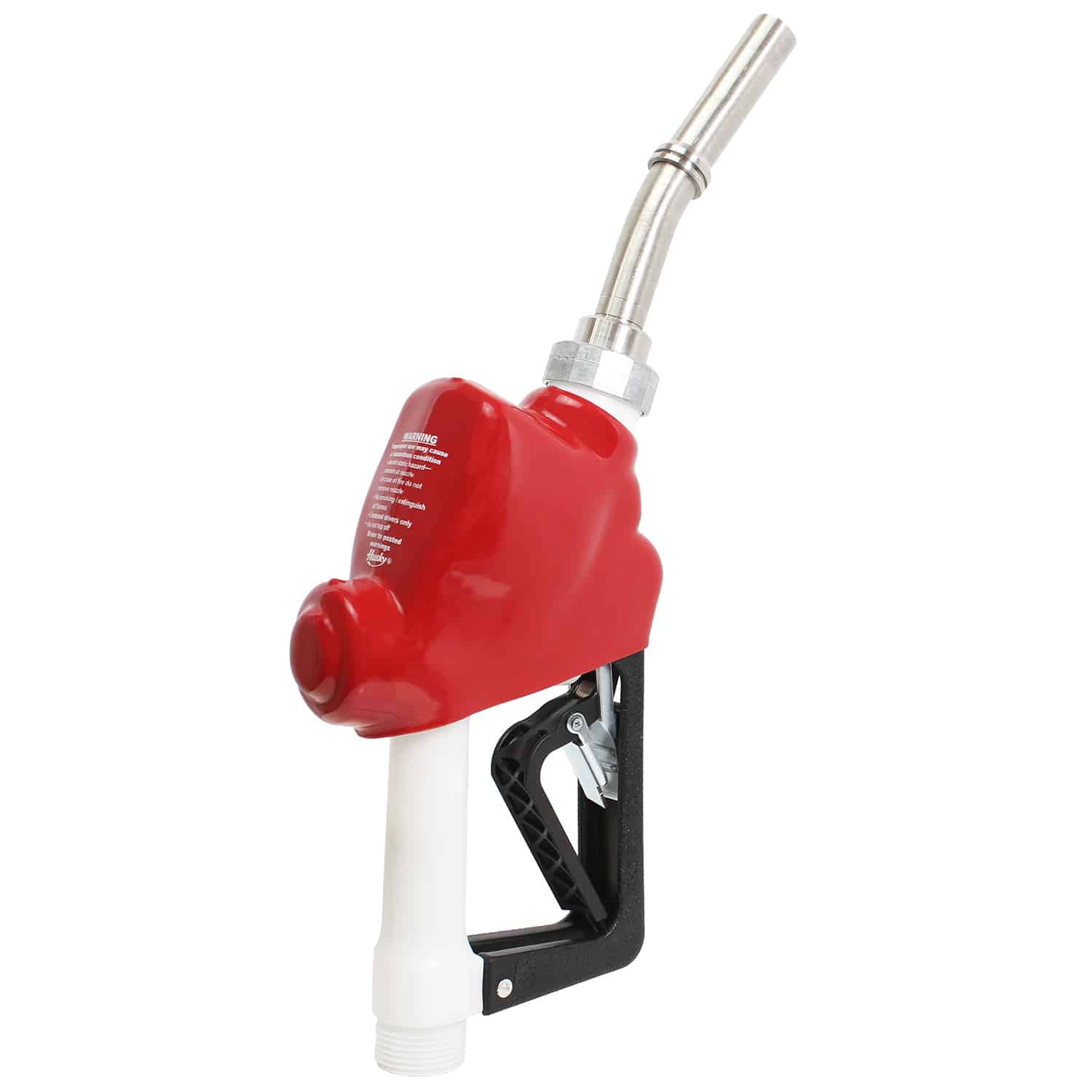

DEF POLY Nozzle

1" DEF Nozzle with Two Notch Hold Open Clip and Spout Ring

Product Info

Resources

Specs / Construction

Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.

Features/Benefits

POLY DEF nozzle shuts off when tank is full.
Lighter than stainless steel nozzles.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Less expensive than comparable nozzles.
Stainless steel spout for durability.
Replaceable stainless steel spout.
Available with magnetic Accufuel® safety feature.
ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.
Flow characteristics of nozzle reduces crystallization of DEF.
Complies with ISO Standard 22241-2:2006.

Construction

Body: Investment Cast Stainless Steel
Seals: Fluorocarbon
Spout: 19 mm diameter
Packing: Double o-ring seal protected by fiber-reinforced Teflon®
Lever: Two piece polymer EZ Lever
Inlet: 1” (25.4 mm) BSPP Male Threads

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

007269: 1” M x 1” M BSPP Inline Swivel

007275: 1” M BSPP x M34 M Inline Swivel

007282: 3/4” M BSPP x 3/4” Hose Barb Roller Bearing Inline Sw

007467: 1” F x 1” M BSPP Inline Swivel

008510: 1” M BSPP 1” F NPT Inline Swivel

010936: 3/4” M BSPP X 3/4” Hose Barb Inline Swivel

Choose a Safe-T-Break®

Choose …

007219: 1” M x 1” M BSPP Non-Reconnectable Stainless Steel Safe-T-Break®

Choose a Swivel/Safe-T-Break® Combo

Choose …

013185: M34 M NPT Multi-Plane Swivel connected to 1” BSP M Reconnectable Safe-T-Break®

014438: 1” BSP M Multi-Plane Swivel connected to 1” BSP M Reconnectable Safe-T-Break®

Choose Accessories, Testing and Maintenance

Choose …

007523: 1” BSPP Seal Kit Assembly

Choose an Adaptor

Choose …

007285: 1” M x 1” M BSPP Straight Adaptor

007356: 1” M BSPP x M M34 Straight Adaptor

008413: 1” M BSPP x 3/4” Hose Barb Adaptor with Seal Kit

Choose Spouts

Choose …

013591: with StreamShaper®

013591-1: with Spout Ring and StreamShaper®

013591-1-1: with Spout Ring and Magnetic Accufuel® Safety Feature

Choose Guards

Choose …

000226: Mate Nozzle Guard

000544: Full Grip Guard

001808: Waffle Splash Guard

007376: Handle Cover (Black)

008429: DEF Handguard Repair Kit

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
