1" Nickel Plated Automatic Shut-Off Nozzle with Three Notch Hold Open Clip, without Spout Bushing
Product Info
Resources
Specs / Construction
Automatic shut-off nozzle for distilled spirits dispensing.
Features/Benefits
VIII WN Nozzle shuts off when the container is full.

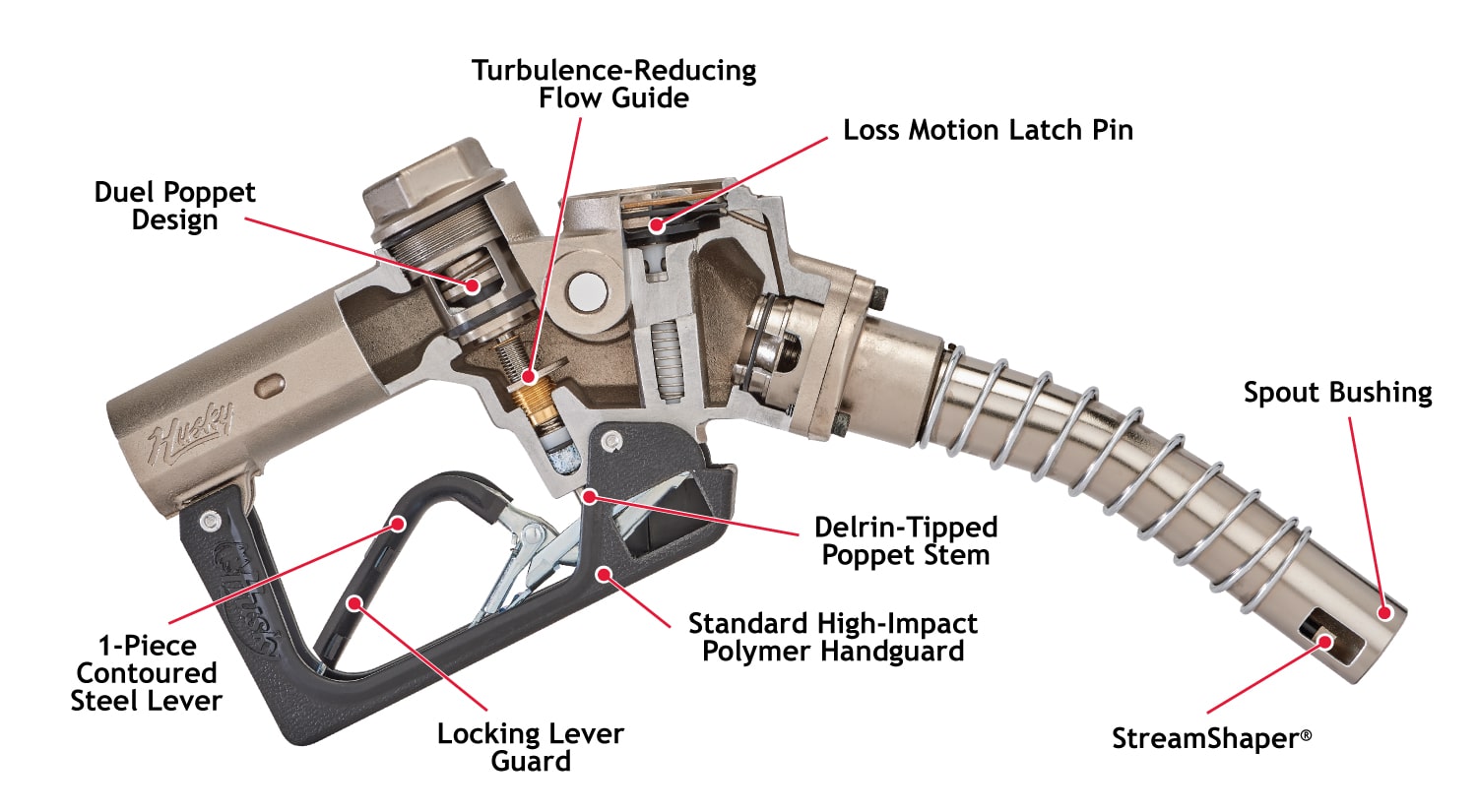

Dual poppet design equalizes pressure on both sides of the main poppet valve in order to aid in lifting the lever, and opening the main poppet valve for full flow.
StreamShaper® reduces turbulence for straighter flow and less splash back spillage.
Aluminum body, spout, and internal parts are nickel- plated to prevent contamination and corrosion.
Seals provide maximum durability and chemical resistance to high concentrations of ethanol.
Strong flow (up to 75 gpm / 283.9 Lpm).

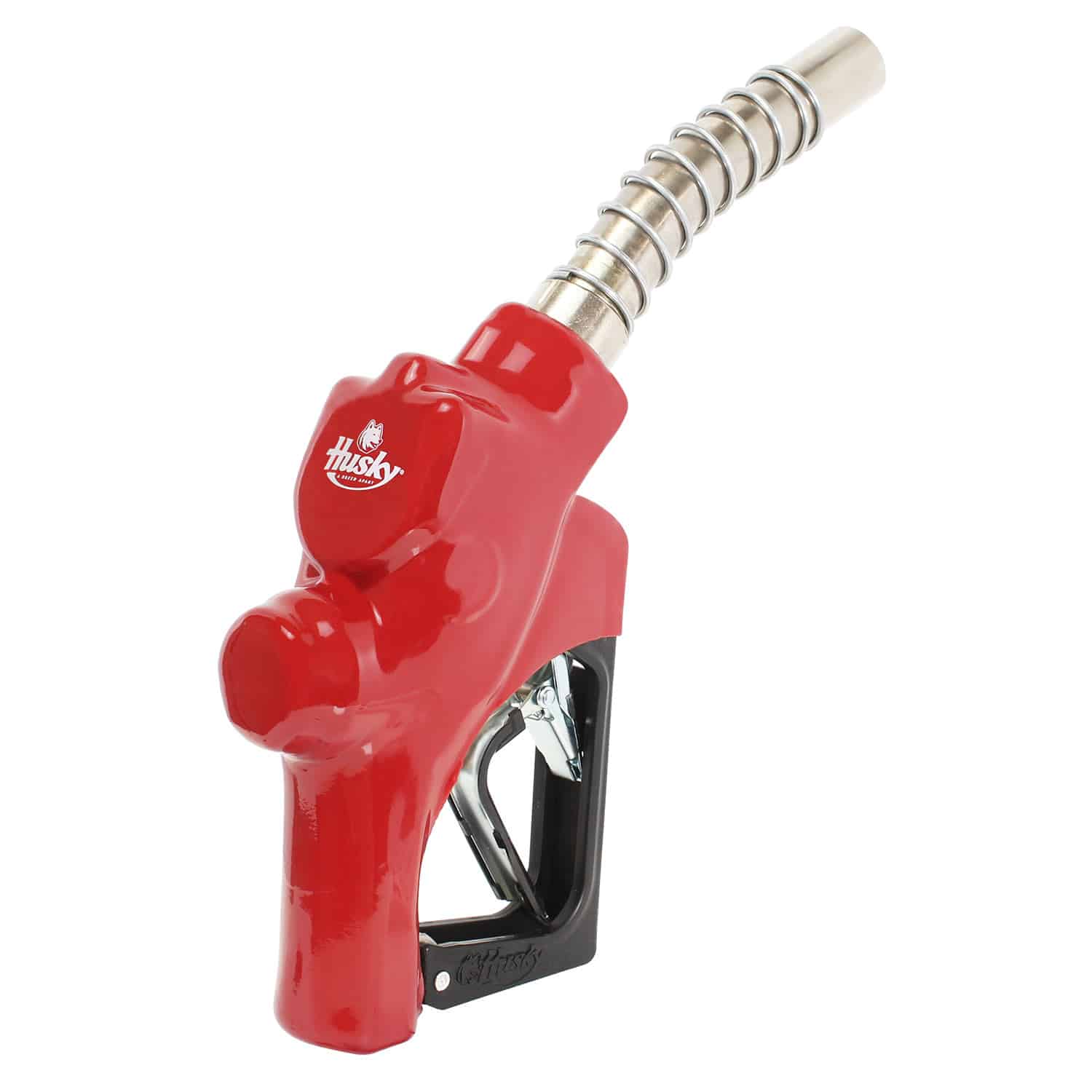

Comes standard with a full grip guard Handle Cover.
Construction
Body: Nickel-plated die cast aluminum with high-impact polymer handguard Seals: Fluorocarbon Packing: Double o-ring seal protected by fiber reinforced Teflon® Lever: One piece contoured steel with hard polymer lever cover Inlet: 1” / 25.4 mm NPT
Flow Rate
Dimensions
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose Guards
Choose …
000554: Full Grip Guard
005494: Lever Guard
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
