Home | Husky | Nozzles | DEF X Nozzle
#12150187N: Diesel Exhaust Fluid, Automatic Shut-Off

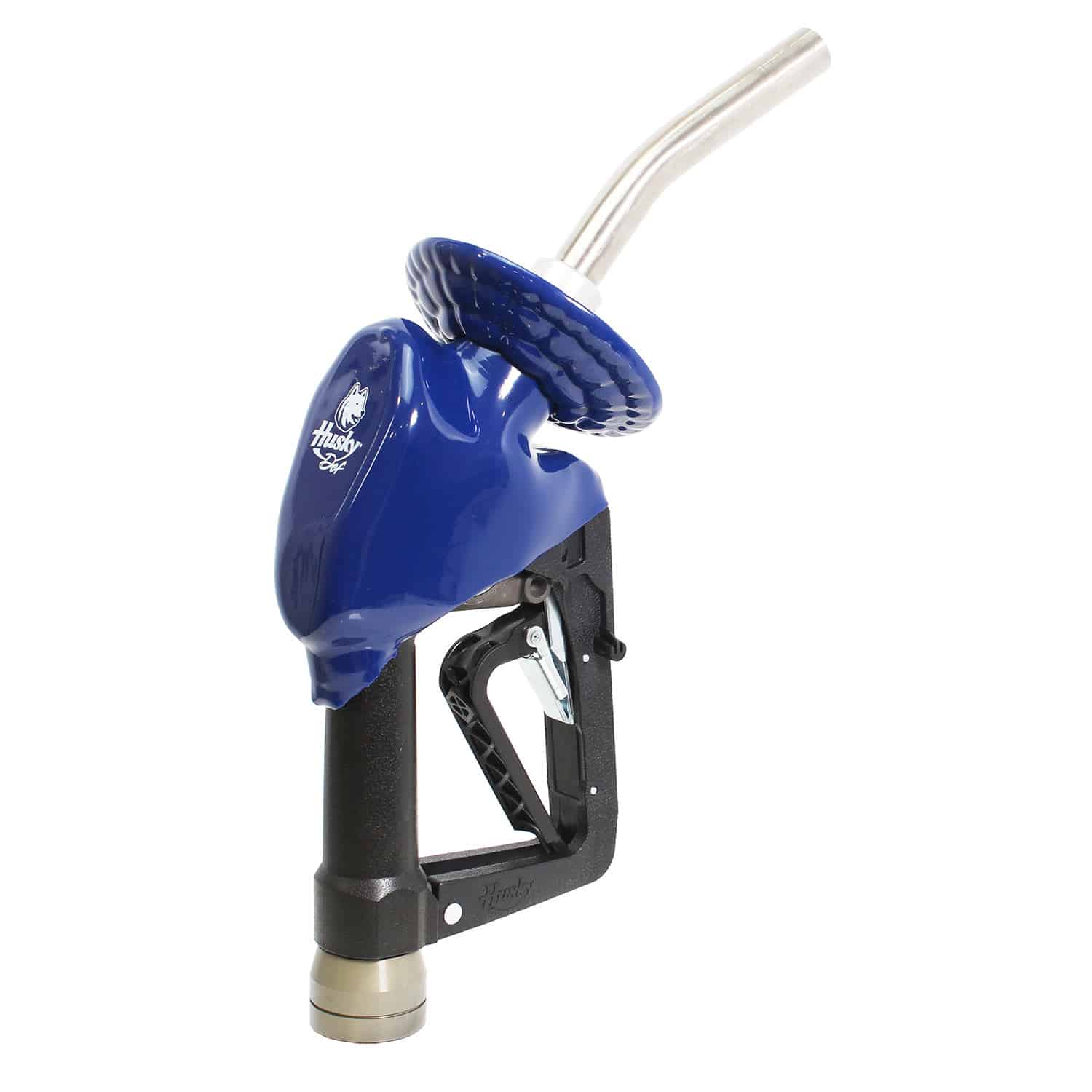

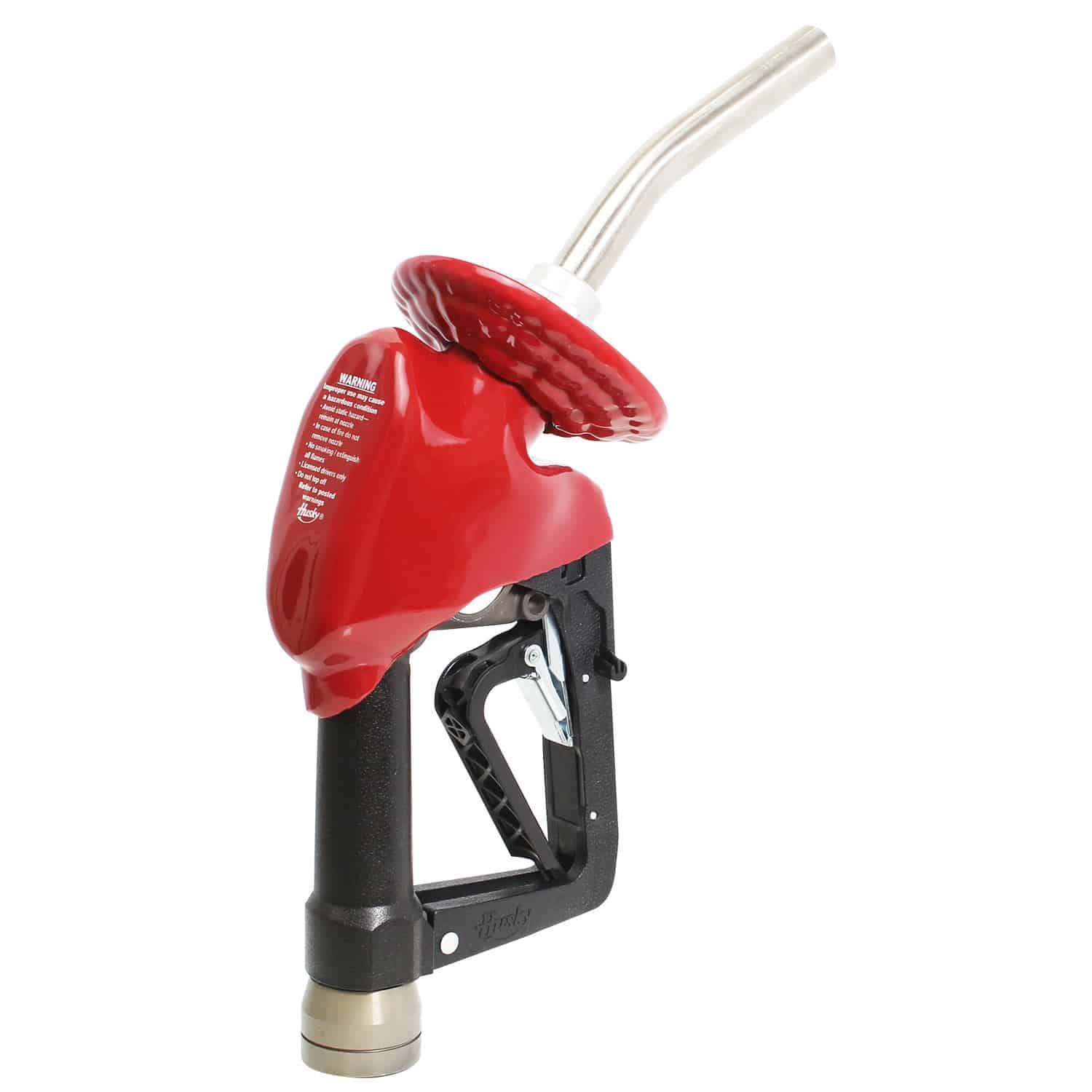

DEF X Nozzle
3/4" DEF Nozzle with Three Notch Hold Open Clip and Gilbarco Magnetic Hand Guard
Product Info
Resources
Specs / Construction
Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.
Features/Benefits
  • Lighter than stainless steel nozzles.
  • StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
  • Less expensive than comparable nozzles.
  • Nozzle shuts off when the DEF tank is full.
  • Stainless steel spout for durability.
  • Flow characteristics of nozzle reduces crystallization of DEF.
  • Complies with ISO Standard 22241-2:2006.

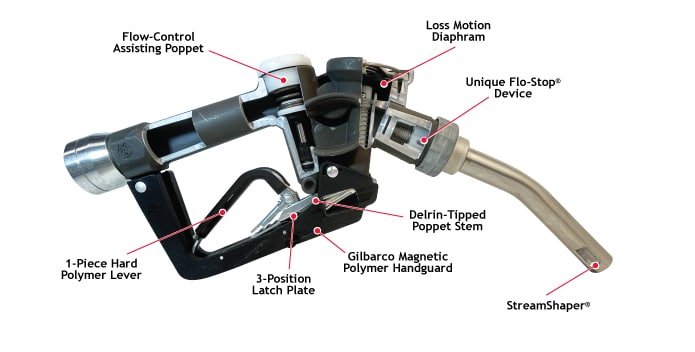

Construction

Body: Anodized Aluminum
Seals: luorocarbon o-rings and diaphragm
Spout: 19 mm diameter
Lever: One-piece contoured steel with hard plastic cover
Inlet: M34 1.5 Face Seal threads

Flow Rate
Dimensions
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose Accessories, Testing and Maintenance
Choose …
013285: with StreamShaper®
013286: with Spout Ring and Magnetic Accufuel® Safety Feature
Choose Guards
Choose …
007361: Handle Cover (Black)
004145: Full Nozzle Guard
003795: Mate Nozzle Guard
014114: International Mate Nozzle Guard
001808: Waffle Splash Guard
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
