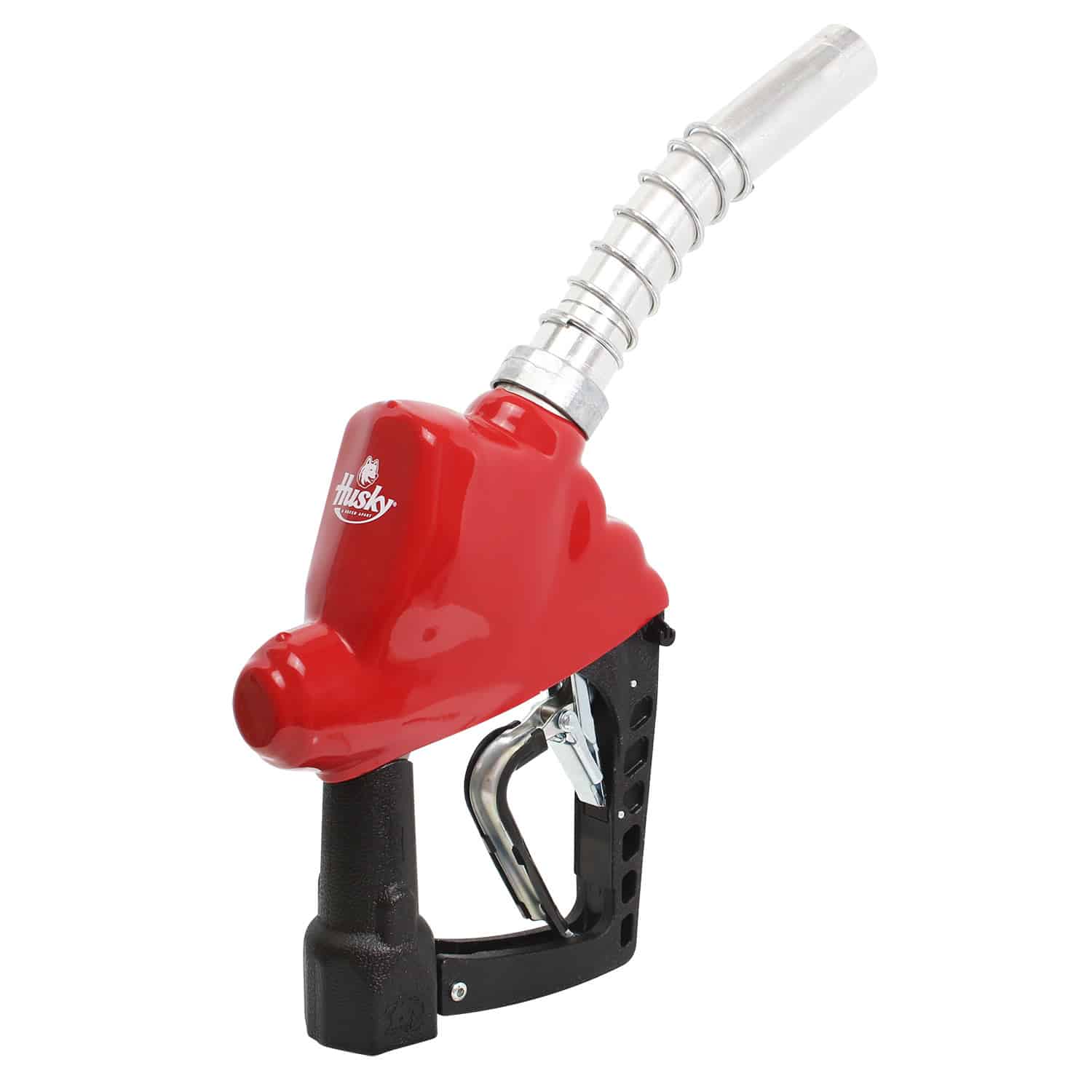

1" Heavy Duty Diesel Nozzle with Two Notch Hold Open Clip, Tilt Poppet, Wayne Magnetic Handguard, Mate Guard and Polymer Handle Cover - Atex
Automatic shut-off nozzle with polymer handguard for dispensing up to 25 gpm / 94.6 Lpm.

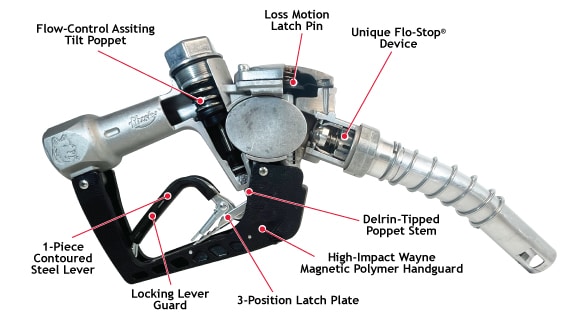

Features/Benefits
- 1HS nozzle shuts off when the gas tank is full.
- Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
- Optional cold weather seals are rated to -40°F/C.
- Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
- Comes standard with full grip guard and waffle splash guard.
- ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.
Construction
Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: Two-piece polymer EZ Lever
Inlet: 1” / 25.4 mm BSP
