E498103 XS® Nozzle

Home | Husky | Nozzles | XS® Nozzle

#E498103: Conventional, Pressure Activated

XS® Nozzle

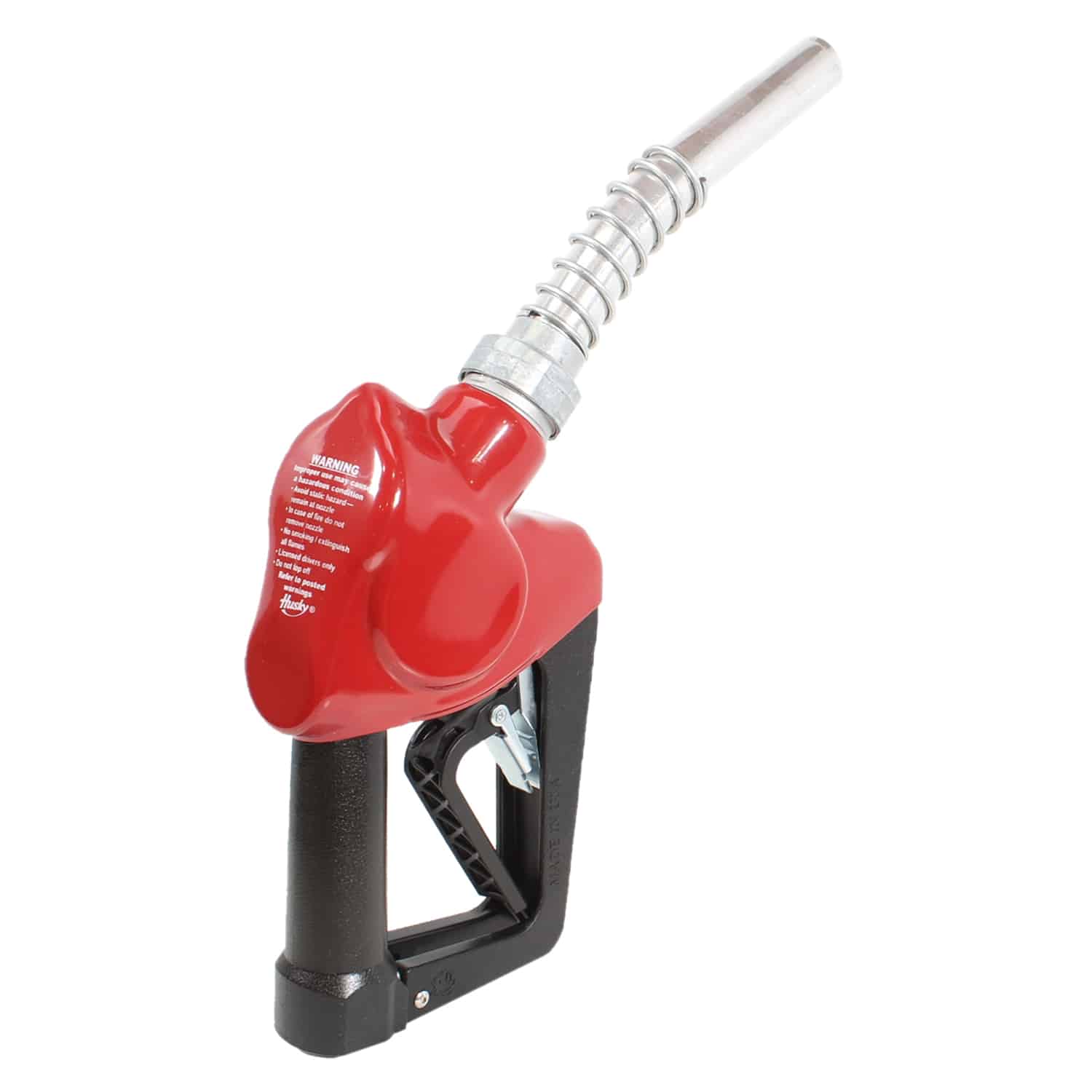

3/4" Light Duty Diesel Nozzle with Two Notch Hold Open Clip, Mate Guard and Polymer Handle Cover

Product Info

Resources

Specs / Construction

Pressure activated, automatic shut-off nozzle for full-service and self-service stations.

Features/Benefits

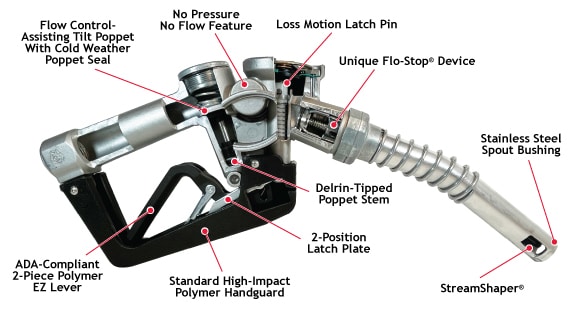

Husky XS® nozzle shuts off when: the pump shuts off, the gas tank is full, the lever is opened before the pump is turned on, or the leak detector has not completed its test cycle.
Stainless steel reinforced spout bushing keeps spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Comes standard with smooth full grip guard.
Tilt poppet design provides precise “to-the-penny” dispensing.
Optional cold weather seals are rated to -40°F/C.
Optional sightglass provides a clear window for the customer to view the fuel as it passes through the main poppet valve.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Optional Flo-Equalizer® prohibits the nozzle from exceeding 10 gpm 37.9 Lpm).
Optional Drip Less spout mitigates the amount of fuel released from the spout tip after refueling is completed.
ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.

Construction

Body: One-piece die cast aluminum
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: Two-piece polymer EZ Lever
Inlet: 3/4" / 19 mm NPT

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

000350: ¾” M x ¾” F NPT Multi-Plane Swivel

000355: ¾” M x ¾” F NPT Multi-Plane Swivel Anodized Black

002272: ¾” M x ¾” F NPT 90° Pump Swivel

003895: ¾” M x ¾” F NPT Inline Swivel

Choose a Safe-T-Break®

Choose …

002273: ¾” F x ¾” F NPT Non-Reconnectable Safe-T-Break®

003360: ¾” F x ¾” F NPT Reconnectable Safe-T-Break®

005230: ¾” F x ¾” F NPT Low Pull Reconnectable Safe-T-Break®

006130: ¾” F x ¾” F NPT Non-Reconnectable PCC Safe-T-Break®

008330: ¾” F x ¾” F NPT Reconnectable MAGBREAK®

010328: ¾” F x ¾” F NPT Reconnectable High Pull MAGBREAK®

Choose Swivel/STB Combo

Choose …

006310: ¾” M NPT Multi-Plane Swivel connected to ¾” F NPT Reconnectable Safe-T-Break®

Choose Spout

Choose …

001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®

001473: Unleaded Spout without Flo-Stop®

010353: Light Duty Diesel Long Spout without Flo-Stop®

010434: Unleaded Long Spout without Flo-Stop®

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

000397: Unleaded Spout Gauge

003593: Hold Open Clip Kit

004490: Conventional Flo-Equalizer® - 10 gpm / 37.9 Lpm

007089: Nozzle Service Kit

007490: Internal Flo-Equalizer® - 10 gpm / 37.9 Lpm

Choose Guards

Choose …

001807: Waffle Splash Guard with Small Hole

001808: Waffle Splash Guard

003795: Mate Guard

006628: POPD® S Clear Cover

007999: POPD® H Clear Cover

008165: POPD® S Mate Guard

008166: POPD® H Mate Guard

008175: POPD® EZS Nozzle Guard

008176: POPD® EZH Nozzle Guard

014530: International Mate Guard

015247: International POPD® H Mate Guard

015253: International POPD® H Mate Package

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
