#EagleFlex® Hardwall Hoses: Fueling Hoses

Premium Hardwall Gasoline Pump Hose

Product Info

Resources

Specs / Construction

Features/Benefits

Recommended anywhere a hardwall hose is required.
Recommended for all gasoline and gasoline/Ethanol blends at Ethanol levels designated as “gasohol” (E15 maximum or less), diesel fuel and diesel fuel/biodiesel blends with nominal biodiesel concentrations up to 20% (B0-B20), kerosene and fuel oil (heating oil), leaded and unleaded gasoline.
Designed for durability, flexibility, and easy handling.
Highly resistant to cuts, abrasions, sun and weather.
Resists kinking and eliminates meter creep.
Improves ozone and abrasion resistance while providing increased life.
Improves draping and handling characteristics.
Will not mark or scratch vehicle finishes.
Hose material is private branded and UL Listed to UL 330 and CAN/ULC-S612-99.
All curb pump hose assemblies are 100% pressure tested, inspected for electrical continuity and sample pull tested.

Couplings

Permanent internally expanded fixed chrome plated brass or external crimp zinc (L type).

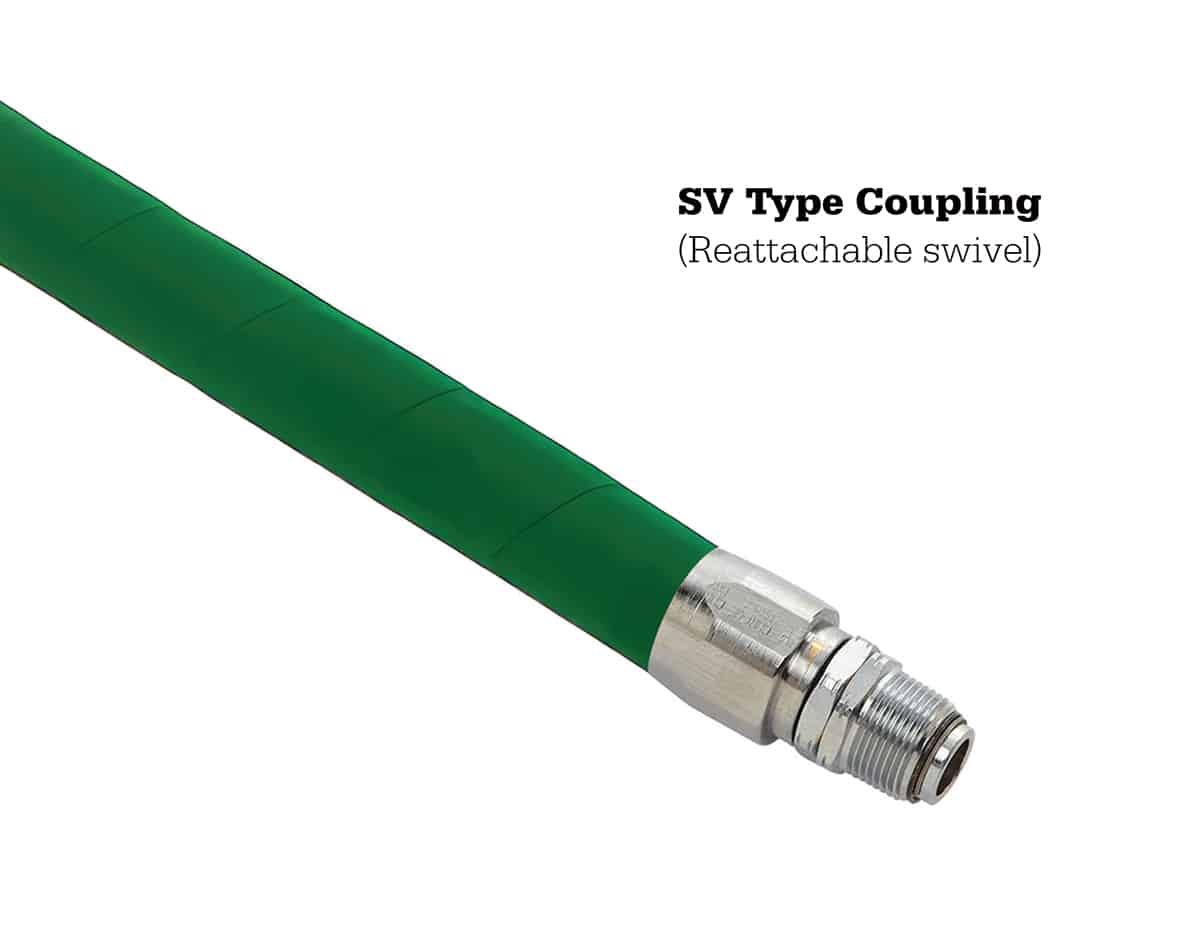

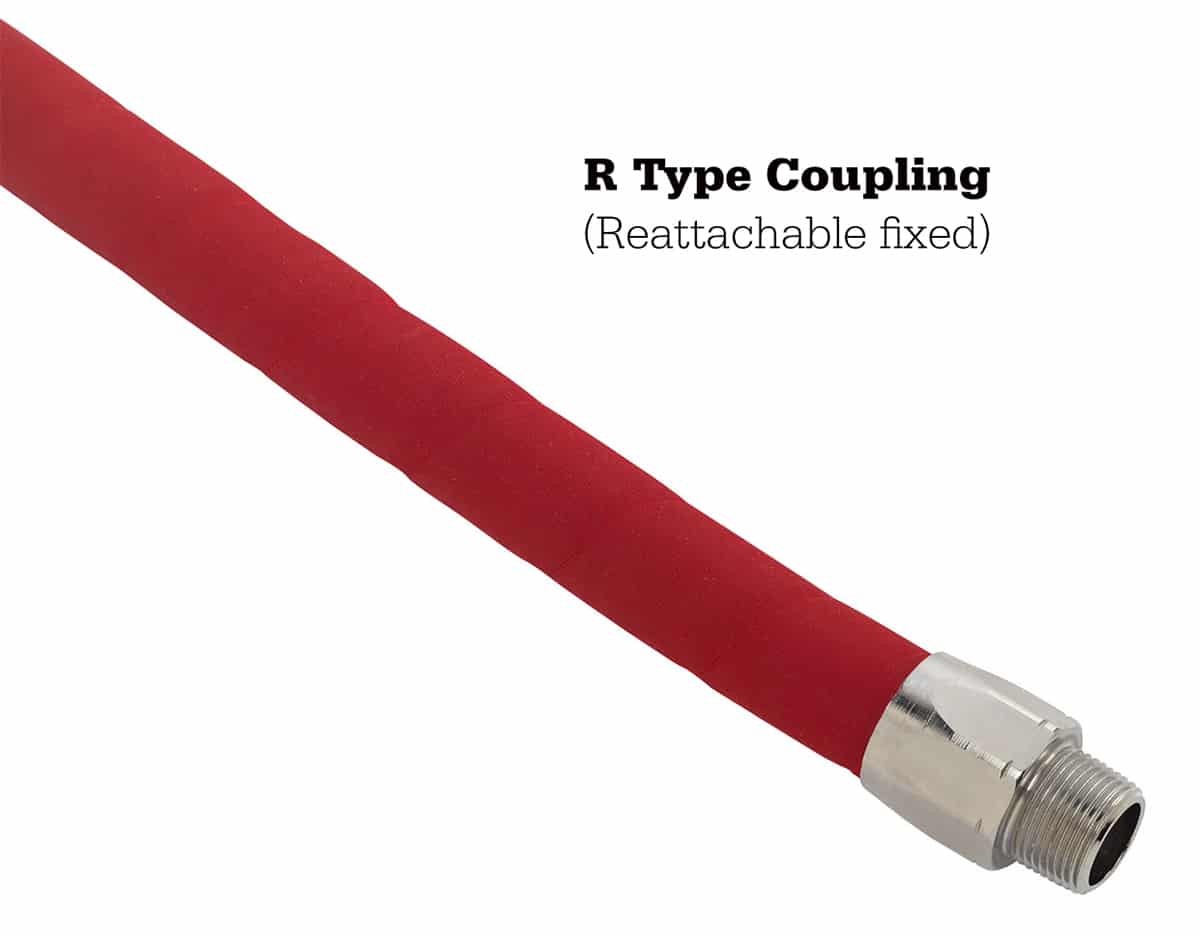

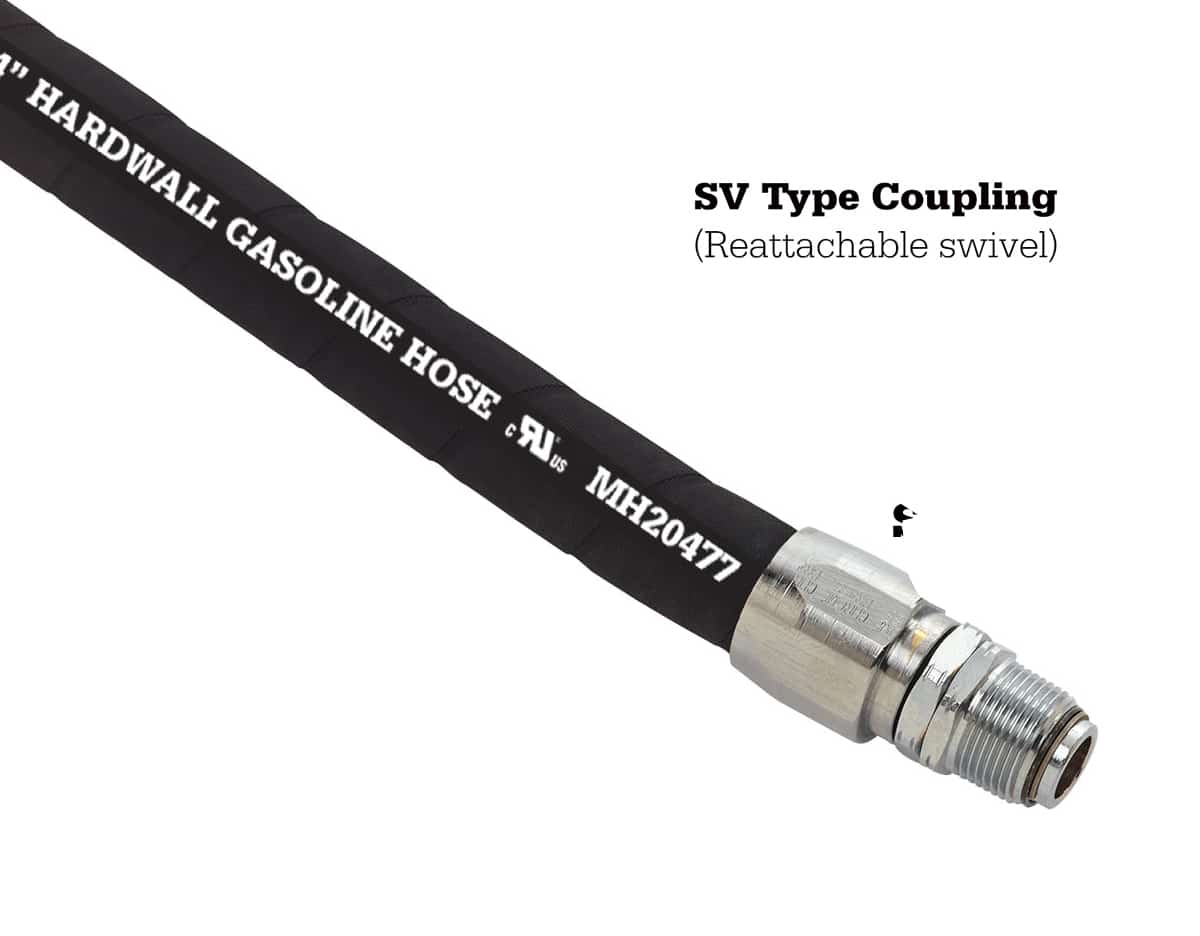

Reattachable fixed (R type) and reattachable swivel (SV type) 3/4” and 1” male NPT. UL does not recognize field installation of reattachable fittings.

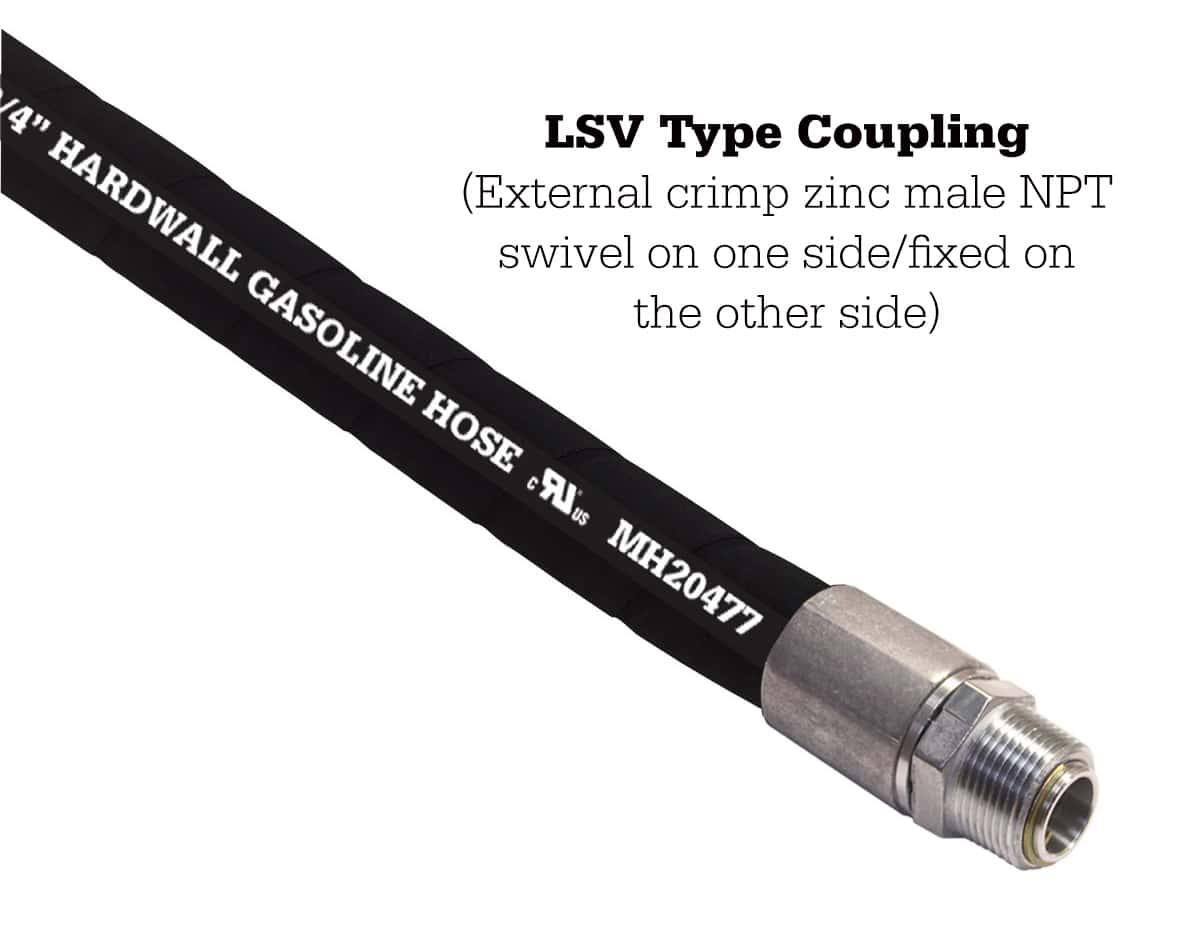

External crimp zinc swivel 3/4” and 1” male NPT one side, fixed other side (L SV type) or swivel 3/4” male BSPP, fixed NPT other side (L SVB type).
External crimp zinc swivels on both sides ( L SV SV, L SV SVB, or L SVB SVB type).
External crimp aluminum 1” male BSPP both ends (MB type).

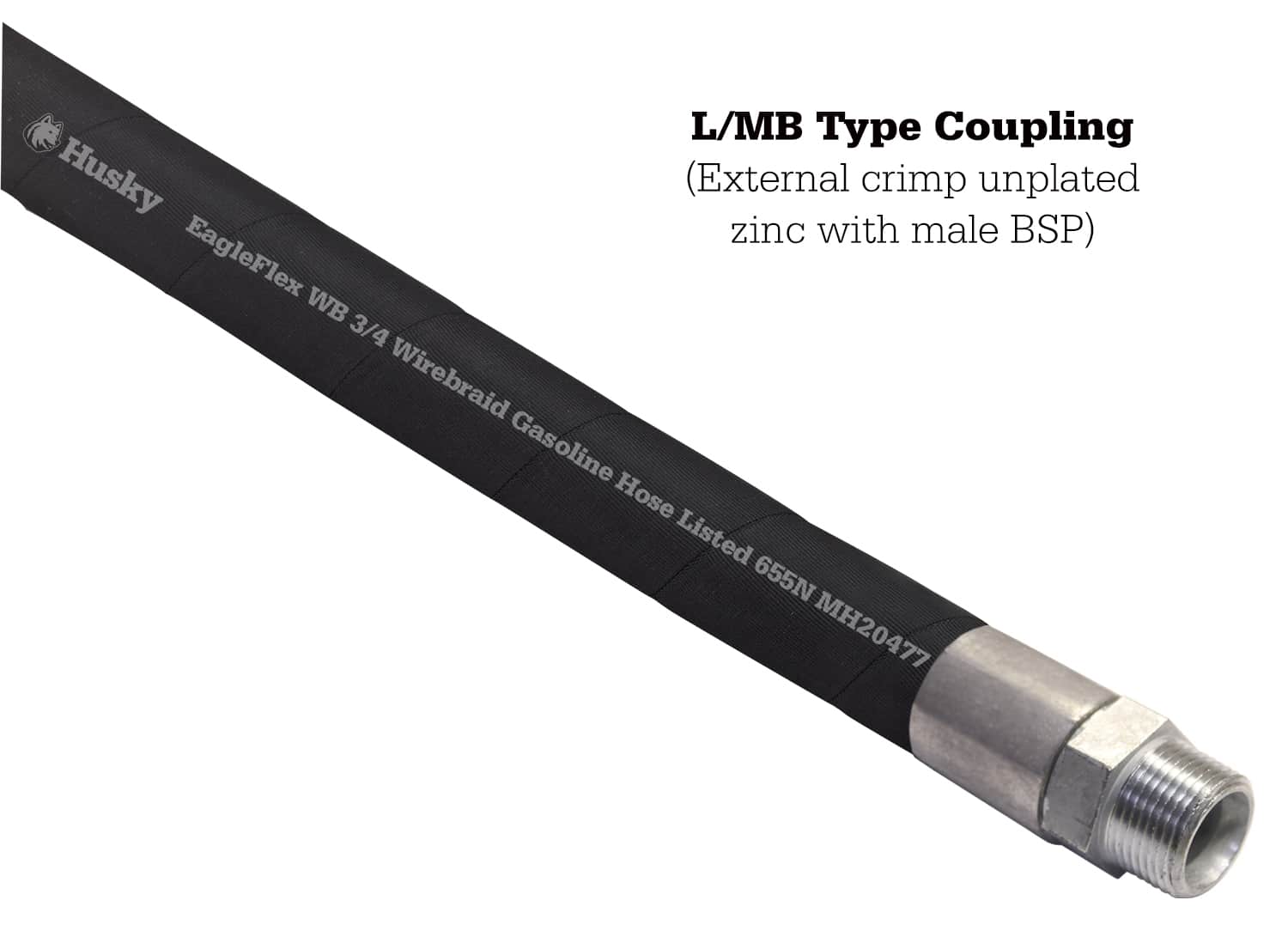

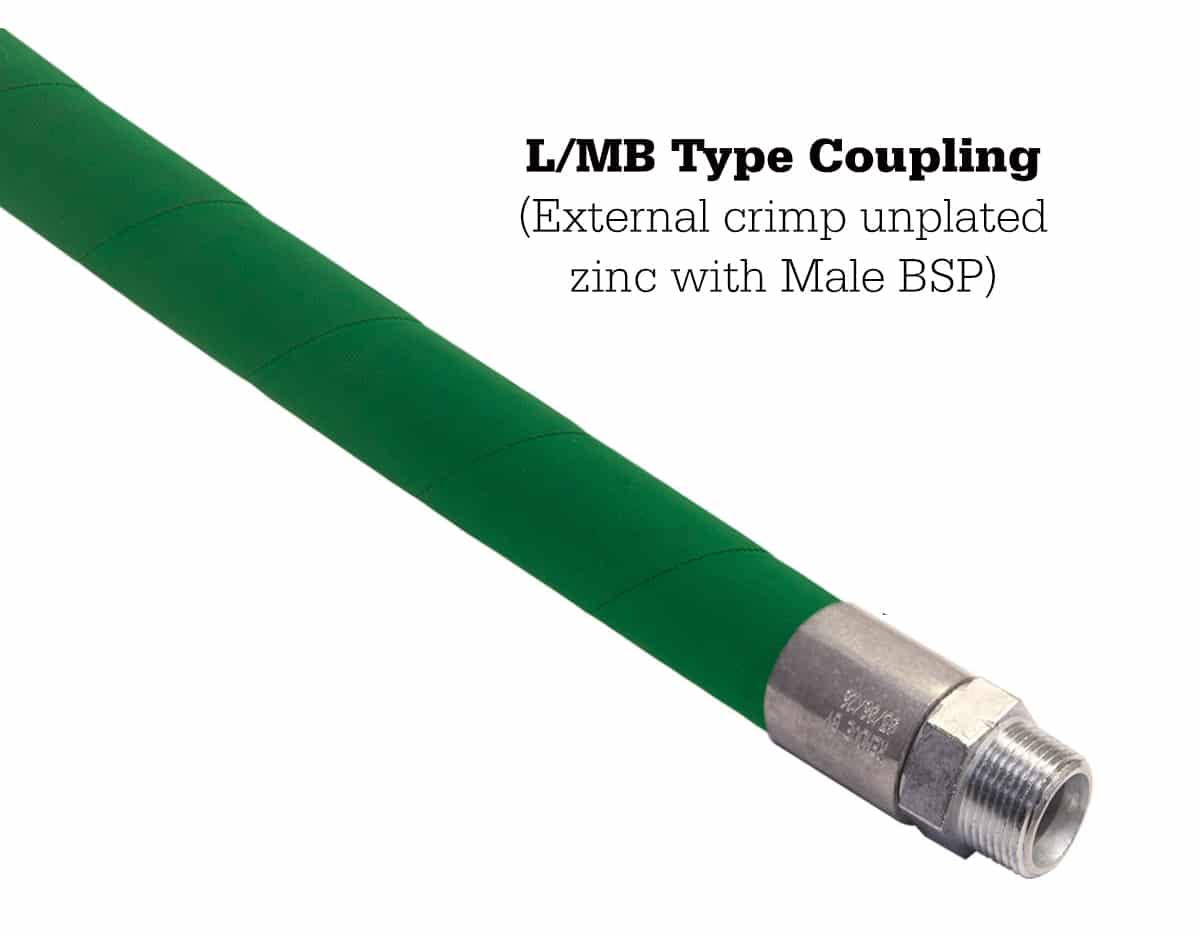

External crimp aluminum 1” male BSPP one end, external crimp unplated zinc 1” male NPT other end (L MB type).

Construction

Tube: Black nitrile
Cover: Black CPE (chlorinated polyethylene), wrap impression
Reinforcement: Multiple textile braids with dual static wire helix
Temperature Range: -40°F to +180°F (-40°C to +82°C)
Body: 3/4” Red or Green Hardwall Available

Couplings

Permanent internally expanded fixed chrome plated brass or external crimp zinc (L type).
Reattachable fixed and Reattachable swivel 3/4” and 1” male NPT. UL does not recognize field installation of reattachable fittings.

Order Info

Available Hardwall Hoses

Hardwall Hoses

5/8” HOSES

Choose …

CP10HW09: 5/8” Hardwall 9’ Assembly Hose

3/4” HOSES

Choose …

CP12HWG08: 3/4” Green Hardwall 8’ Assembly Hose

CP12HWG09: 3/4” Green Hardwall 9’ Assembly Hose

CP12HWG10: 3/4” Green Hardwall 10’ Assembly Hose

CP12HWG12: 3/4” Green Hardwall 12’ Assembly Hose Swivel

CP12HW09: 3/4” Hardwall 9’ Assembly Hose

CP12HW09.5: 3/4” Hardwall 9.5’ Assembly Hose

CP12HW09SV: 3/4” Hardwall 9’ Assembly Hose Swivel

CP12HW12: 3/4” Hardwall 12’ Assembly Hose

CP12HW14: 3/4” Hardwall 14’ Assembly Hose

CP12HW17: 3/4” Hardwall 17’ Assembly Hose

CP12HW01L: 3/4” Hardwall 14’ Assembly Hose

CP12HWR01L: 3/4” Hardwall 14’ Assembly Hose

CP12HW01LSV: 3/4” Hardwall 14’ Assembly Hose

1” HOSES

Choose …

CP16HW01: 1” Hardwall 1’ Assembly Hose

CP16HW06: 1” Hardwall 6’ Assembly Hose

CP16HW10: 1” Hardwall 10’ Assembly Hose

CP16HW10X: 1” Hardwall 10’ Assembly Hose BULK

CP16HW15: 1” Hardwall 15’ Assembly Hose

CP16HW15X: 1” Hardwall 15’ Assembly Hose BULK

CP16HW17: 1” Hardwall 17’ Assembly Hose

CP16HW20X: 1” Hardwall 20’ Assembly Hose BULK
