Home | Husky | Nozzles | Distilled Spirits Dispensing
#E840004N: Automatic Shut-Off
Distilled Spirits Dispensing

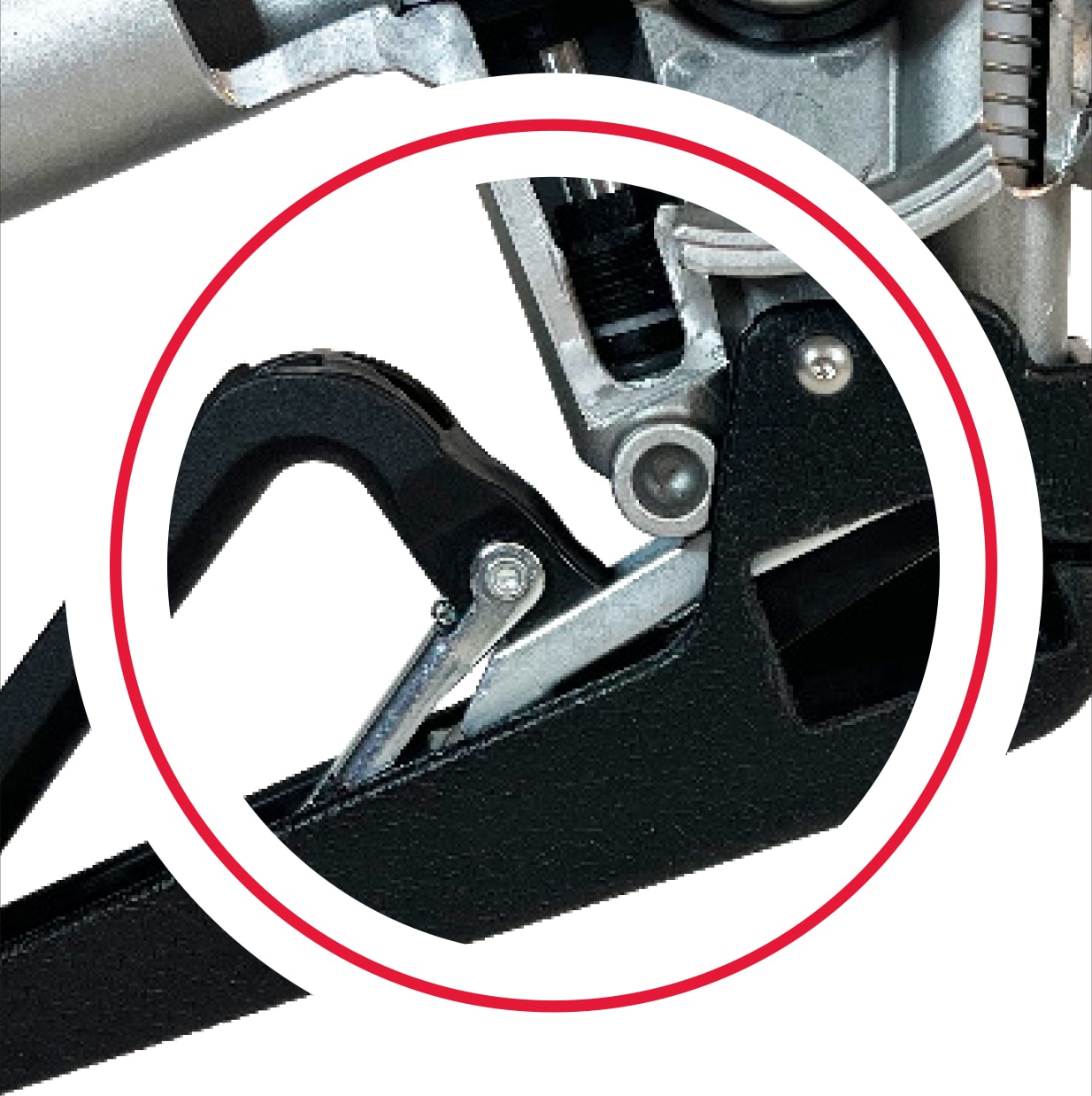

3/4" Nickel Plated Automatic Shut-Off Nozzle with Three Notch Hold Open Clip, Mate Guard and Polymer Handle Cover
Product Info
Resources
Specs / Construction
Automatic shut-off nozzle for distilled spirits dispensing.
Features/Benefits

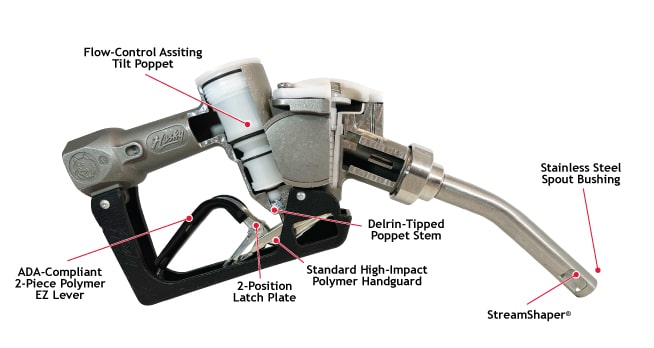

  • X WN Nozzle shuts off when the container is full.
  • Stainless steel reinforced spout bushing keeps the spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
  • StreamShaper® reduces turbulence for straighter flow and less splash back spillage.
  • Aluminum body, spout, and internal parts are nickel- plated to prevent contamination and corrosion.
  • Seals provide maximum durability and chemical resistance to high concentrations of ethanol.
  • Comes standard with Mate Nozzle Guard and Black Handle Cover.
Construction

Body: Nickel-plated die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece polymer
Inlet: ¾” / 19.1 mm NPT

Flow Rate

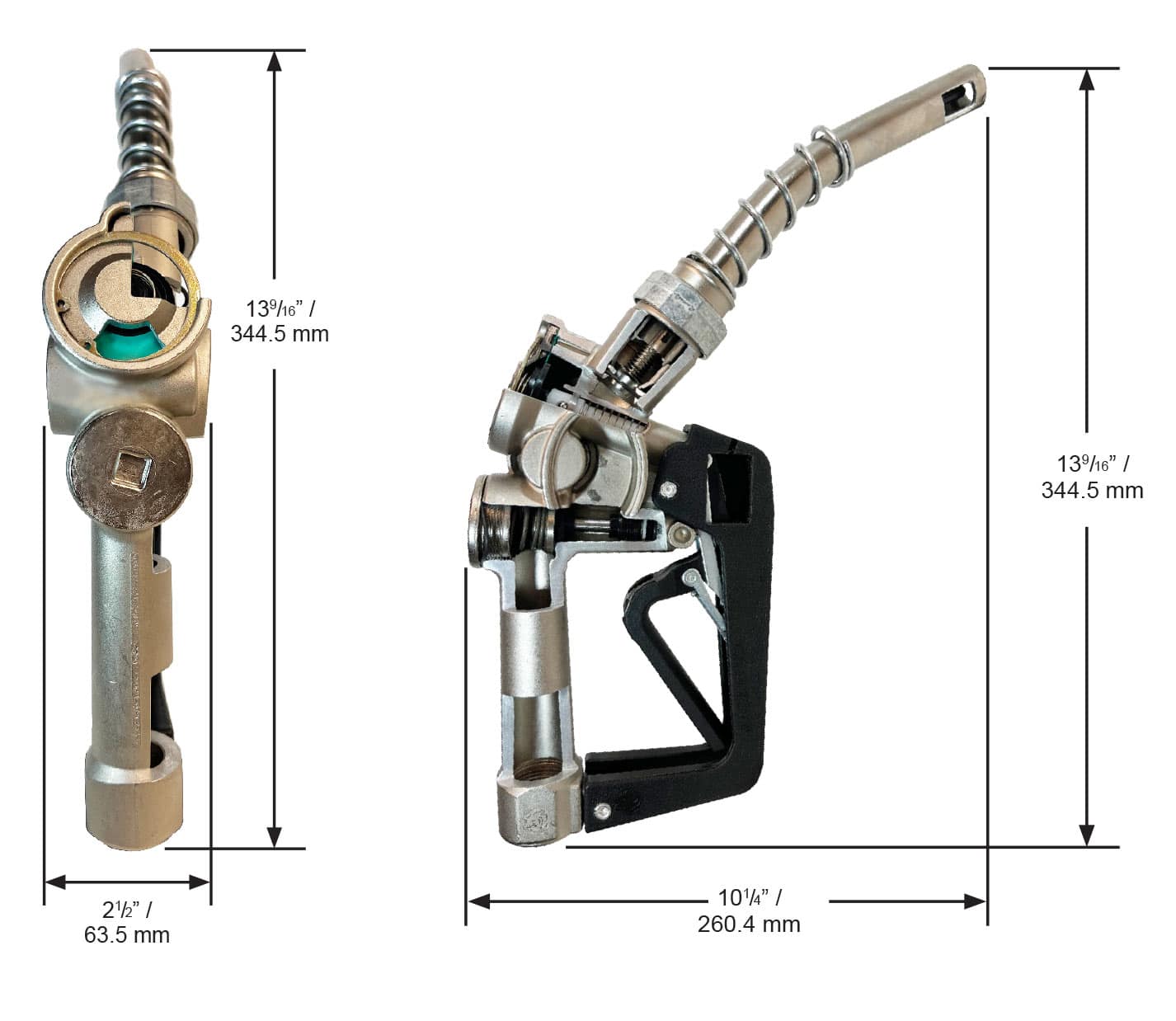

Dimensions
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Add a Swivel
Choose …
006350: 3/4” M x 3/4” F NPT Multi-Plane E85 Swivel
Add a Spout
Choose …
006207: Unleaded E85 Spout Assembly
Choose Guards
Choose …
003440: Mate Easy-on Package
003795: Mate Guard
004145: Full Grip Guard
007361: Black Handle Cover
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
