Home | Husky | Nozzles | VIII Nozzle
#173312: High Volume Truck, Automatic Shut-Off

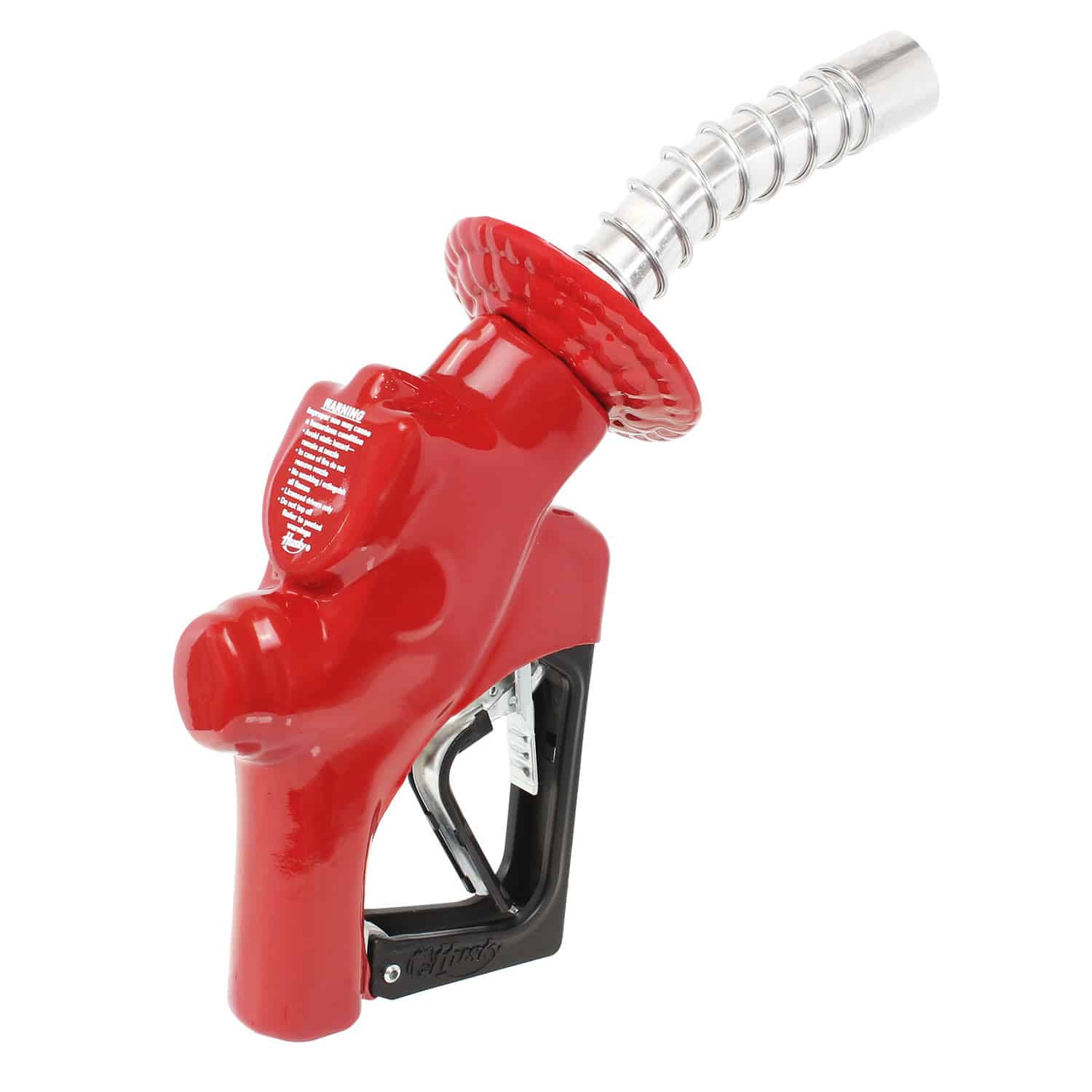

VIII Nozzle
1" Heavy Duty Diesel Nozzle without Hold Open Clip, with Polymer Handguard, 1808 Waffle Splash Guard and Spout Bushing
Product Info
Resources
Specs / Construction
Automatic shut-off nozzle with polymer handguard for truck stop and other high volume full-service, self-service and unattended stations.

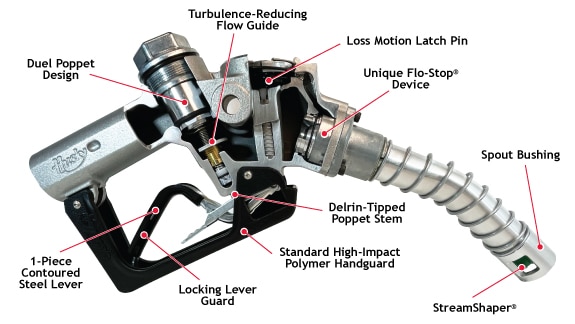

Features/Benefits
  • VIII nozzle shuts off when the gas tank is full.
  • Optional aluminum bushing retains spout spring and keeps spout from rounding-in: the two leading causes of clicking off and splash-back spillage.
  • Nozzle is equipped with a unique Flo-Stop® device the shuts off the nozzle if it falls from the fill neck or raises above the horizontal.
  • StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
  • Strong flow (up to 75 gpm / 283.9 Lpm)
  • Dual poppet design equalizes pressure on both sides main poppet valve in order to aid in lifting the lever, and ultimately opening the main poppet valve for full flow.
  • Optional cold weather seals are rated to -40°F/C.
  • Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
  • Comes standard with smooth full grip guard and 1808 waffle splash guard.
Construction

Body: One piece sand cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel with hard polymer lever cover
Inlet: 1” / 25.4 mm NPT

Flow Rate
Flow chart image for VIII and VIIIS nozzles
Dimensions
VIII dimensional drawing image
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
000087: 1” M x 1” F NPT Multi-Plane Swivel
000095: 1” M x 1” F NPT 70° Pump Swivel
003395: 1” M x 1” F NPT Multi-Plane Restricted Swivel
004860: 1” M x 1” F NPT Multi-Plane High Flow Swivel
Choose a Safe-T-Break®
Choose …
002276: 1” F x 1” F NPT Reconnectable Safe-T-Break®
005231: 1” F x 1” F NPT Low Pull Reconnectable Safe-T-Break®
005812: 1” F x 1” F NPT Non-Reconnectable Safe-T-Break®
006301: 1” F x 1” F NPT Non-Reconnectable PCC Safe-T-Break®
008331: 1” F x 1” F NPT CK Reconnectable MAGBREAK®
Choose Swivel/STB Combo
Choose …
005969: 1” M NPTF Multi-Plane Swivel connected to 1” F NPT Reconnectable Safe-T-Break®
Choose Spout
Choose …
002279: Complete Spout Assembly with Spout Bushing
003589: Complete Long Spout Assembly with Spout Bushing
005017: Complete Spout Assembly without Spout Bushing
011043: Complete Spout Assembly without Spout Bushing and Small Spout Spring
007218: Complete Long Spout Assembly with Spout Bushing
011043: Complete Spout Assembly without Spout Bushing, with Small Spout Spring
011129: Complete Long Spout Assembly without Spout Bushing and UL Groove
010434: Unleaded Long Spout with StreamShaper®
Choose Pressure/Vacuum Vent
Choose …
004620: 2” Slip-On Pressure Vacuum Vent
004885: 2” Thread-On Pressure Vacuum Vent - NPT
005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT
Choose Accessories, Testing and Maintenance
Choose …
003593: Hold Open Clip Kit
006645: Plunger Assembly Lift Tool
007089: Nozzle Service Kit
Choose Guards
Choose …
001808: Waffle Splash Guard
004740: Full Grip Guard
005494: Lever Guard
005516: Full Grip Reguard
006628: POPD® S Clear Cover
007352: POPD® S Full Grip Guard
007999: POPD® H Clear Cover
008167: POPD® S Mate Guard
008168: POPD® H Mate Guard
008177: POPD® EZS Nozzle Guard
008178: POPD® EZH Nozzle Guard
008186: POPD® H Full Grip Guard
008193: POPD® H Full Grip Reguard
008194: POPD® S Full Grip Reguard
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
