#337015N: Farm & Commercial, Automatic Shut-Off

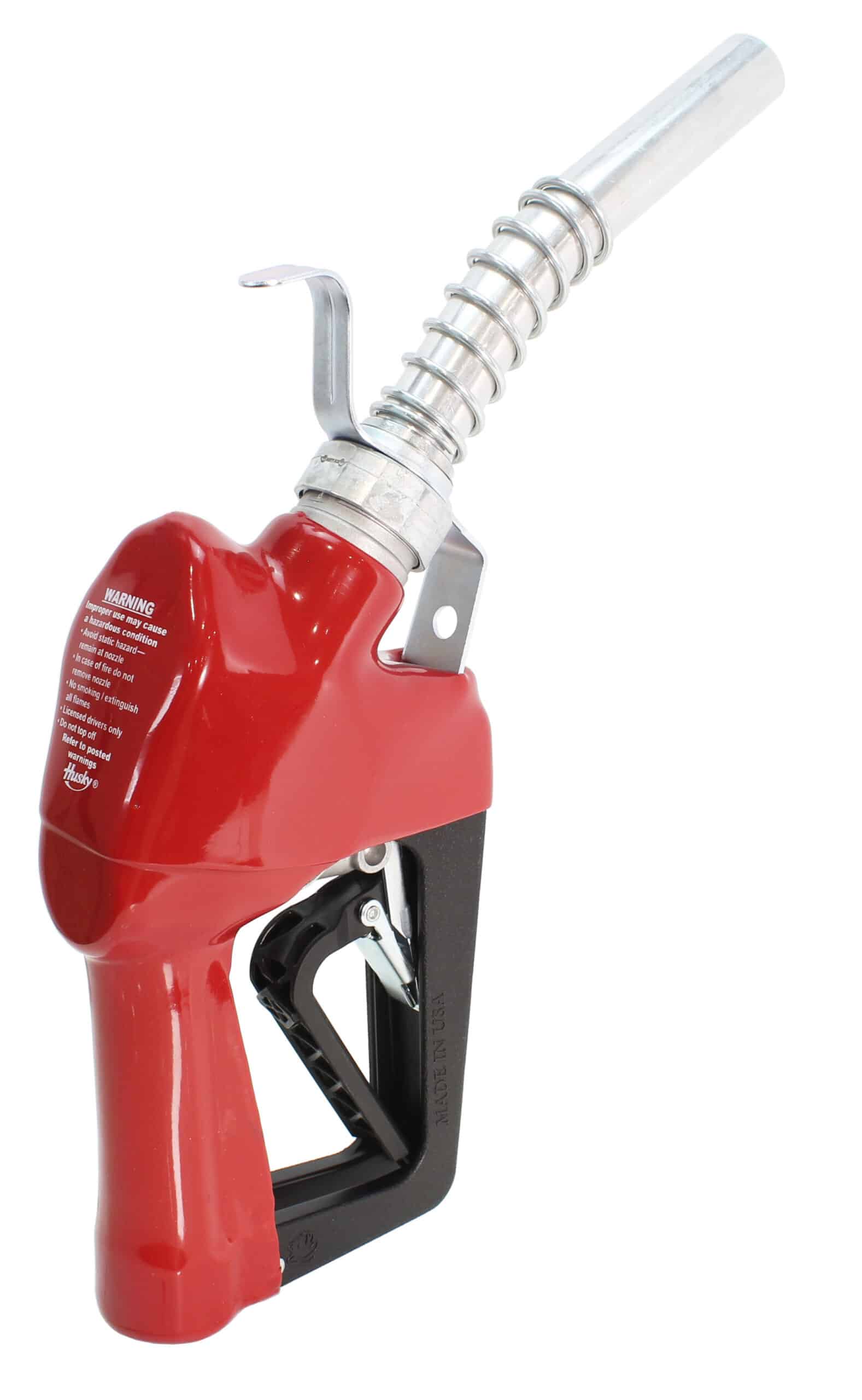

XFS Nozzle

3/4" Light Duty Diesel Nozzle with Single Notch Hold Open Clip

Product Info

Resources

Specs / Construction

Automatic shut-off nozzle for farm, 12V skid tanks and consumer pump applications.

Features/Benefits

XFS® nozzle shuts off when the gas tank is full.
Stainless steel reinforced unleaded spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or raises above the horizontal.
Unleaded StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Strong flow (up to 18 gpm / 68.1 Lpm)
Dispenses 10 gpm / 37.8 Lpm at only 5.6 psi / 0.38 bar (unleaded nozzle).
Has built-in hook and fits “holster lock” of skid tank pumps.
Optional cold weather seals are rated to -40°F/C.
Comes standard with smooth full grip guard.
Not for use with gravity tanks.
Not legal for retail dispensing applications.

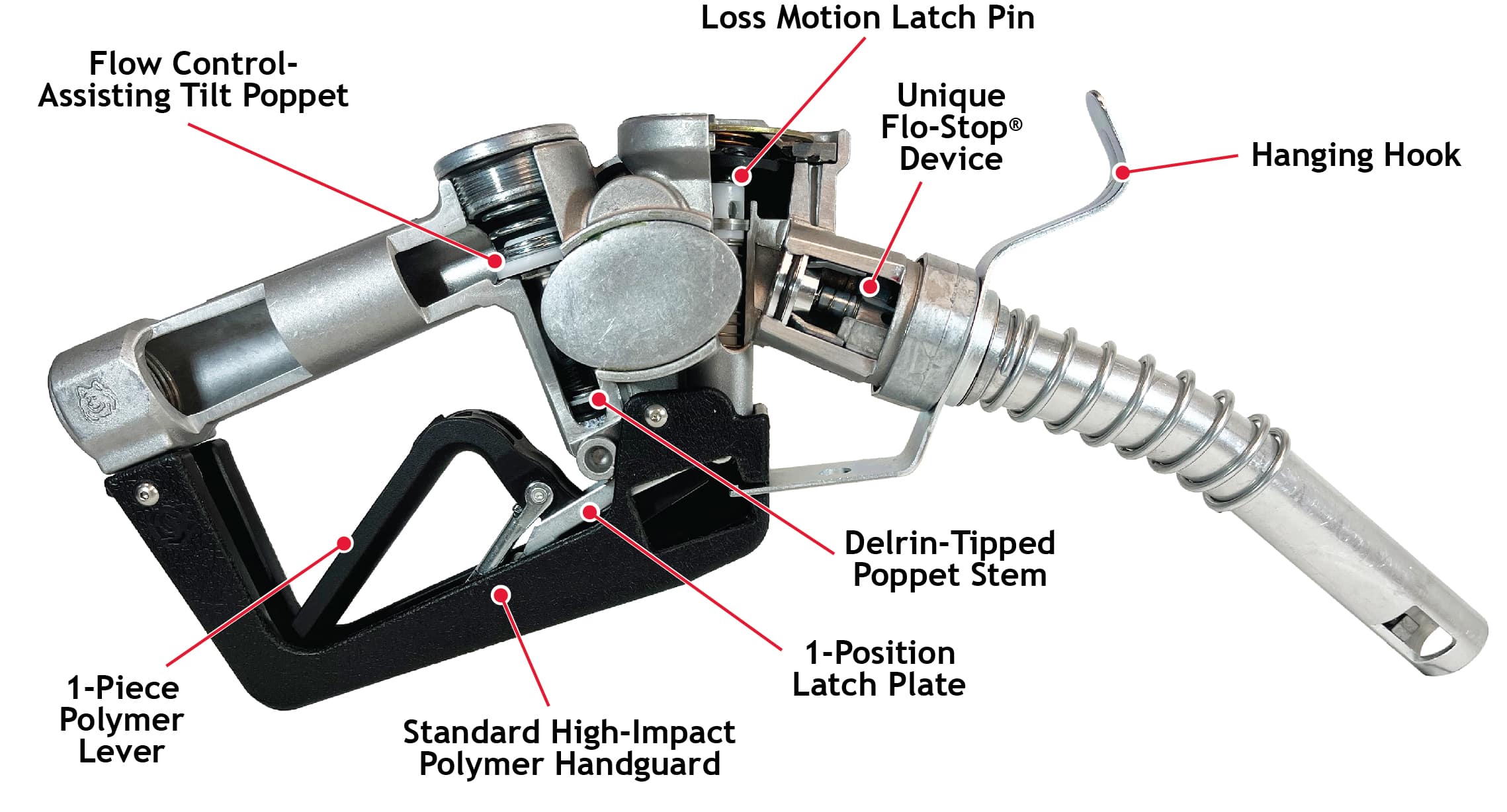

Construction

Body: One piece die cast aluminum with high-impact polymer handguard
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece polymer
Inlet: 3/4” / 19 mm BSP

Flow Rate

Dimensions

Configure a Complete Fueling System

Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.

Add Accessories / Options

Make it an EZ-Connect®

Choose a Swivel

Choose …

002771: ¾” M x ¾” F BSPP 90° Pump Swivel

003590: ¾” M x ¾” F BSPP Multi-Plane Swivel

002771A: ¾” M x ¾” F BSPP 90° Pump Swivel - Atex

003590A: ¾” M x ¾” F BSPP Multi-Plane Swivel - Atex

Choose a Safe-T-Break®

Choose …

002273: ¾” F x ¾” F BSP Non-Reconnectable Safe-T-Break®

003385: ¾” F x ¾” F BSP Reconnectable Safe-T-Break®

009910: ¾” F x ¾” F BSPP Reconnectable MAGBREAK®

010330: ¾” F x ¾” F NPT Reconnectable High Pull MAGBREAK®

002274A: ¾” F x ¾” F BSPP Non-Reconnectable Safe-T-Break® - Atex

003385A: ¾” F x ¾” F BSPP Reconnectable Safe-T-Break® - Atex

Choose Swivel/STB Combo

Choose …

007085: ¾” M BSPP Multi-Plane Swivel connected to 3¾” F BSPP Reconnectable Safe-T-Break®

007085A: ¾” M BSPP Multi-Plane Swivel connected to ¾” F BSPP Reconnectable Safe-Break® - Atex

Choose Spout

Choose …

001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®

001473: Unleaded Spout without Flo-Stop®

010353: Light Duty Diesel Long Spout without Flo-Stop®

010434: Unleaded Long Spout without Flo-Stop®

Choose Pressure/Vacuum Vent

Choose …

004620: 2” Slip-On Pressure Vacuum Vent

004885: 2” Thread-On Pressure Vacuum Vent - NPT

005885: 2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT

Choose Accessories, Testing and Maintenance

Choose …

000397: Unleaded Spout Gauge

003593: Hold Open Clip Kit

004490: Conventional Flo-Equalizer® - 10 gpm / 37.9 Lpm

007089: Nozzle Service Kit

007490: Internal Flo-Equalizer® - 10 gpm / 37.9 Lpm

Choose Guards

Choose …

001506: Protection Package

001806: Full Grip Reguard

001807: Waffle Splash Guard with Small Hole

001808: Waffle Splash Guard

001809: Reguard Protection Package

003440: Mate Easy-on Package

003795: Mate Guard

004145: Full Grip Guard

006628: POPD® S Clear Cover

006665: POPD® S Full Grip Guard

007205: POPD® S Full Grip Reguard

007361: Black Handle Cover

007999: POPD® H Clear Cover

008165: POPD® S Mate Guard

008166: POPD® H Mate Guard

008175: POPD® EZS Nozzle Guard

008176: POPD® EZH Nozzle Guard

008185: POPD® H Full Grip Guard

008192: POPD® H Full Grip Reguard

014524: International Mate Package

014530: International Mate Guard

015247: International POPD® H Mate Guard

015253: International POPD® H Mate Package

Please contact your distributor for information on creating an EZ-Connect for this nozzle.

EZ-Connects for this product have not been configured.
